MasterFlex 77112-10 Peristaltic Pump High-Capacity 42LPM, 11-321 RPM, IP66
MasterFlex
Details
-
CategoryPump
-
Dimension17.0in x 25.0in x 19.0in
-

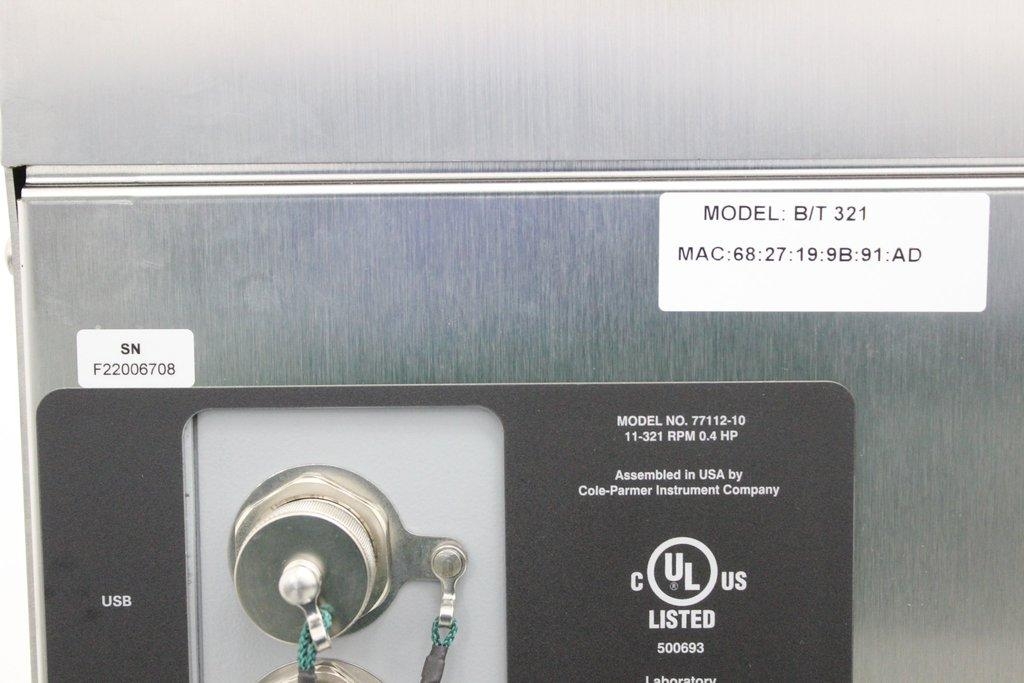

SerialF22006708
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-120/200-240V / 50Hz/60Hz
Description

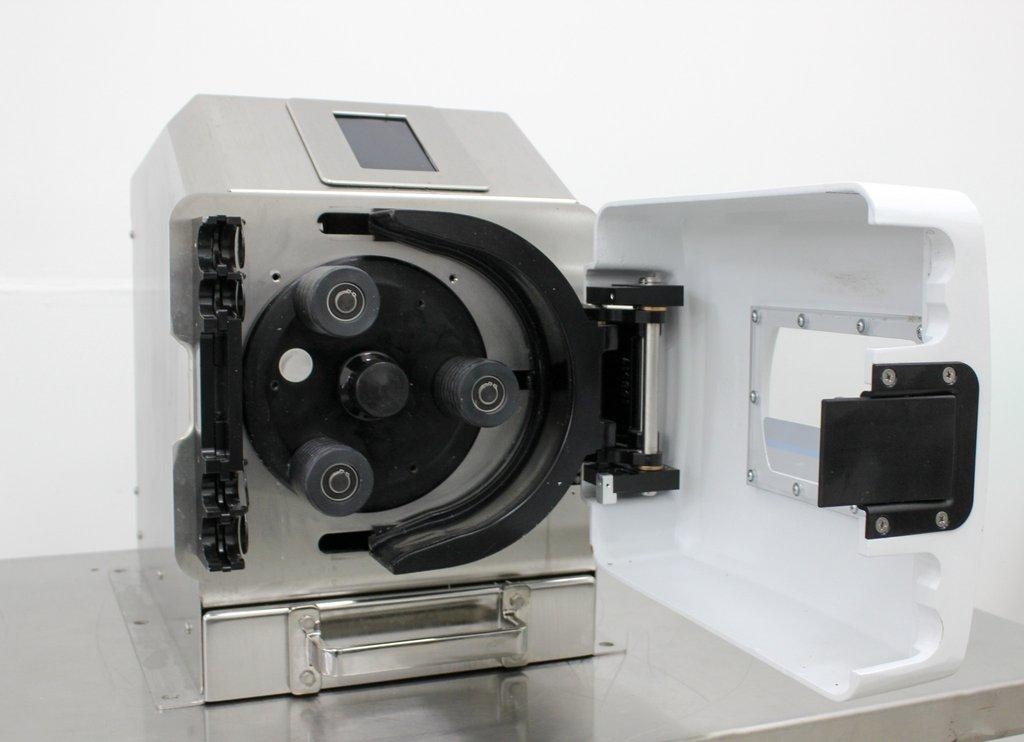

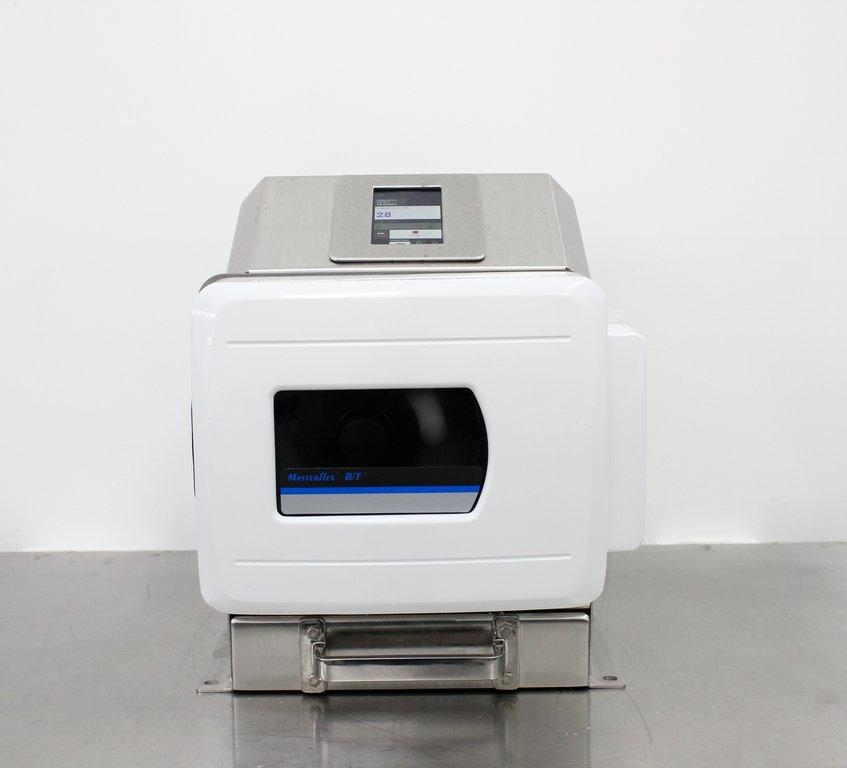

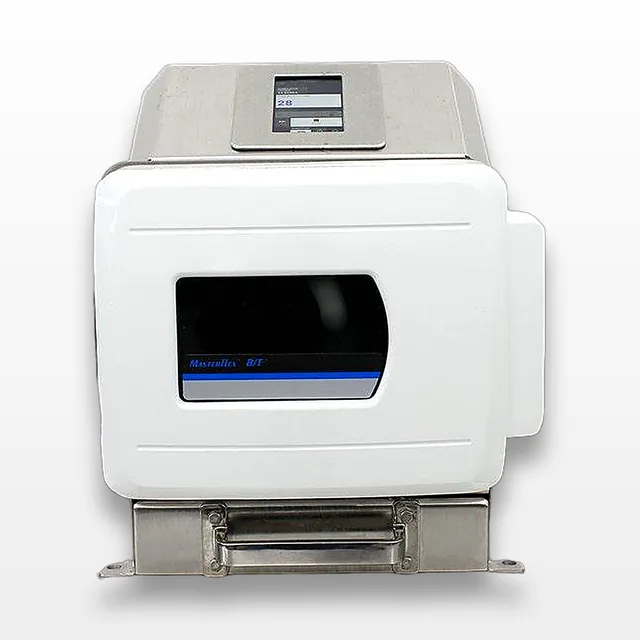

This Masterflex model 77112-10 Peristaltic Pump is in excellent condition, exhibiting minimal prior usage. With flow rates from 0.65 to 42 LPM and speeds of 11-321 RPM, it's suitable for various bulk transfer applications. Built with a robust 316 stainless steel housing, this pump features a reversible motor and external controls accepting multiple inputs/outputs including current and voltage variations. The integrated network capability supports EtherNet/IP and Profibus communication, with MasterflexLive compatibility. Its touchscreen display and universal voltage accommodating 100-120/200-240V at 50/60Hz improve usability. A fine choice for those in need of precision liquid transfer in industrial or laboratory settings.
Key Features
- Flow rates from 0.65 to 42 LPM
- Speed range 11-321 RPM
- 316 stainless steel housing
- Reversible motor
- External control with input/output capabilities
- EtherNet/IP and Profibus network compatibility
- MasterflexLive compatible

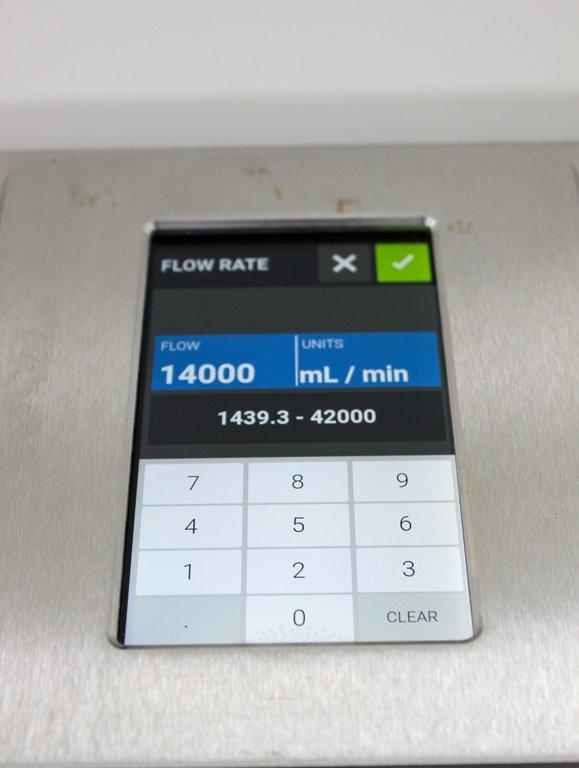

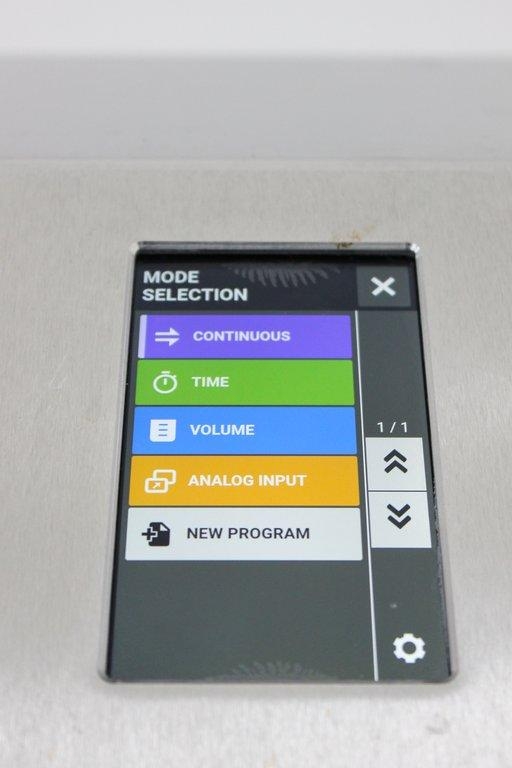

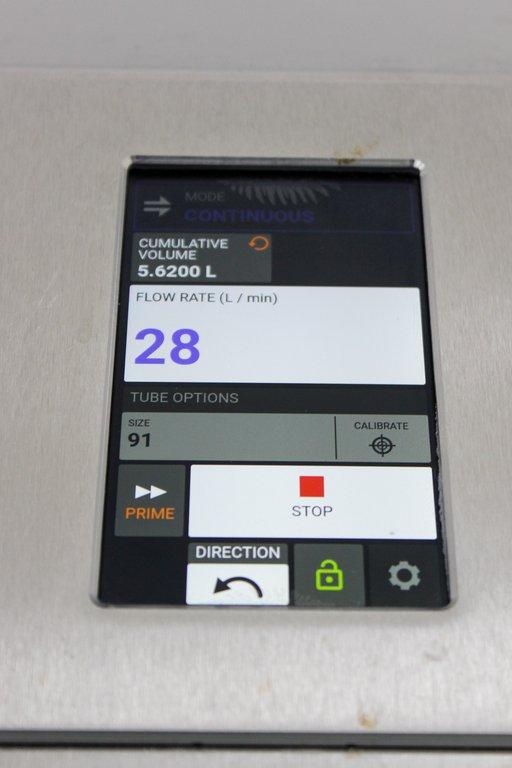

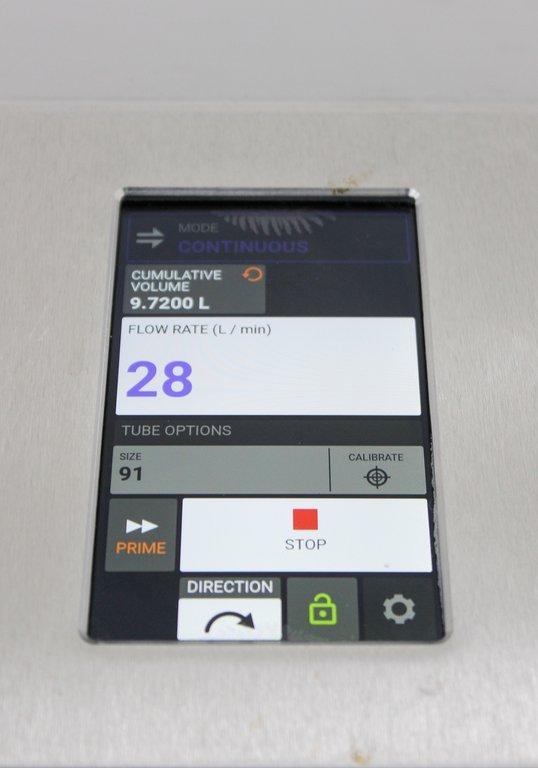

- 5” capacitive touchscreen display
- Universal voltage: 100-120/200-240V
Specifications
- Flow capacity: 0.65 to 42 LPM (0.17 to 11.1 GPM)
- RPM: 11 to 321
- Motor torque: Starting: 1130 N•cm, Running: 1017 N•cm
- Reversible: Yes

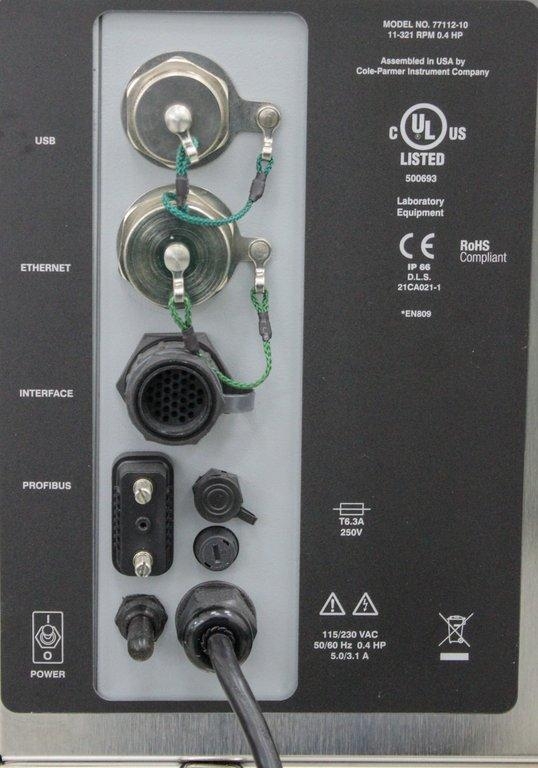

- External control - input: 0 to 20 mA, 20 to 0 mA, 4 to 20 mA, 20 to 4 mA; 0 to 10 V, 10 to 0 V, 0 to 5 V, 5 to 0 V; Start/Stop, Direction (CW/CCW), Prime via contact closure
- External control - output: 0 to 20 mA, 20 to 0 mA, 4 to 20 mA, 20 to 4 mA; 0 to 10 V, 10 to 0 V, 0 to 5 V, 5 to 0 V; Tach output, Motor running, Open head, Local/Remote, General alarm
- Network communication: EtherNet/IP, Profibus, MasterflexLive
- Voltage: 90 to 260V, universal voltage autoselecting
- Motor type: Continuous duty, TENV, BLDC
- Motor size: 370 W (0.5 hp)
- Display: 5” TFT/RGB touch screen, 800 x 480 pixels
- Speed regulation (repeatability): ±0.1%

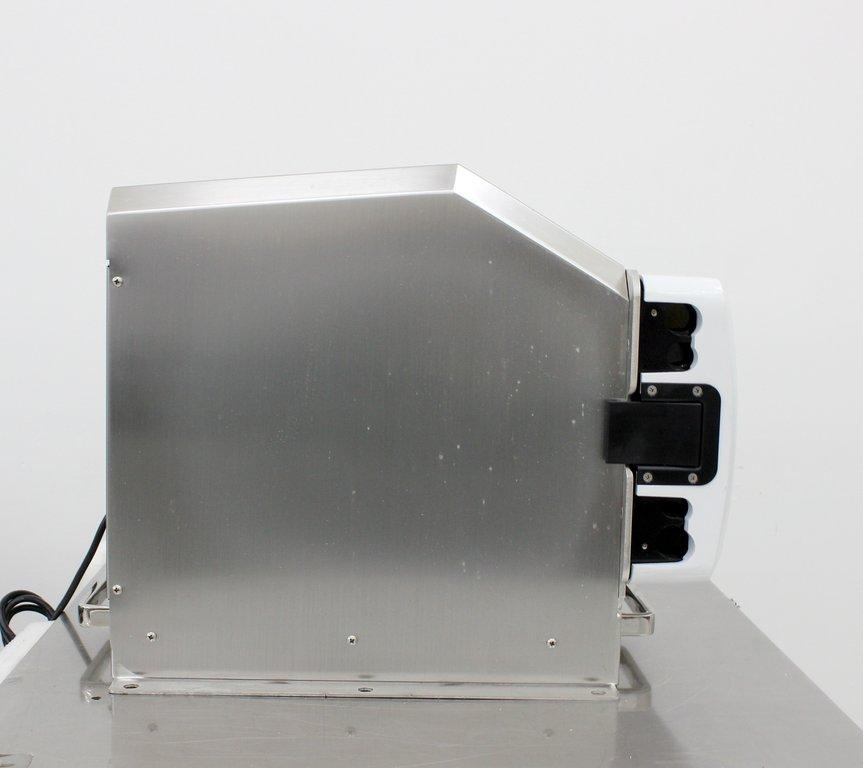

- Housing materials: 316 stainless steel housing
- Operating temperature: 0 to 40°C
- IP rating: IP66
Weight
Imperial: 144.0 Pounds
Metric: 65.32 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 30.0 lb x 22.8 lb
Metric: 51.82 cm x 76.2 cm x 57.91 cm
Harmonized Code
84133000
Harmonized Code Details
84133000: Fuel, lubricating or cooling medium pumps for internal combustion engines; this code is used as it covers a broad category of machinery pumps similar to a peristaltic system.
