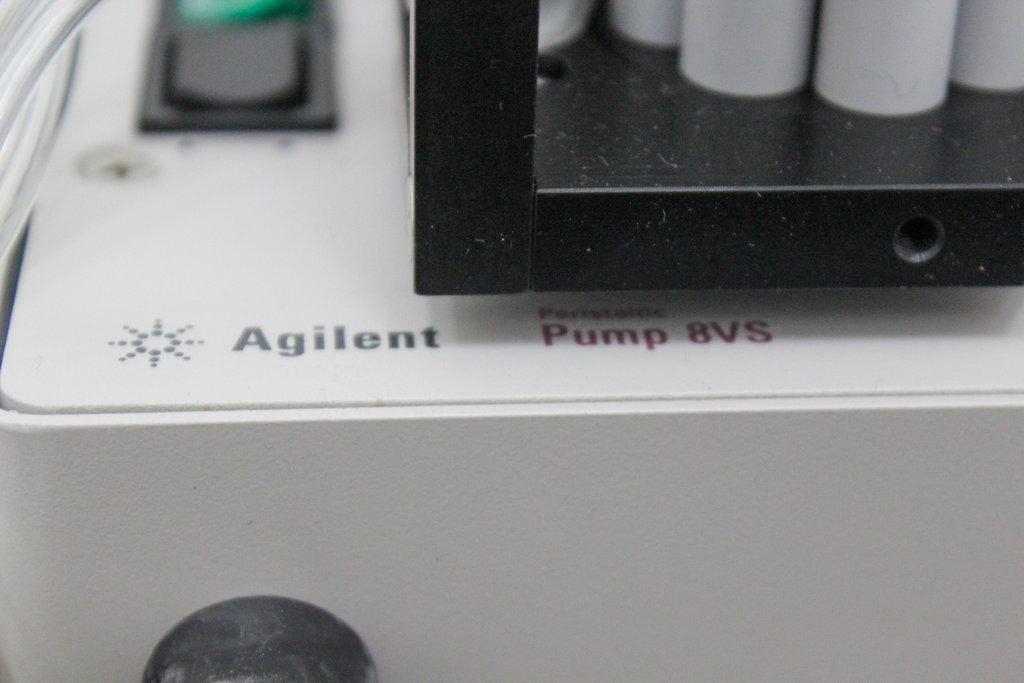

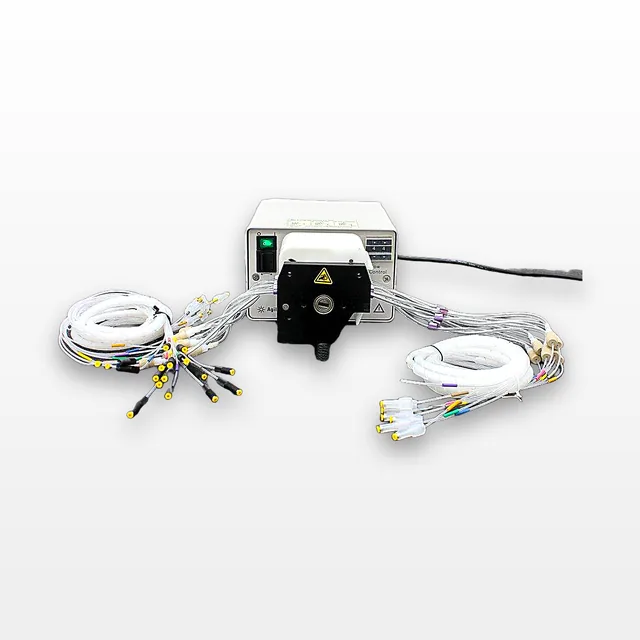

Agilent Technologies 89092-AO Peristaltic Pump 8VS for Spectrophotometer
Agilent Technologies
Details
-
CategoryPump
-
Dimension11.0in x 7.0in x 5.0in
-
Serial518231-3
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

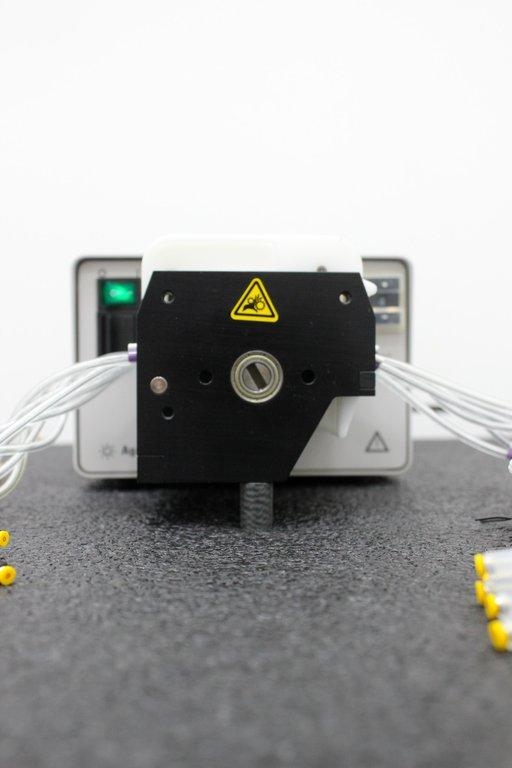

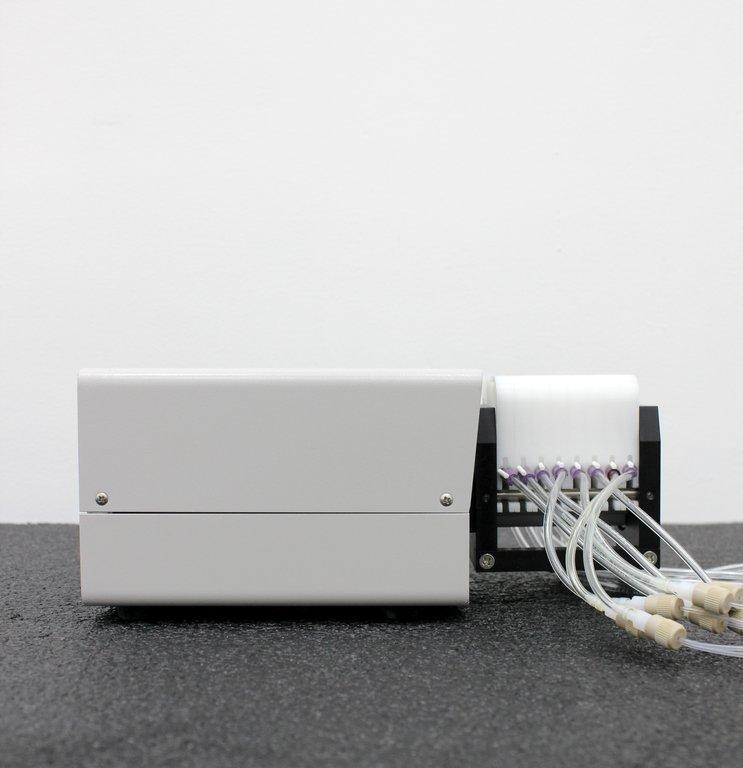

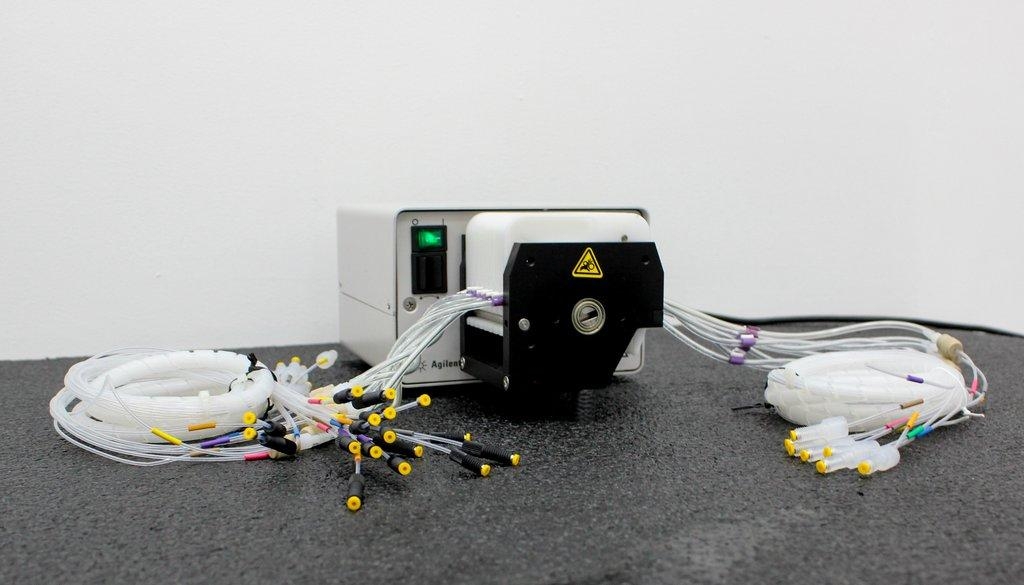

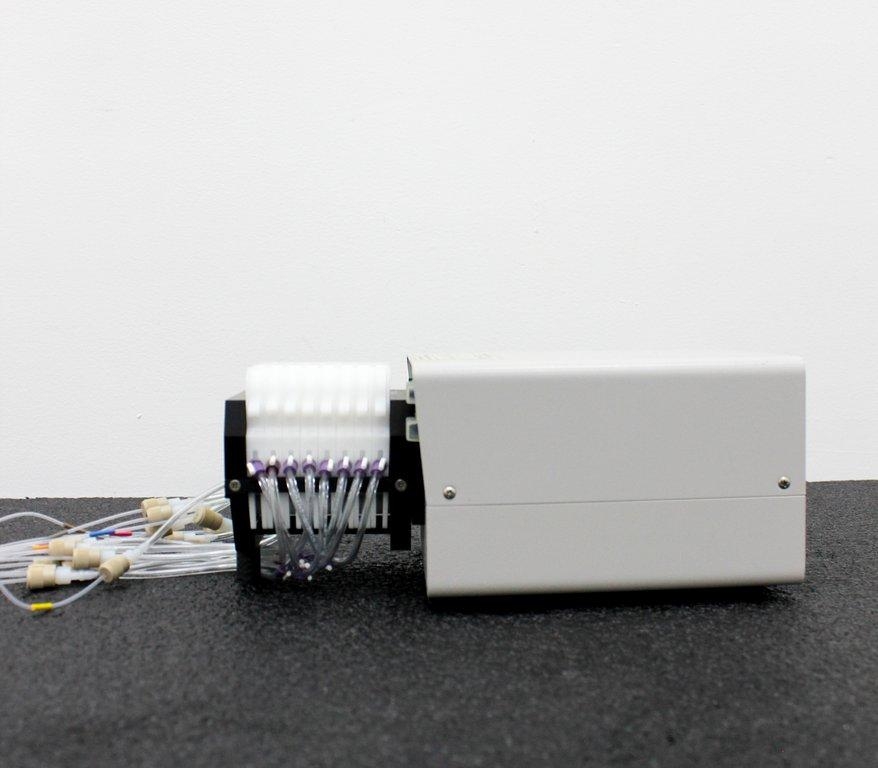

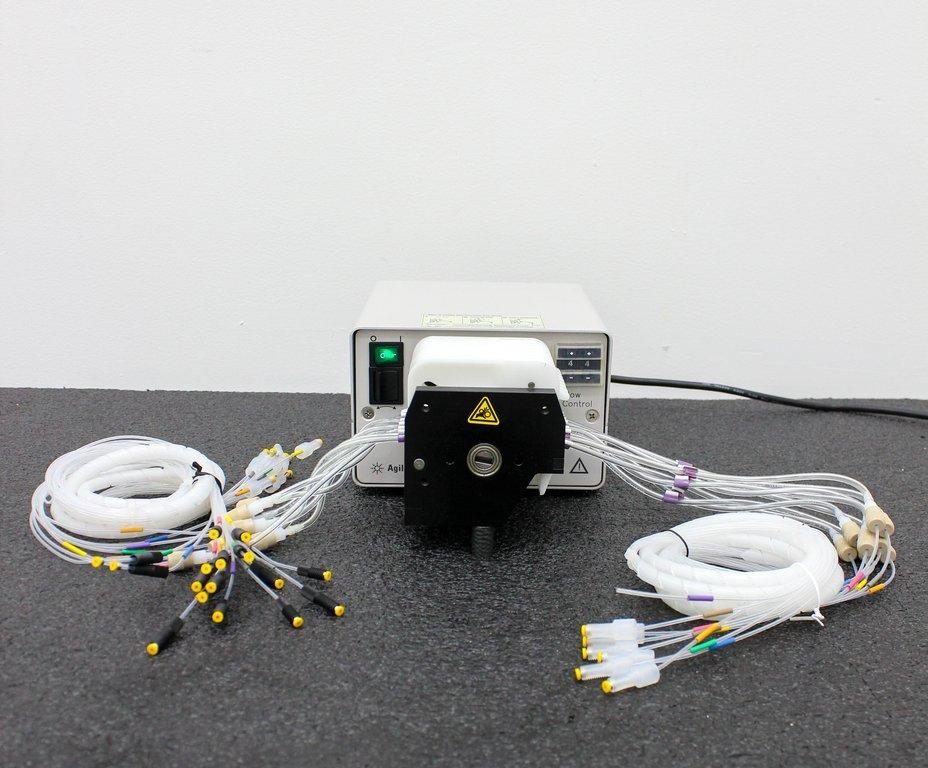

The Agilent Technologies 89092-AO Peristaltic Pump 8VS is a turnkey multichannel peristaltic pump designed for the Agilent 8453 UV-visible spectrophotometer, ideal for simultaneous sampling applications. This refurbished system is fully functional and ready to use, featuring eight channels, each capable of pumping up to approximately 13 ml/min and withstanding pressures up to 2 bar. The pump can be controlled both remotely and manually, and supports up to 8 tubing-cassettes via its pressure-wheel assembly. With a power supply requirement of 100–120 VAC at 50–60 Hz, the device offers variable speed settings from 1 to 67 rpm. Also included is one power cord. The unit comes from the United States and has been inspected to meet specifications, resembling a near-new appearance. Operating conditions range from 0 to 40ºC, and it can endure non-operating temperatures as low as -40 to as high as 65ºC.
Key Features
- Eight-channel design for simultaneous sampling
- Flow rate: 2 to ≈13 ml/min per channel
- Pumping pressure: up to 2 bar
- Remote/manual control capability

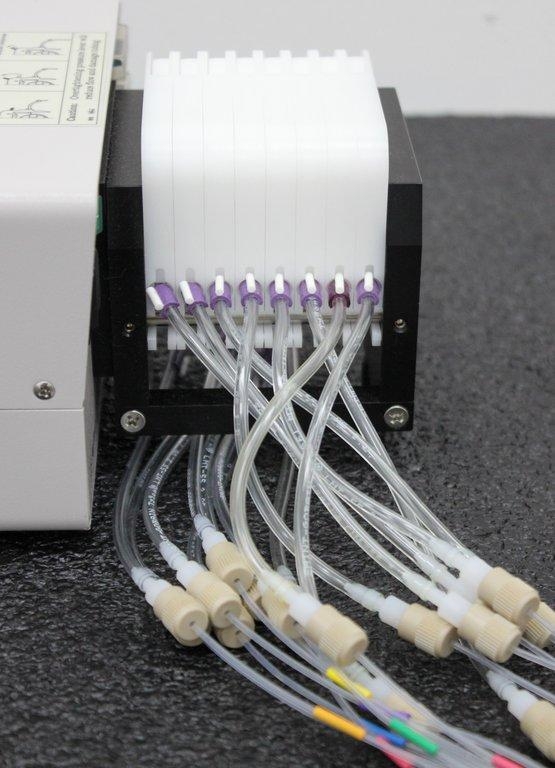

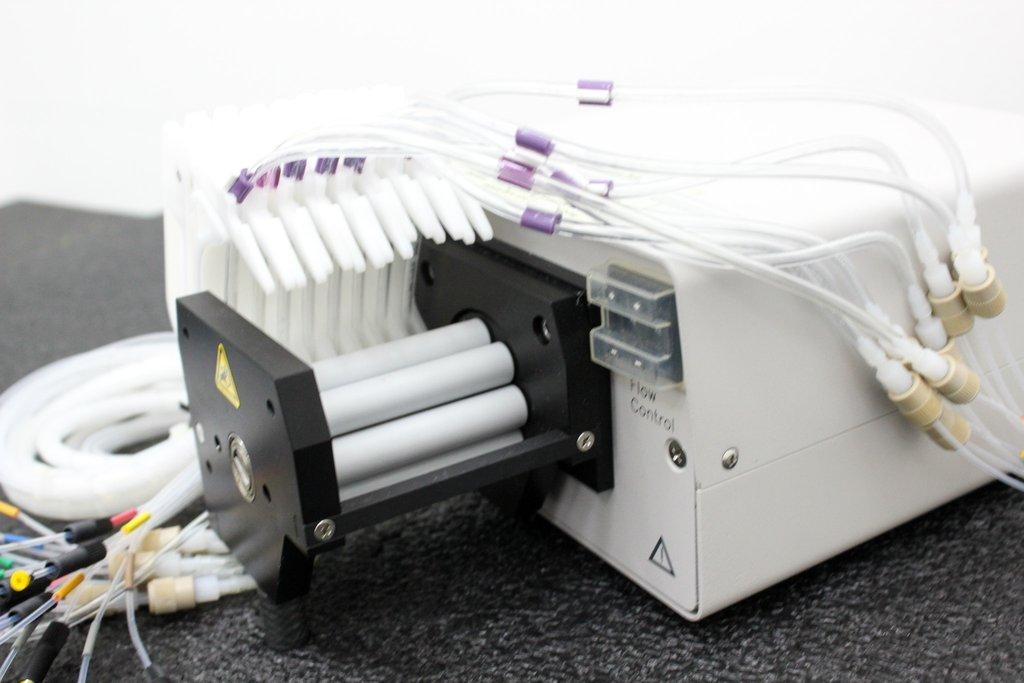

- Pressure-wheel assembly for 8 tubing-cassettes
- Supports regular operation at 1 to 67 rpm
Specifications

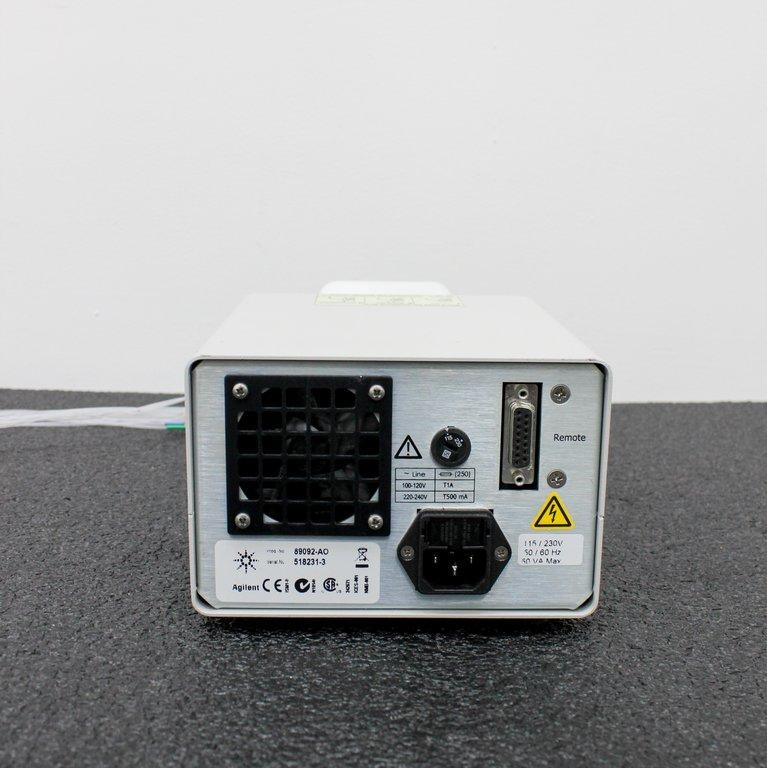

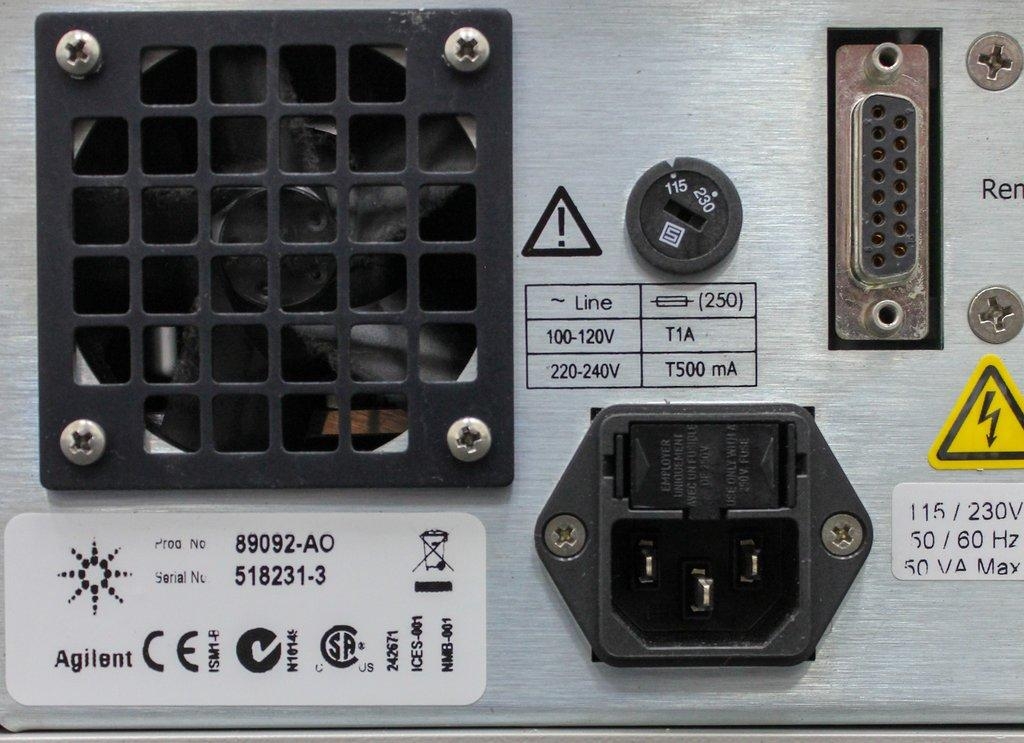

- Power Supply: 100–120 VAC, 50–60 Hz
- Flow Rate: 2 to ≈13 ml/min, with 2.06 mm i.d. tubing
- Speed: 1 to 67 rpm, CW or CCW
- Pumping Distance: up to 7 meters
- Pumping Pressure: up to 2 bar (30 psi)
- Operating Temperature: 0 to 40ºC
- Non-Operating Temperature: -40 to 65ºC
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 8.4 lb x 6.0 lb
Metric: 33.53 cm x 21.34 cm x 15.24 cm
Harmonized Code
8413.81.00
Harmonized Code Details
8413.81.00 describes liquid pumps other than those processing hydraulic fluids. This code fits as the product is a specialized lab pump with multiple channels meant for peristaltic applications.
