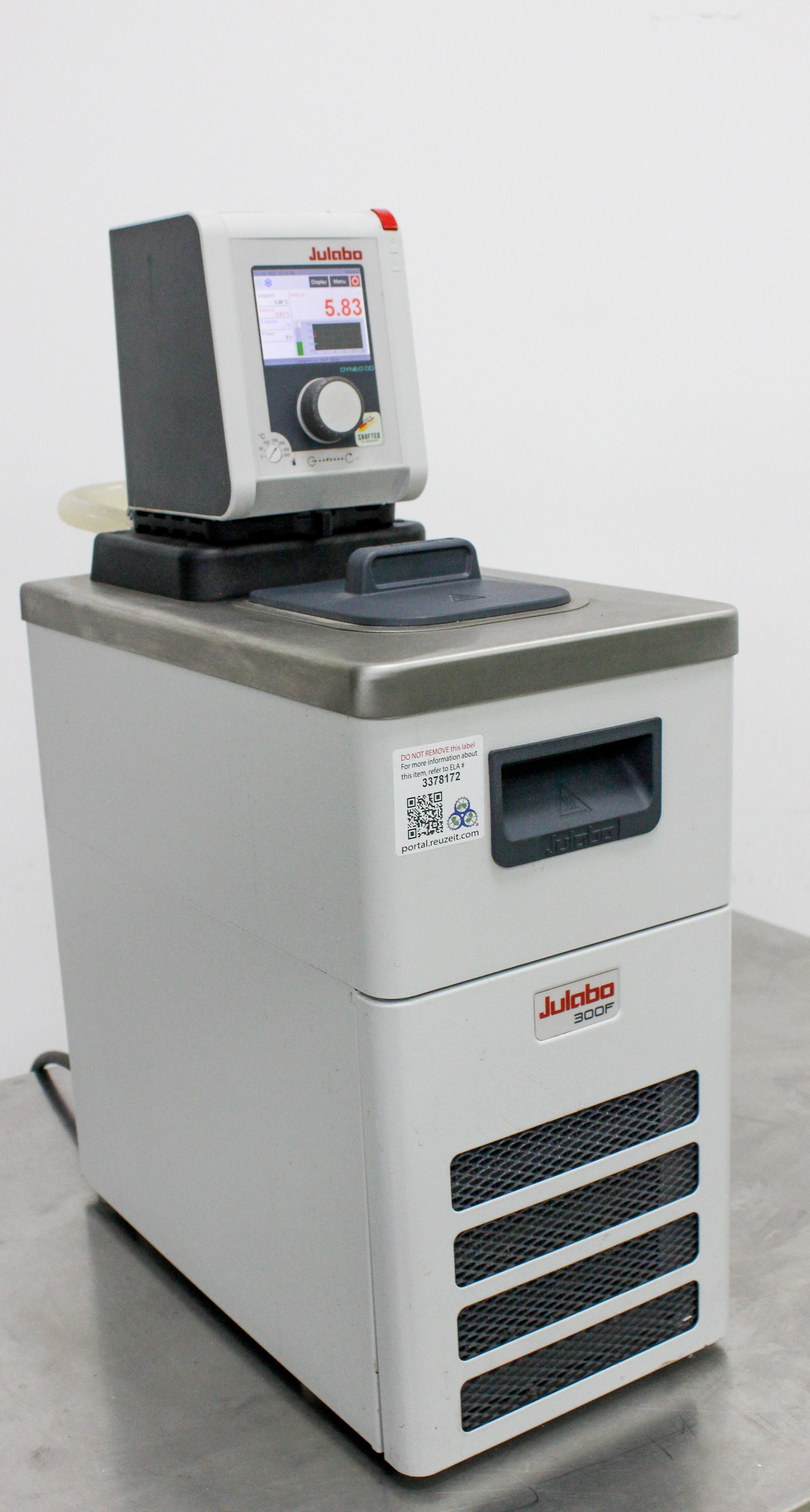

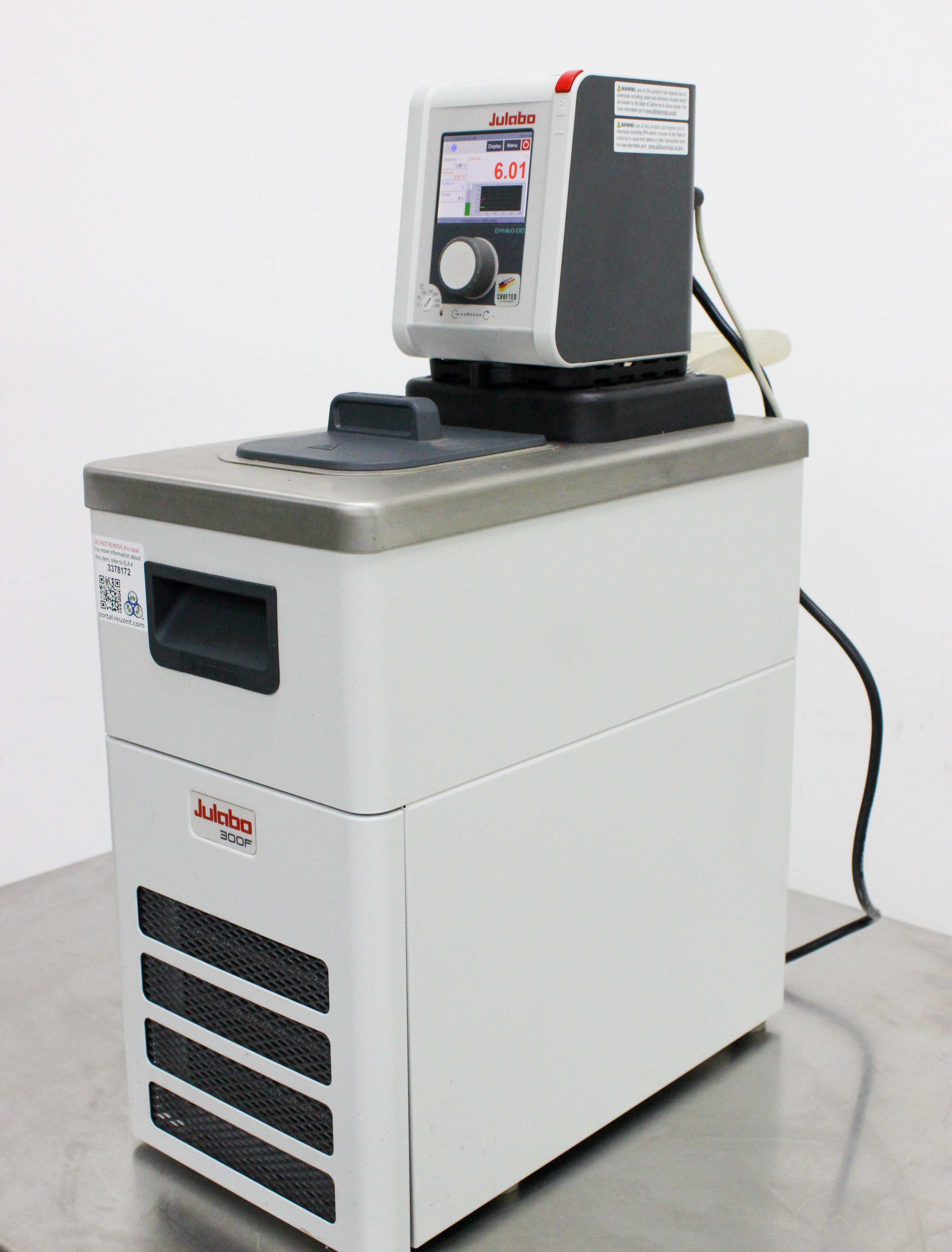

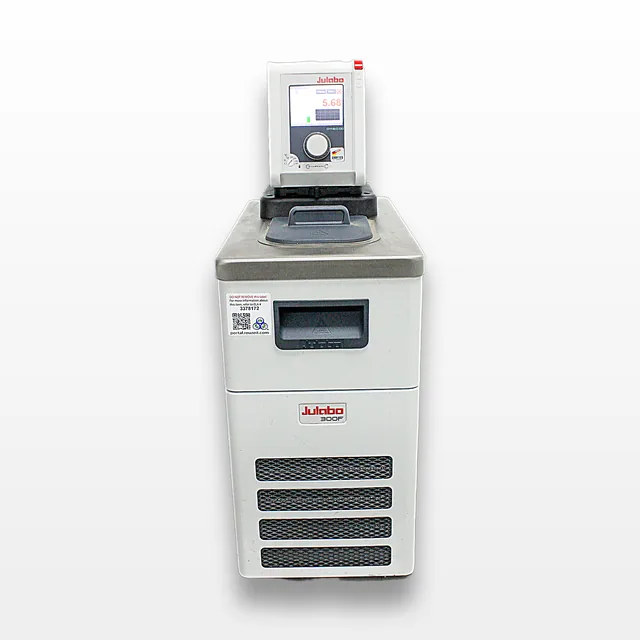

Julabo Dyneo DD 300F Refrigerated Heating Circulator 200°C 4L Volume
Julabo
Details
-
CategoryWater Bath / Circulator
-
Dimension18.0in x 10.0in x 27.0in
-
Serial10364246
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 60Hz US
Description

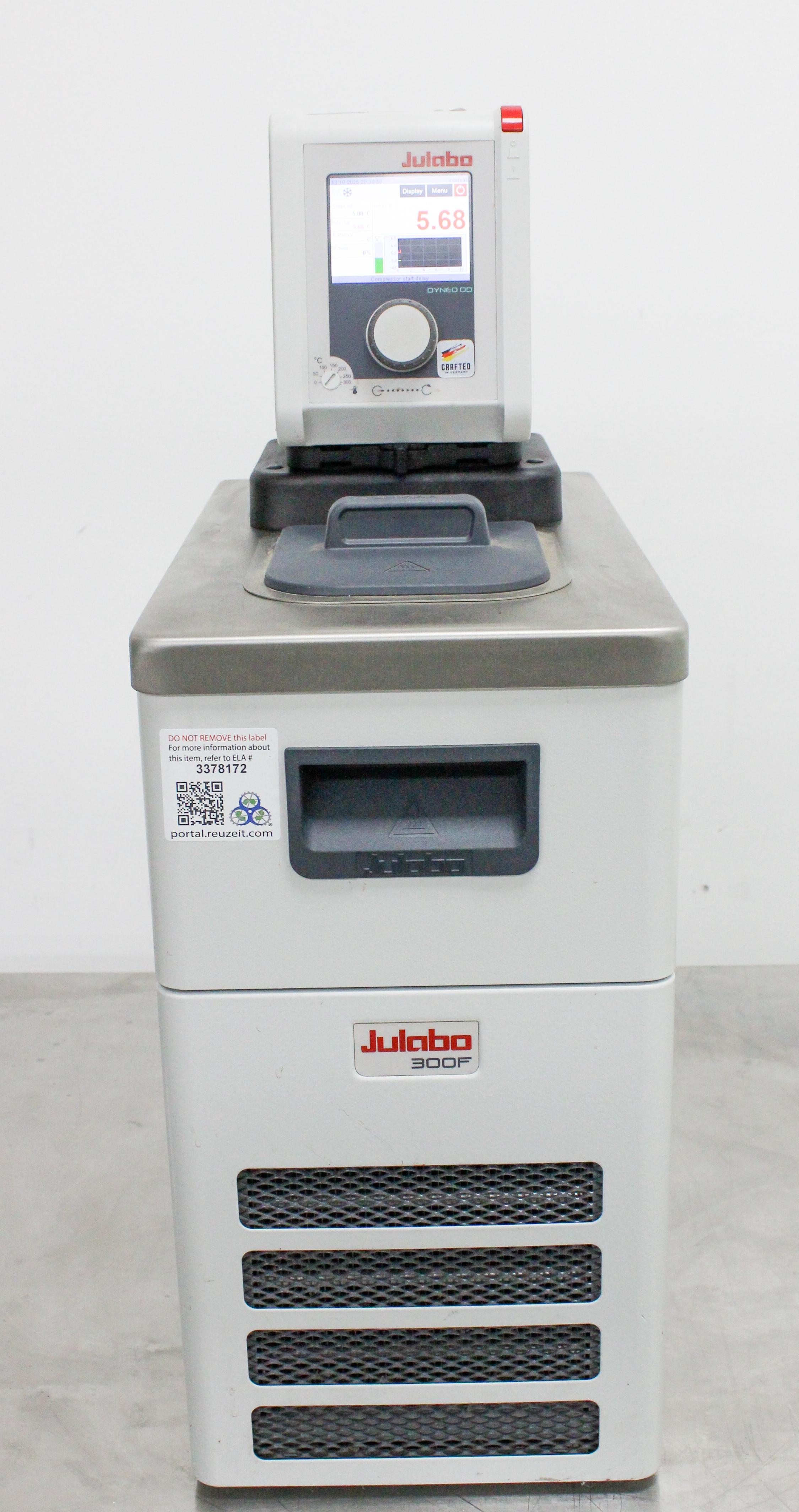

The Julabo Dyneo DD 300F Refrigerated Heating Circulator is in excellent condition, offering a versatile temperature control solution ideal for demanding applications in laboratory environments. It features a working temperature range from -25°C to +200°C, with a temperature stability of ±0.01°C. This device excels with high heating and cooling capacities, ensuring rapid heat-up and cool-down times. Equipped with a powerful adjustable pressure pump offering a flow rate of up to 27 l/min, it supports both internal and external applications. This model includes an easy-to-use interface with a large multilingual TFT display and integrated programmer for precise control. The device has minor cosmetic wear from prior laboratory use but remains fully operational, with verified cooling performance reaching 5°C.
Technician comment

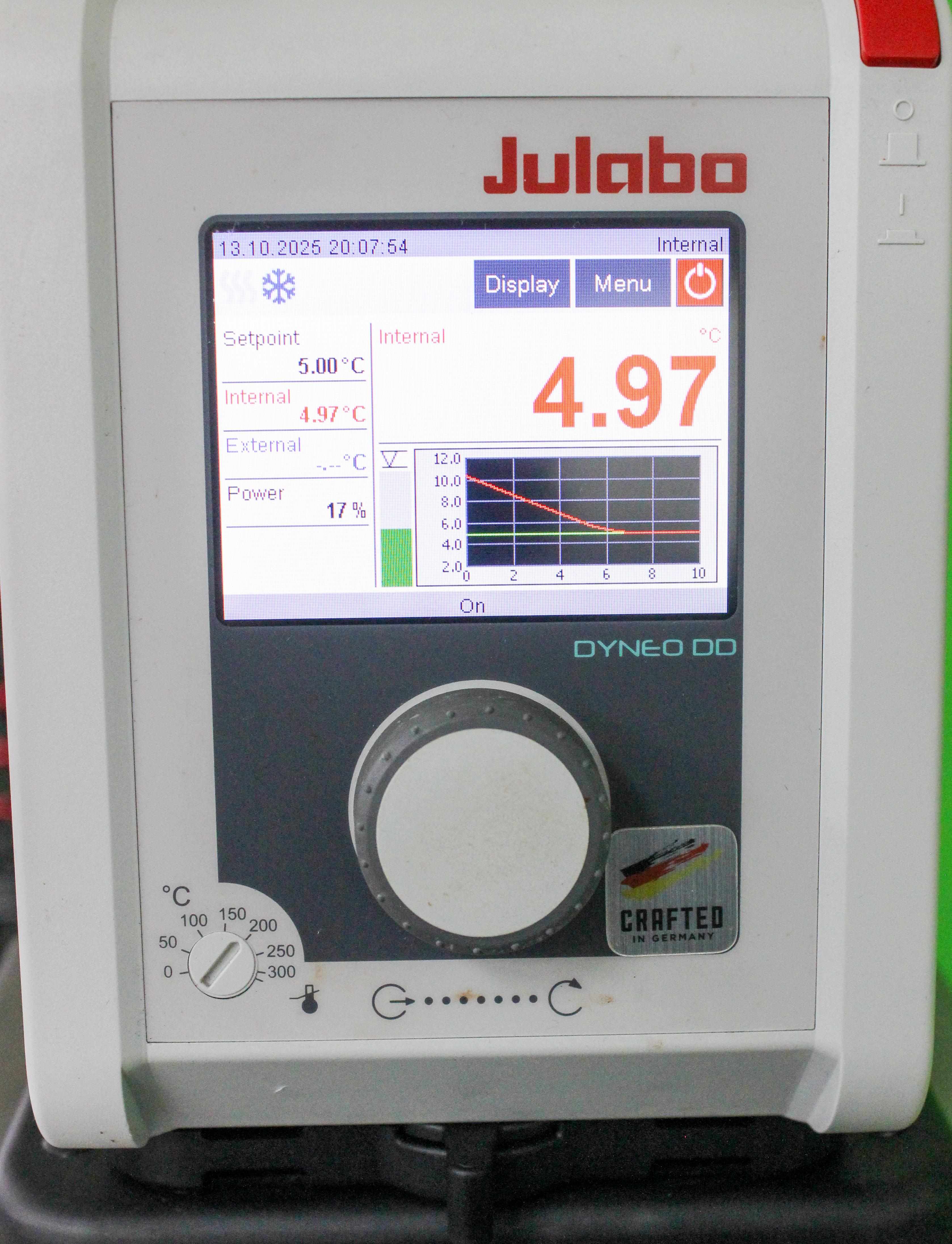

The Julabo Dyneo DD 300F powers on and initializes successfully. The display and controls are responsive, and the circulating pump operates as intended. Cooling performance was tested and verified, reaching 5°C. The unit is in excellent cosmetic condition with minor wear from prior laboratory use.
Key Features
- Versatile temperature range: -25°C to +200°C
- High temperature stability: ±0.01°C
- Powerful pump: 8-27 l/min flow rate

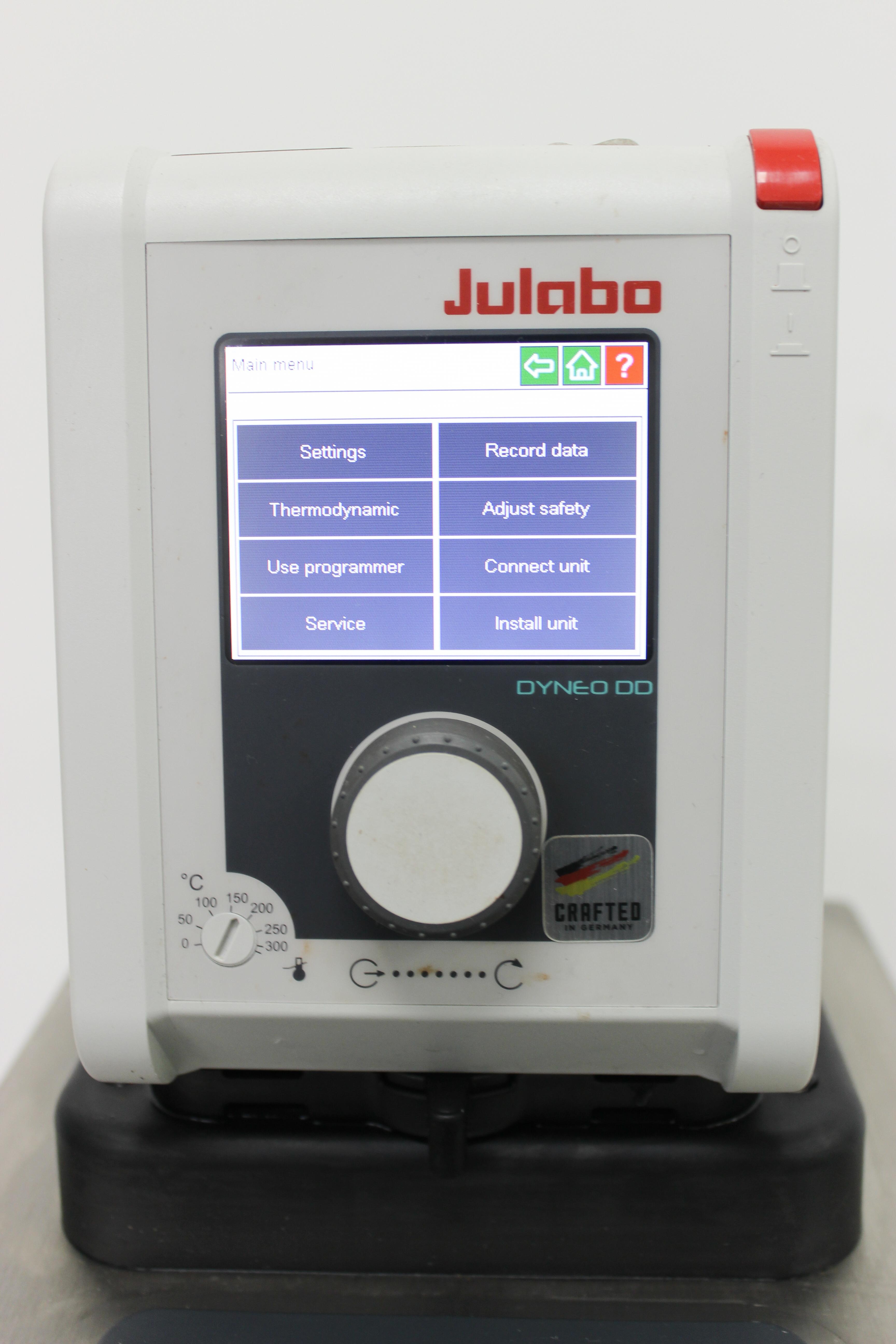

- Multilingual TFT display for easy operation
- Supports internal and external application loops
Specifications
- Working temperature range: -25°C to +200°C
- Temperature stability: ±0.01°C
- Heating capacity: 2 kW
- Flow rate: 27 l/min, pressure: 0.7 bar
- Cooling medium: Ethanol

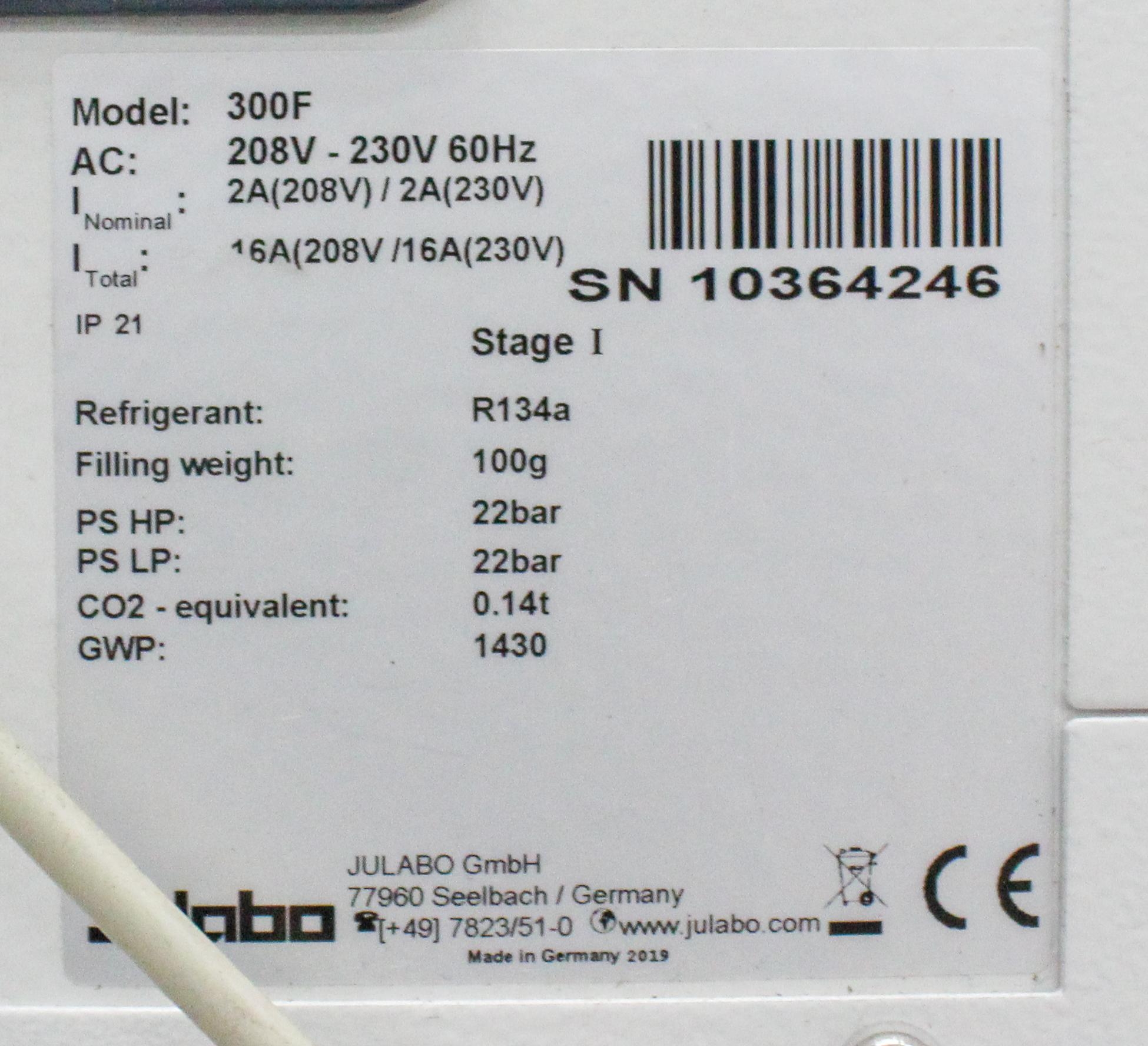

- Refrigerant: R134a
- Usable bath opening: 5.1 x 5.9 / 5.9 cm
- Filling volume: 3 - 4 liters

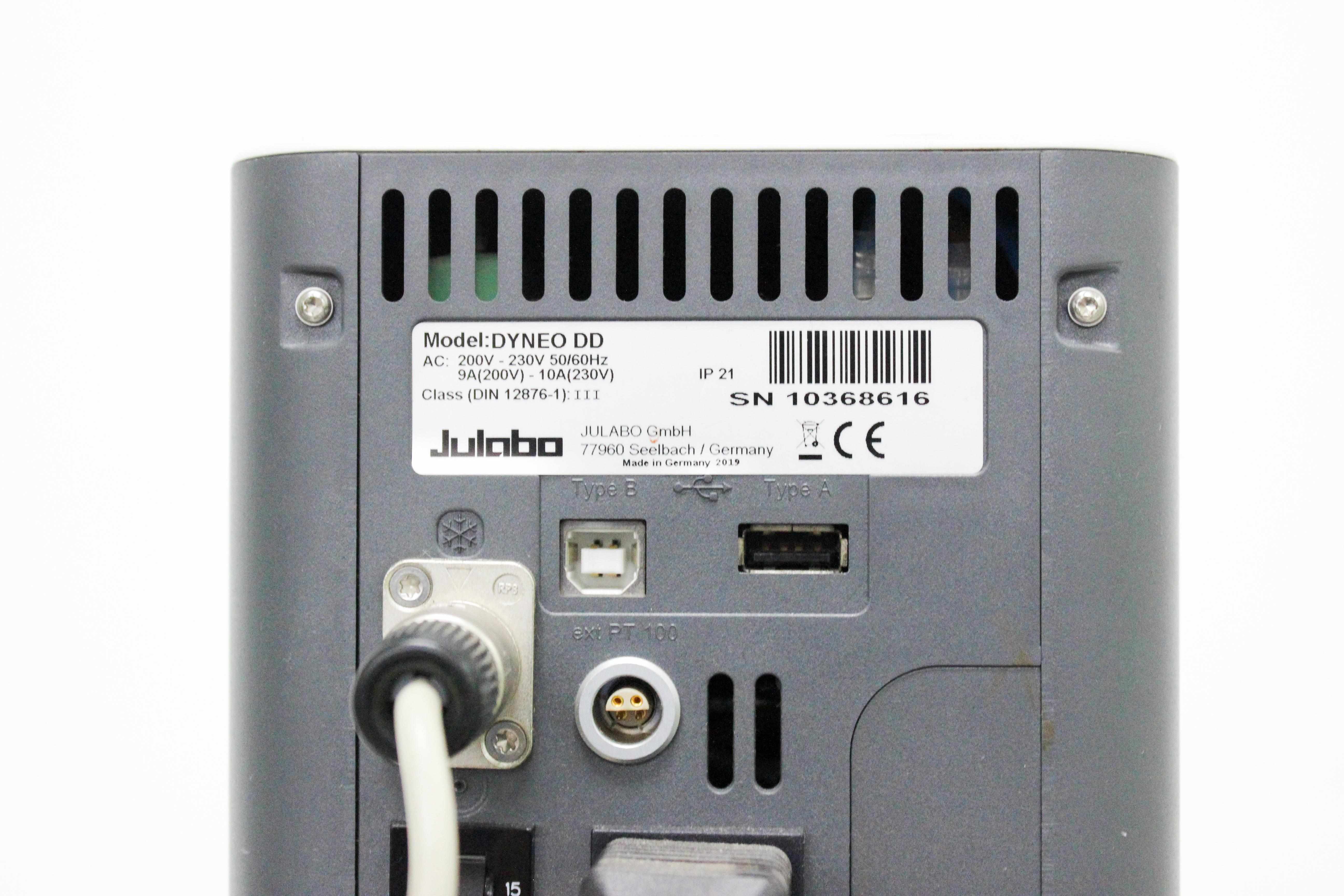

- Interfaces: USB, RS232 (optional)
- External pt100 sensor connection: Integrated
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 12.0 lb x 32.4 lb
Metric: 54.86 cm x 30.48 cm x 82.3 cm
Harmonized Code
841989
Harmonized Code Details
841989 Other machinery, plant or laboratory equipment for temperature control and heat processing. Selected because it aligns with machinery for temperature regulation in industrial or scientific applications.
