MMS Membrane System SW18
MMS Membrane System
Details
-
CategoryFacility
-
Dimension31.0in x 52.0in x 68.0in
-
Serial644300
-
Shipping TypeFreight
-
Manufacturing2021-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

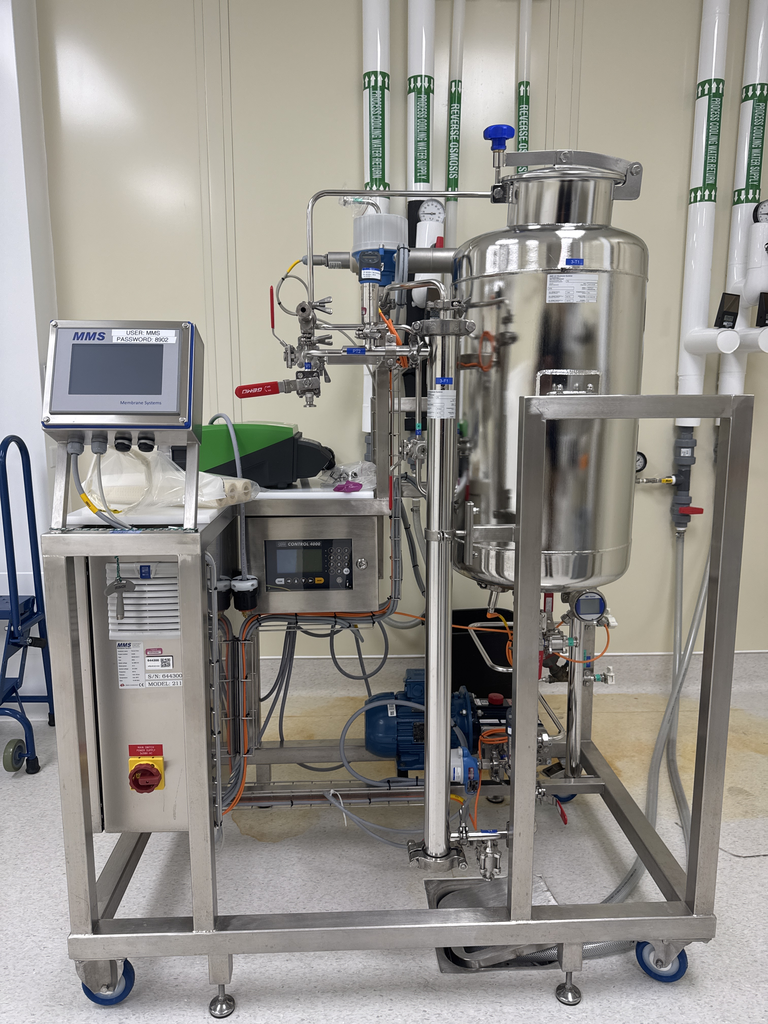

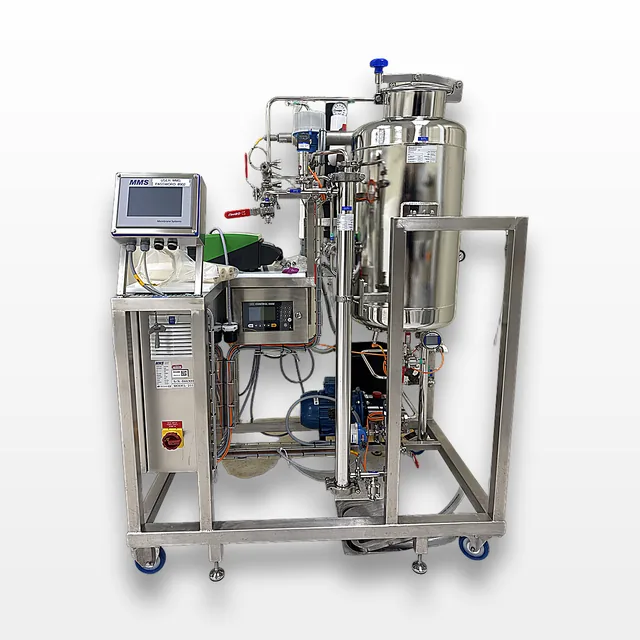

The MMS SW18 System is an easy to use batch laboratory membrane device for microfiltration, ultrafiltration, nanofiltration and reverse osmosis operations. Applications such as fractionation, purification and concentration of molecules can be tested. The Bench System SW18 can be equipped with different types of modules for test applications up to 40 bar. In addition to the specification, notable features include; speed control of the pressure and circulation pump, high operating pressures, testing of spiral wound, ceramic, hollow fibre and tubular elements, multitube heat exchanger for temperature regulation, and HMI interface with data logging. This system has applications in various sectors including food & extract, aroma and colorant, biofuels, natural oils, and the chemical sector. The equipment is in near-new condition, has not gone through refurbishment but has little to no cosmetic damage. Software is not included. The MMS SW18 System is from the MMS Membrane System manufacturer, model SW18, with a manufacturing date of January 1, 2021. Example applications include protein fractionation & concentration in the food & extract sector, acid/caustic recovery in the chemical sector, and organic acid clarification & purification in the biofuels sector.
Key Features
- Speed control of pressure & circulation pump
- High operating pressures
- Testing of multiple membrane types
- Multitube heat exchanger for temperature regulation
- HMI interface with data logging
Specifications
- Dimensions (L x W x H): 1020 x 600 x 850 (mm)
- Weight: 100 kg
- Installed power requirement: 1.5 kW (220/110V)
- Membrane type: Spiral wound 1812 module (other membrane types available)
- Membrane area: 0.3 m2 (spiral wound)
- Pressure/Circulation pump: High pressure pump (speed control), with CIP and SIP capability
- Permeate flow rate: 1 – 5 l/h (flow rate is dependent on the feed characteristics)
- Flow rate: 450 L/h
- Tubing: All tubing and fittings Mat. 316 L
- Feed tank: Stainless steel 316L, Volume 10 L
- System hold up volume: 500 – 800 mL (dependent on module used)
- Instruments: 2 x Pressure transducers (0 – 50 bar), 1 x Temperature transducer (0– 100 °C), 1 x Balance (0 – 15 kg, 1 g resolution)

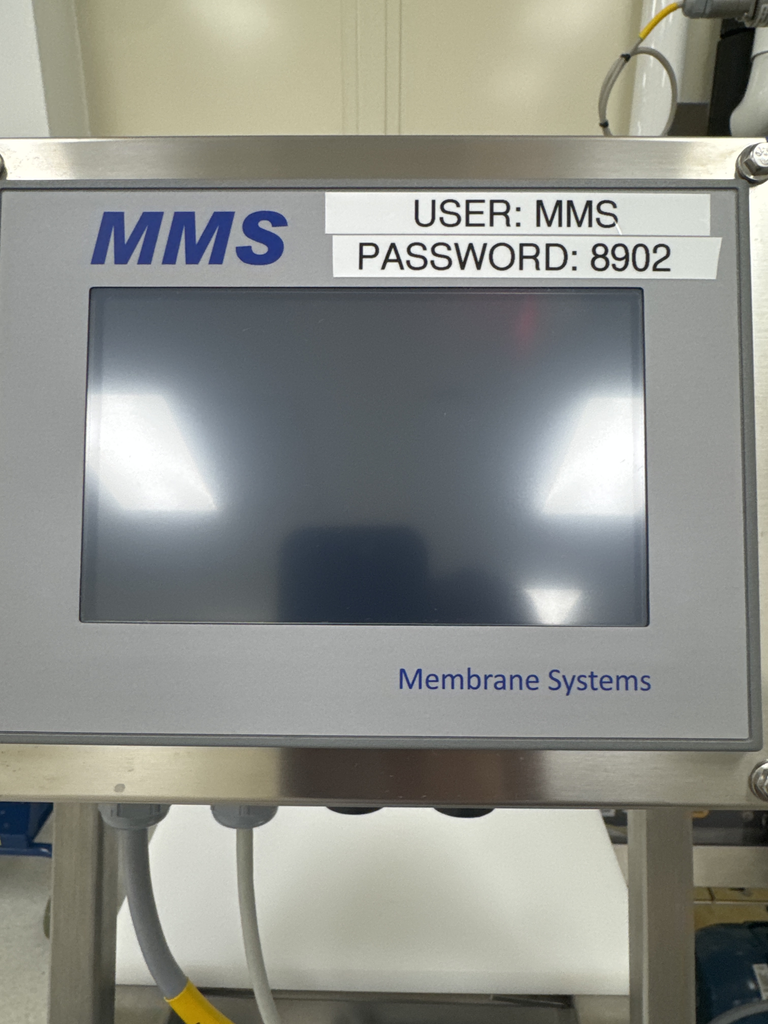

- HMI: Touch panel for process control, indication of parameters, and data logging
Weight
Imperial: 348.0 Pounds
Metric: 157.85 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 62.4 lb x 81.6 lb
Metric: 94.49 cm x 158.5 cm x 207.26 cm
Harmonized Code
902790
Harmonized Code Details
902790 - Other instruments and apparatus for physical or chemical analysis. This is identified as the most likely harmonized code for the MMS Membrane System SW18 based on its applications and operability.
