Cytiva AKTAprocess Cabinet 10 Chromatography System - Bioprocessing Unit
Cytiva
Details
-
CategoryProcess / Scale-Up
-
Dimension38.0in x 72.0in x 65.0in
-

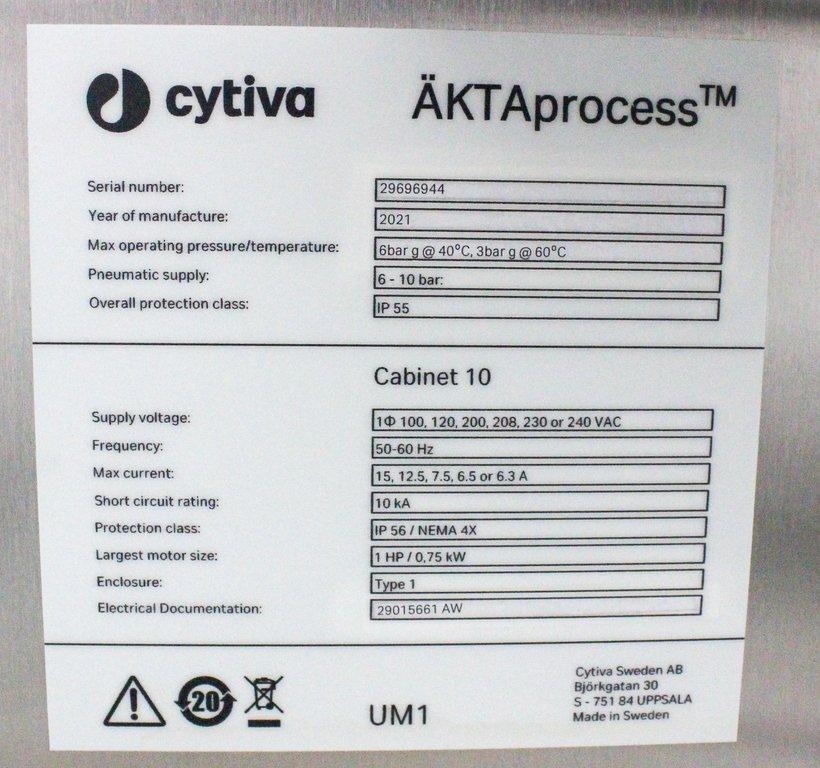

Serial29696944
-
Shipping TypeFreight
-
Manufacturing2021-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Product Information

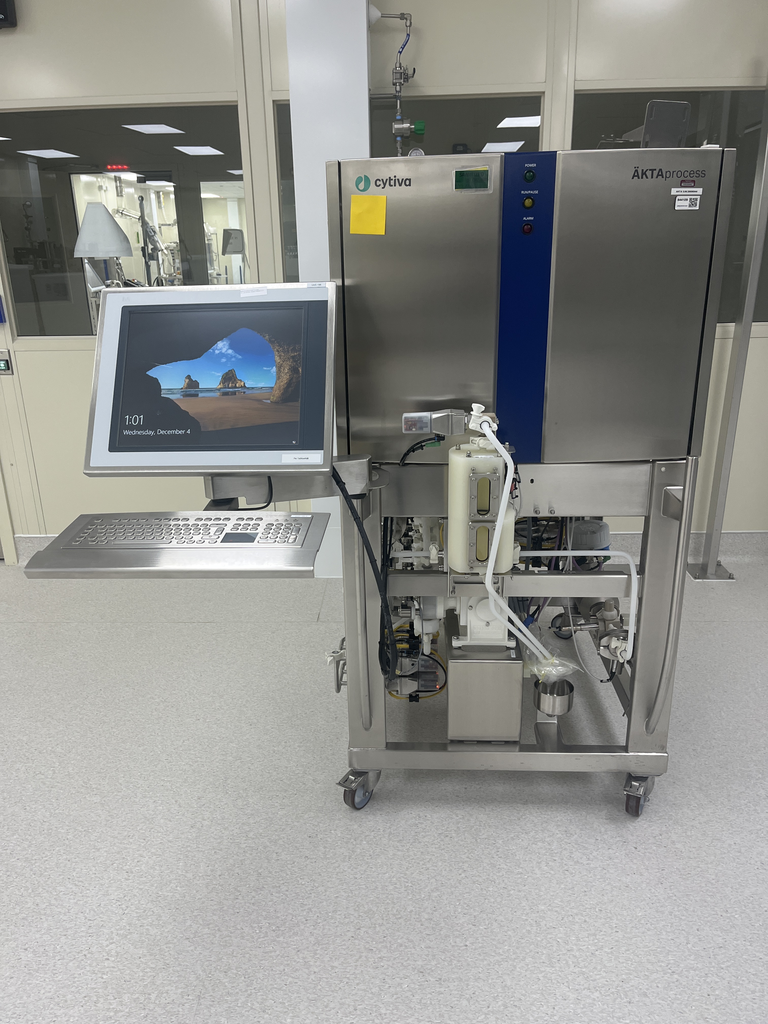

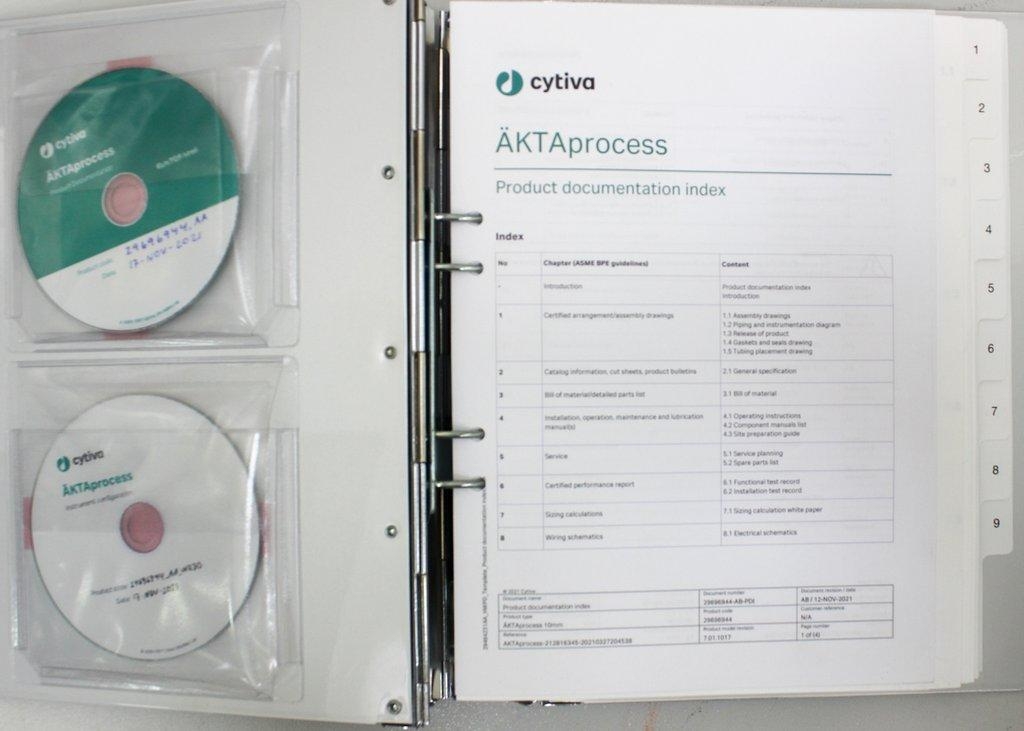

The Cytiva AKTAprocess Chromatography System is a highly adaptable solution for process scale-up and biopharmaceutical manufacturing. Built with precision for GMP-regulated environments, this system presents over a million possible configurations to meet diverse manufacturing needs. Compatible with AxiChrom chromatography columns, it enhances column packing efficiency. Featuring three flowrate ranges from 15 to 600 L/h, the system can use electropolished stainless steel or polypropylene piping. Industrial-standard components offer seamless integration in biomanufacturing facilities, while automatic UV sensor calibration and offline pH and conductivity sensor calibration streamline operations. The system is in excellent condition, complete with power and data cables, a computer with necessary software, and software files, ensuring ready-to-use status for biomanufacturing applications.
Key Features
- Highly flexible system design with over 1 million configurations
- Compatible with AxiChrom chromatography columns
- Suitable for GMP-regulated environments
- Flowrate ranges: 15 L/H to 600 L/H
- Minimum Operating Flow Rate: 15 L/H per pump
- Maximum Operating Flow Rate: 600 L/H
- Electropolished stainless steel or polypropylene piping
- Automatic UV-sensor calibration
- Offline pH and conductivity sensor calibration

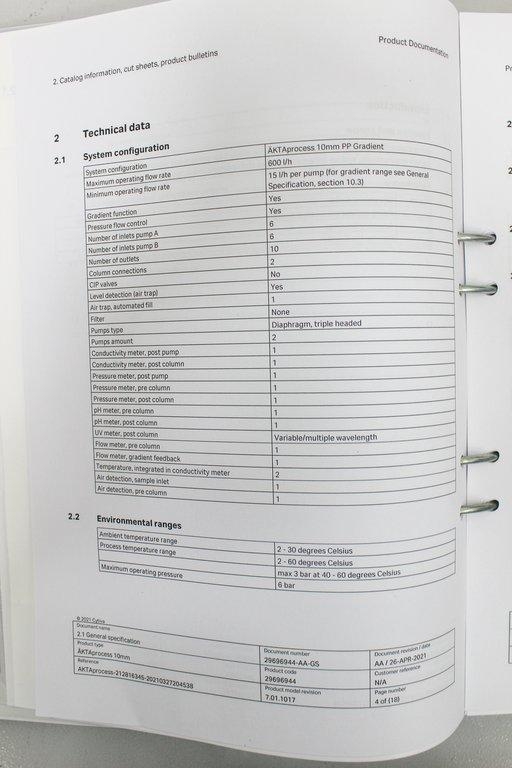

Specifications
- Flowrate ranges: 15 L/H to 600 L/H
- Configurable with electropolished stainless steel or polypropylene process piping
- Industrial-standard components for seamless integration
- Compatible with AxiChrom chromatography columns
- Allows for additional inlets, outlets, particle filters, and column connections
- Supports isocratic, gradient, and inline dilution functionality
- Automatic UV-sensor calibration with certified reference filters for precision
- pH and conductivity sensors with in-built traceability for speedy calibration
Weight
Imperial: 1136.4 Pounds
Metric: 515.46 Kilograms
Shipping Dimensions
Imperial: 45.6 lb x 86.4 lb x 78.0 lb
Metric: 115.82 cm x 219.46 cm x 198.12 cm
Harmonized Code
9027300000
Harmonized Code Details
Harmonized code 9027300000 pertains to instruments and apparatus for physical or chemical analysis, specifically chromatographs or electrophoresis instruments, fitting the AKTAprocess's application in chromatography.
