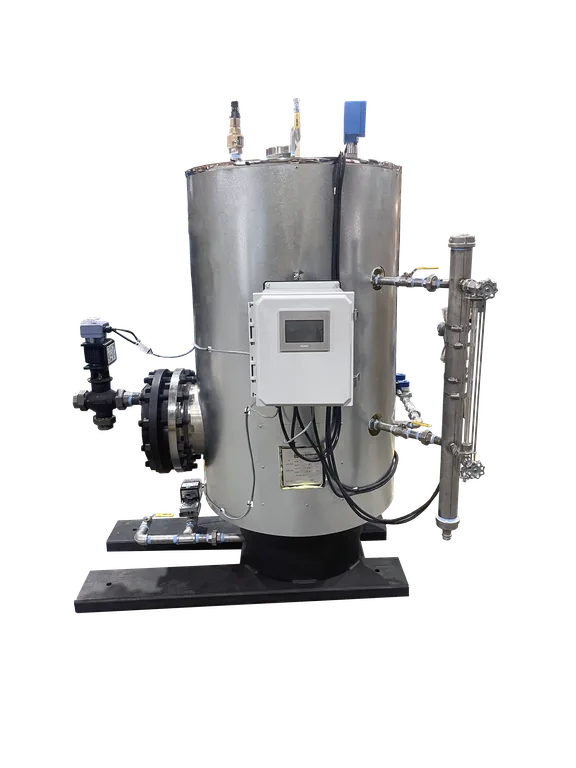

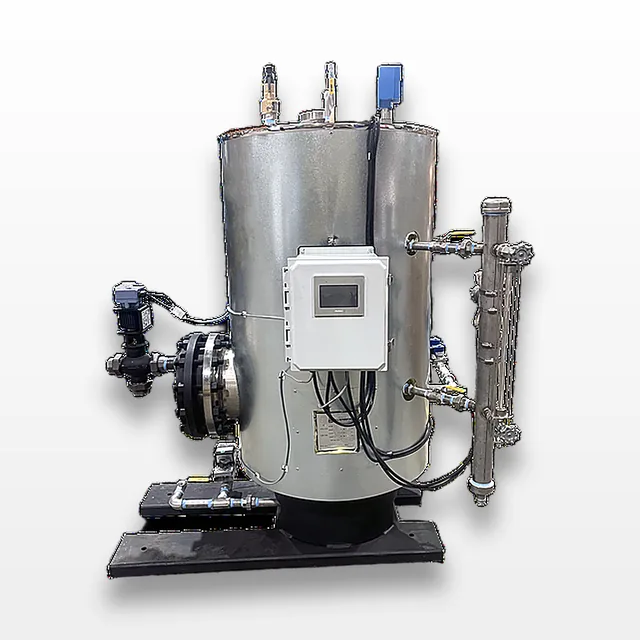

DHT Unfired Steam Generators SS Series Vertical Construction
Inc.
Details
-
CategoryFacility
-
Dimension74.0in x 74.0in x 81.0in
-
Serialn/a
-
Shipping TypeFedEx Ground
Description
The DHT Unfired Steam Generators SS series, specifically the SSV Series Vertical Construction, are engineered solutions designed for facility owners and managers requiring steam or clean steam for commercial or industrial applications. Constructed with high-quality stainless steel on the clean steam side and cast iron or carbon steel on the utility boiler steam inlet or heating water input side, these generators meet ASME standards. Ideal for humidification, sterilization, pharmaceutical, food processing, and basic heating, they are suitable for environments such as hospitals, medical centers, and pharmaceutical laboratories. The units offer low, medium, and high-pressure clean steam options and are equipped with advanced electronic PID controls and a touchscreen interface. Installation is straightforward, with components pre-piped and mounted, requiring only service connections.
Key Features
- Accurate Pressure Control
- Fully packaged solution
- Vertical or horizontal construction
- Modulating energy input
- Advanced Electronic PID controls
- 316 Stainless Wetted Surfaces
- ASME B&PV Code Sec. VIII, Div. 1 Stamped
Specifications
- Weight: 2000 lb
- Dimensions: 74 x 74 x 81 in
- Shipping Weight: 2400 lb
- Shipping Dimensions: 88.8 x 88.8 x 97.2 in
Weight
Imperial: 2400.0 Pounds
Metric: 1088.62 Kilograms
Shipping Dimensions
Imperial: 88.8 in x 88.8 in x 97.2 in
Metric: 225.55 cm x 225.55 cm x 246.89 cm
