Millipore Vantage Chromatography Column VS180 x 500 Protein Purification
Millipore
Details
-
CategoryProcess / Scale-Up
-
Dimension18.0in x 18.0in x 49.0in
-
SerialVS180-1069
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

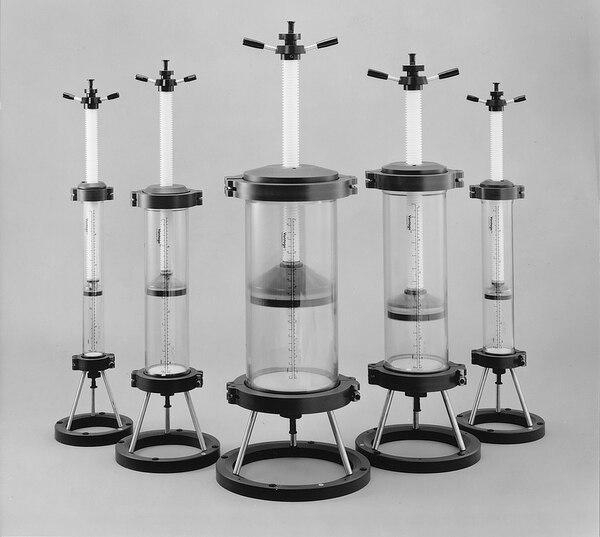

Millipore Vantage Chromatography Column VS180 x 500 is engineered for laboratory settings such as pharmaceutical and biotech sectors, focusing on protein purification. Its design suits development, pilot, or small-scale production purification. The Vantage S2 Column, recognized for sanitary design, employs solvent-resistant materials and ensures high-efficient flow distribution. Notable features include seamless assembly, zero dead space for improved cleanability, and scalability from development to pilot production phases. Its differential pressure capacity is 3.1 bar, and it operates effectively between 2 to 30 degrees Celsius. The adjustable bed volume of 0 to 12.3L allows flexibility with applications involving protein purification.
Technician comment
New in box. Qty: 1
Key Features
- Sanitary design with solvent-resistant materials
- Easy assembly and zero dead space
- Scalable from development to pilot production
- High-efficient flow distribution
- Max differential pressure: 3.1 bar
- Operating temperature range: 2 to 30°C
Specifications
- Bed Volume: 0–12.3L (extends to 14.8–27.5L with extension tube)
- Bed Height: 0–490mm (extends to 590–1110mm with extension tube)
- Cross-sectional Area: 250 cm²
- Diameter: 17.8 cm (7 in.)
- Maximum Differential Pressure: 3.1 bar (45 psid)
- Operating Temperature Range: 2 to 30 °C
- Materials: TPX-polymethylpentene tube, Polypropylene support, 316L stainless steel housing
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 21.6 lb x 58.8 lb
Metric: 54.86 cm x 54.86 cm x 149.35 cm
Harmonized Code
902720
Harmonized Code Details
902720 - Chromatographs. The code is appropriate for this laboratory analysis instrument, as it describes devices used for separating mixtures in analytical chemistry.
