MMS SW18 Filtration System for Nano and Reverse Osmosis with HMI Control
MMS Membrane System
Details
-
CategorySmall Benchtop Equipment
-
Dimension31.0in x 49.0in x 66.0in
-

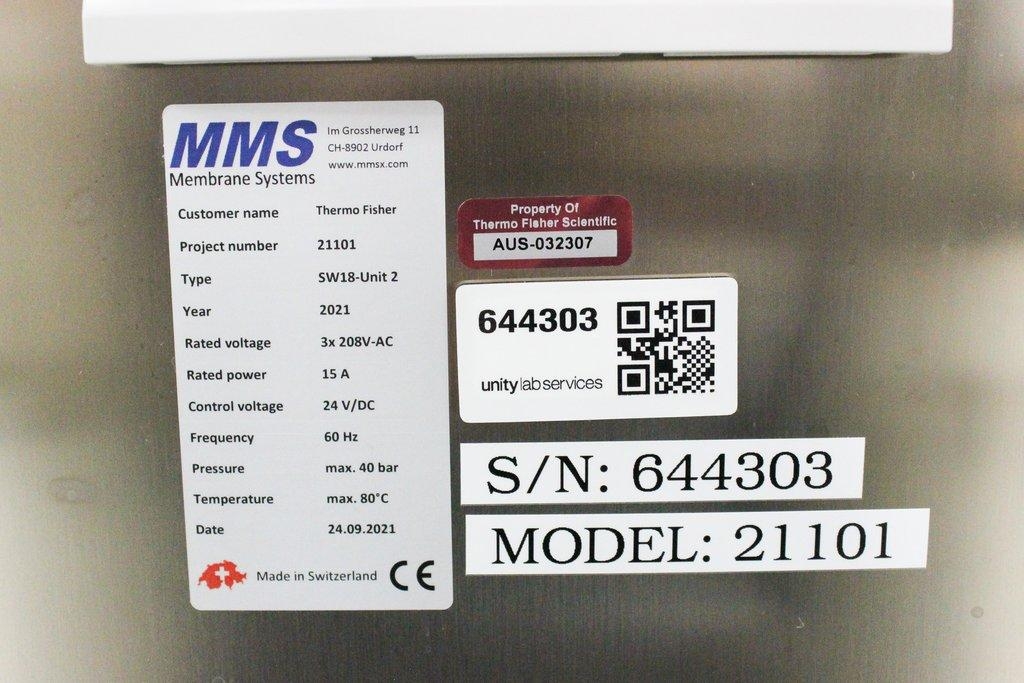

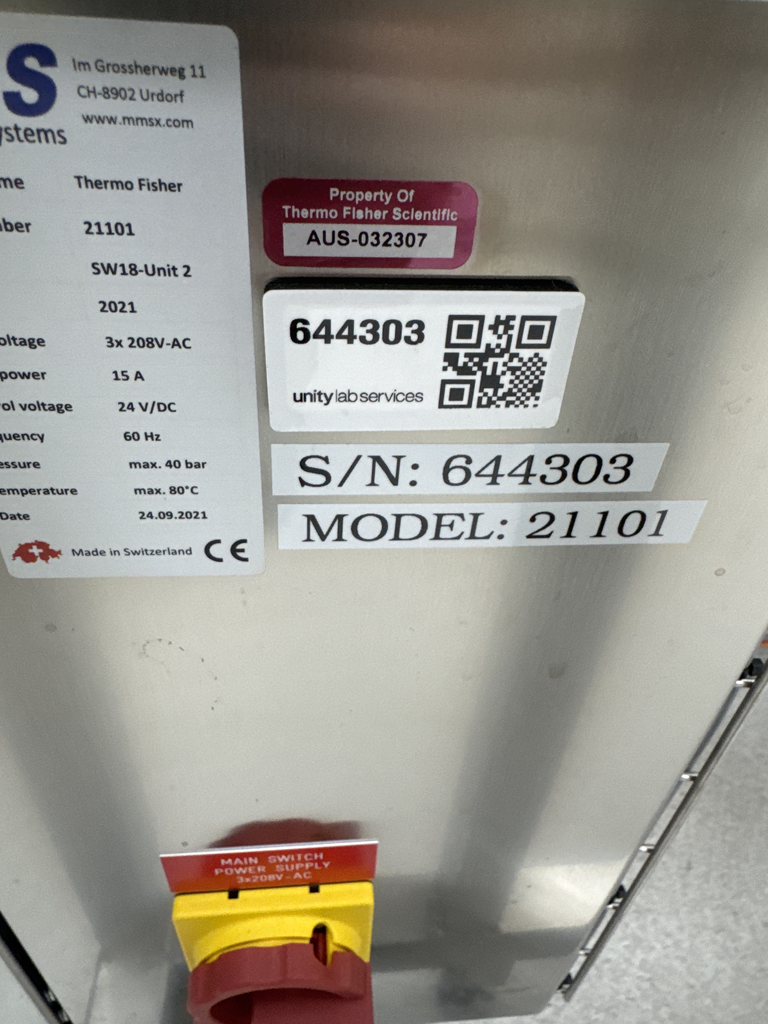

Serial644303
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

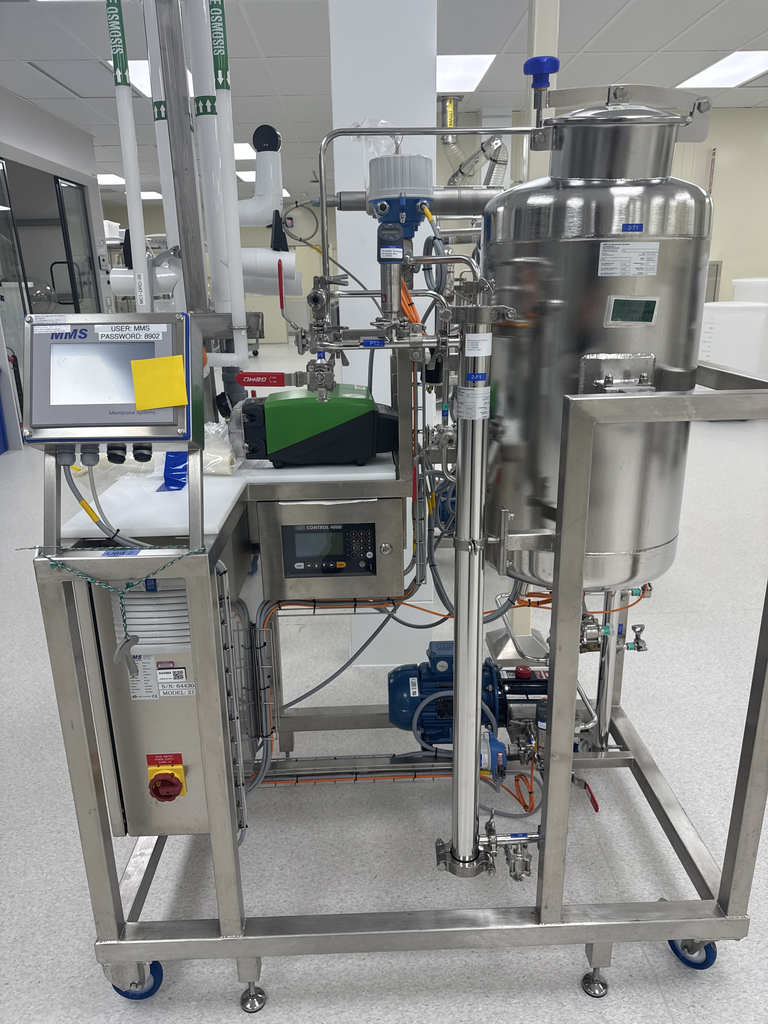

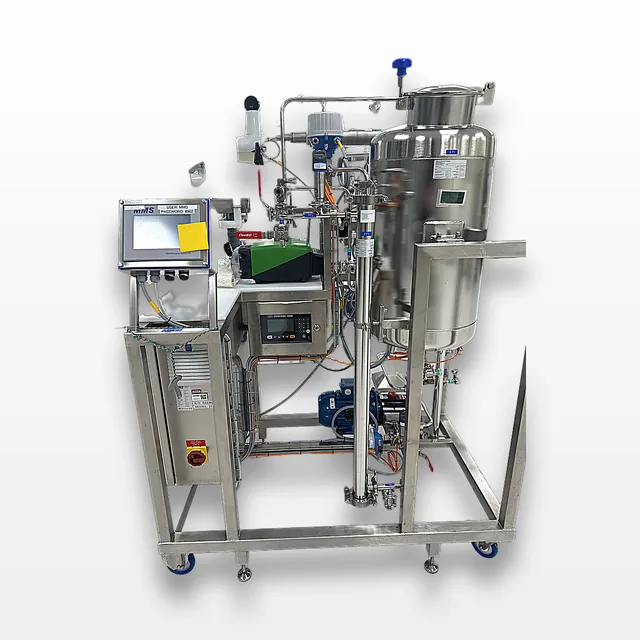

The MMS Membrane Systems Pilot System SW18, manufactured in the United States by MMS Membrane System, is a sophisticated bench membrane device designed for versatile laboratory applications, including microfiltration, ultrafiltration, nanofiltration, and reverse osmosis processes. In near new condition, this robust system is capable of testing various filtration elements such as spiral wound, ceramic, hollow fibre, and tubular membranes over a wide pressure range up to 40 bar. Equipped with a high-pressure speed-controlled circulation pump, the MMS SW18 excels in the fractionation, purification, and concentration of biomolecules. Additional features include a multitube heat exchanger for precise temperature regulation and an HMI interface for data logging. Ideal for sectors such as bio-pharmaceutical, food and extracts, aroma and colorants, biofuels, natural oils, and chemicals. The system's compact design includes a stainless steel 316L feed tank and pressure transducers for detailed process monitoring. With meticulous construction standards, the SW18 system offers exceptional performance in pilot-scale testing environments.
Key Features
- High-pressure speed-controlled circulation pump
- Supports various membranes: spiral wound, ceramic, hollow fibre, tubular
- Operating pressures up to 40 bar
- Multitube heat exchanger for temperature control

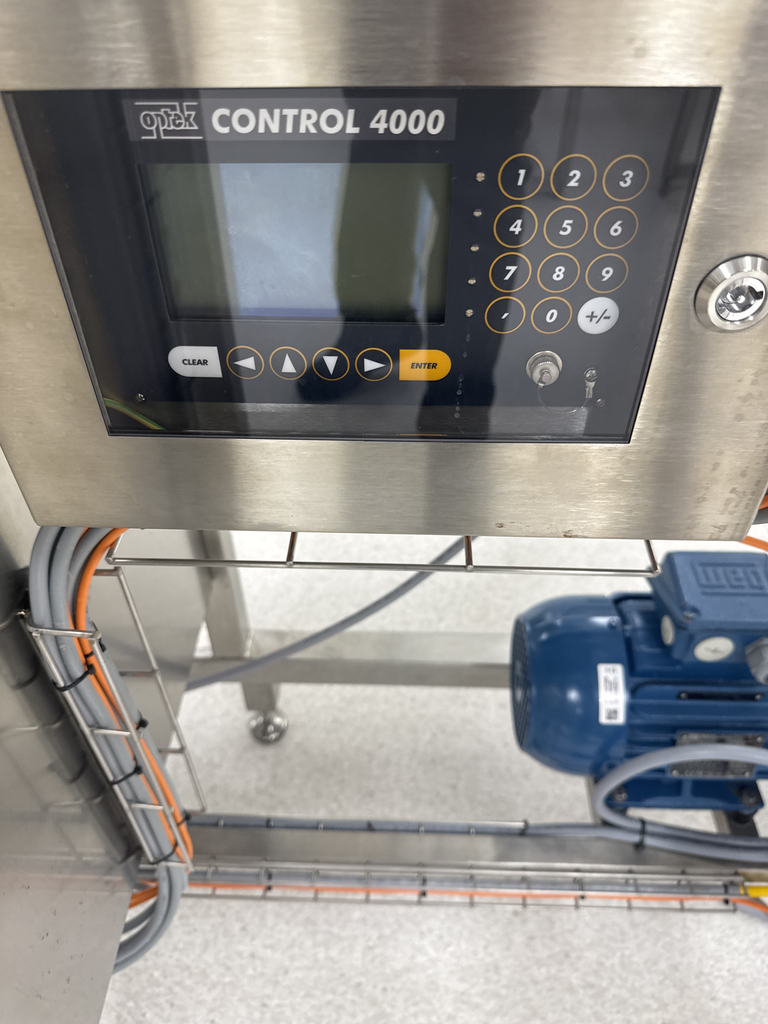

- HMI interface with data logging
Specifications
- Membrane type: Spiral wound 1812 module (alternative options available)
- Membrane area: 0.3 m² (spiral wound)
- Pressure/Circulation pump: High pressure with CIP and SIP capability
- Permeate flow rate: 1–5 l/h, dependent on feed characteristics
- System flow rate: 450 L/h
- Pressure transducers: 2 units (0–50 bar range)
- Temperature transducer: 1 unit (0–100 °C range)
- Feed tank: 10 L capacity, Stainless steel 316L
- System hold up volume: 500–800 mL
Weight
Imperial: 1080.0 Pounds
Metric: 489.88 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 58.8 lb x 79.2 lb
Metric: 94.49 cm x 149.35 cm x 201.17 cm
Harmonized Code
842129
Harmonized Code Details
842129 Filter or purifying machinery and apparatus for liquids. This code is applicable as the MMS SW18 is a specialized filtration apparatus suitable for liquid processing, aligning with the features and functions listed.
