Hamilton Microlab Star AL 16 iSWAP Liquid Handler High-Throughput Precision
Hamilton
Details
-
CategoryLiquid Handling
-
Dimension92.0in x 48.0in x 103.0in
-
SerialH775
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
Introducing the Hamilton Microlab STAR with STAR AL 16 arm and iSWAP gripper for high-throughput liquid handling. This versatile liquid handler features 16 independent pipetting channels and advanced air displacement technology for precision pipetting, supporting applications in genomics, proteomics, cell biology, and drug discovery. Equipped with a custom bench and accessories, the modular deck aids in seamless integration of carriers and supports efficient workflows. The iSWAP gripper automates labware transport, enhancing productivity and operational precision, while VENUS software facilitates custom script programming, reducing errors and simplifying protocol design. Accommodates accessories like shakers and barcode scanners to tailor workflows to specific laboratory needs.
Technician comment

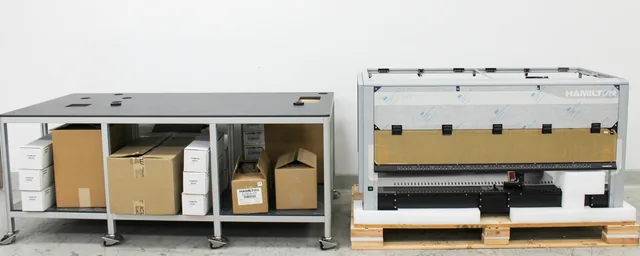

Includes: Microlab STAR AL 16 channel, iSWAP gripper with Custom bench & accessories. Included components: 173002-049 STAR 16 AL iSWAP gripper 173027 ASSY, DECK, STAR, WELDED CHASSIS – 1 EA - 173032 HOUSING ASSY, STAR – 1 EA - 190220 1 SWAP LANDSCAPE – 1 EA - 170320-C01 CHANNEL PAIR, 1000 UL PIPETTING – 8 EA - 173041 ADD-ON ARM, WELD CHASSIS – 1 EA - 911642V4 MODULAR ARM B, 4-12, 16, 96 PR, SW – 1 EA - 911642V4 SW TOOLS BASE PACKAGE V4.5 – 1 EA - Configuration 000178 – Sub-components - OTP-D50012236 LEUZE BC RASTER – 1 EA - 184089 CORE GRIP 1000 UL WASTE BLOCK – 1 EA - 185926 MPH WASTE CHUTE – 1 EA - 186469-R00 PLATE, MOUNTING, WASTE – 1 EA - 186895-R00 TIP CARRIERS, TIP RACKS – 5 EA - 187250-R00 PRECISION TAB PLT CAR, DWP – 5 EA - 187270-R00 PRECISION TAB PLT CAR, MTP – 1 EA - 187405 PLATEBASE, 74 T AP CPAC – 1 EA - 187462 TELESHAKE MAGNETIC SHAKER – 1 EA - 187463 VARIOMAG TELESHAKE – 1 EA - 187800-R00 TUBE WEIGHTS – 6 EA - 187800-R00 NEEDLE, TEACHING, SET OF 8 – 1 EA - 2032739 CUSTOM BENCH – 1 EA - 0201379-00 ADAPTER, USB TO SERIAL 4-PORT – 1 EA -
Key Features
- 16 independent pipetting channels
- Advanced air displacement for precision
- iSWAP gripper for automated plate handling
- VENUS software for custom programming
- Modular deck design for workflow optimization
Specifications
- Pipetting Volume: Up to 1000 µL per channel
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- User Manuals, Power/Data Cables, and Software CDs/Files included
- Deck: 54 equal tracks for loading carriers
- Capacitive and pressure-based liquid level detection
Weight
Imperial: 1560.0 Pounds
Metric: 707.6 Kilograms
Shipping Dimensions
Imperial: 110.4 lb x 57.6 lb x 123.6 lb
Metric: 280.42 cm x 146.3 cm x 313.94 cm
Harmonized Code
84798997
Harmonized Code Details
84798997 - Machines and mechanical appliances with individual functions not specified elsewhere. Suitable as it covers specialty equipment like automated liquid handlers.
