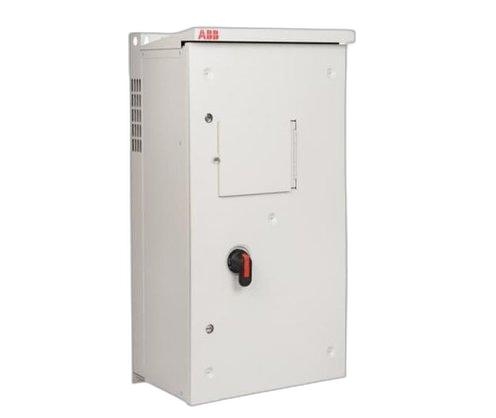

ABB ACH580-BCR-027A-4+B058+F267 Bypass Module with Control Panel
ABB
Details
-
CategoryOther
-
Dimension24.0in x 46.0in x 22.0in
-

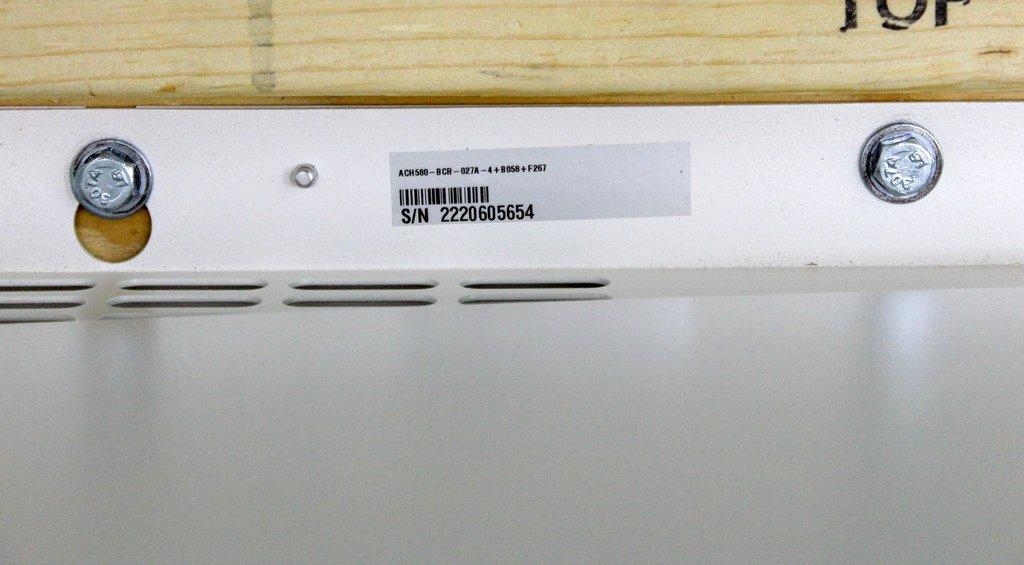

Serial2220605654
-
Shipping TypeFreight
-
Manufacturing2022-02-11
-
Voltage / Hertz400/460V / 50Hz/60Hz
Description

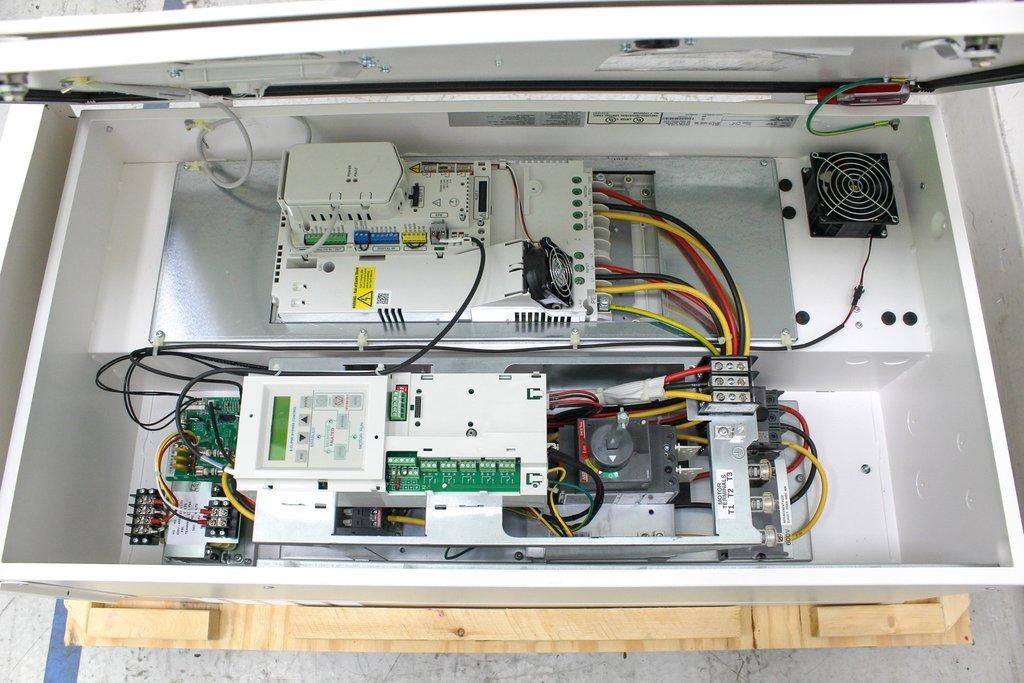

The ABB ACH580-BCR-027A-4+B058+F267 is a turnkey system, manufactured in 2022, designed to manage motor operations effectively. Featuring the ABB E-Clipse bypass, this module includes an integrated UL (NEMA) Type 1, 12, or 3R enclosure with a bypass motor starter, supporting operations from 1 to 350 hp at 230/460/575 V. The system is equipped with an input disconnect switch or circuit breaker, a bypass starter, and electronic motor overload protection. A door-mounted control panel with a graphical display facilitates local control, while provisions for external control connections and serial communications enhance its adaptability. Although never used and fully functional, there is a minor bump on the right side, which doesn't affect its performance.
Technician comment

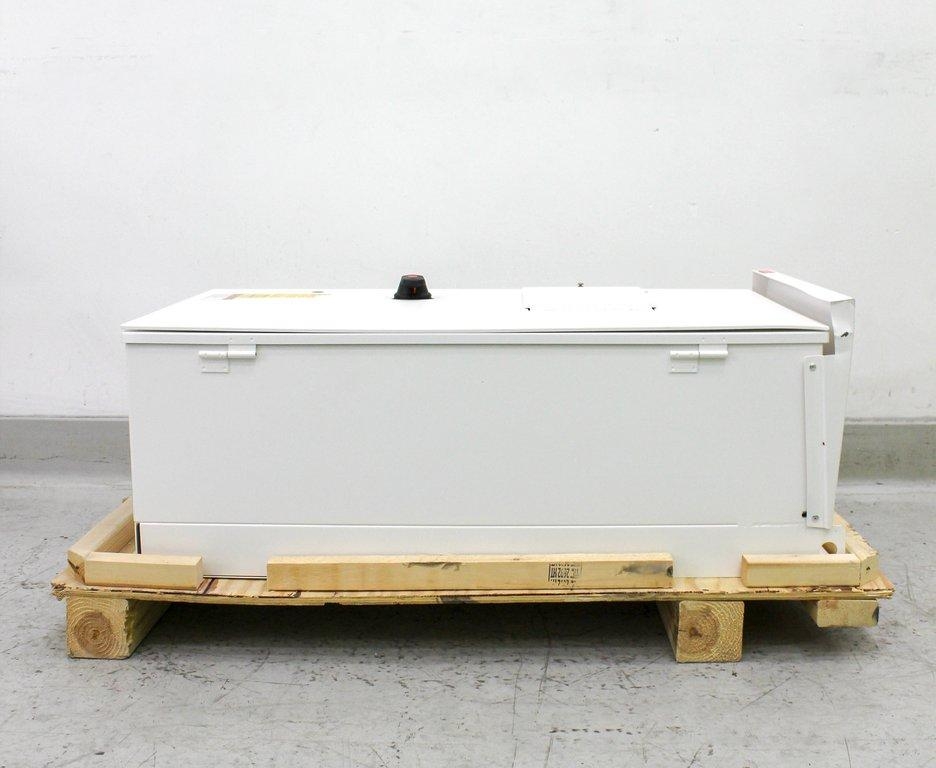

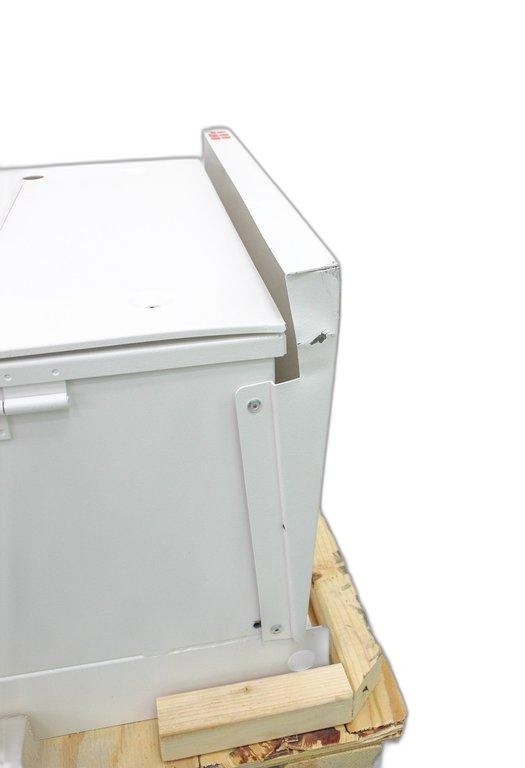

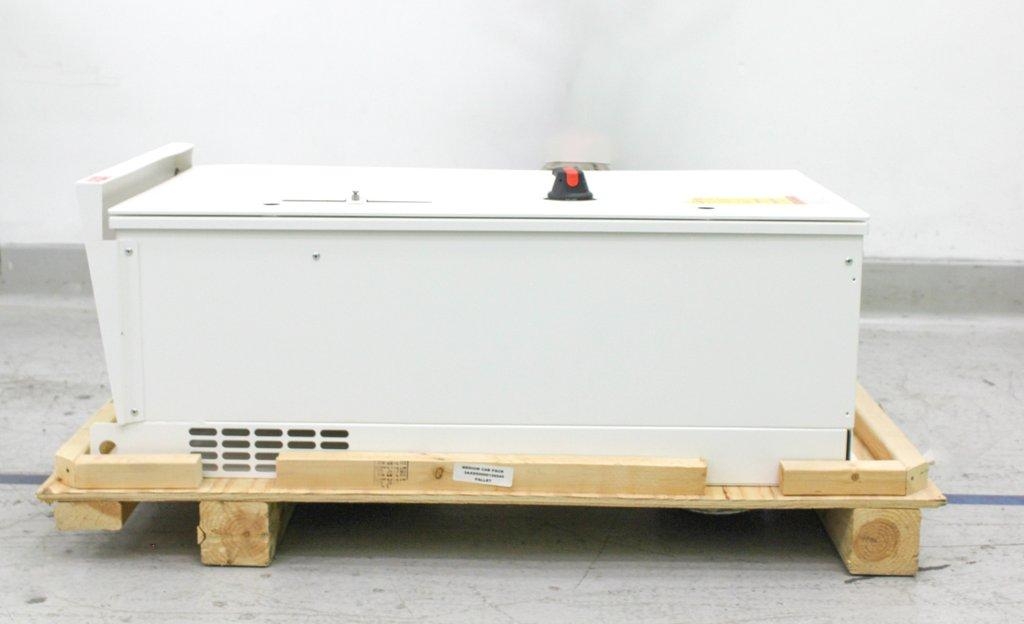

Never used in original case. Has small bump on right side(Does not affect functionality). See photos for further details.
Key Features
- Integrated UL (NEMA) Type 1, 12, or 3R enclosure
- Bypass motor starter
- Supports 1 to 350 hp motors
- Input disconnect switch or circuit breaker
- Electronic motor overload protection

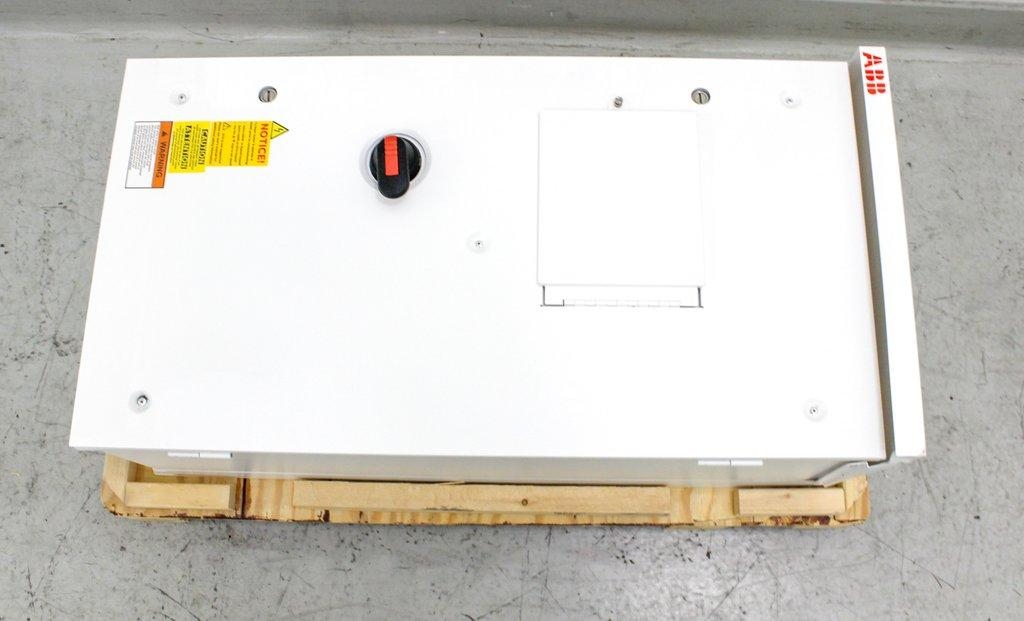

- Door-mounted control panel with graphical display
- Provisions for external control connections
- Serial communications capability
Specifications
- Voltage: 400/460V
- Frequency: 50Hz/60Hz
- Motor Support: 1 to 350 hp at 230/460/575 V
- Enclosure Types: UL (NEMA) Type 1, 12, 3R
- Integrated electronic motor overload protection
- Input disconnect switch or circuit breaker included
Weight
Imperial: 254.4 Pounds
Metric: 115.39 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 55.2 lb x 26.4 lb
Metric: 73.15 cm x 140.21 cm x 67.06 cm
Harmonized Code
85371091
Harmonized Code Details
85371091 - Boards, panels, consoles, desks, cabinets and other bases for electric control or the distribution of electricity, for a voltage not exceeding 1,000V. This code is appropriate given the device's function as a motor control device within specified voltage ranges.
