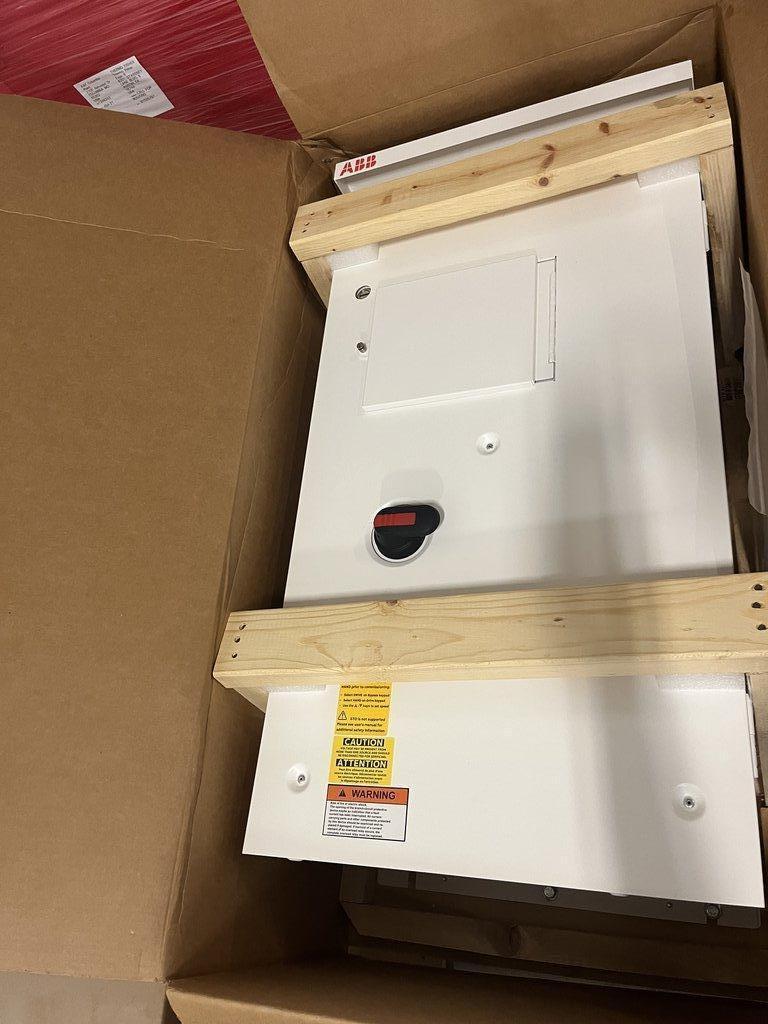

ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V
1 5
ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V
ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V
ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V
ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V
ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V

ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass 5Hp 7.6A 440-480V

sku: 3378662
1 In Stock

ABB

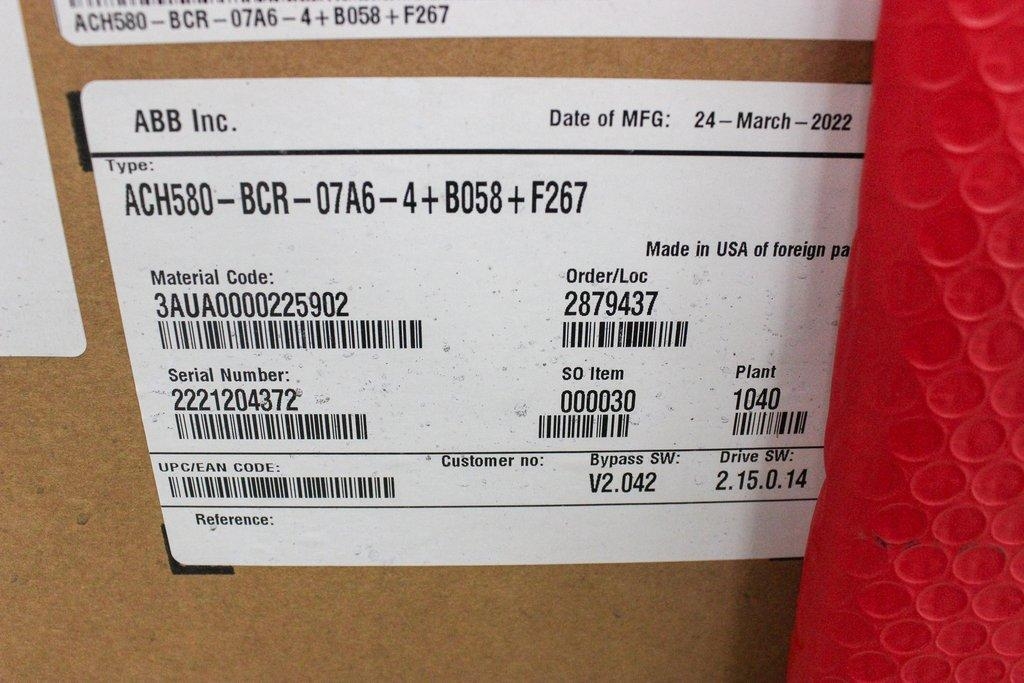

ACH580-BCR-07A6-4+B058+F267
US • REUZEit West Coast US - R
30-Day Warranty On Part
$3,000.00
$5,000.00
-40% OFF
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Other
  • Dimension
    20.0in x 40.0in x 20.0in
  • Serial
    2221204372
  • Shipping Type
    Freight
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    Does Not Apply / Does Not Apply

Description

Product Information

Introducing the ABB ACH580-BCR-07A6-4+B058 HVAC Drive with Bypass, a robust solution for efficient HVAC system management. This new HVAC packaged drive features an e-Clipse bypass and circuit breaker disconnect, designed for seamless control of HVAC fans, pumps, compressors, and air-handling units with its versatile applications. The unit accommodates input voltages from 440 to 480 V, providing a reliable motor control process at 5 Hp and 7.6 A output. With a UL Type 3R enclosure, it ensures protection and safe operation. The ACH580 drive is equipped with a user-friendly control panel, Bluetooth connectivity option, and supports multiple HVAC communication protocols, such as BACnet MS/TP and Modbus RTU. Ideal for hospitals, data centers, and commercial buildings, this drive is structured for reliable and energy-efficient performance.


Key Features
  • Model: ACH580-BCR-07A6-4+B058
  • HVAC Drive with e-Clipse Bypass
  • 5 Hp Output Power
  • 7.6 A Output Current
  • 440-480 V Input Voltage Range
  • UL Type 3R Enclosure
  • Supports BACnet, Johnson Controls N2, Modbus RTU
  • Bluetooth Connectivity Option

Specifications
  • Input Voltage: 440-480 V
  • Output Power: 5 Hp
  • Output Current: 7.6 A
  • Enclosure Type: UL Type 3R
  • Number of Phases: 3
  • Frequency: 50/60 Hz
  • Built-in PID Controllers
  • User-Friendly Control Panel with Bluetooth

Weight

Imperial: 178.8 Pounds

Metric: 81.1 Kilograms


Shipping Dimensions

Imperial: 24.0 lb x 48.0 lb x 24.0 lb

Metric: 60.96 cm x 121.92 cm x 60.96 cm


Harmonized Code

850440


Harmonized Code Details

850440 - Electrical transformers, static converters (for example, rectifiers) and inductors - Static converters. Used for devices like this HVAC drive which falls under the category of static converters.
