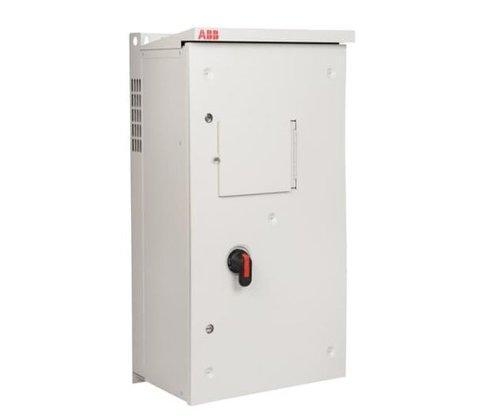

ABB ACH580 HVAC Drive Bypass 5 Hp 7.6A 3-Phase NEMA 3R for Fans Pumps
ABB
Details
-
CategoryTesting Equipment
-
Dimension22.0in x 40.0in x 16.0in
-

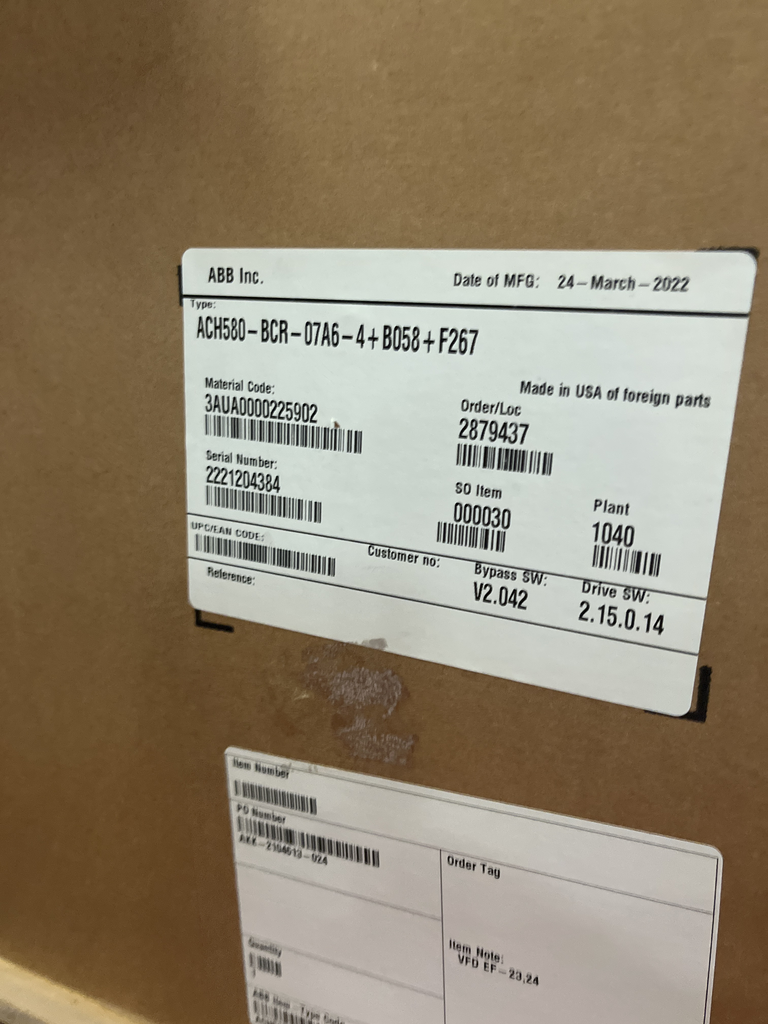

Serial2221204384
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The ABB ACH580-BCR-07A6-4+B058 is a high-performance HVAC drive equipped with an E-Clipse bypass, offering a robust solution for various HVAC applications. This drive is housed in a NEMA Type 3R enclosure, ensuring protection against the elements. It features an input disconnect switch or circuit breaker, motor overload protection, and a control panel with a graphical display. Optional Bluetooth connectivity provides improved accessibility, particularly for remote locations. It supports HVAC protocols such as BACnet MS/TP, Johnson Controls N2, and Modbus RTU. With a power output of 5 Hp, it is ideal for controlling fans, pumps, compressors, and air-handling units in settings like hospitals, data centers, and office buildings.
Key Features
- E-Clipse Bypass
- NEMA Type 3R Enclosure
- 7.6 A output current
- 5 Hp power output
- Bluetooth connectivity
- HVAC protocols support
- Graphical control panel
Specifications

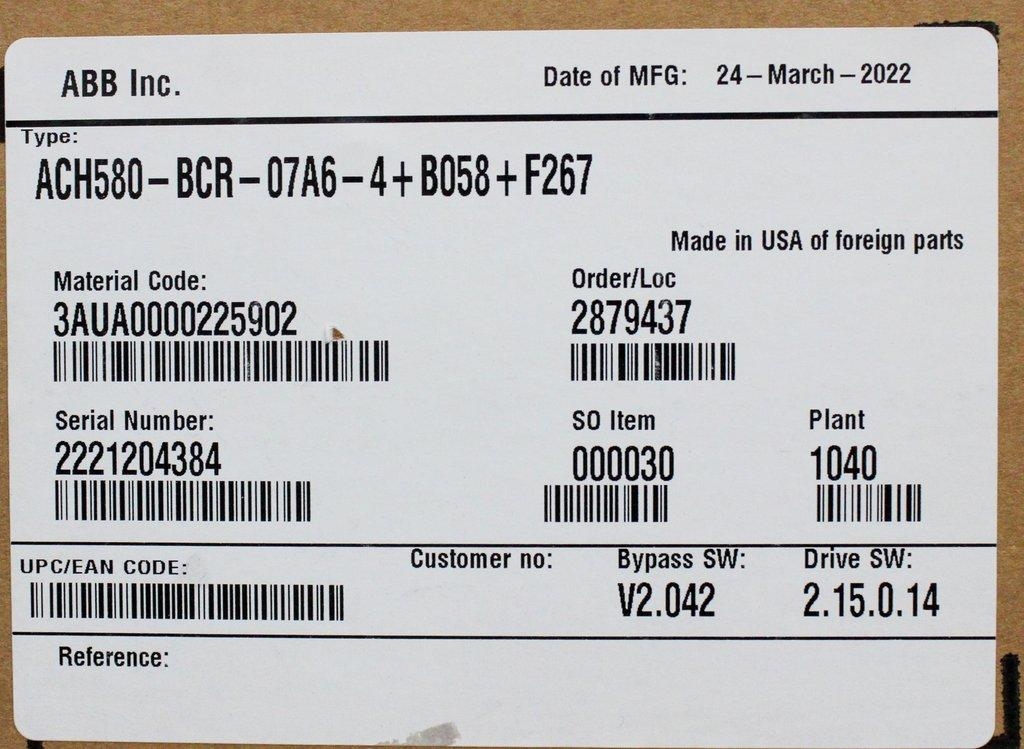

- Model: ACH580-BCR-07A6-4+B058
- Input Voltage: 440 – 480 V
- Phases: 3
- Output Current: 7.6 A
- Output Power: 5 Hp
- Enclosure Type: NEMA 3R
- Frequency: 50/60 Hz
- HVAC Protocols: BACnet MS/TP, N2, Modbus RTU
- Optional Bluetooth for accessibility
- Programmed Protection Circuits
Weight
Imperial: 176.4 Pounds
Metric: 80.01 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 48.0 lb x 19.2 lb
Metric: 67.06 cm x 121.92 cm x 48.77 cm
Harmonized Code
850440
Harmonized Code Details
Harmonized code 850440 represents electrical transformers, static converters (for example, rectifiers) and inductors - focusing on static converters, such as the ABB ACH580 drive, which is used for managing electrical power in industrial applications.
