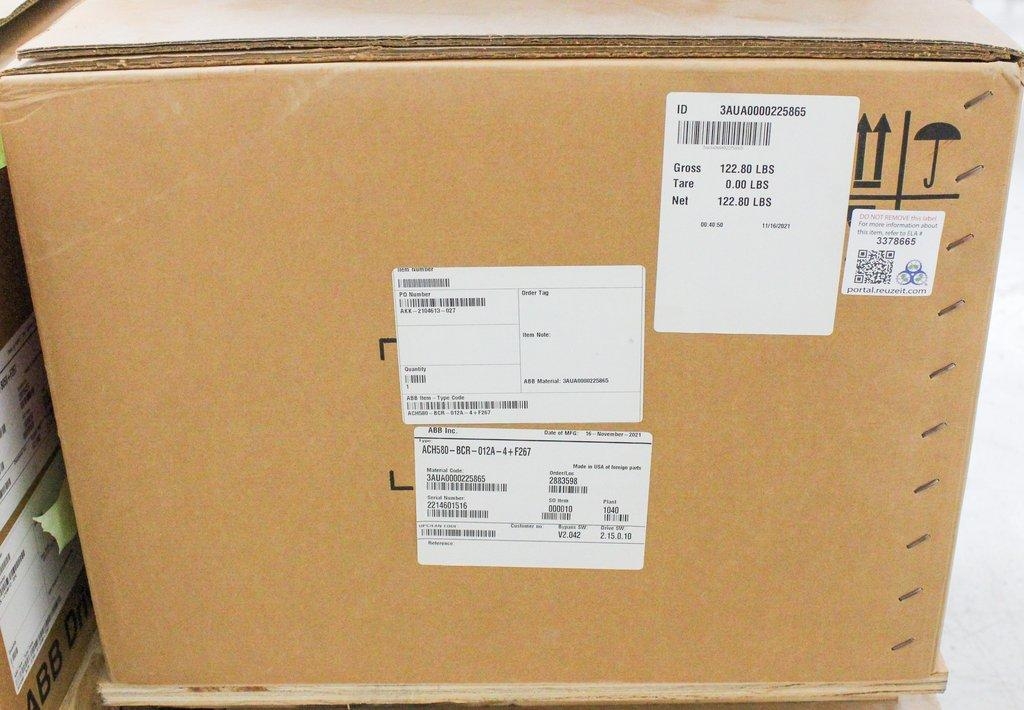

ABB ACH580-BCR-012A-4 HVAC Drive AC 7.5HP 480V 12.0A with Bluetooth
ABB
Details
-
CategoryFacility
-
Dimension40.0in x 21.0in x 20.0in
-

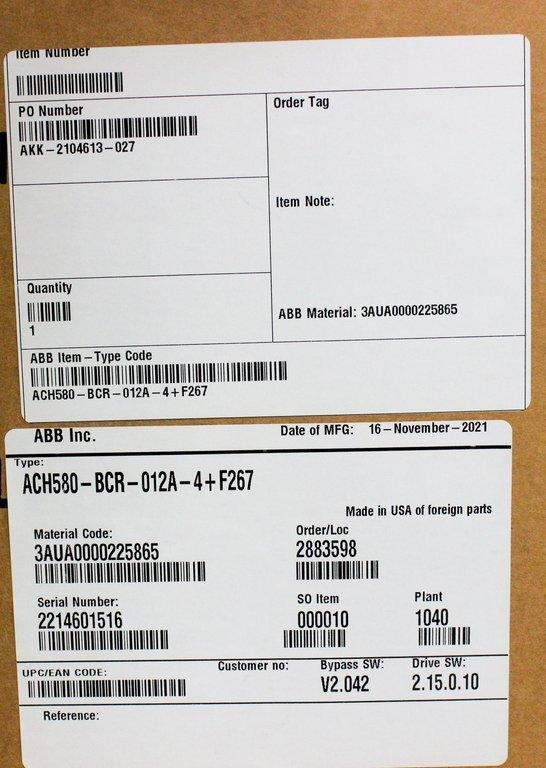

Serial2214601516
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The ABB ACH580-BCR-012A-4 is a high-performance HVAC AC drive designed for energy-efficient and reliable operation. Part of the ACH580 series, this model supports a 7.5 horsepower capacity with a nominal input voltage of 480 VAC, making it ideal for a range of HVAC applications. It features a user-friendly control panel and offers optional Bluetooth connectivity for enhanced accessibility, even in remote areas. With advanced protection and communication protocols like BACnet MS/TP, Johnson Controls N2, and Modbus RTU, this drive ensures smooth operation for HVAC systems in hospitals, data centers, shopping centers, factories, and office buildings. The ACH580 drive includes programmed protection circuits, built-in PID controllers, and dynamic and flux braking for versatility in demanding environments. It is new and has not been used before, making it a reliable choice for mission-critical HVAC applications.
Key Features
- AC Drive for HVAC with 7.5HP capacity
- Supports 480VAC input voltage
- User-friendly control panel with Bluetooth option
- Integrated BACnet MS/TP, Johnson Controls N2, Modbus RTU
- Built-in PID controllers
- Dynamic and Flux braking systems
Specifications
- Drive Type: AC Drive for HVAC
- Horsepower: 7.5HP
- Nominal Input Voltage: 480VAC
- Input Phase: 3
- Amps (Variable Torque Rating): 12A
- Frequency: 500Hz
- AC Voltage: 380-480VAC
- Mounting: Wall-mounted
- Frame Size: BX1-1
- IP Rating: IP21
- NEMA Rating: NEMA 1
- Braking Type: Dynamic Braking, Flux Braking
Weight
Imperial: 146.4 Pounds
Metric: 66.41 Kilograms
Shipping Dimensions
Imperial: 48.0 lb x 25.2 lb x 24.0 lb
Metric: 121.92 cm x 64.01 cm x 60.96 cm
Harmonized Code
85044082
Harmonized Code Details
85044082 - Electrical static converters for electrical starters and converters. This code applies to electrical converters such as drives used in industrial settings, which fits the description of the ABB ACH580-BCR-012A-4 HVAC drive.
