ABB ACH580-PCR-023A-4 HVAC AC Drive 15HP 480V Energy-Efficient Operation
ABB
Details
-
CategoryFacility
-
Dimension13.0in x 52.0in x 19.0in
-

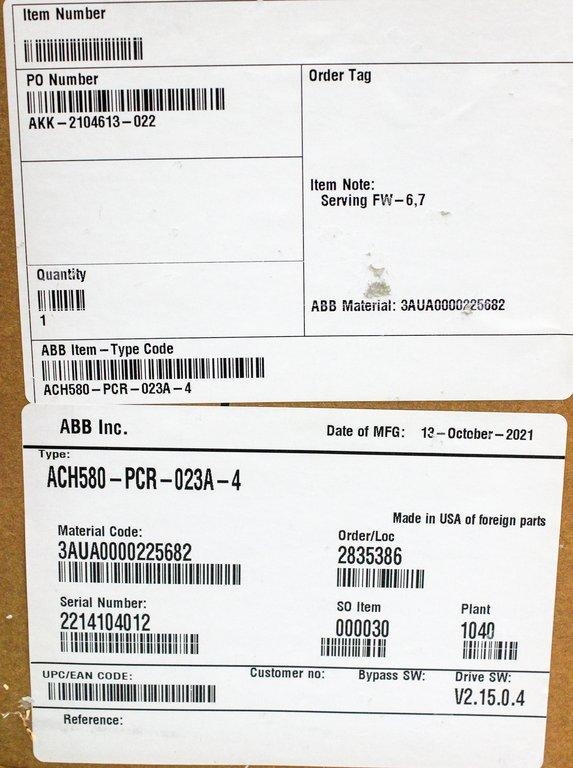

Serial2214104012
-
Shipping TypeFedEx Ground
-
Manufacturing2021-10-13
-
Voltage / Hertz400/460V / 50Hz/60Hz
Description
This is the ABB ACH580-PCR-023A-4, a wall-mounted HVAC drive manufactured in 2021. Designed for optimal energy efficiency and reliability, it's suitable for use in various HVAC systems, including fans, pumps, compressors, air-handling units, and chillers. Utilizing advanced features such as a new primary settings menu, this drive simplifies commissioning, while optional Bluetooth enhances accessibility. Compatible with industry protocols like BACnet MS/TP, Johnson Controls N2, and Modbus RTU, it includes built-in PID controllers. Ideal for settings such as hospitals, data centers, and shopping centers, this drive boosts efficiency and safety.
Technician comment

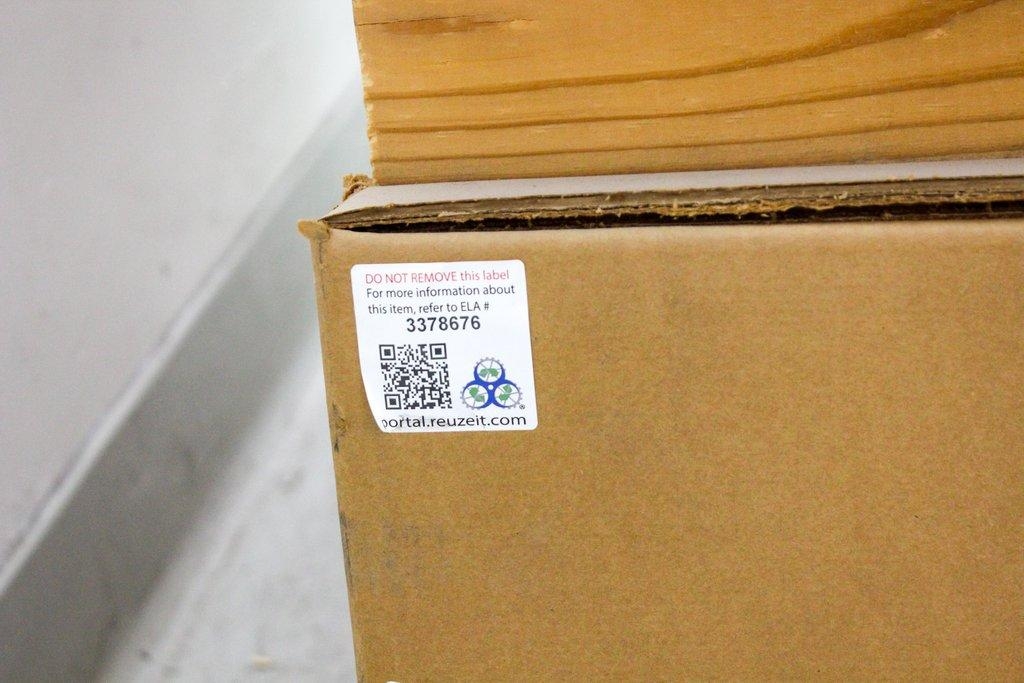

Never used in original box. See photos
Key Features
- Wall-Mounted HVAC Drive
- 15HP power rating
- 480V voltage capacity
- Energy-efficient operation
- Compatible with BACnet, Johnson Controls N2, Modbus RTU protocols
- Built-in PID Controllers
- Optional Bluetooth connectivity
- User-friendly control panel
- Versatile for HVAC applications
Specifications
- Voltage: 400/460V
- Hertz: 50Hz/60Hz
- Current: 23.0A
- Drive Type: AC
- Primary settings menu for easy commissioning
- Suitable for HVAC fans, pumps, compressors, units, and chillers
- Ideal settings: hospitals, data centers, tunnels, office buildings
- Manufacture Date: October 13, 2021
- Serial Number: 2214104012
- Programmed Protection Circuits
- Environment: Normal and mission-critical situations
Weight
Imperial: 64.8 Pounds
Metric: 29.39 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 62.4 lb x 22.8 lb
Metric: 39.62 cm x 158.5 cm x 57.91 cm
Harmonized Code
850440
Harmonized Code Details
Harmonized code 850440 refers to 'Static converters; e.g., rectifiers,' suitable for this HVAC drive, which functions as a static converter.
