MMS SW18 Bench Membrane System Micro and Ultrafiltration 5-80C 10L Capacity
MMS Membrane System
Details
-
CategorySmall Benchtop Equipment
-
Dimension31.0in x 52.0in x 65.0in
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

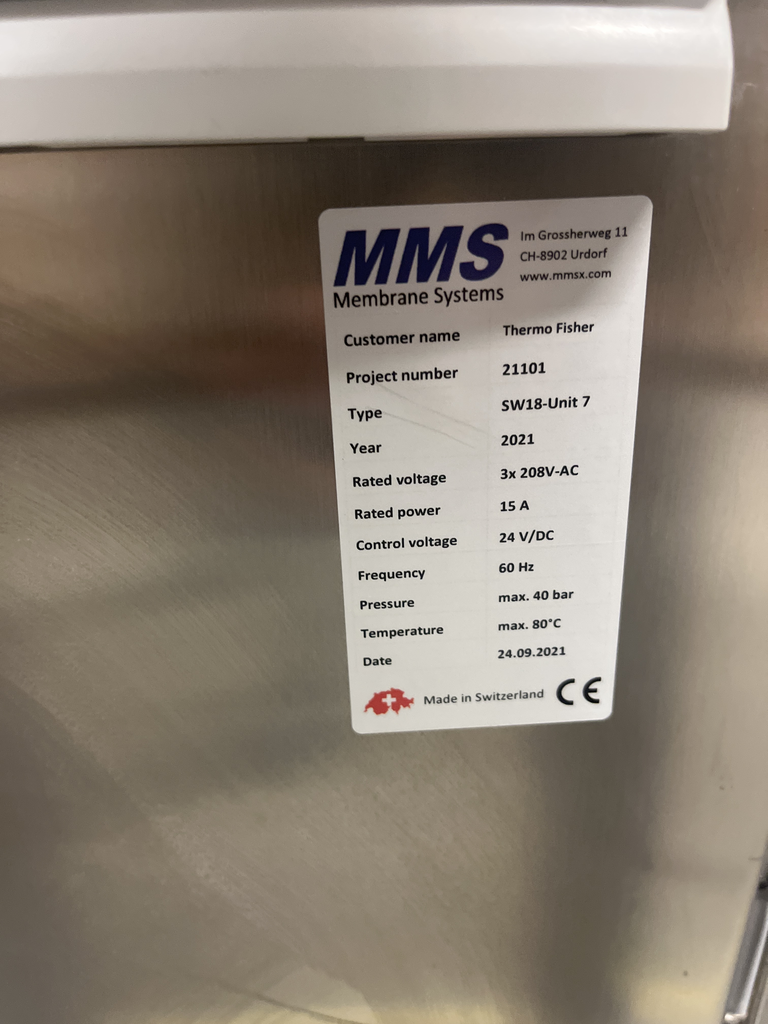

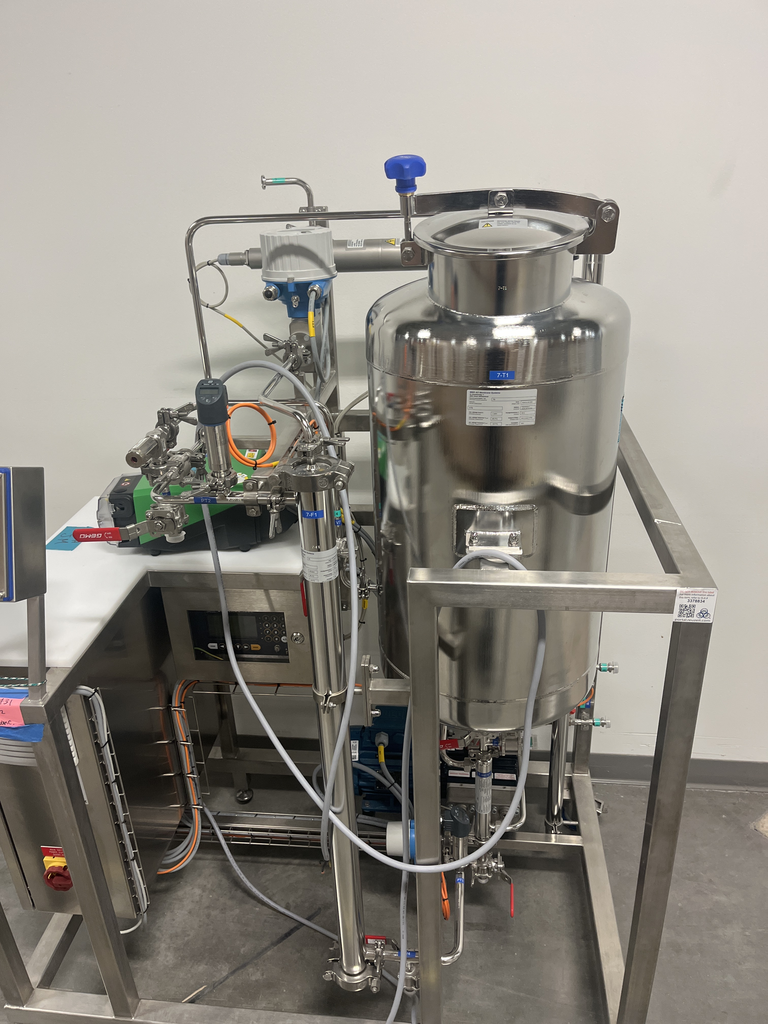

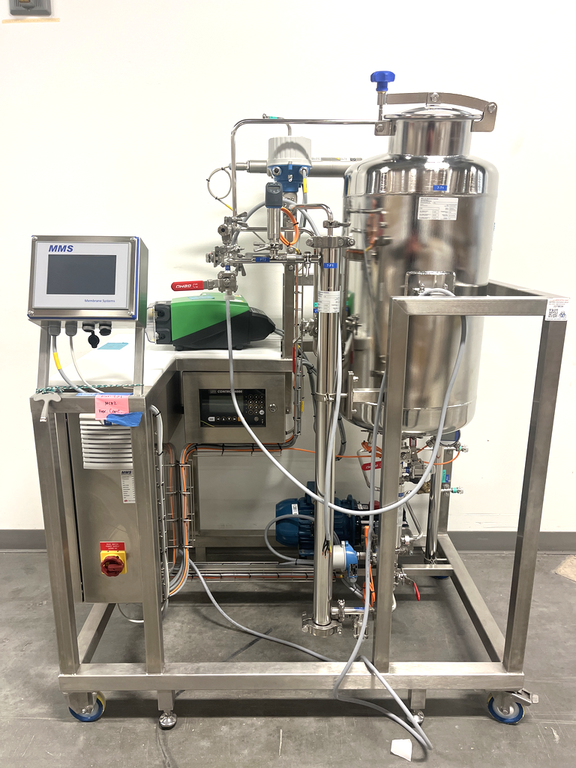

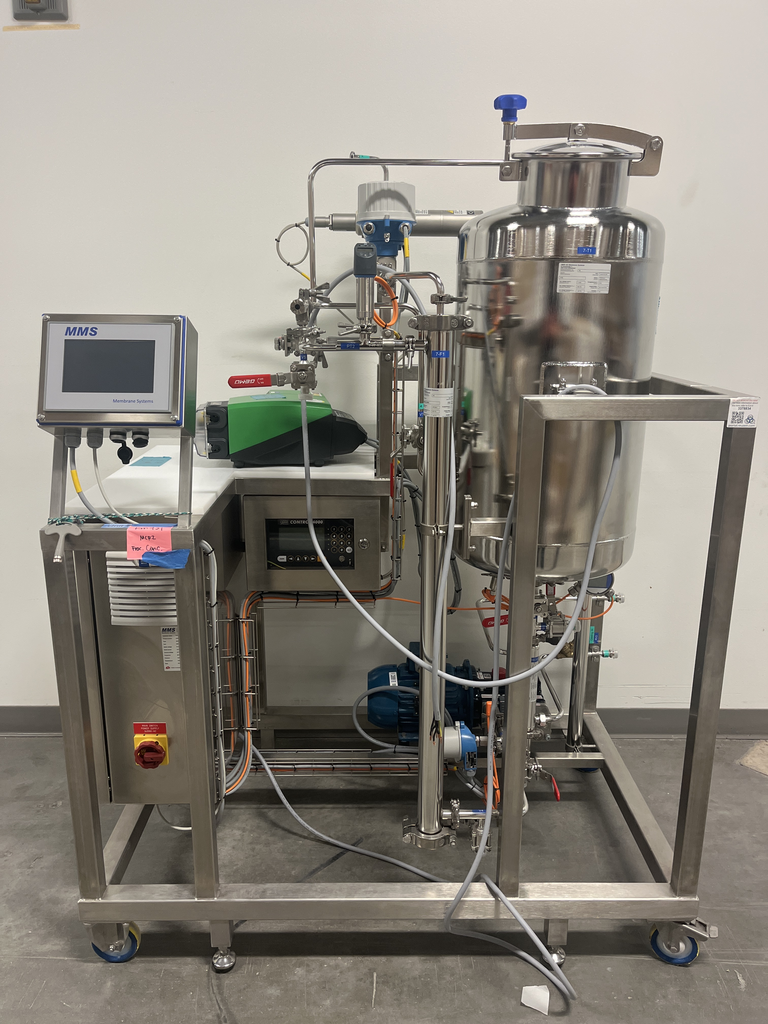

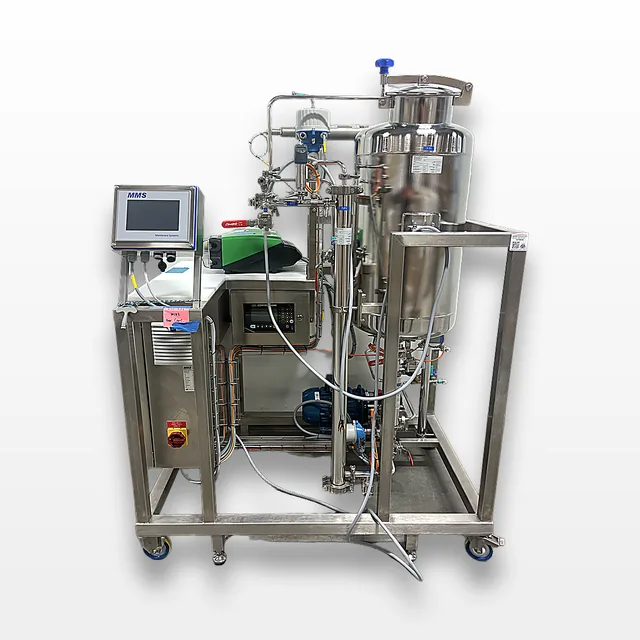

The MMS Membrane System Pilot System SW18, model SW18-Unit 7, crafted by MMS Membrane System in the United States, presents a laboratory solution for microfiltration, ultrafiltration, nanofiltration, and reverse osmosis processes. This bench system, in near-new condition, facilitates testing for fractionation, purification, and concentration of molecules. It supports various membrane types and can handle high pressures of up to 40 bar. Key functionalities include adjustable pressure and circulation speeds and testing across a range of membranes such as spiral wound, ceramic, hollow fiber, and tubular elements. The system includes a multitube heat exchanger for temperature regulation, with operational temperatures ranging from 5 to 80 degrees Celsius. It is tailored to applications in sectors like biopharmaceuticals, food processing, biofuels, and natural oils. Installed in 2018, this system is an ideal choice for rigorous scientific and industrial environments.
Key Features
- User-friendly batch membrane device
- Handles microfiltration, ultrafiltration, nanofiltration, and reverse osmosis
- Supports high operating pressures up to 40 bar
- Adaptable to spiral wound, ceramic, hollow fiber, and tubular elements

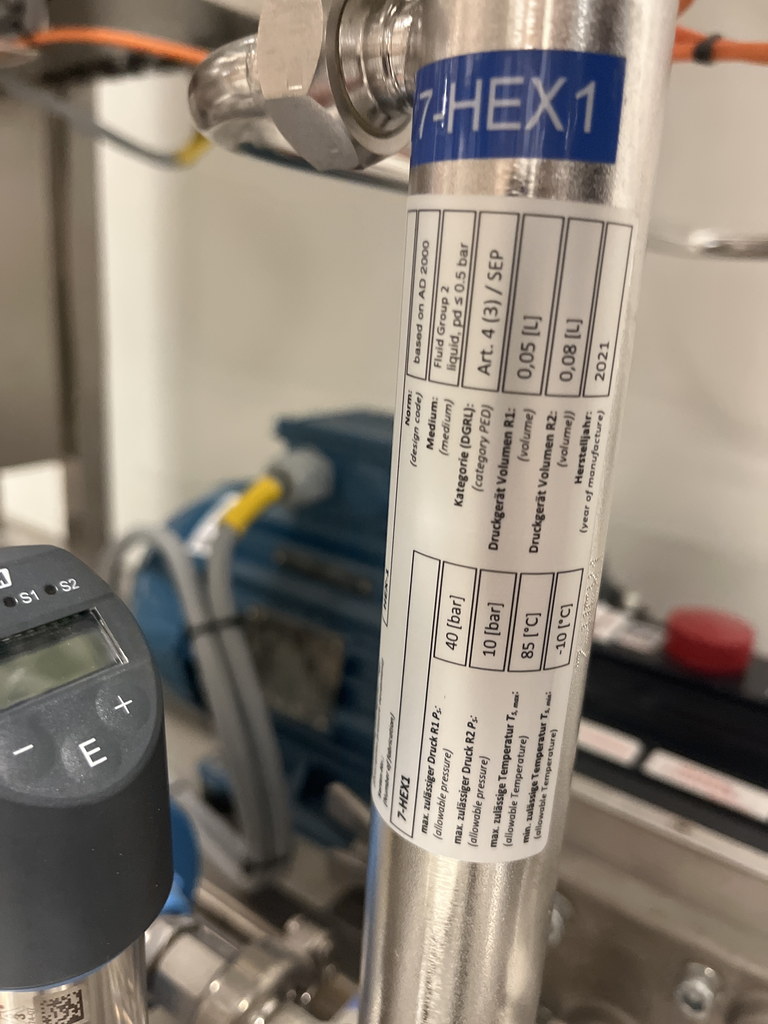

- Multitube heat exchanger for temperature control
Specifications
- Membrane type: Spiral wound 1812 module (other types available)
- Membrane area: 0.3 m²
- Operational pressure: Up to 40 bar
- Temperature range: 5-80C (polystat required)
- Permeate flow rate: 1 – 5 l/h
- Flow rate: 450 L/h
- Feed tank: Stainless steel 316L
- Volume: 10 L
- System hold up volume: 500 – 800 mL
- Instruments: 2 Pressure transducers (0 – 50 bar), 1 Temperature transducer (0 – 100°C), 1 Balance (0 – 15 kg, 1 g resolution)
Weight
Imperial: 1080.0 Pounds
Metric: 489.88 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 62.4 lb x 78.0 lb
Metric: 94.49 cm x 158.5 cm x 198.12 cm
Harmonized Code
842121
Harmonized Code Details
842121 - Machinery for filtering or purifying water. This code was chosen due to the system's filtration capabilities in processing liquids across various industrial applications.
