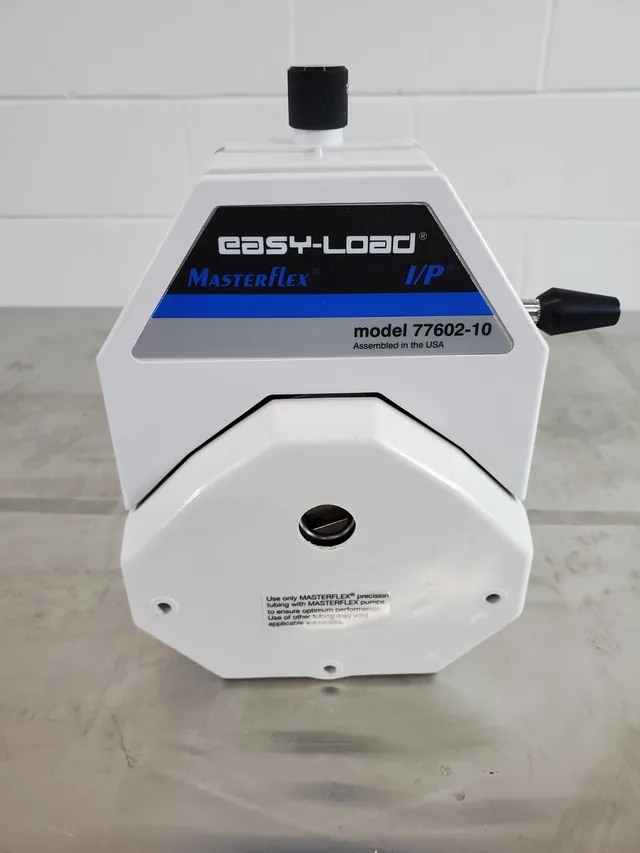

Cole Parmer MasterFlex 77602-10 Pump Head 3.5 GPM Flow Rate
Cole Parmer
Details
-
CategoryPump
-
Dimension8.0in x 4.0in x 8.0in
-
Serial1122015537
-
Shipping TypeFedEx Ground
Description
The Cole Parmer MasterFlex 77602-10 Easy-Load pump head is a reliable and efficient solution for fluid handling applications. Manufactured in the United States, this pump head is designed for quick tubing changes, minimizing downtime. It features a rugged, chemical-resistant white Polyphenylene Sulfide (PPS) housing and a stainless steel rotor, ensuring durability and chemical resistance. With a three-roller design, it provides smooth flow and supports multiple tubing sizes. The pump head is stackable for multichannel applications and operates within an optimum RPM range of 0.1 to 650. It offers a maximum flow rate of 3.5 GPM (13 LPM) and a minimum flow rate of 0.002 GPM (0.01 LPM). This unit has been tested and is functional, showing light-to-moderate cosmetic wear from prior use.
Key Features
- Automatic tubing retention
- Three roller design
- Stackable for multichannel applications
- Adjustable occlusion
- Stainless steel rotor
Specifications
- Max Flow Rate (GPM): 3.5
- Min Flow Rate (GPM): 0.002
- Max Flow Rate (LPM): 13
- Min Flow Rate (LPM): 0.01
- Housing Material: White Polyphenylene Sulfide (PPS)
- Optimum RPM Range (rpm): 0.1 to 650
- Rollers: 3
- Rotor Material: Stainless Steel
- Suction Lift (ft): 25
- Suction Lift (m): 7.6
- Gear Ratio: 1:1
- Tubing sizes accepted: I/P 26, I/P 73, I/P 82
- Volume Per Revolution With I/P 26 Tubing (mL): 6.2
- Volume Per Revolution With I/P 73 Tubing (mL): 12.3
- Volume Per Revolution With I/P 82 Tubing (mL): 20
- Length (in): 3.5
- Width (in): 7.375
- Height (in): 7.9375
- Length (mm): 89
- Width (mm): 187
- Height (mm): 201
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 9.6 in x 4.8 in x 9.6 in
Metric: 24.38 cm x 12.19 cm x 24.38 cm
Harmonized Code
8413.60
Harmonized Code Details
Centrifugal pumps; for liquids, whether or not fitted with a measuring device. This code is applicable as the item is a pump head designed for fluid handling applications.
