Ingersoll Rand PSG-7 Polysep Oil and Water Separator, 2 gal Capacity
Ingersoll Rand
Details
-
CategoryMiscellaneous
-
Dimension11.0in x 11.0in x 16.0in
-

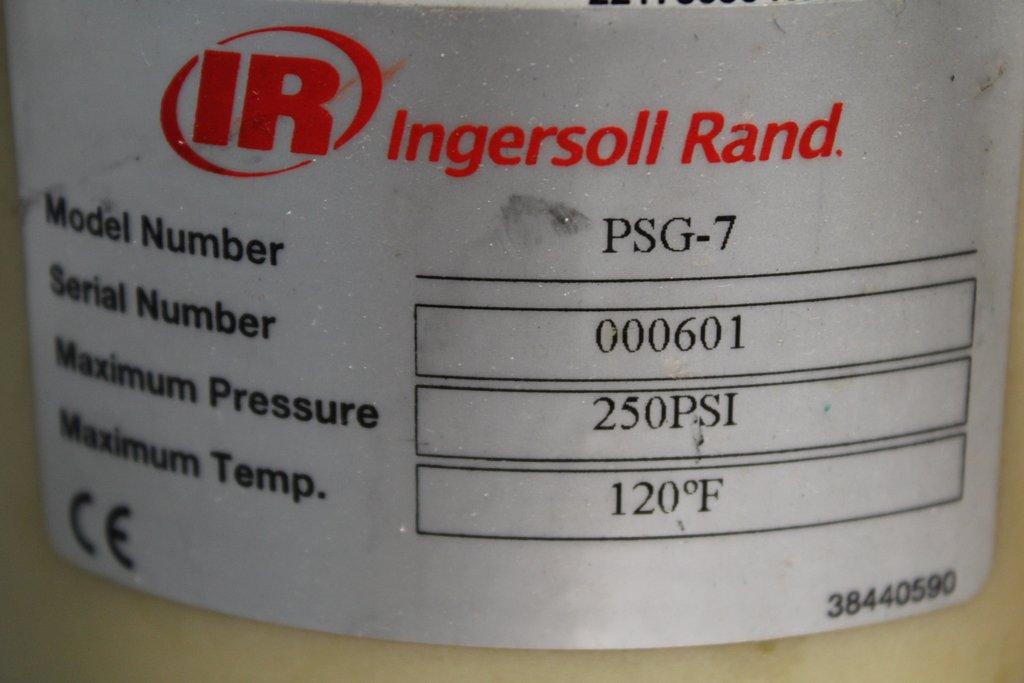

Serial000601
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

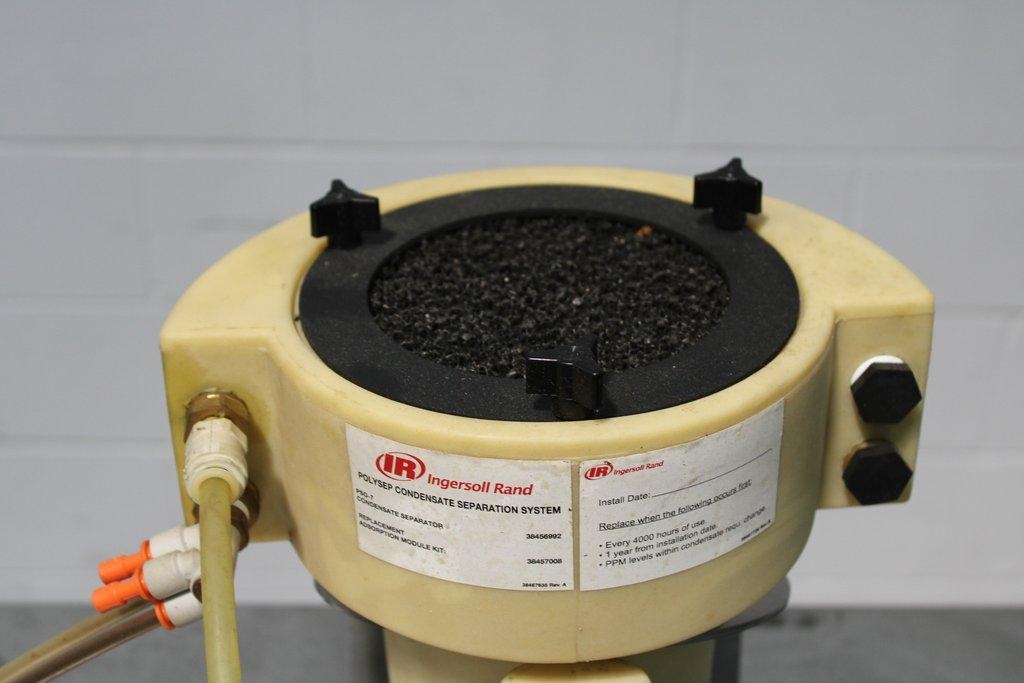

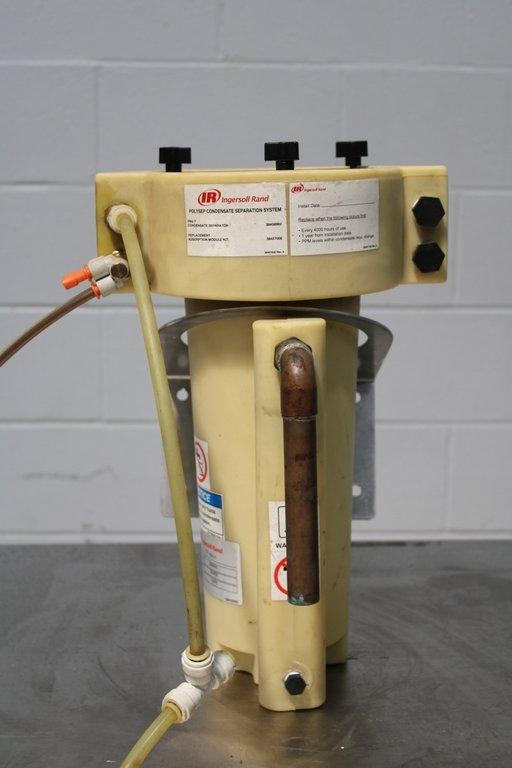

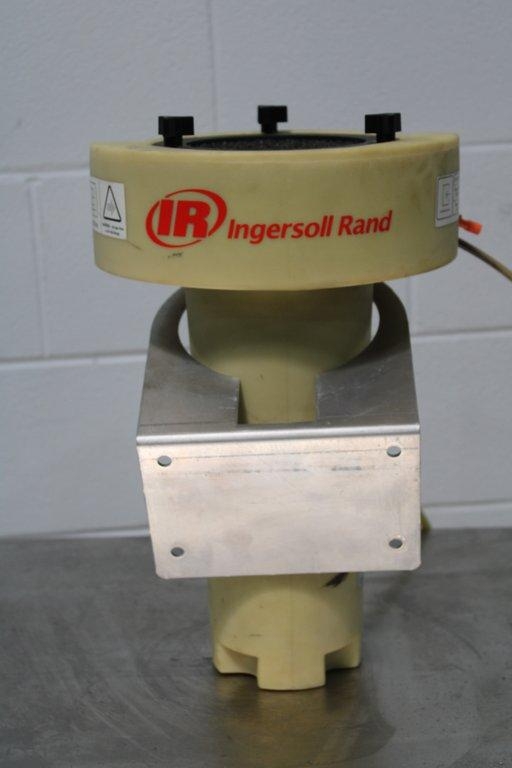

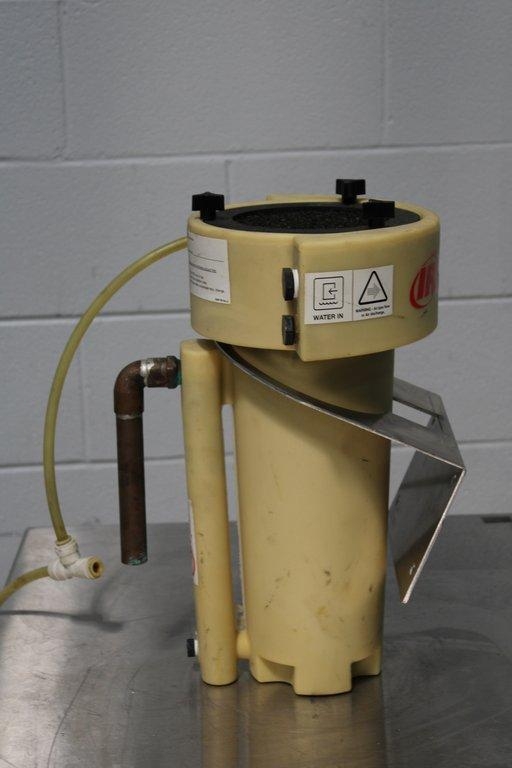

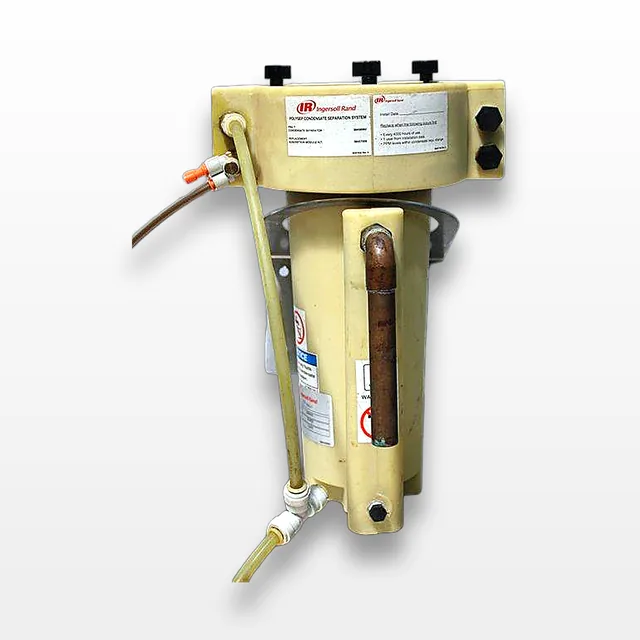

The Ingersoll Rand PSG-7 Polysep Condensate Separation System is a reliable solution for separating oil and water within air compressor systems. With a 2-gallon absorption module volume and capable of handling up to 60 cfm and 15 hp, this unit efficiently manages condensate with ease. Although this unit is used, it is in good condition with signs of wear, and includes a mounting bracket for easy installation. The separation system features NPT-type inlet and outlet ports, underscoring its practicality for a range of applications. Whether managing condensate in industrial, mechanical, or laboratory environments, this high-capacity PSG-7 series model is a dependable choice.
Key Features
- Ingersoll Rand PSG-7 Polysep Series
- 2-gallon absorption module volume
- Handles up to 15 hp and 60 cfm
- NPT-type condensate inlet and outlets
- Includes mounting bracket
Specifications
- Absorption Module Volume: 2 gal
- Condensate Inlet Size: 1/2 in
- Condensate Inlet Type: NPT
- Maximum Air Compressor Horsepower: 15 hp
- Maximum Flow Rate: 60 cfm
- Maximum Operating Temperature: 90 °F
- Oil Outlet Size: 3/4 in
- Oil Outlet Type: NPT
- Water Outlet Size: 3/4 in
- Water Outlet Type: NPT
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 19.2 lb
Metric: 33.53 cm x 33.53 cm x 48.77 cm
Harmonized Code
84212990
Harmonized Code Details
The Harmonized Code 84212990 pertains to machines and equipment for liquids or gases separation, suitable for the PSG-7's use in separating oil and water in industrial applications.
