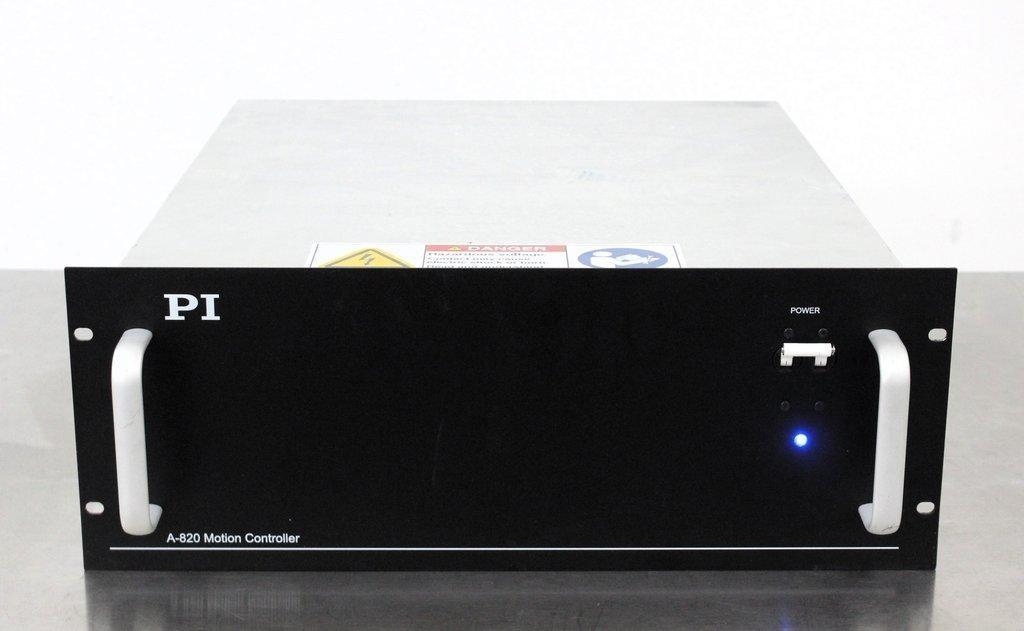

Physik Instrumente A-824 Motion Controller 4 High-Performance Axes TCP/IP
Physik Instrumente
Details
-
CategoryComputer / IT
-
Dimension24.0in x 19.5in x 7.0in
-
SerialA20302003
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz200-240V / 50Hz/60Hz
Description
The Physik Instrumente A-824 Motion Controller, Model A824C2017, is an advanced system designed to meet the needs of stages with direct drive and high power requirements. Originating from the United States, this unit supports TCP/IP interface and features four high-performance motion axes. It integrates a closed-loop servo control, amplifier module, and power supplies for precise control of voice coil drives, DC motors, and brushless 3-phase motors. Capable of providing a continuous current of 10A and a peak output of 20A per axis, this controller ensures smooth operation in various industrial applications. Encoder inputs accommodate incremental (analog sine/cosine and RS-422) and absolute (BiSS-C, EnDat 2.1/2.2) encoders. Despite being marked in good condition with cosmetic wear, it powers on and passes basic tests successfully. Note that while power/data cables, software, and user manuals are not included, the controller remains fully operable for essential functions.
Key Features
- 4 high-performance motion axes
- TCP/IP interface compatibility
- Closed-loop servo control
- 10 A continuous, 20 A peak output per axis
- Supports voice coil, DC, brushless 3-phase motors
- Quiet PWM drives with NanoPWM option
- Incremental and absolute encoder inputs
Specifications

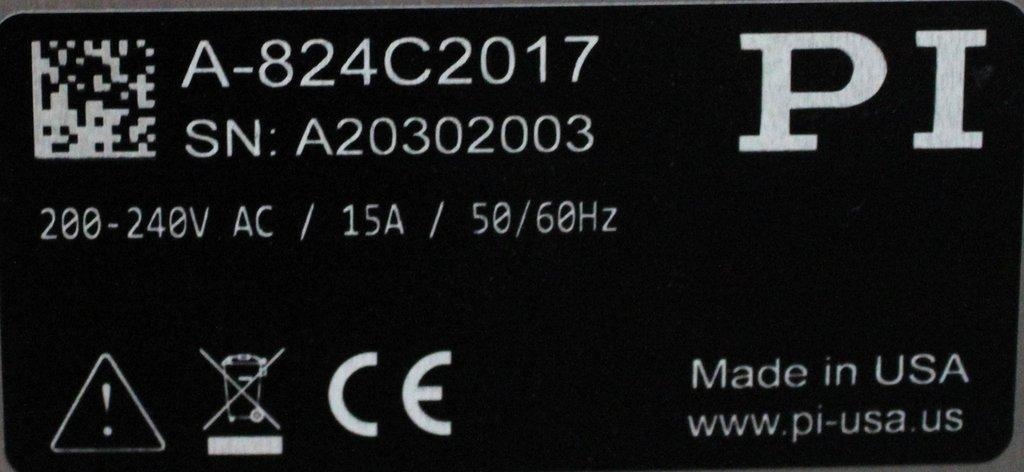

- Model: A824C2017
- Condition: Good, with cosmetic wear
- Voltage: 200-240V, 50Hz/60Hz

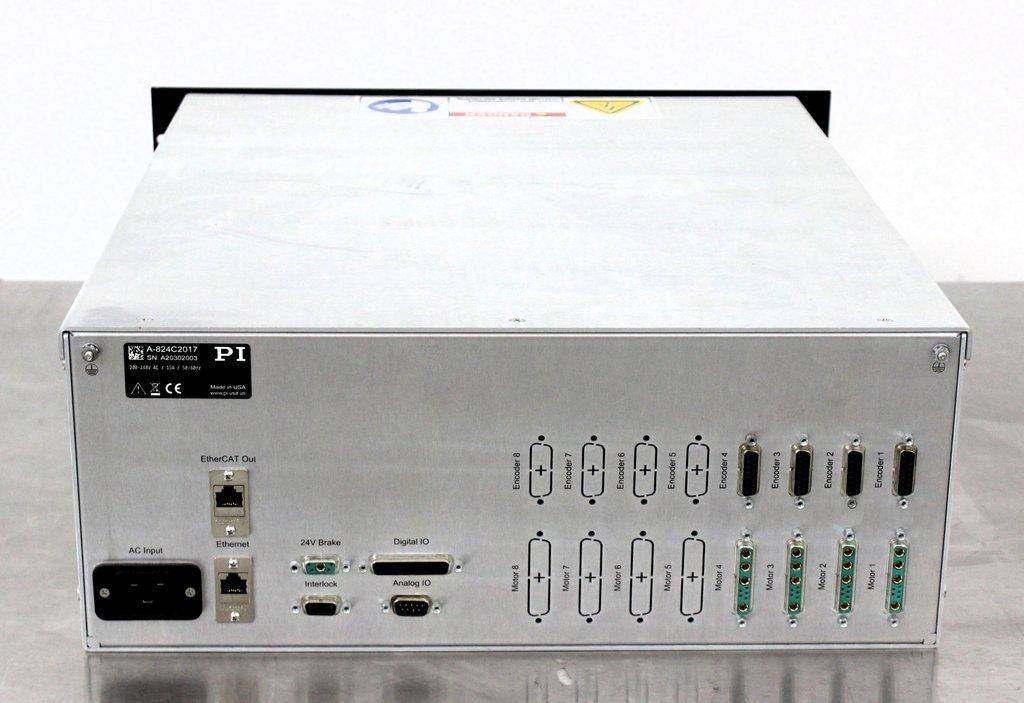

- Encoder Inputs: Incremental (analog sine/cosine, RS-422), Absolute (BiSS-C, EnDat 2.1/2.2)
- Current Output: 10 A continuous / 20 A peak per axis
- Dimensions: 24 in (length), 19.5 in (width), 7 in (height)
Weight
Imperial: 37.2 Pounds
Metric: 16.87 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 23.4 lb x 8.4 lb
Metric: 73.15 cm x 59.44 cm x 21.34 cm
Harmonized Code
9032.89
Harmonized Code Details
The code 9032.89 corresponds to 'Automatic regulating or controlling instruments and apparatus; parts and accessories thereof'. This code is appropriate given the A-824's function as a motion controller featuring an integrated servo control module compatible with various motor types.
