Pall Cadence BioSMB PD Process Chromatography System 700 mL/min Flow
Pall
Details
-
CategoryBioprocessing
-
Dimension34.0in x 57.0in x 36.0in
-
SerialPD-2036
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-

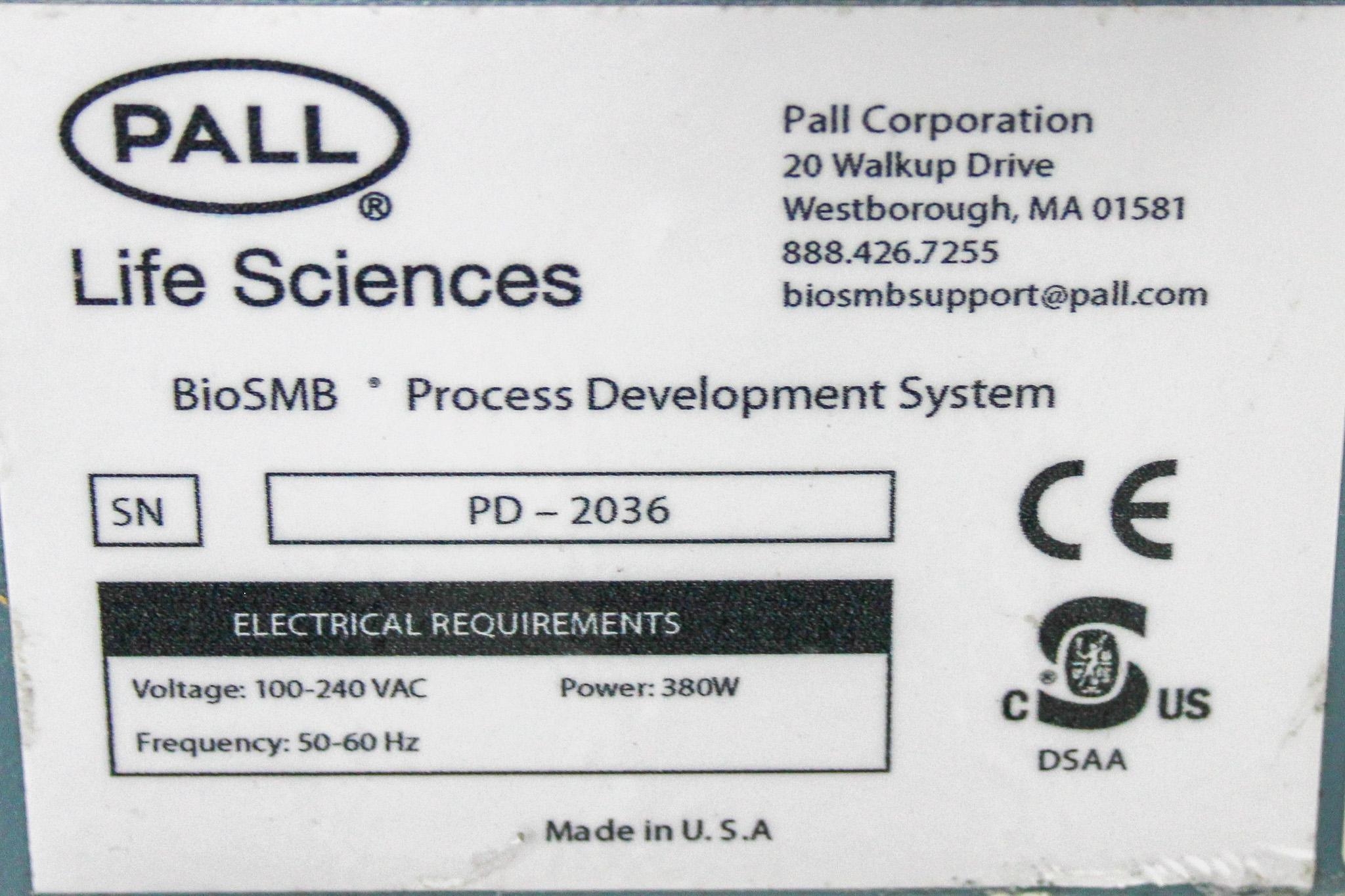

Voltage / Hertz100-240V / 50Hz/60Hz
Description

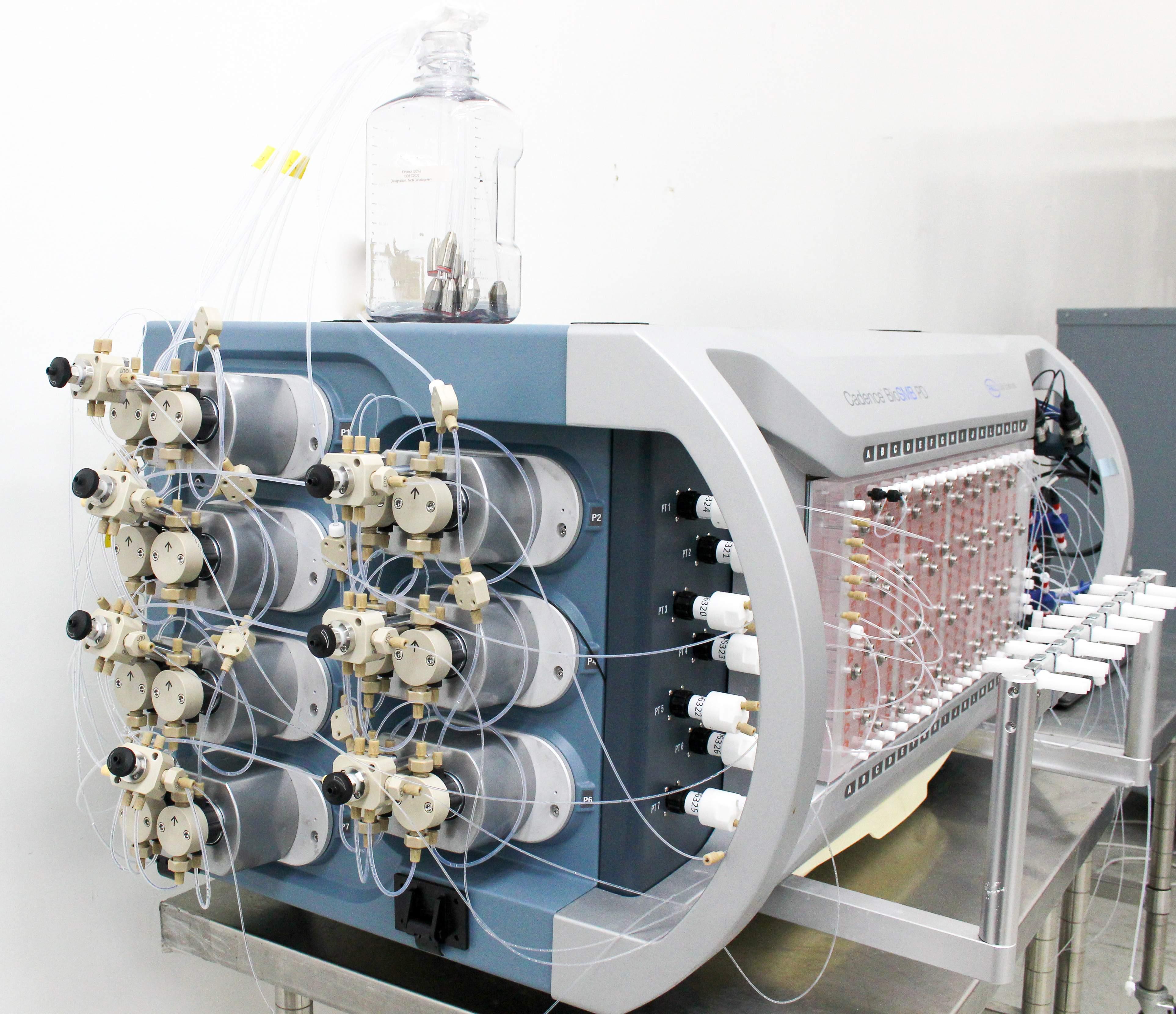

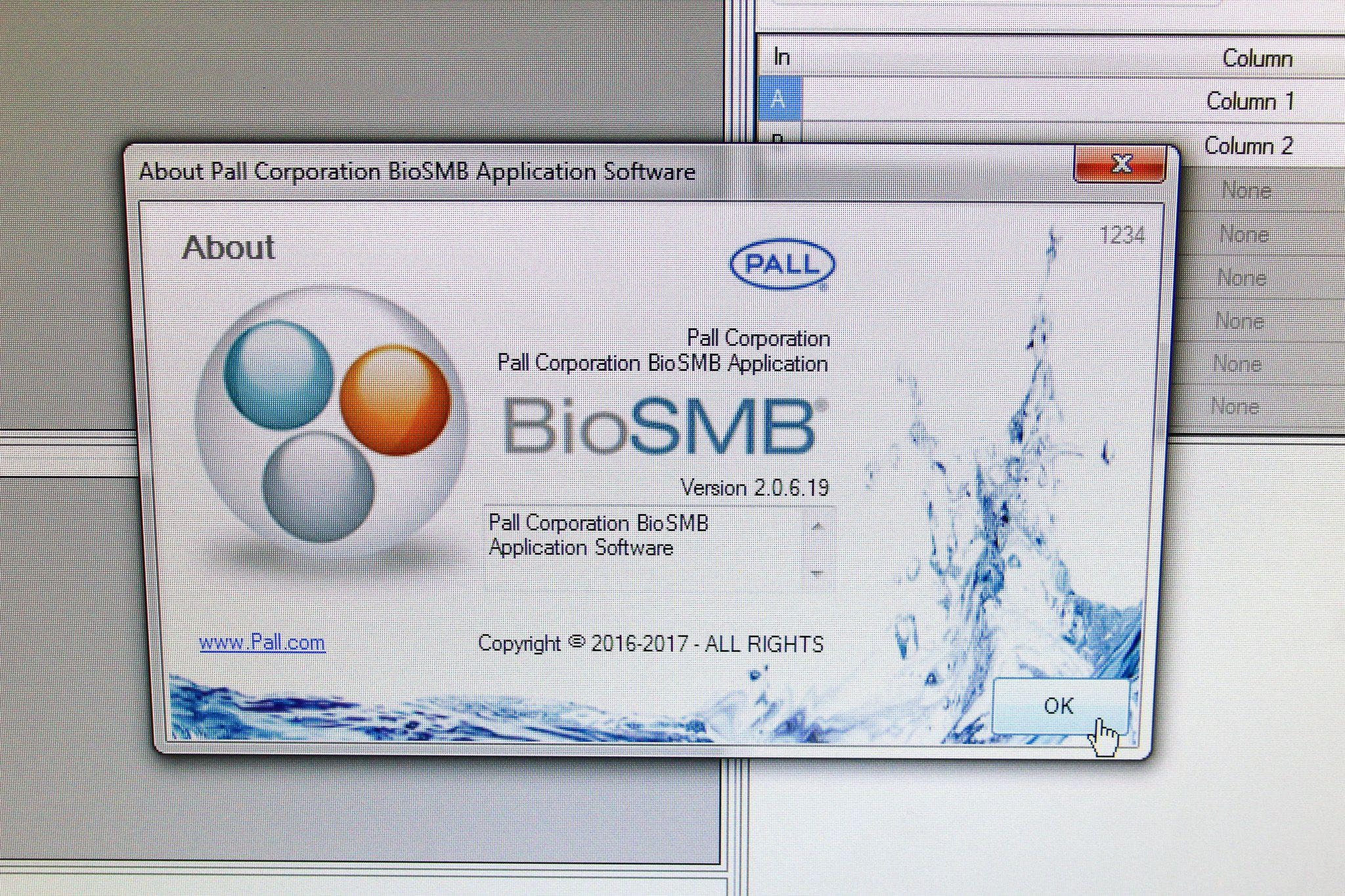

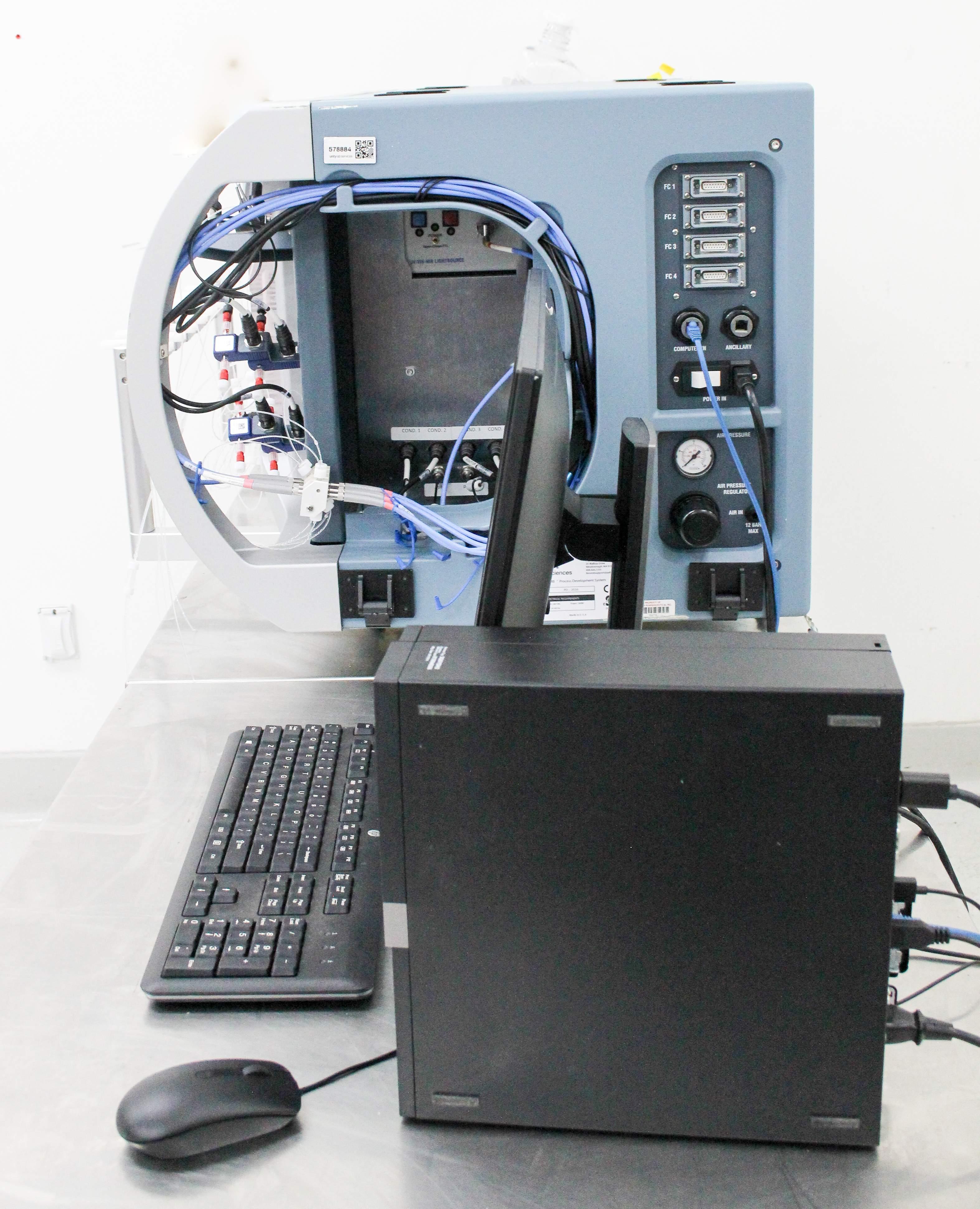

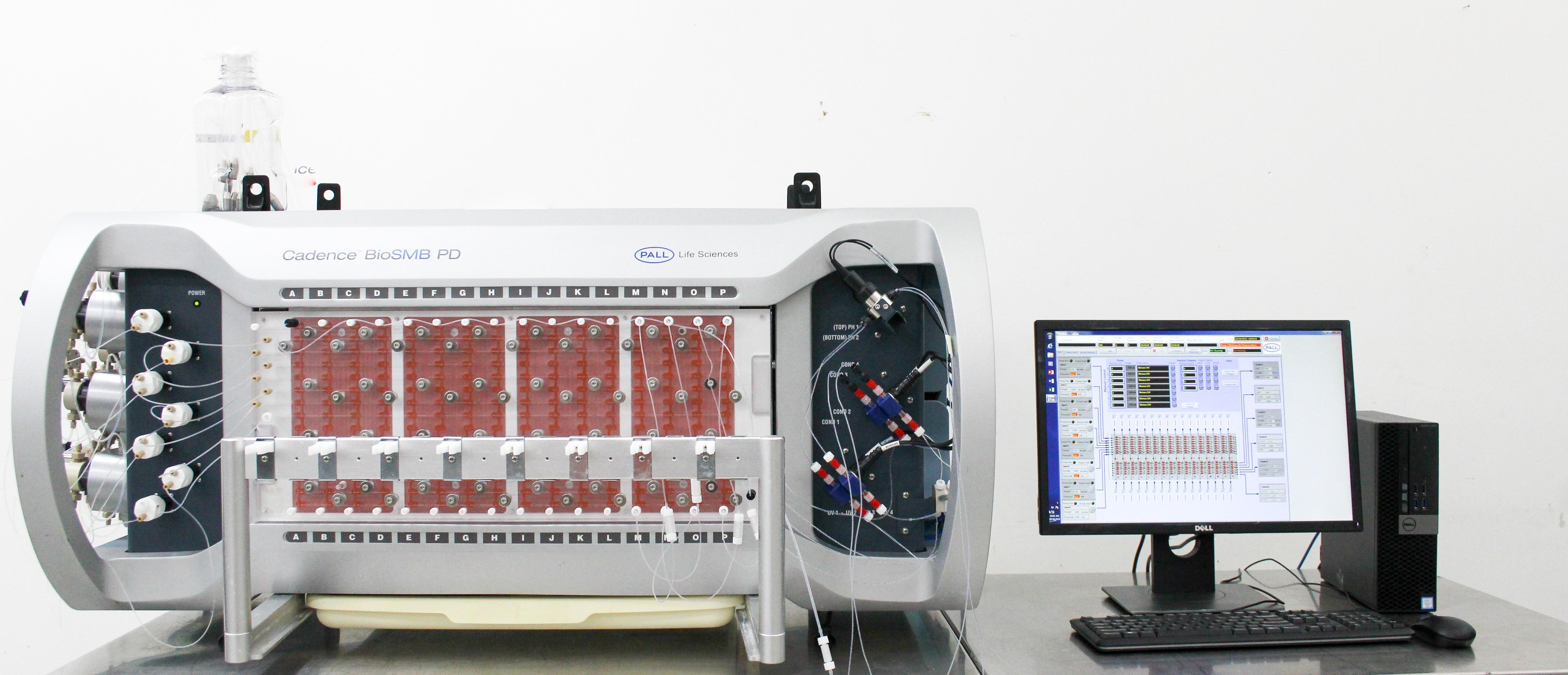

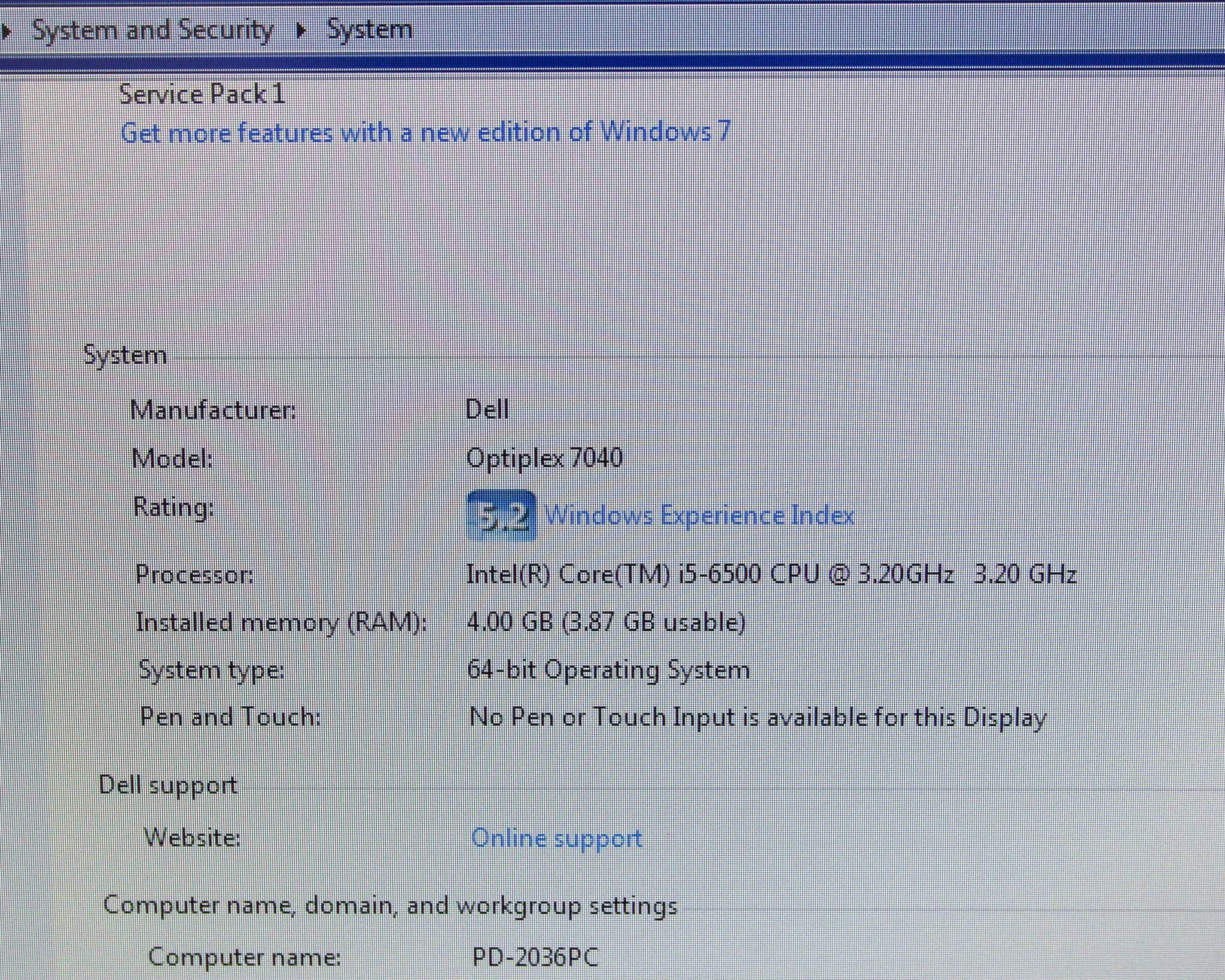

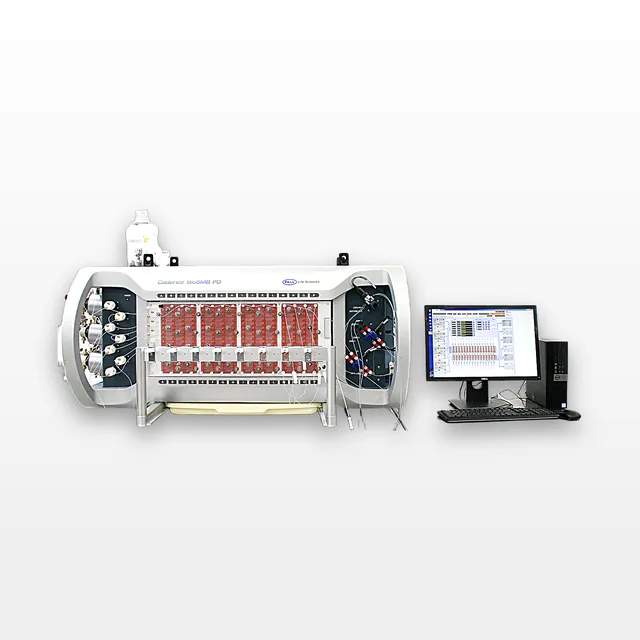

The Pall Cadence BioSMB PD is a continuous single-use multi-column chromatography system designed to optimize process development in the biopharmaceutical industry. The instrument includes a Dell OptiPlex 7040 running Windows 7 and BioSMB software. While the unit displays minor cosmetic issues and has not been fully tested, it was found to communicate with installed software and operate all pumps without faults. The BioSMB PD system streamlines conversion from batch to continuous chromatography, vastly reducing media costs, and is adaptable across various chromatography methods, employing up to 16 columns. Key features include a flow rate of up to 700 mL/min, multiple sensor outputs, 145 psi operating pressure, and a versatile valve system that avoids cleaning validation.
Technician comment

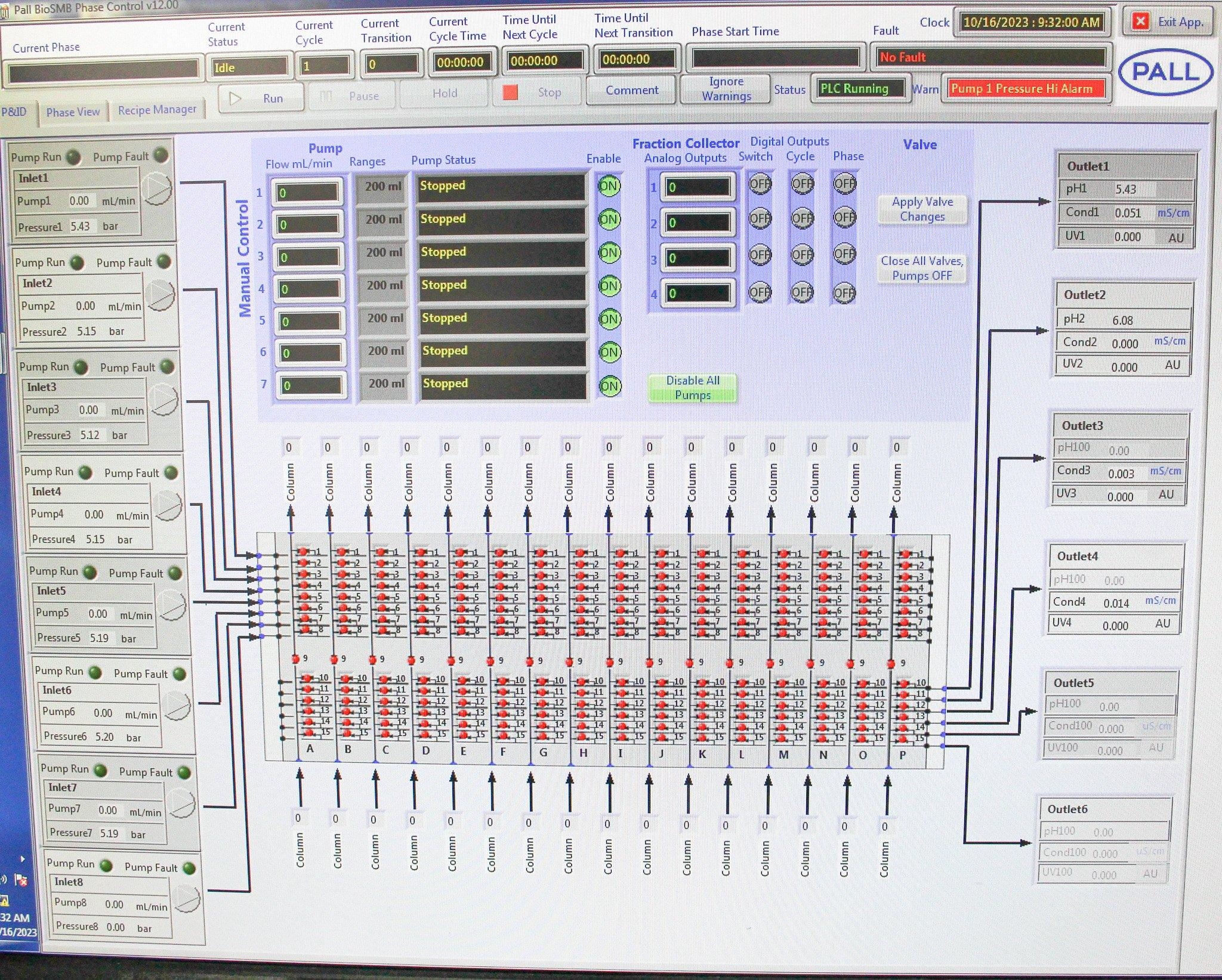

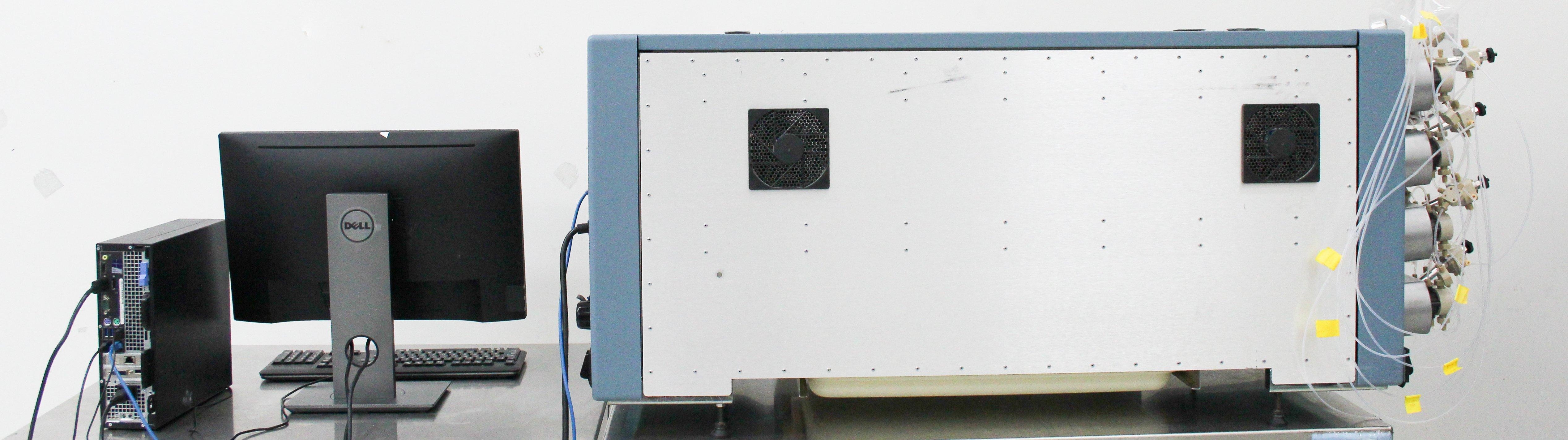

The Cadence BioSMB system was tested as far as we could. Unit is able to communicate with software with all pumps running and no faults. (System will need to be validated/calibrated to ensure accurate results. Inquire if validation/calibration is available for an additional cost.) Unit is preowned with slight wear from normal use. See photos for details.
Key Features
- Continuous single-use multi-column chromatography
- Supports up to 16 chromatographic columns
- Optimizes media cost and process scalability
- Flow rate up to 700 mL/min

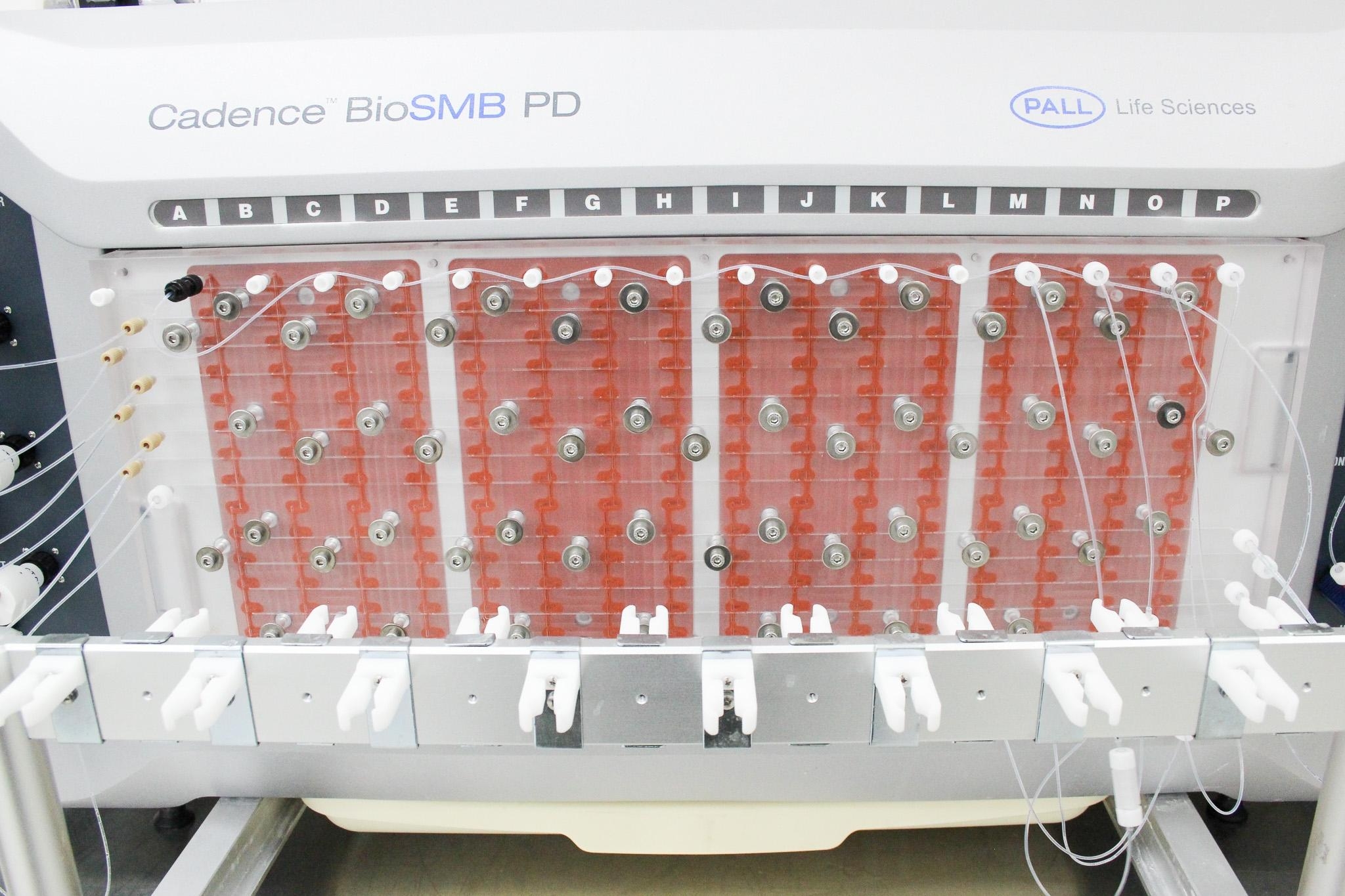

- Advanced valve system eliminating cleaning requirements
- Compatibility with diverse chromatographic techniques
Specifications
- Dimensions: 34in Length x 57in Width x 36in Height
- Weight: 380 lbs
- Electrical Requirements: 115 VAC or 230 VAC

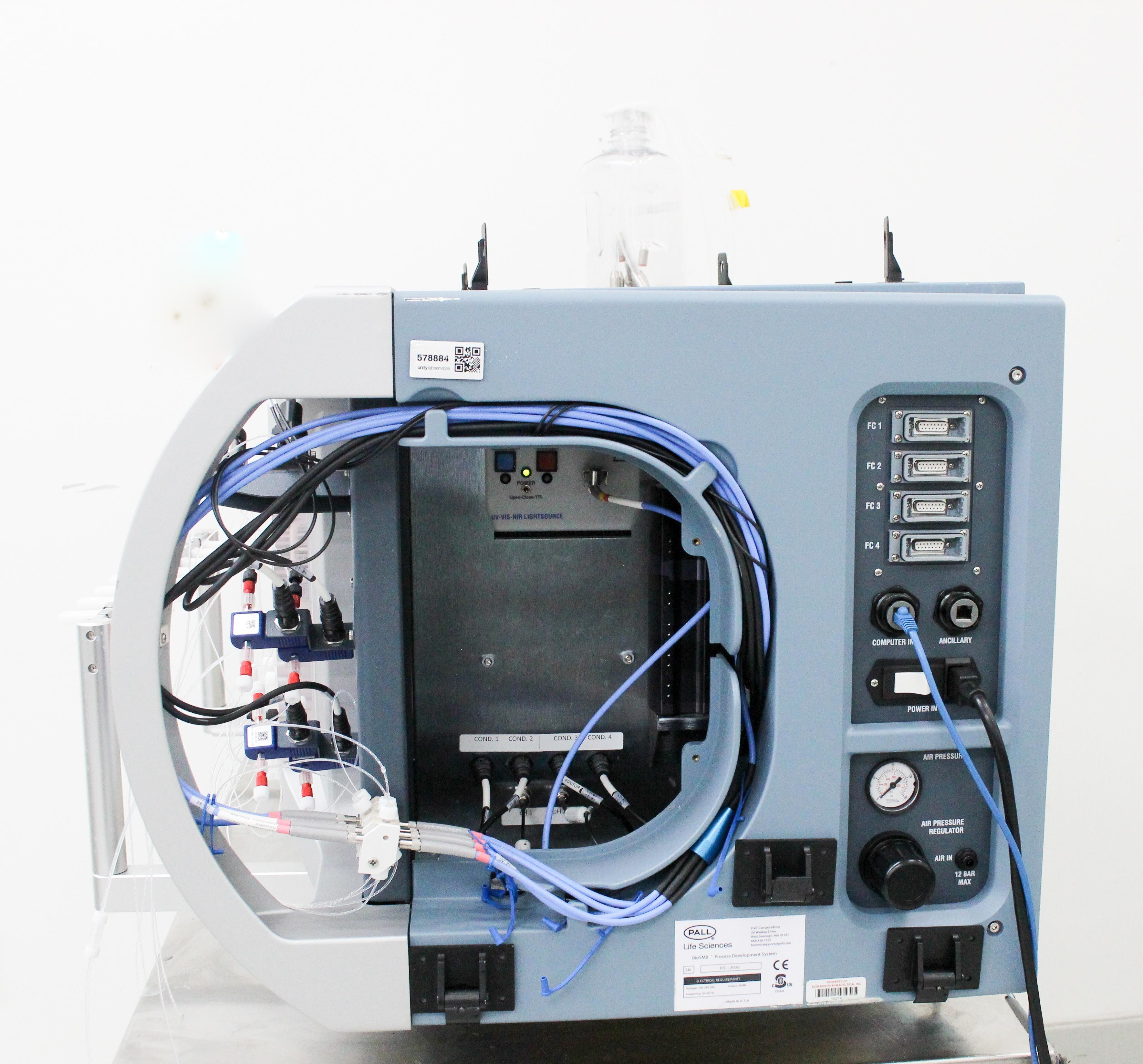

- Air Supply: At least 1 bar above process pressure
- Inlets: Max 8, Outlets: Max 6
- Max Operating Pressure: 145 psi/10 bar
- Sensor Capabilities: Pressure up to 200 psi, UV-VIS sensors 200-850 nm, pH range 0-14, Conductivity 1 S/cm to 200 mS/cm

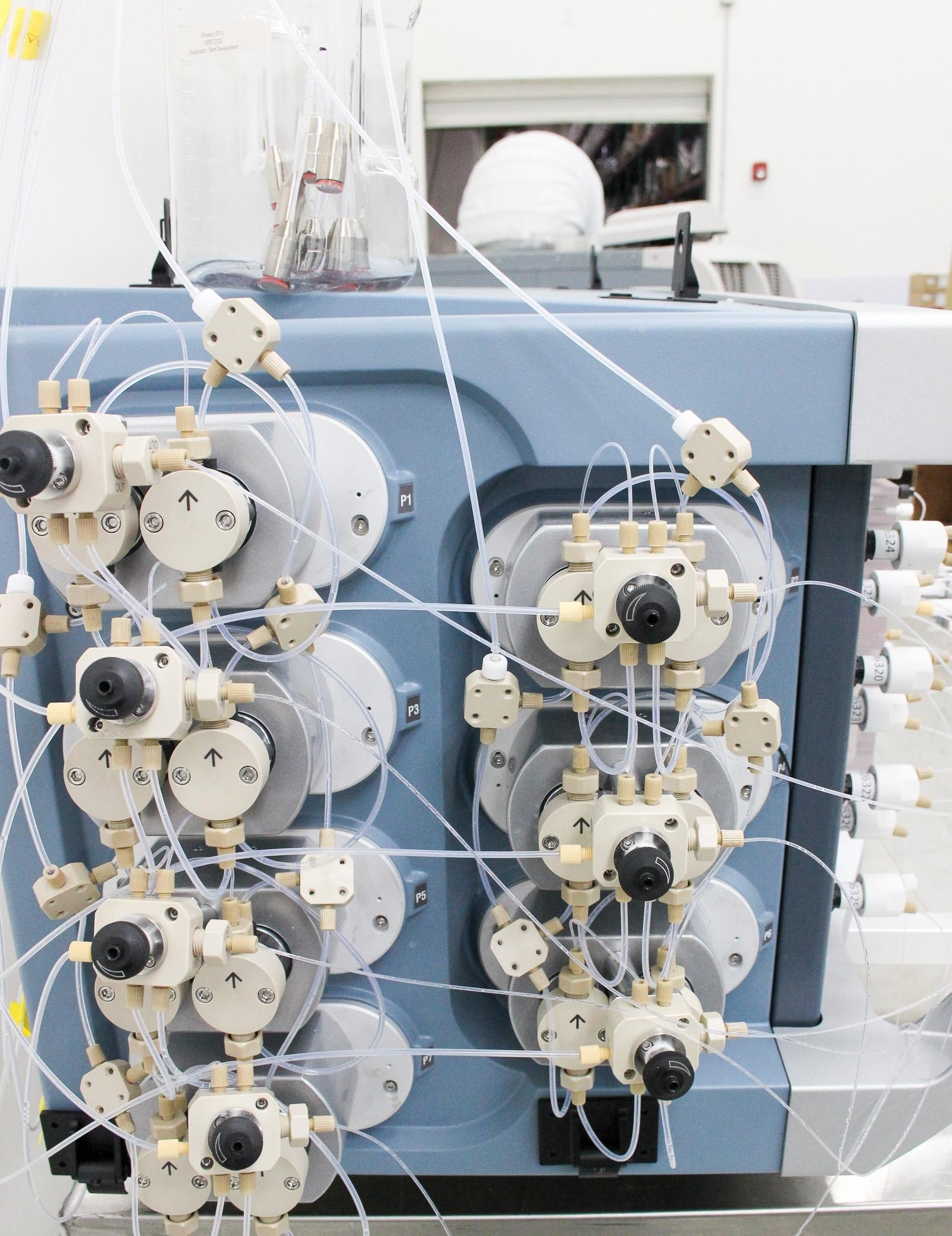

- Pump Specifications: Up to 7 pumps with high and low flow versions
Weight
Imperial: 456.0 Pounds
Metric: 206.84 Kilograms
Shipping Dimensions
Imperial: 40.8 lb x 68.4 lb x 43.2 lb
Metric: 103.63 cm x 173.74 cm x 109.73 cm
Harmonized Code
8421290090
Harmonized Code Details
8421290090 - Machines and apparatus for filtering or purifying liquids, other than water. This code applies as the Cadence BioSMB PD system is primarily used for purifying and separating liquids in biopharmaceutical applications.
