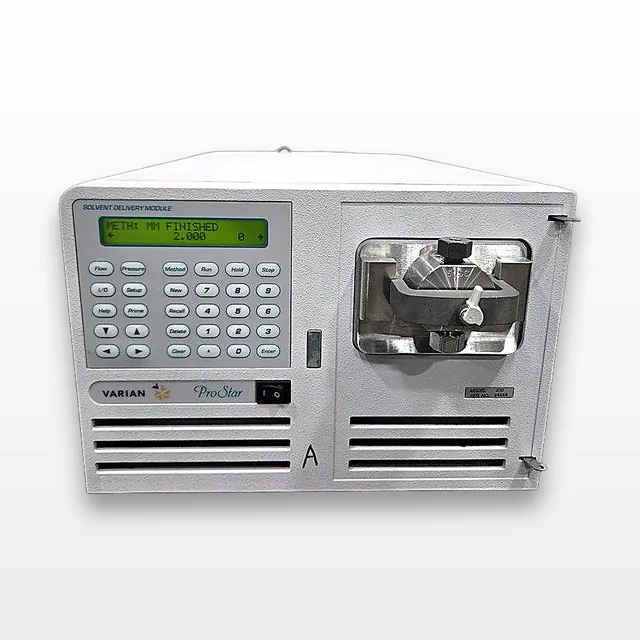

Varian ProStar Solvent Delivery Module Model 210 HPLC, 6000 psi, 0.01-10 mL/min
Varian
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension22.0in x 12.0in x 11.0in
-
Serial04666
-
Shipping TypeFedEx Ground
-
Manufacturing2005-11-16
-
Voltage / Hertz100-120/200-240V / 50Hz/60Hz
Description
The Varian ProStar Solvent Delivery Module Model 210 is a high-performance HPLC device designed for precise and pulseless solvent flow in liquid chromatography applications. It supports flow rates from 0.01 to 10.0 mL/min and pressures up to 6000 psi. This versatile module can be configured for isocratic or high-pressure gradient systems using up to four pumps, with both stainless steel and PEEK/titanium fluid paths available for biocompatibility. While we couldn't test its full functionality, the unit powers on and passes initial tests without known issues, although cosmetic wear is present. Notably, it integrates with Windows-based Star Workstation or Galaxie software for enhanced data management, offering 3 programmable relay outputs and 5 contact-closure inputs for device control.
Key Features
- Flow rates from 0.01 to 10.0 mL/min
- High-pressure capability of 6000 psi
- Configurable for isocratic to quaternary gradient systems
- Stainless steel or PEEK/titanium fluid paths
- User-friendly keypad control
- Integration with Star Workstation or Galaxie software
- 3 programmable relay outputs
- 5 contact-closure inputs for device control
Specifications
- Flow Rate: 0.01 to 10.0 mL/min
- Pressure Capacity: up to 6000 psi
- Gradient Configuration: Isocratic to quaternary
- Control Interface: Keypad and software integration
- Fluid Paths: Stainless steel or PEEK/titanium
- Power Requirements: 100-120/200-240V, 50Hz/60Hz
- Relay Outputs: 3 programmable
- Contact-closure Inputs: 5
Weight
Imperial: 57.6 Pounds
Metric: 26.13 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 9.6 lb x 21.6 lb
Metric: 36.58 cm x 24.38 cm x 54.86 cm
Harmonized Code
9027.80.1050
Harmonized Code Details
9027.80.1050 covers instruments and apparatus for physical or chemical analysis. This classification is appropriate given the ProStar Solvent Delivery Module's function in liquid chromatography analysis.
