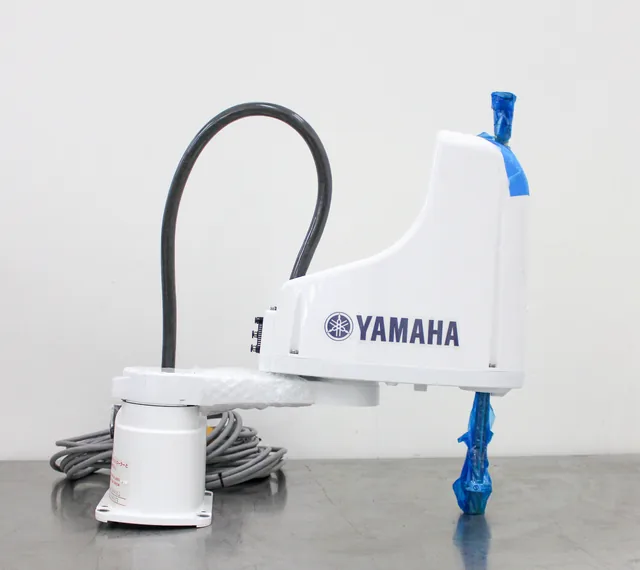

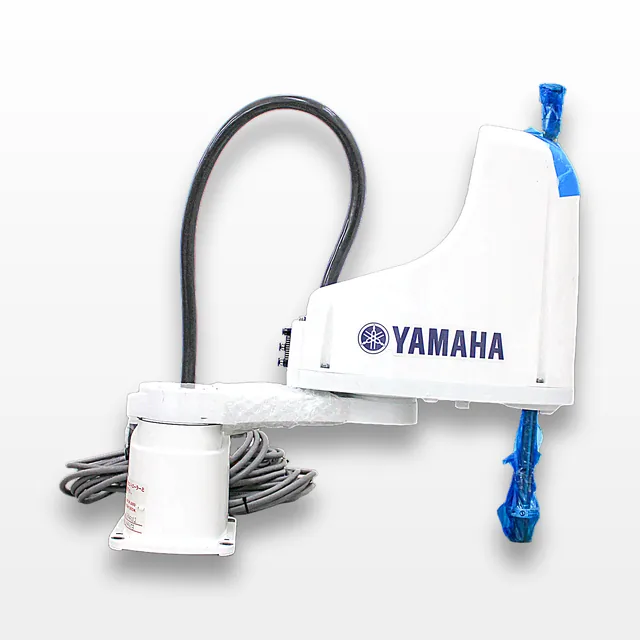

Yamaha YK400XE-4 Industrial Robot Arm with RCX340 Controller, 230V
Yamaha
Details
-
CategoryRobotic / Automation
-
Dimension29.0in x 22.0in x 25.0in
-
Serial209KL9A4002
-
Shipping TypeFreight
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Yamaha YK400XE-4 Industrial Robot Arm with RCX340 Controller offers a high-performance solution for a wide range of industrial applications. Made in the United States, this YK400XE-4 model is designed for improved efficiency and reliability in production processes. With a compact 400mm arm reach, it supports rapid, agile operations that enhance productivity. Despite being in fair condition and needing minor repairs, this unit is functional, featuring a powerful AC servo motor with a maximum payload capacity of 4 kg, which is 1.4 times larger than previous models. High-speed operations with a standard cycle time of 0.41 seconds are achieved through optimized arm structures that reduce vibration. Optimal for precision assembly, the robot offers enhanced tracking accuracy and dynamic performance. Please note that this unit is missing its power cord and has slight cosmetic wear from regular use. The robot arm's acceleration and deceleration are automatically optimized for improved performance.
Key Features
- High-performance industrial robot arm
- 400mm compact arm reach
- Maximum payload capacity of 4 kg
- Optimized high-speed operations
- Enhanced tracking accuracy with RCX340 Controller
Specifications
- Y-Axis Arm length: 175 mm
- Rotation angle: +/-150
- AC servo motor output: 100 W
- Maximum speed: 6 m/sec
- Repeatability: +/-0.01 mm
- Standard cycle time with 2kg payload: 0.41 sec
- Maximum payload: 4 kg (standard), 3 kg (optional)
- R-axis tolerable moment of inertia: 0.05 kgm2
- User wiring: 0.2 sq 10 wires
- User tubing: 4 3
- Travel limit: Soft limit and Mechanical stopper (X, Y, Z axis)
- Robot cable length: Standard 3.5 m, Optional 5 m, 10 m
- Controller Power Capacity: 1000
- Operation: RS-232C
Weight
Imperial: 102.0 Pounds
Metric: 46.27 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 26.4 lb x 30.0 lb
Metric: 88.39 cm x 67.06 cm x 76.2 cm
Harmonized Code
84795000
Harmonized Code Details
Harmonized code 84795000 represents industrial robots, provided with auxiliary functions, capable of performing proactive tasks commonly used in automated systems. This code is suitable as it aligns with the specifications and functionality of the Yamaha YK400XE-4 Industrial Robot Arm.
