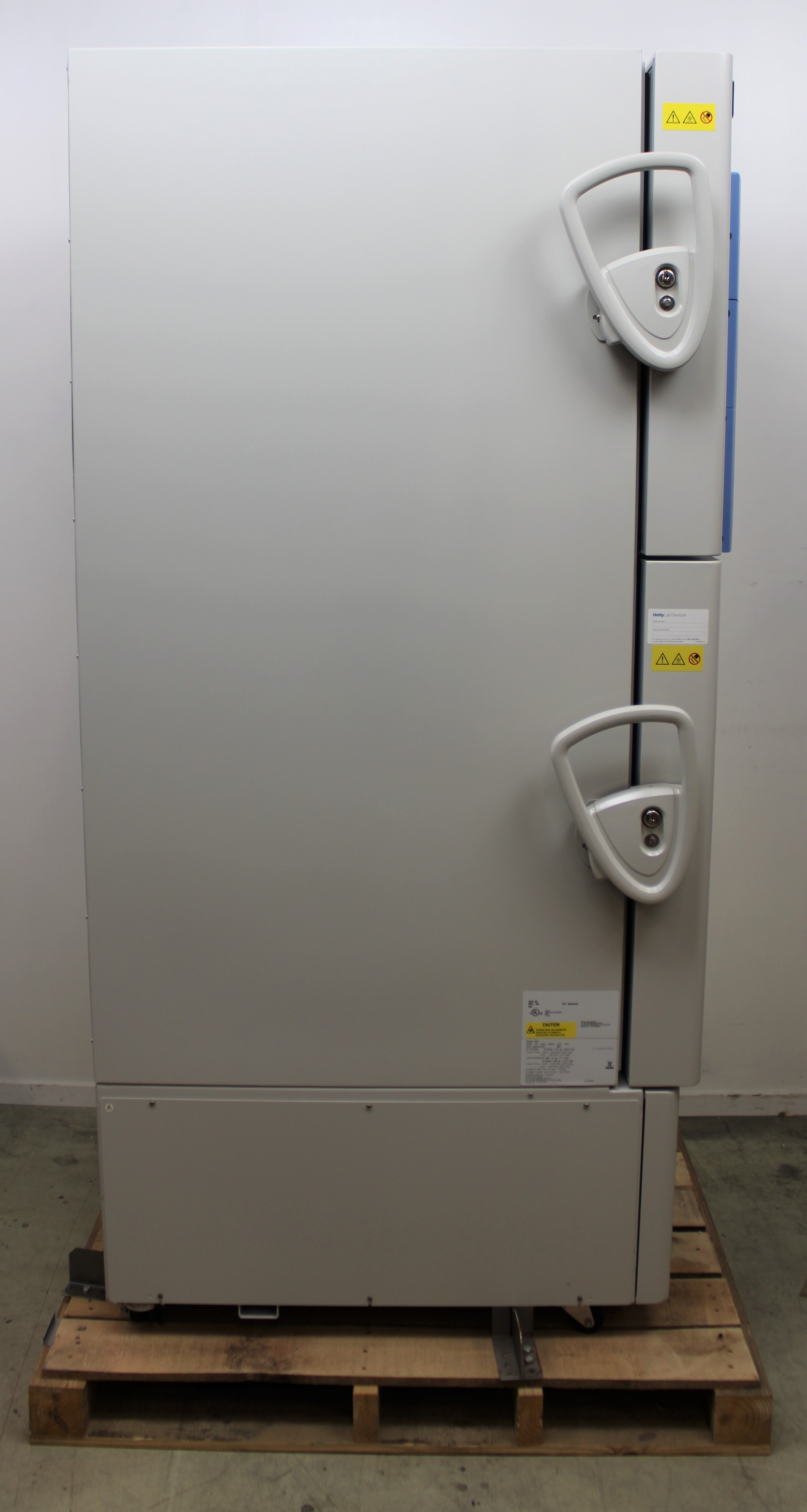

Thermo FORMA 900 Upright Freezer -86C Cold Storage 490L Used Functional
Thermo Fisher Scientific
Details
-
CategoryCold Storage
-
Dimension87.0cm x 94.0cm x 198.0cm
-
Serial300104181
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

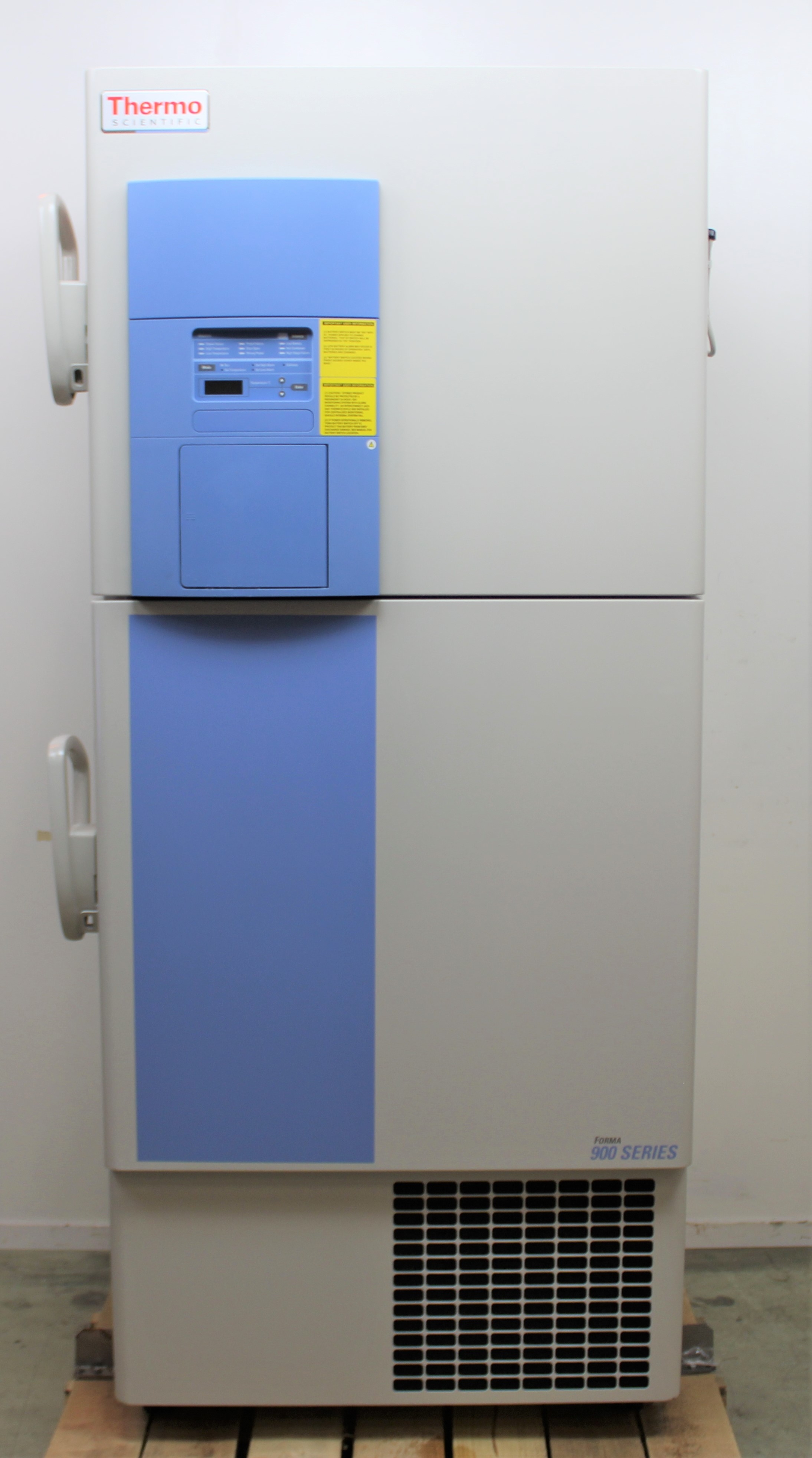

The Thermo FORMA 900 Series, model 993, is a reliable upright freezer with dual doors ideal for laboratories needing consistent ultra-low-temperature storage. With a capacity of 490 liters, this freezer can accommodate up to 288 cryoboxes, making it suitable for storing large volumes of samples. This unit, manufactured in the United States, operates at a temperature range from -50C to -86C and requires a power supply of 120V and 60Hz. While the freezer is used and in fair condition, it remains functional. Please note that testing on this unit was not feasible due to electrical restrictions. Its construction includes cold-rolled steel with a painted Galvaneel interior for durability. It's smart-vue compatible and features fin and tube forced-air cooled condensers with hermetic compressors using R404A and R508B refrigerants. The manual defrost system ensures continued performance despite minor cosmetic defects or errors. Missing components do not compromise functionality.
Key Features
- Capacity: 490L for 288 cryoboxes
- Temperature Range: -50C to -86C
- Dual-door upright design for easy access
- Cold-rolled steel construction with durable painted Galvaneel interior
- Fin and tube, forced-air cooled condenser
- USB and RS-485 connectivity
- Compatible with Smart-Vue monitoring system
- Operates on standard 120V, 60Hz electrical supply
Specifications
- Temperature Range: -50C to -86C
- Total Capacity: 490 liters

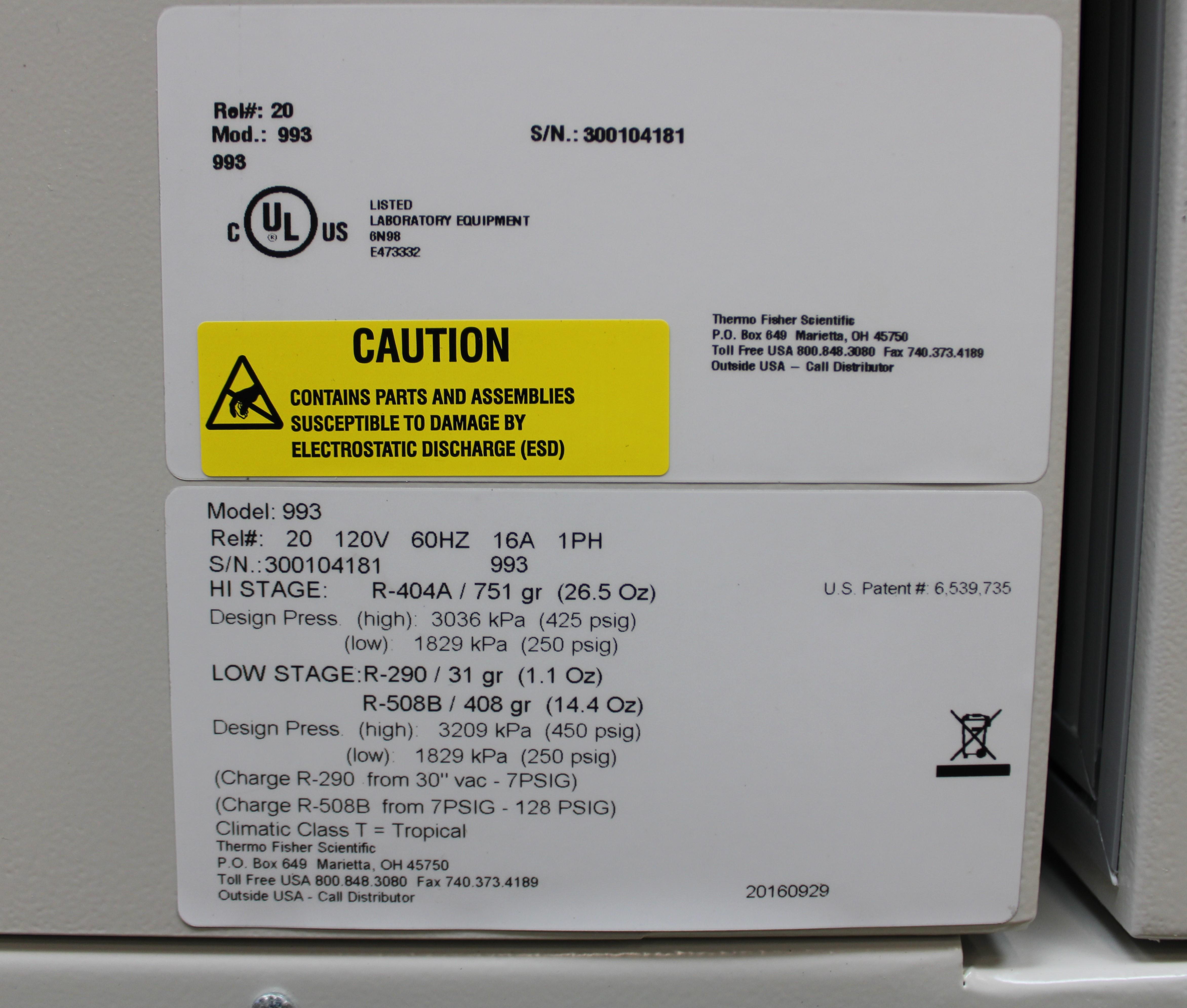

- Electrical Requirements: 120V, 60Hz, 16A
- Refrigerant: R404A, R508B
- Compressor Type: Hermetic
- Manual Defrost System
- Footprint: 0.84 square meters
- Vial Capacity: 28,800 x 2mL

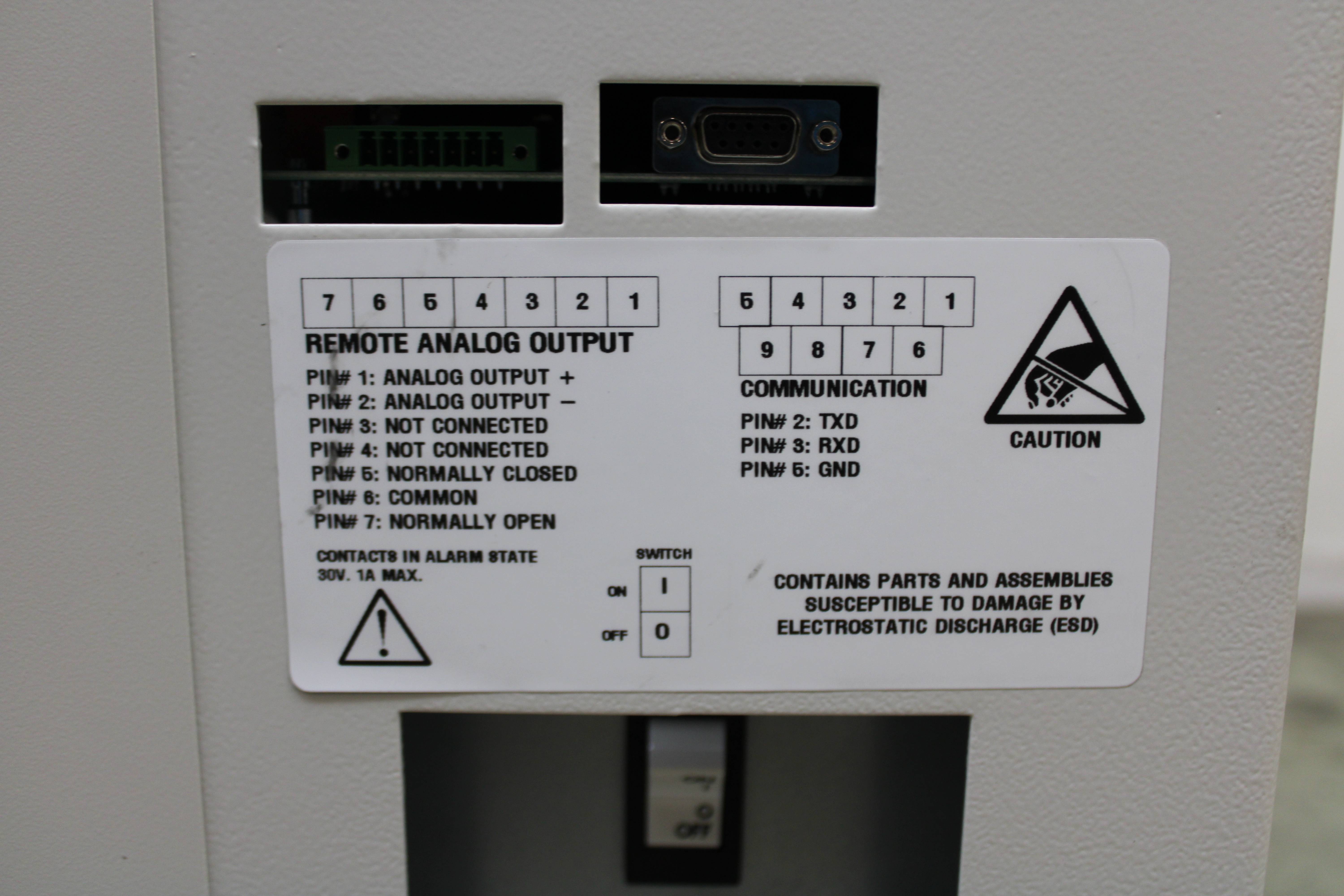

- Data Outputs: RS-485, 4-20mA, dry contacts standard, PT100 probe optional
- Condenser Type: Fin and Tube, Forced-Air Cooled

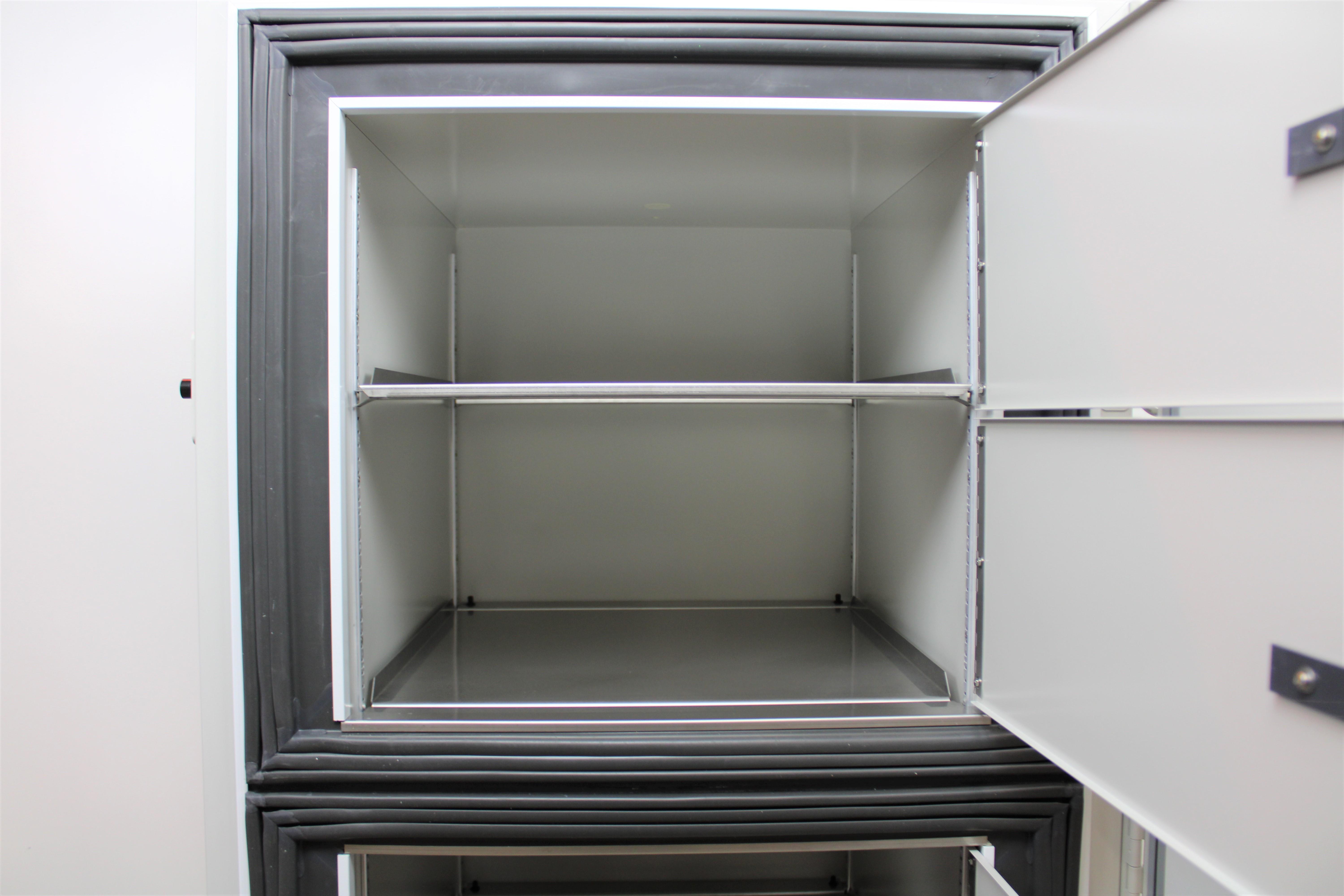

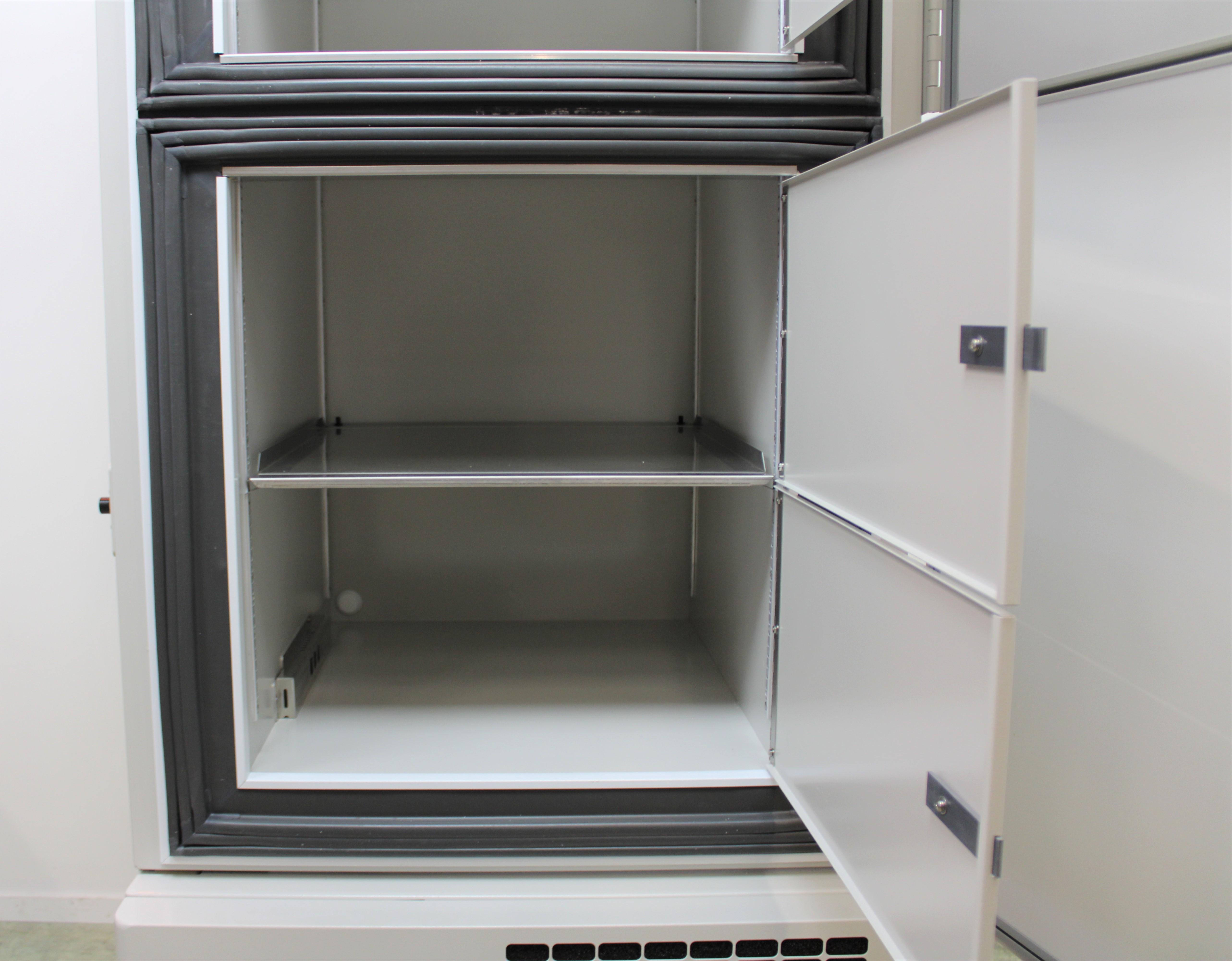

- Door Style: 1 Outer, 4 Inner

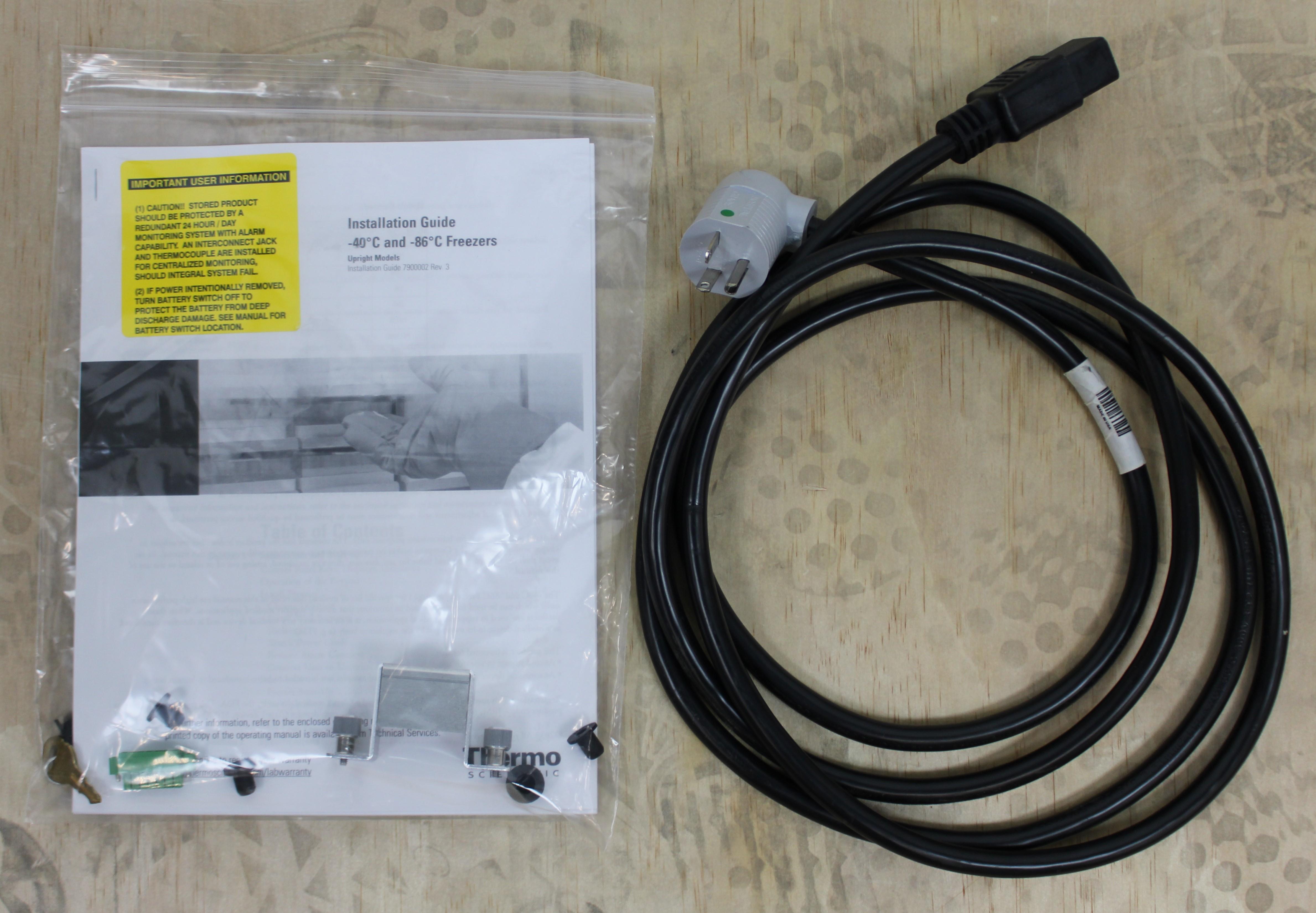

- Plug Type: NEMA 5-20
Weight
Imperial: 915.36 Pounds
Metric: 415.2 Kilograms
Shipping Dimensions
Imperial: 41.1 lb x 44.41 lb x 93.54 lb
Metric: 104.39 cm x 112.8 cm x 237.59 cm
Harmonized Code
841830
Harmonized Code Details
841830 - Freezers of the upright type, not used for retail display. This code is appropriate as it covers equipment specifically meant for cold storage of samples with temperature control features.
