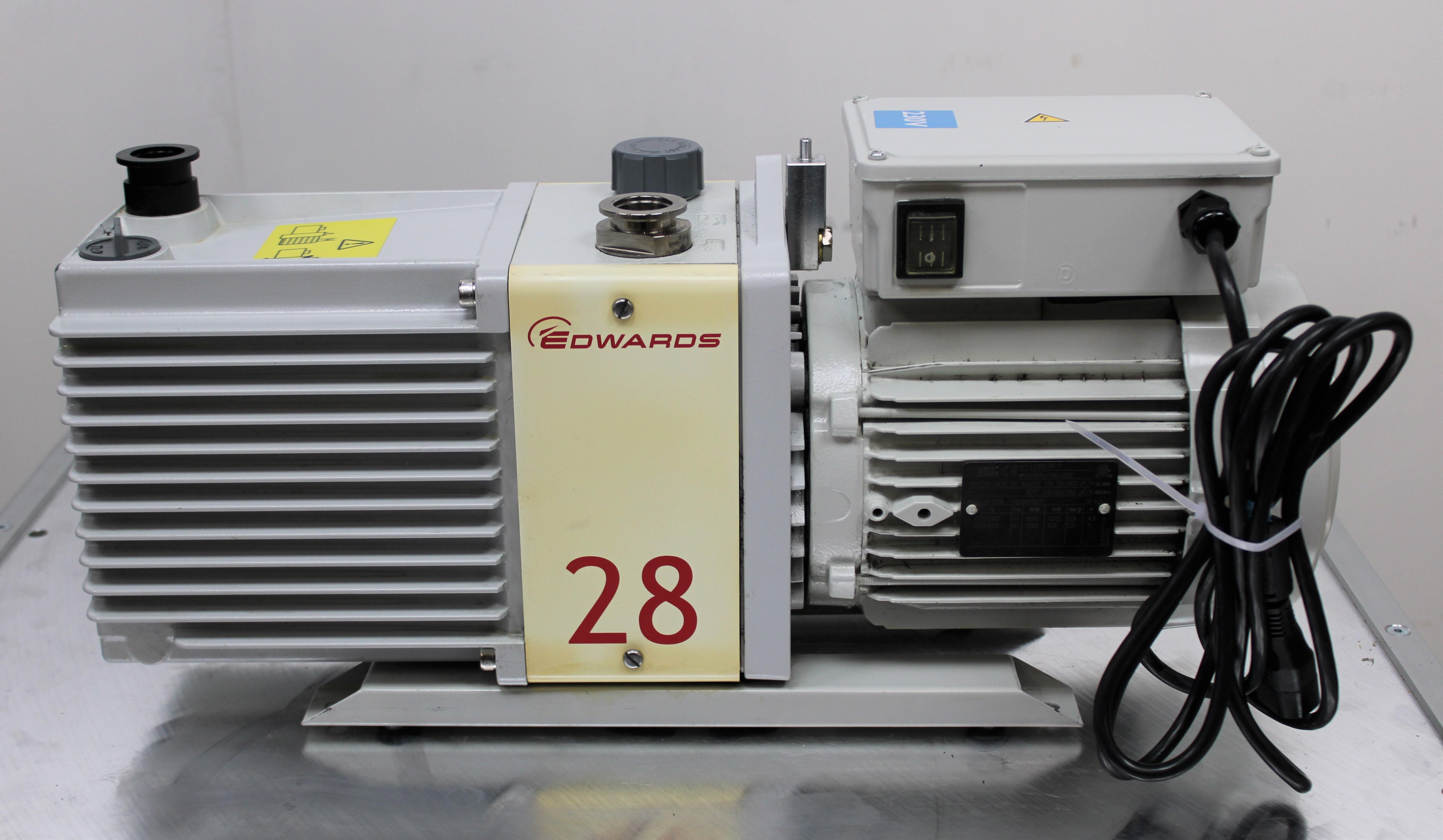

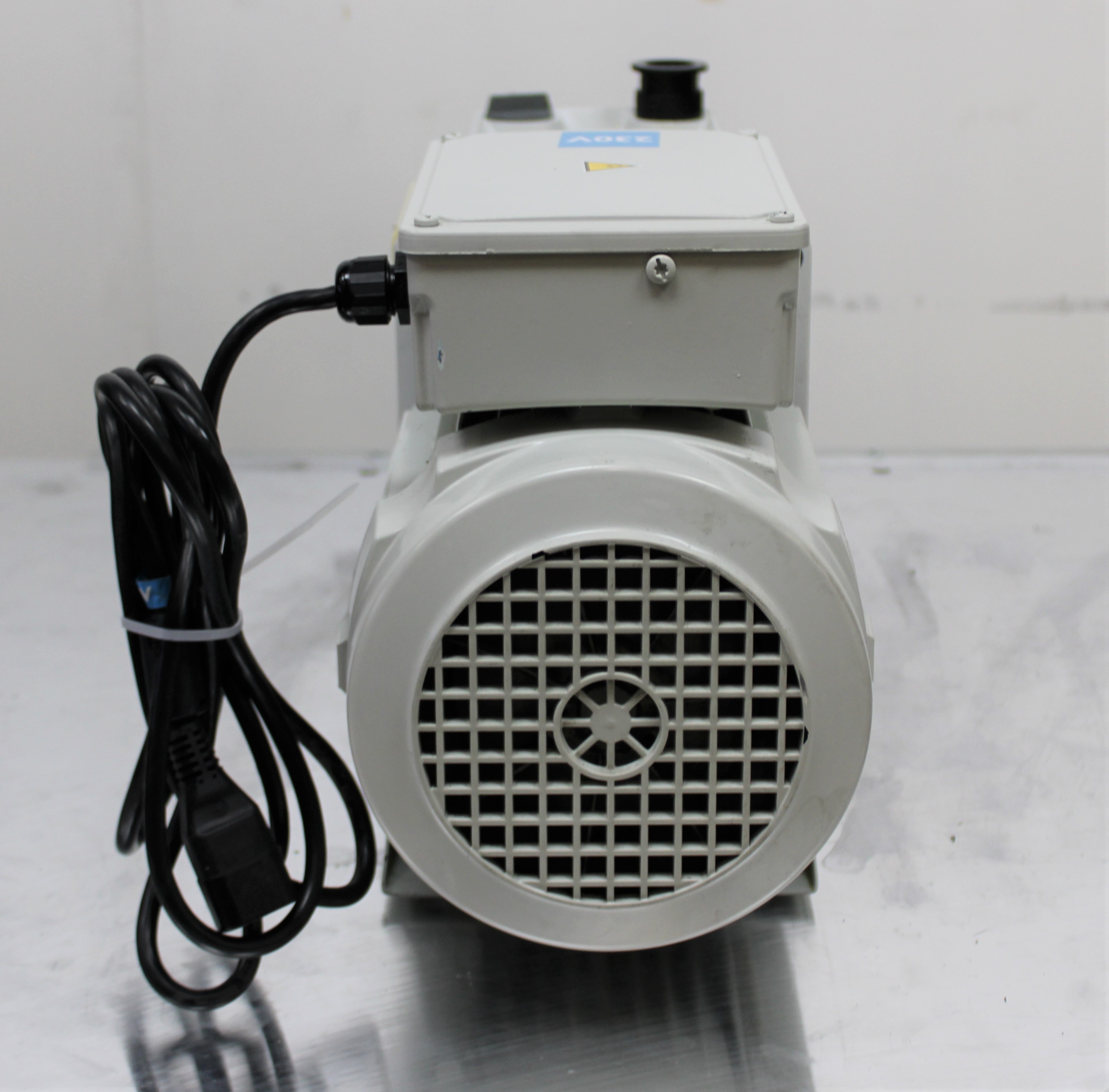

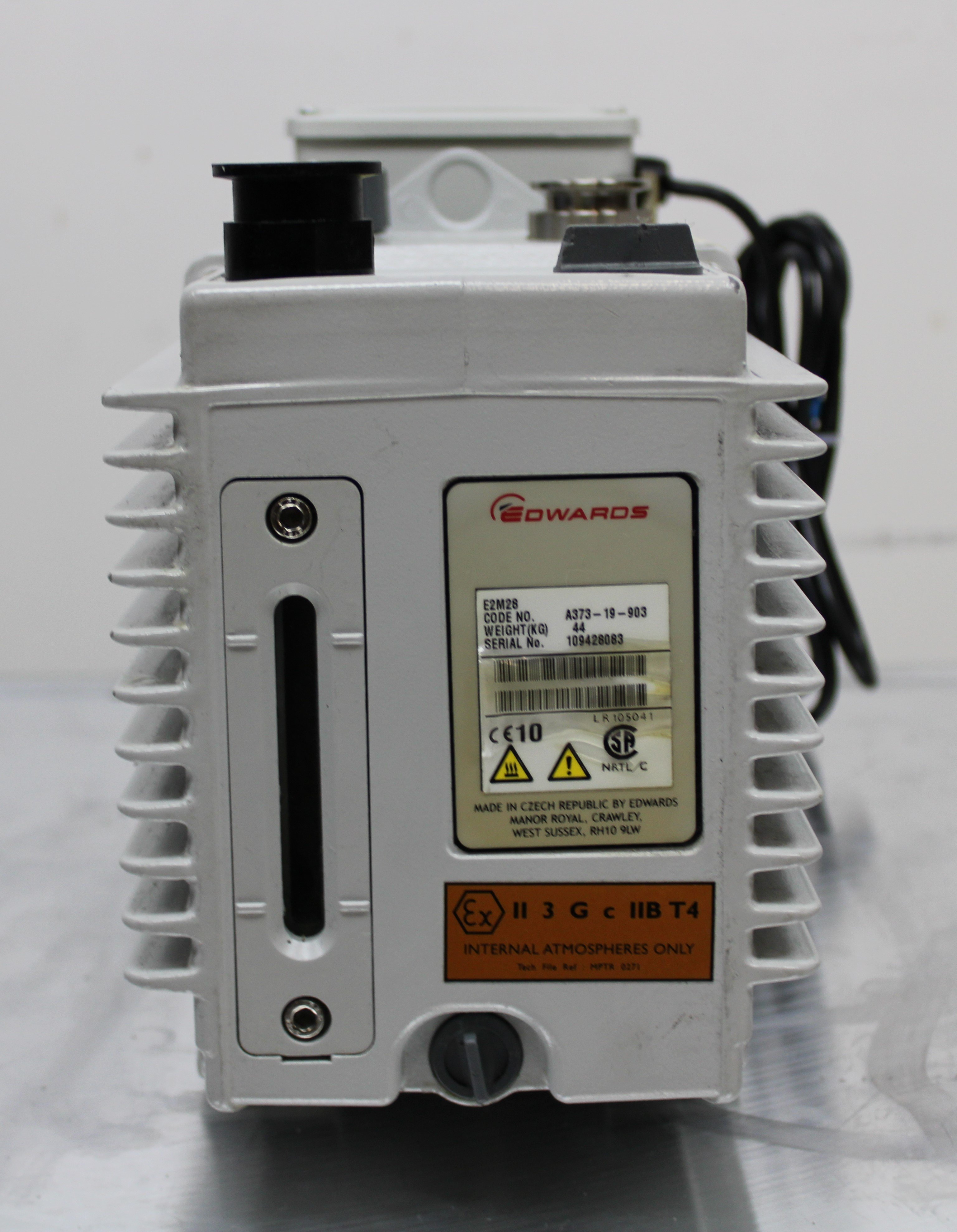

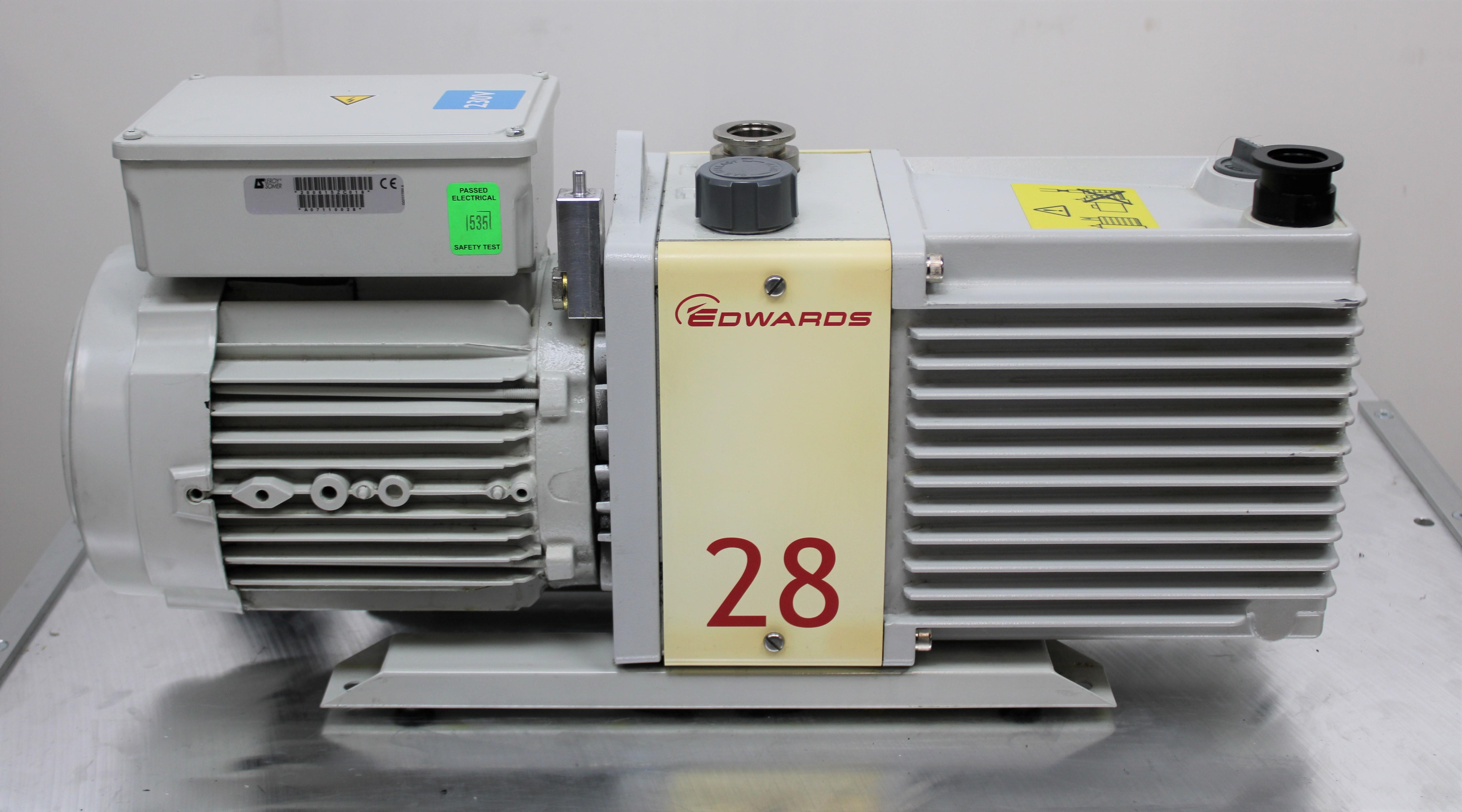

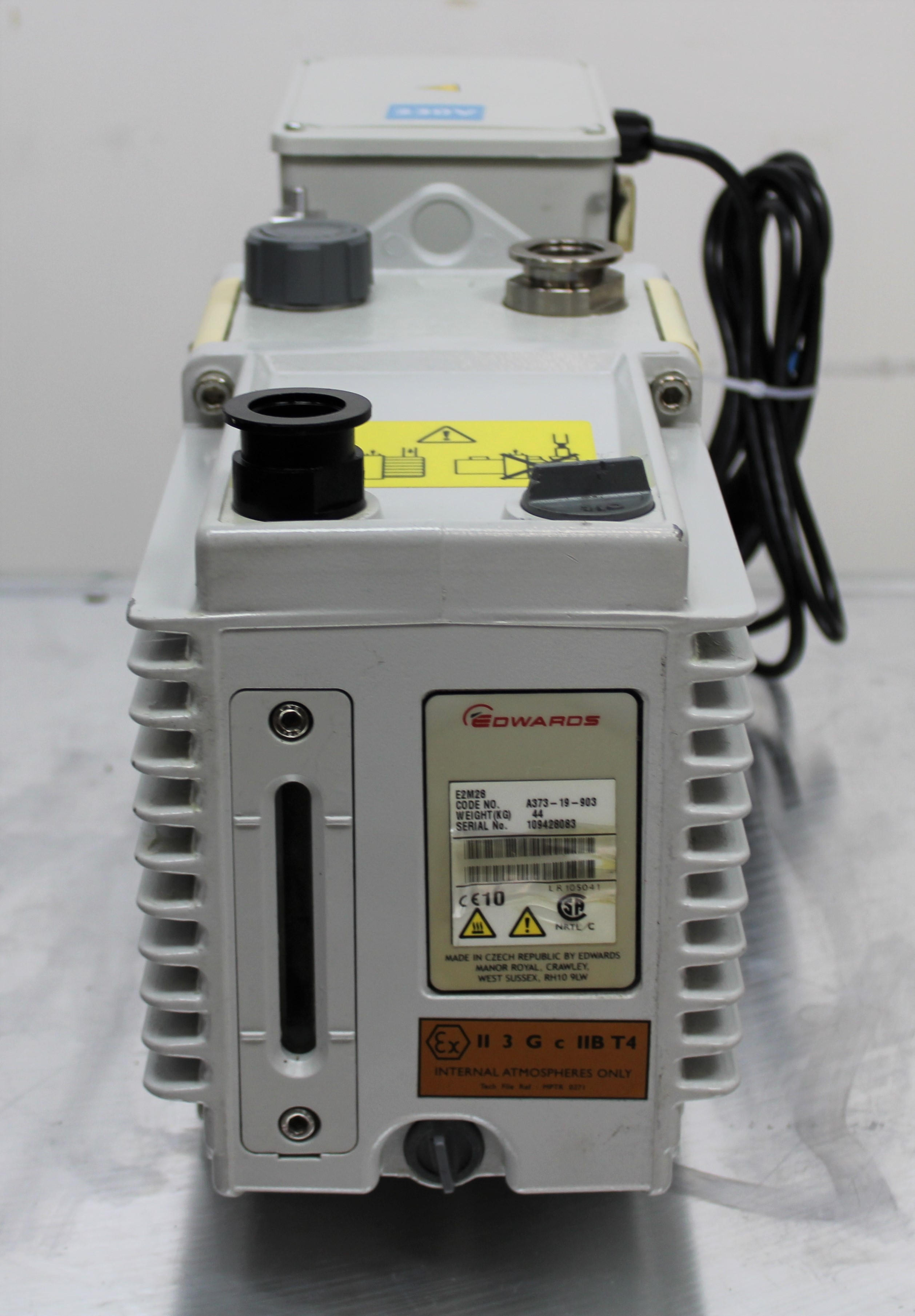

Edwards E2M28 Vacuum Pump High Vacuum 230V 50Hz/60Hz Oil Sealed System
Edwards
Details
-
CategoryPump
-
Dimension61.0cm x 30.0cm x 30.0cm
-

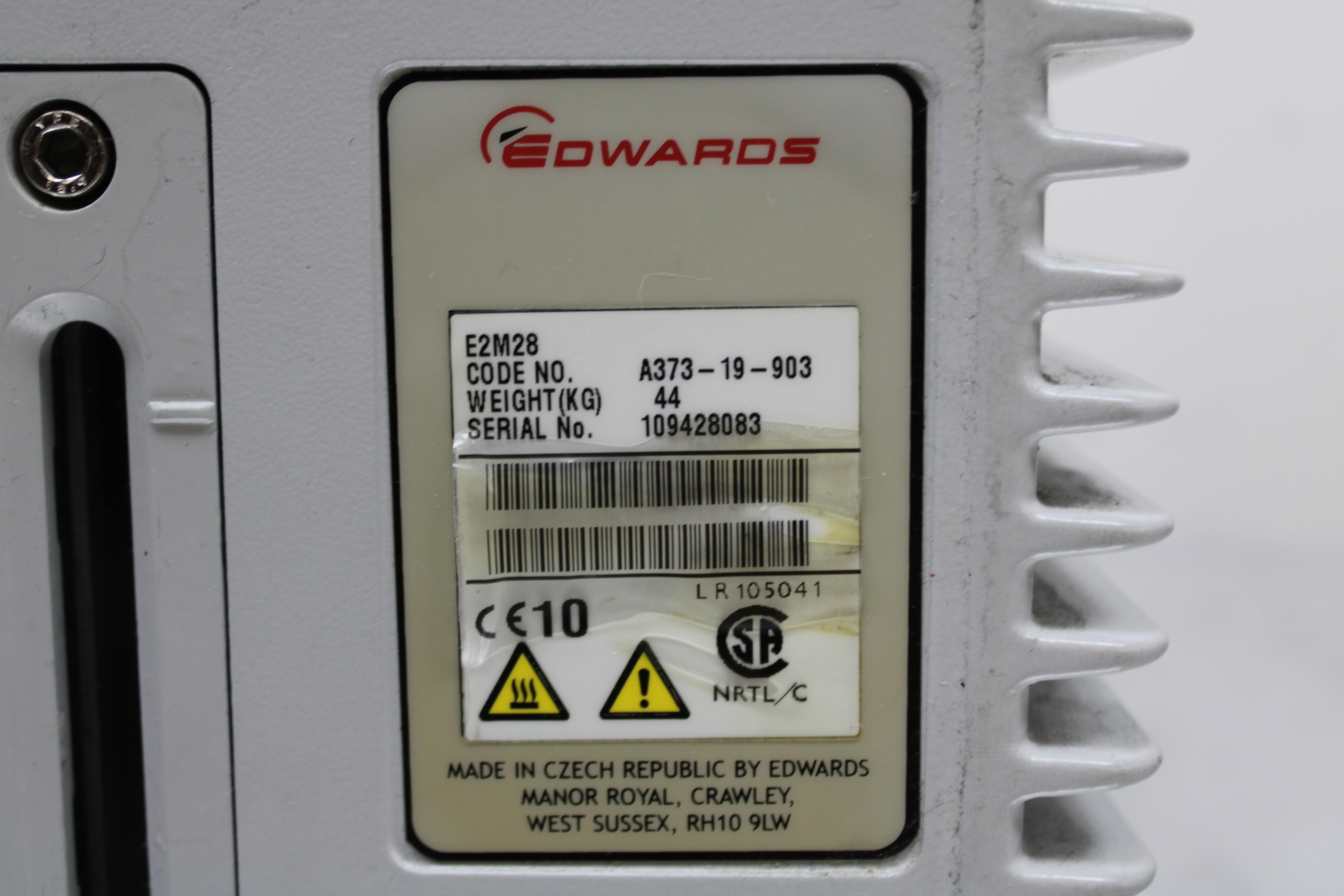

Serial109428083
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Edwards E2M28 Vacuum Pump is crafted for advanced laboratory and light industrial applications. This oil-sealed rotary pump is renowned for its high ultimate vacuum, rapid pumping speed, and capability to handle vapors efficiently. The E2M28 model integrates a thermally protected, totally enclosed motor cooled by a dedicated fan to prevent overheating and ensure optimal performance. With an automatic oil distribution system and full-height O-ring sealed oil sight glass, the Edwards E2M28 allows easy maintenance and prevents oil discharge within the pump. Applications extend across a range of fields, including analytical instrument support, high-energy physics, and cryogenics. Designed for long-term reliability, this model features energy-efficient IE3 rated motors and strategically positioned oil drain plugs for convenient maintenance.
Key Features
- High ultimate vacuum capability
- Rapid pumping speed
- Quiet operation
- Handles vapors efficiently
- Thermal overload protection
- IE3 energy-efficient motor
Specifications
- Displacement: 50 Hz 32.2 m3h-1 / 19 ft3min-1, 60 Hz 38.9 m3h-1 / 22.3 ft3min-1
- Speed: 50 Hz 27.5 m3h-1 / 16.2 ft3min-1, 60 Hz 33.0 m3h-1 / 19.5 ft3min-1
- Ultimate vacuum: 1 x 10-3 mbar / 7.5 x 10-4 Torr without gas ballast
- Inlet connection: NW25 flange
- Operating temperature range: 13 – 40°C
- Noise: 57 dB(A) @ 50 Hz
- Recommended oil: Ultragrade 19
Weight
Imperial: 108.47 Pounds
Metric: 49.2 Kilograms
Shipping Dimensions
Imperial: 28.82 lb x 14.17 lb x 14.17 lb
Metric: 73.2 cm x 35.99 cm x 35.99 cm
Harmonized Code
841410
Harmonized Code Details
841410: Vacuum pumps. This code is selected because the equipment is a vacuum pump designed for laboratory and light industrial usage.
