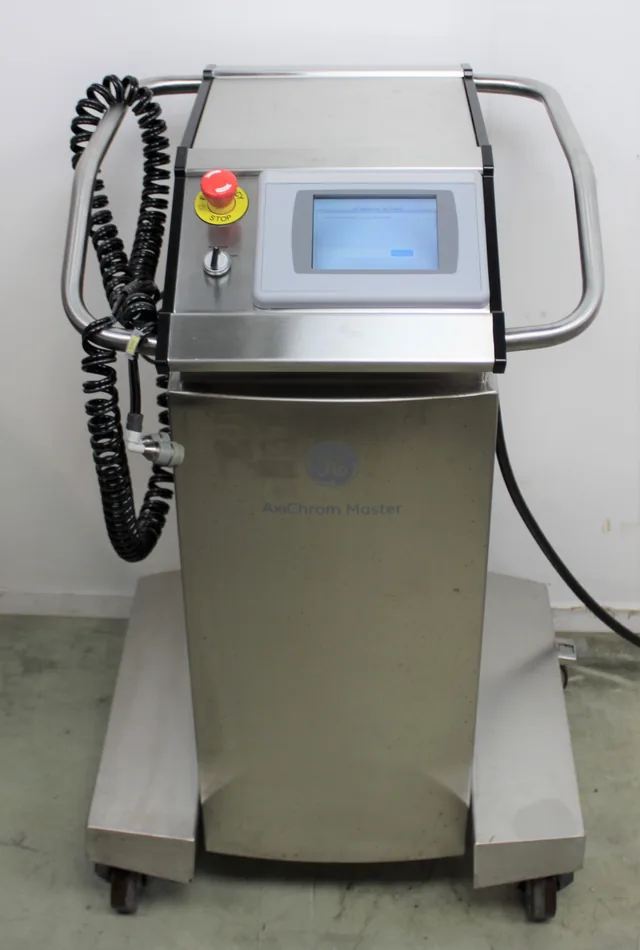

GE AxiChrom Master 300-1600 Control Unit for Chromatography Columns
GE
Details
-
CategoryBioprocessing
-
Dimension66.0cm x 60.0cm x 106.0cm
-
Serial0230
-
Shipping TypeFedEx Ground
-
Manufacturing2016-01-01
-
Voltage / Hertz480V / 50Hz/60Hz
Description
The GE AxiChrom Master 300-1600, manufactured in 2016, is a control unit designed for AxiChrom chromatography columns ranging from 300 to 1600 mm. Featuring a touch screen operator interface, this unit automates methods for packing, unpacking, priming, and maintenance, enhancing column handling and system uptime. Although it has minor errors and is not tested due to a motor feedback cable fault, its functional potential remains significant. The unit interfaces with automation systems such as UNICORN and DeltaV Distributed Control System via Profibus, enabling effective documentation and control of up to ten columns. Technical specs include a voltage range of 380 - 480 V, frequency compatibility of 50/60 Hz, and a sturdy protection class of IP 56 / NEMA 4X. Note: Computer and power cords are not included.
Key Features
- Control unit for AxiChrom columns 300-1600 mm
- Automates packing, unpacking, priming, maintenance
- Touch screen interface
- Compatible with UNICORN, DeltaV systems
- Operates up to 10 individual columns
Specifications
- Voltage: 380 - 480 V
- Frequency: 50/60 Hz
- Protection Class: IP 56 / NEMA 4X
- Complete Packsize: 1
- Dimensions: 670 mm width x 630 mm depth x 1090 mm height
- Weight: 90 kg
- Air Supply: 5.5 - 7 bar g. Clean dry air
- Non-wetted parts
Weight
Imperial: 264.55 Pounds
Metric: 120.0 Kilograms
Shipping Dimensions
Imperial: 31.18 lb x 28.35 lb x 50.08 lb
Metric: 79.2 cm x 72.01 cm x 127.2 cm
Harmonized Code
9027.90
Harmonized Code Details
9027.90 - Instruments and apparatus for physical or chemical analysis; parts and accessories. Used for devices like chromatography systems.
