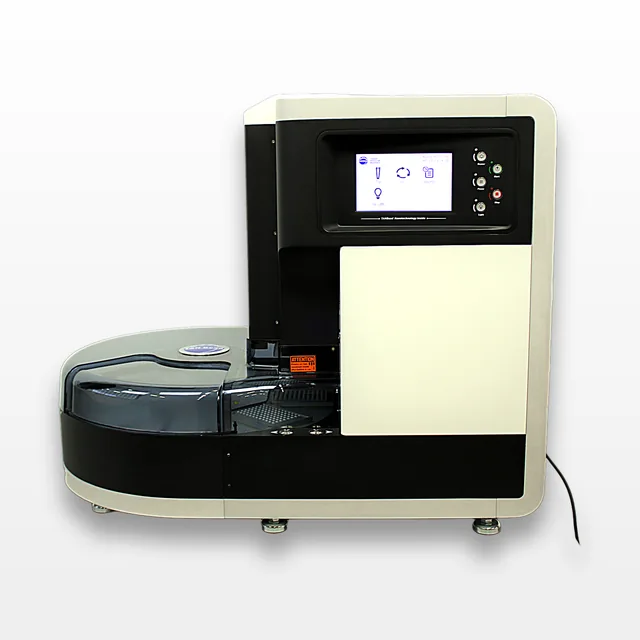

TANBead Maelstrom 9600 Nucleic Acid Extractor Fully Automated 96 Sample
TANBead
Details
-
CategoryMolecular Biology
-
Dimension92.0cm x 57.0cm x 75.0cm
-
SerialM9600B90
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The TANBead Maelstrom 9600 Nucleic Acid Extractor is designed for efficient molecular diagnostics. Featuring fully automated magnetic bead technology, this unit automates cell lysis, nucleic acid adsorption, washing, and elution. With a processing capacity of up to 96 DNA or RNA samples simultaneously, it offers significant time savings. Equipped with a patented whirl stirring mixing technology, it effectively prevents aerosol cross-contamination. The system boasts an intuitive user interface, temperature control modules, pre-dispensed reagent plates, and a display with a 7-inch touchscreen, supporting a process volume of 50μL to 1600μL and a spin speed of up to 3000 RPM. Ideal for laboratories seeking reliable and efficient nucleic acid extraction, this used unit functions as intended with minor cosmetic wear.
Key Features
- Fully automated magnetic bead technology
- Processes up to 96 samples simultaneously
- Whirl Stirring Mixing Technology minimizes contamination
- Temperature control for purification stability

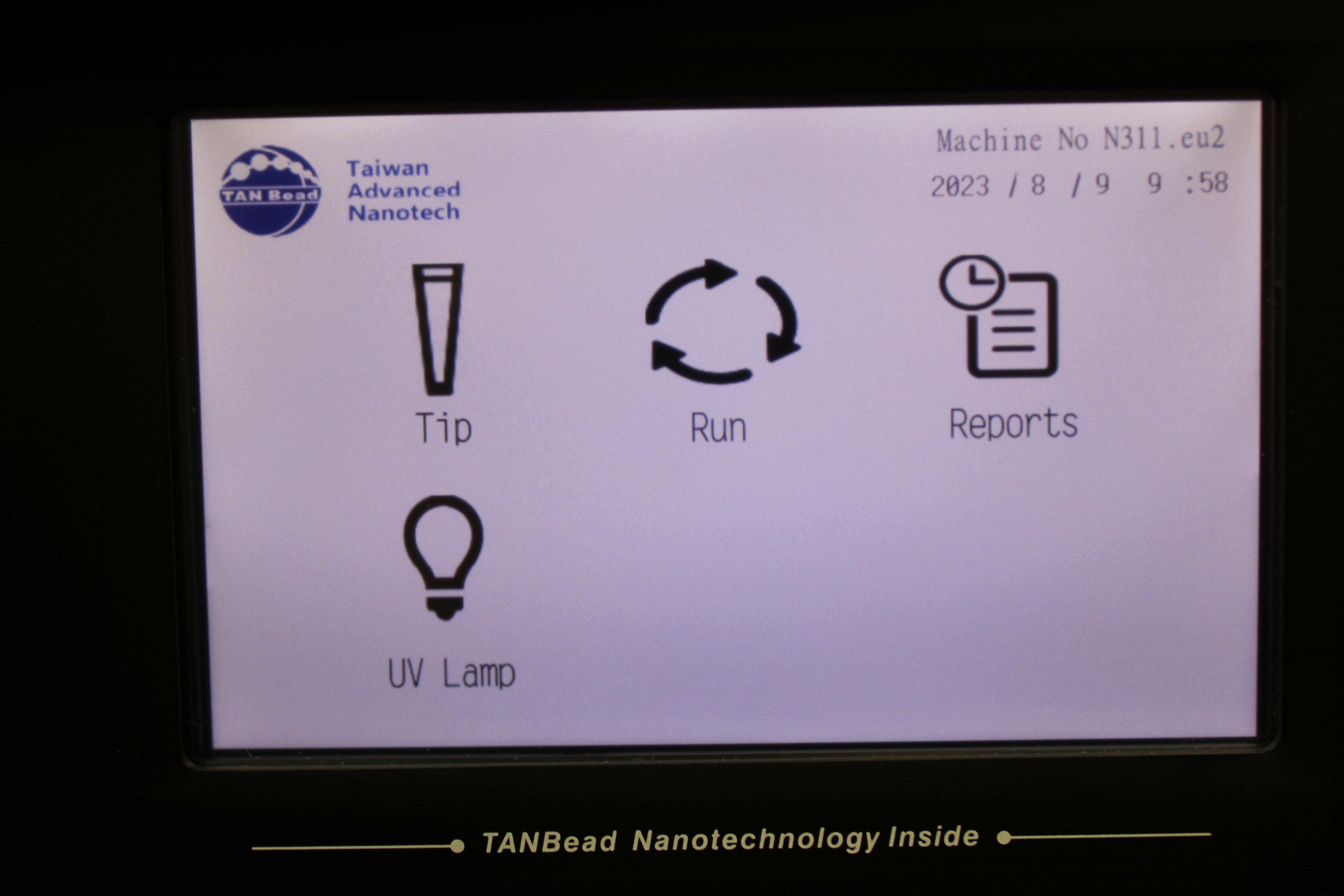

- Intuitive interface with 7-inch touchscreen
- Supports DNA and RNA sample purification
- Processing volume range of 50μL to 1600μL
Specifications
- Model: Maelstrom 9600
- Weight: 130 kg
- Power supply: 220-240 Vac
- Capacity: 96 samples per run
- Process volume: 50μL - 1600μL
- Spin speed: up to 3000 RPM
- Heater: 4 heating plates
- Magnetic rod: >3000 gauss
- Display: 7-inch touchscreen
- Shipping Size: Length 100 cm, Width 65 cm, Height 93 cm, Weight 148 kg
Weight
Imperial: 343.92 Pounds
Metric: 156.0 Kilograms
Shipping Dimensions
Imperial: 43.46 lb x 26.93 lb x 35.43 lb
Metric: 110.39 cm x 68.4 cm x 89.99 cm
Harmonized Code
9027.80.00
Harmonized Code Details
The code 9027.80.00 applies to instruments and apparatus for physical or chemical analysis, specifically those using optical radiations, including ultraviolet and infrared. This code suits the TANBead Maelstrom 9600 due to its molecular diagnostic and nucleic acid extraction functions.
