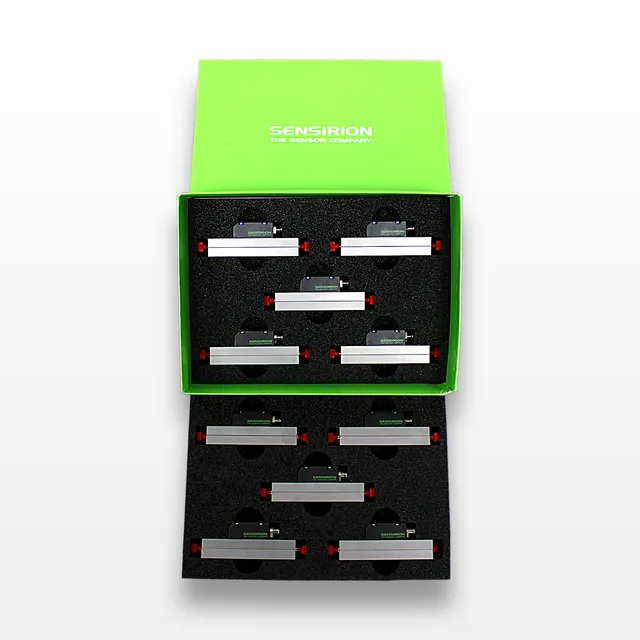

Sensirion SLG-0150 Meter Analytical Liquid Flow Monitoring Up to 8L/min
Sensirion
Details
-
CategoryMeter
-
Dimension17.0cm x 24.0cm x 6.0cm
-
Serial-
-
Shipping TypeFedEx Ground
-
Manufacturing2021-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Introducing the Sensirion SLG-0150, manufactured in 2021, a top-tier solution for dynamic liquid flow monitoring in Ultra-High-Pressure Liquid Chromatography (UHPLC) systems and applications that require ultra-low flow rate measurements. This device, part of Sensirion's acclaimed SLG series, features a highly accurate CMOSens microchip that measures mass flow through a durable fused silica flow channel. Capable of withstanding pressures up to 500 bar, the SLG-0150 excels in precise liquid flow measurement, delivering a remarkable full-scale flow rate of 8 ul/min with an accuracy of 5% and a repeatability of 0.5%. With swift response times (only 40 ms) and great repeatability, it ensures dependable analysis in both high-performance liquid chromatography (HPLC) and microfluidic systems. Key specifications include 10-32 coned port fluidic connectors, an operating pressure capacity of 500 bar, supply voltage of 4-6V, and multi-interface compatibility encompassing analog voltage, analog current, IC, and RS485.
Key Features
- Dynamic liquid flow monitoring
- Ultra-high-pressure capacity up to 500 bar
- Full scale flow rate of 8 ul/min
- Accuracy at 5% and repeatability at 0.5%
- Built-in CMOSens microchip with fast 40 ms response time
- Durable fused silica flow channel
- Interfaces: Analog voltage/current, IC, RS485
Specifications
- Full Scale Flow Rate (H2O): 8 ul/min
- Accuracy (H2O): 5%
- Repeatability (H2O): 0.5%
- Maximum Operating Pressure: 500 bar
- Fluidic Connector Ports: 10-32 coned port
- Supply Voltage: 4 - 6 V
- Average Supply Current: 5100 uA
- Max Supply Current: 6000 uA
- Interfaces: Analog voltage, Analog current, IC, RS485
- Device Dimensions: 80mm x 30mm x 20mm
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 8.03 lb x 11.34 lb x 2.83 lb
Metric: 20.4 cm x 28.8 cm x 7.19 cm
Harmonized Code
9026.20.8090
Harmonized Code Details
9026.20.8090 - Liquid Flow Meters; chosen for its precision in measuring liquid flow in scientific and analytical settings.
