Sensirion SLG-0150 Flow Meter for UHPLC Applications, 4 Pack, New
Sensirion
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension17.0cm x 24.0cm x 6.0cm
-
Serial-
-
Shipping TypeFedEx Ground
-
Manufacturing2021-01-01
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

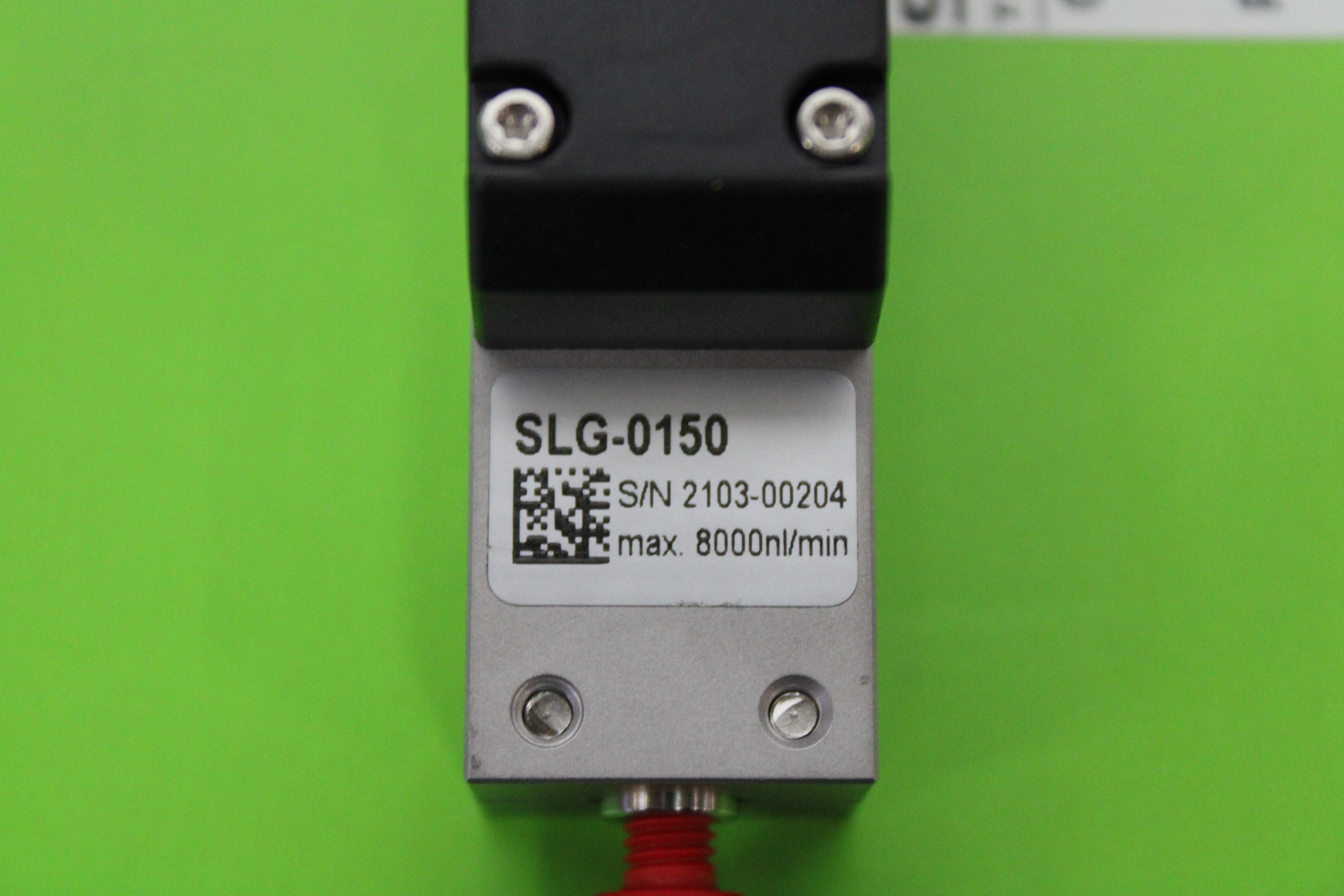

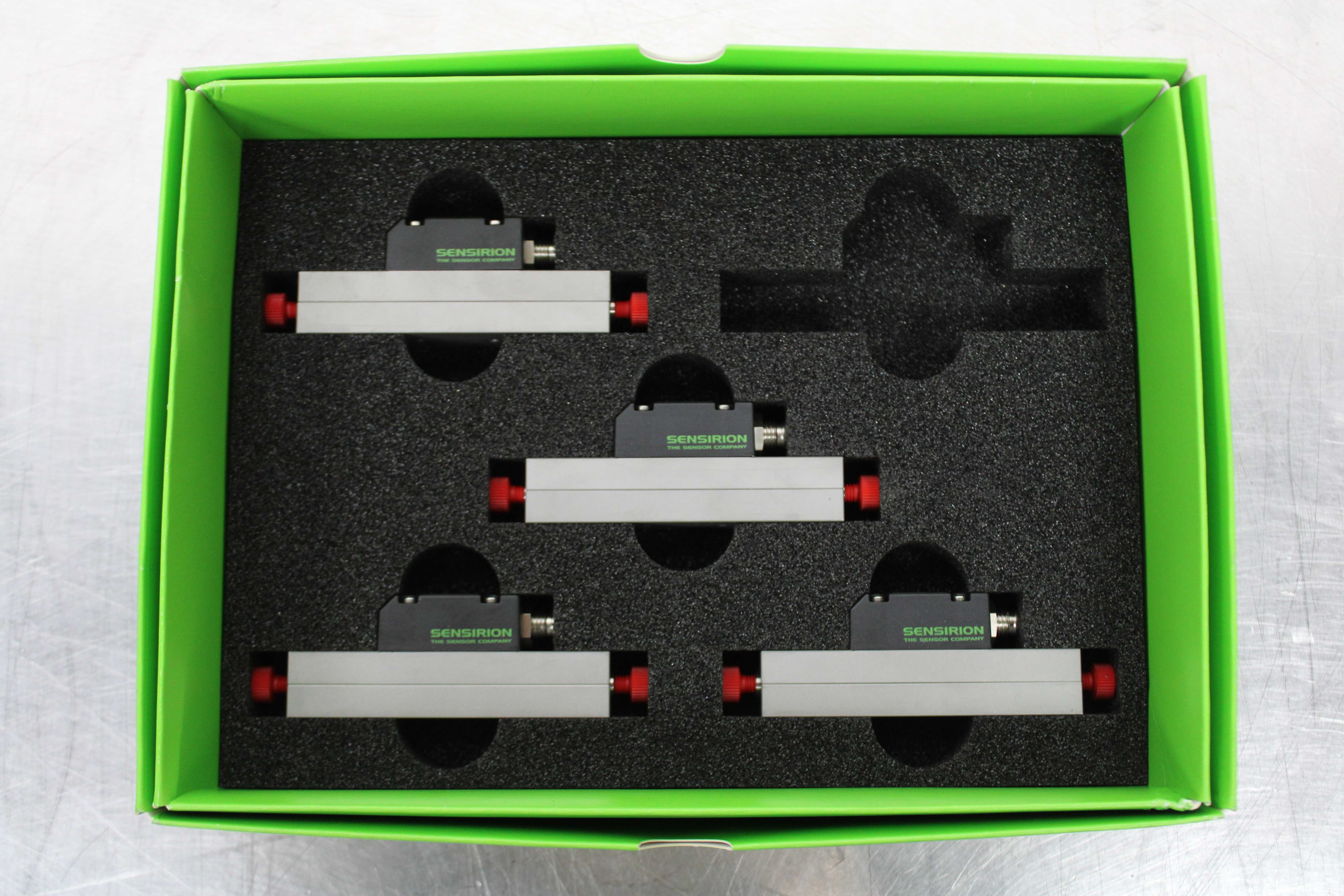

The Sensirion SLG-0150 dynamic liquid flow meter from 2021 offers an ultra-precise solution for Ultra-High-Pressure Liquid Chromatography (UHPLC) and other applications requiring highly accurate ultra-low flow measurements. Delivering robust performance within a maximum operating pressure of 500 bar, this device is engineered for optimal repeatability in analyses, making it ideal for both laboratory setups and leakage detection tasks. The SLG-0150, packaged in a set of four, features a highly sensitive CMOSens microchip that accurately detects mass flow, even at reduced pressure drops. Specifications include fluidic connector ports, 10-32 coned port, supply voltage of 4 - 6V, average supply current of 51000uA, and dimensions of 80 x 30 x 20mm. Designed for precision with a full-scale H2O flow rate of 8ul/min, 5% accuracy, and 0.5% repeatability, this model ensures reliable performance in cutting-edge chromatography systems.
Key Features
- Ultra-low flow rate measurement
- Maximum operating pressure of 500 bar
- Precision with 5% accuracy
- Repeatability of 0.5%
- Fluidic connector ports with 10-32 coned port
Specifications
- Full scale flow rate (H2O): 8ul/min
- Accuracy (H2O): 5%
- Repeatability (H2O): 0.5%
- Maximum operating pressure: 500 bar
- Fluidic connector ports: 10-32 coned port
- Supply voltage: 4 - 6V
- Average supply current: 51000uA
- Max. supply current: 6000uA
- Interfaces: Analog voltage, Analog current, IC, RS485
- Size (LxWxH): 80 x 30 x 20mm
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 8.03 lb x 11.34 lb x 2.83 lb
Metric: 20.4 cm x 28.8 cm x 7.19 cm
Harmonized Code
9026.10
Harmonized Code Details
9026.10: Instruments and apparatus for measuring or checking the flow or level of liquids. This code is selected given the product's design for measuring liquid flow in various applications, notably UHPLC.
