GE AKTA Pilot Chromatography System Automated LC Purification 4400 mL/min
GE Healthcare
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension66.0cm x 90.0cm x 97.0cm
-
Serial1444470
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description

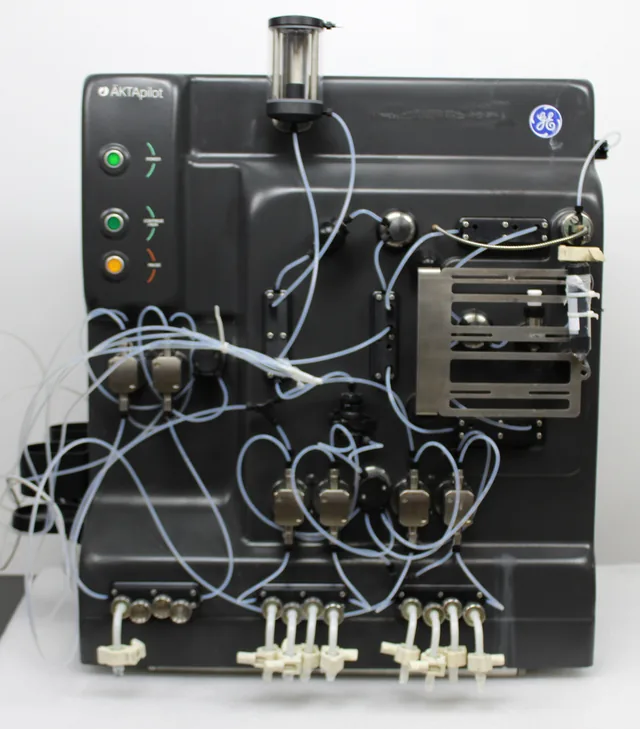

The GE Healthcare AKTA Pilot, model 18117063, is a used liquid chromatography system from Sweden. Built to support development, scale-up, and production in the pharmaceutical industry, it adheres to GLP and cGMP guidelines. This bio-compatible system purifies products from milligrams to tens of grams with pre-programmed method templates and in-line monitoring. Capable of operations such as automatic media screening and ion exchange chromatography, it handles flow rates up to 4400 mL/min with pressure monitoring at four points. The system monitors pH, conductivity, and UV with high accuracy via UNICORN software and additional screens for diverse applications. Ideal for improving productivity and efficiency in labs.
Key Features
- High throughput purification up to 4400 mL/min
- Bio-compatible and sterilizable
- Adheres to GLP and cGMP guidelines
- Automatic media and pH scouting
- UNICORN software for monitoring
- In-line pH, UV, and conductivity sensors
- Isocratic and gradient flow
Specifications
- Flow Rate: Isocratic and gradient up to 4400 mL/min
- Operating Pressure: Up to 2 MPa (20 bar, 290 psi)
- UV Wavelength Range: 190-700 nm in 1 nm increments
- pH Range: 0-14, validity between 2-12
- Conductivity Range: 1 S/cm to 999.9 mS/cm
- Holdup Volume: Up to 31 ml
- Max Backpressure: <0.06 MPa before column/ <0.045 MPa after column
- Solvent Compatibility: All commonly used chromatographic solvents
- Degree of Protection: IP 24
- Power: 100-240 V 50-60Hz; 800 VA max
Weight
Imperial: 238.1 Pounds
Metric: 108.0 Kilograms
Shipping Dimensions
Imperial: 31.18 lb x 42.52 lb x 45.83 lb
Metric: 79.2 cm x 108.0 cm x 116.41 cm
Harmonized Code
9027.80.45
Harmonized Code Details
9027.80.45: Instruments and apparatus for physical or chemical analysis, chromatography: Liquid chromatography apparatus. This code is matched based on the system's primary function and industry standards.
