Jasco UV-2075 Plus Detector Spectrometer UV-Vis Dual Beam Tech Japan
Jasco
Details
-
CategorySpectrometer - Single Well
-
Dimension49.0cm x 16.0cm x 16.0cm
-

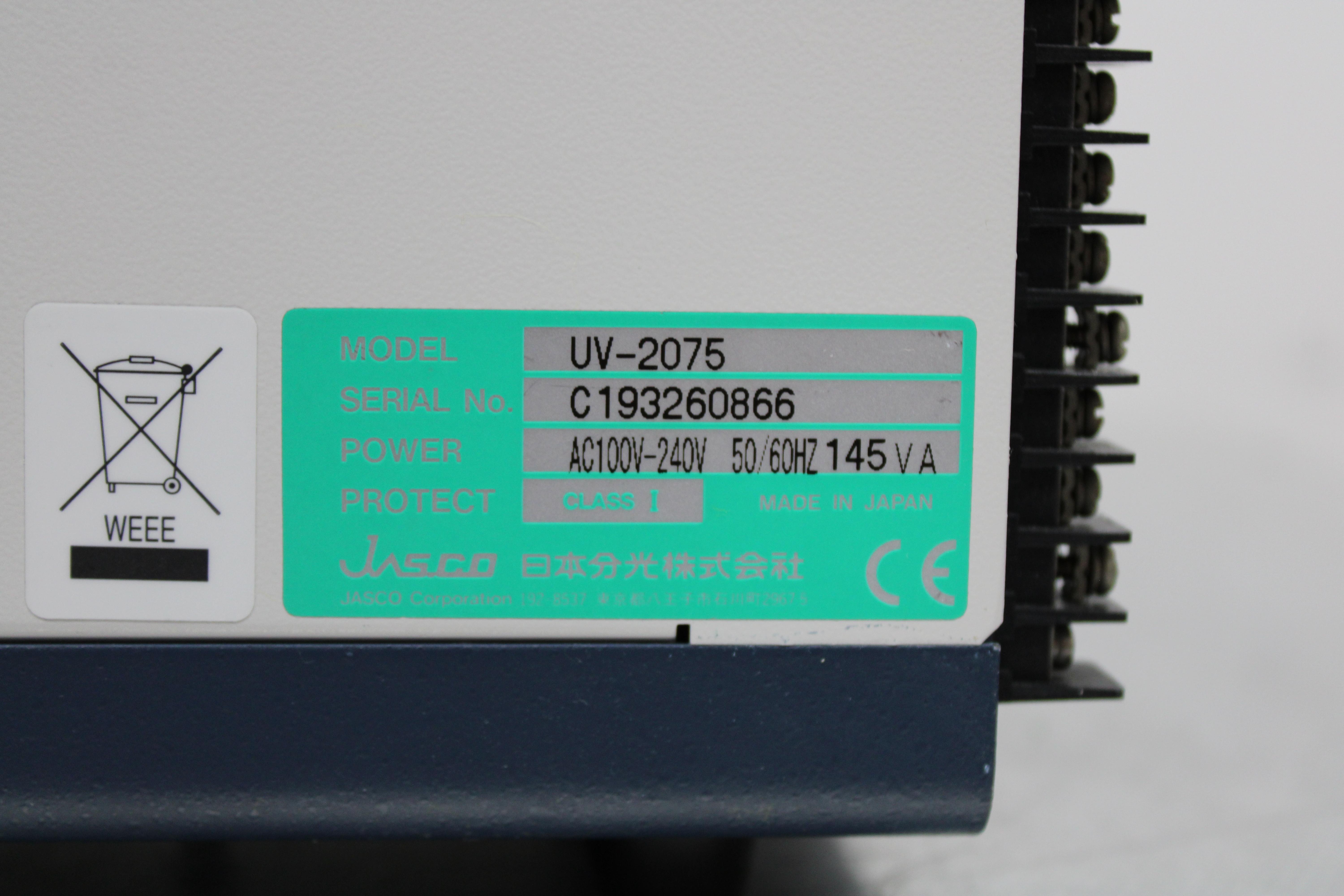

SerialC193260866
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description

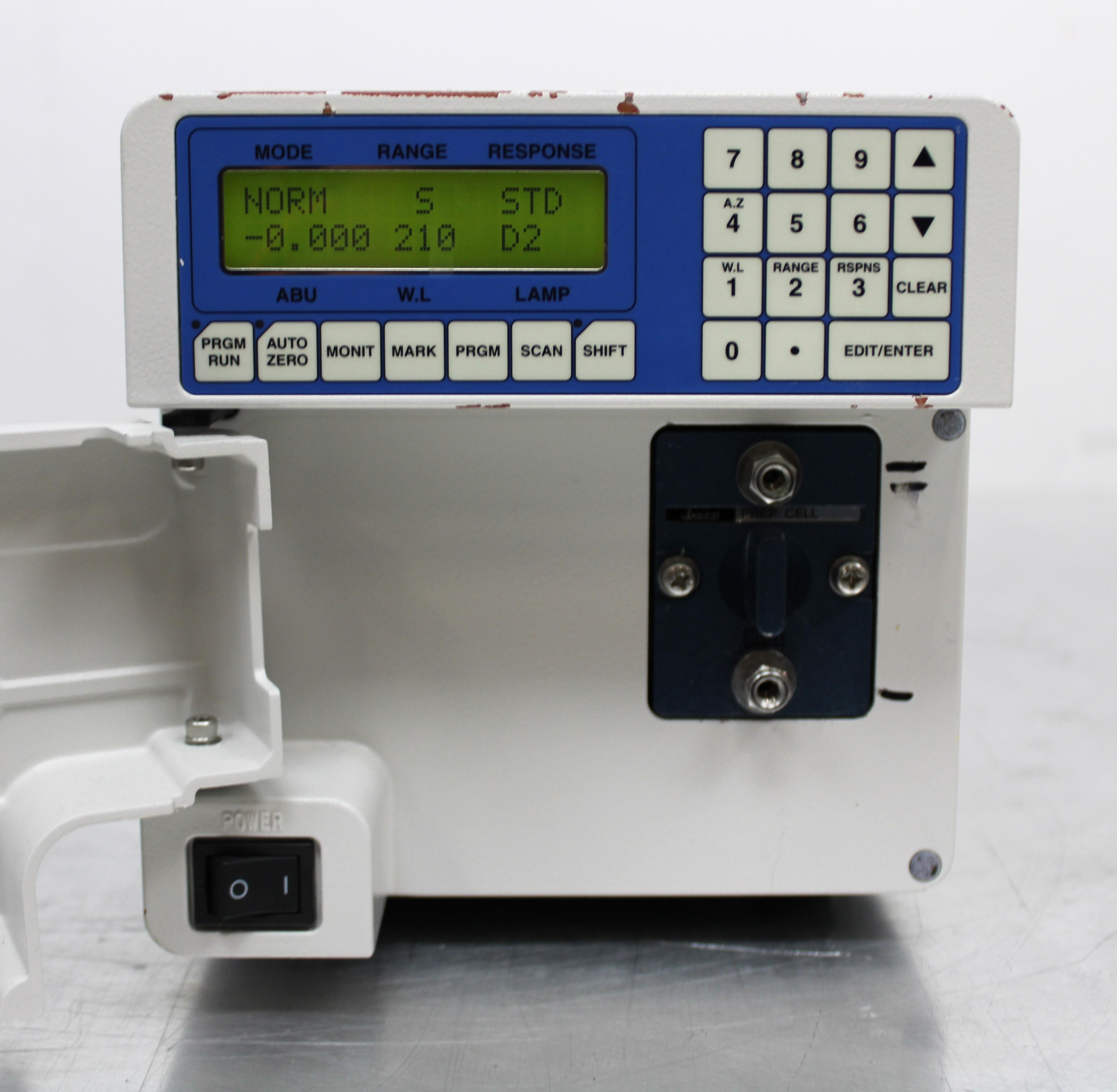

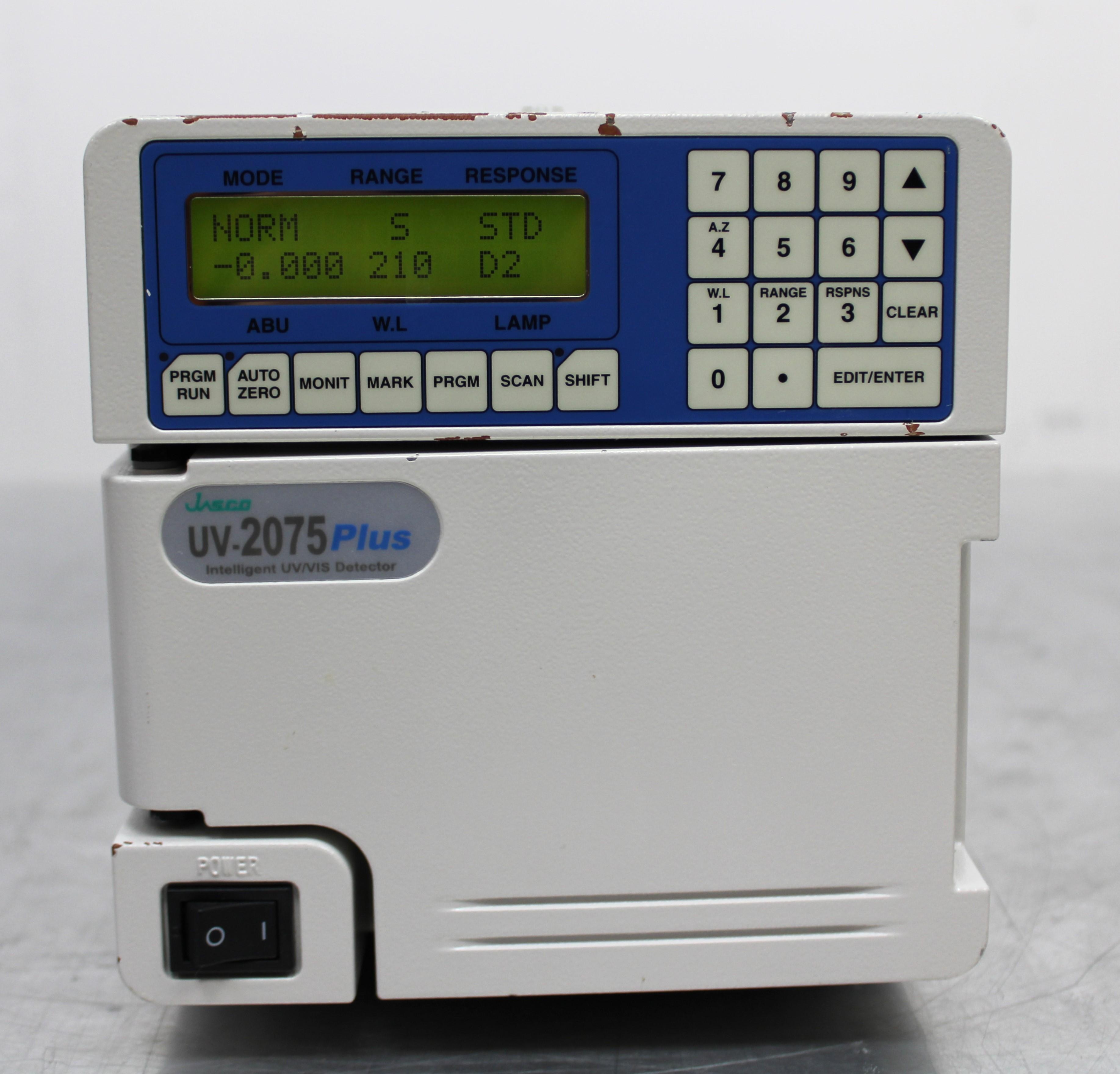

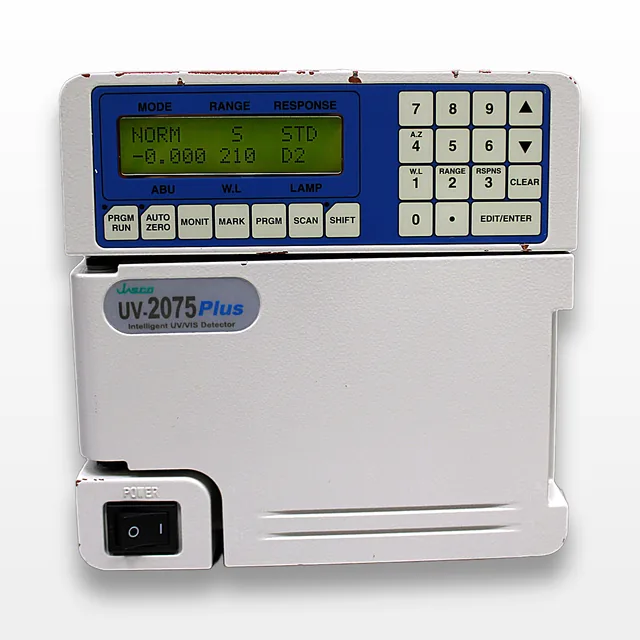

The Jasco UV-2075 Plus Intelligent UV/Vis Detector, hailing from Japan, is a reliable option for UV-Visible spectrophotometry. Though used, it powers on and shows no known functionality issues but displays some cosmetic wear. This model boasts a Czerny-Turner monochromator with an 8 nm spectral bandwidth. It offers wavelength precision with ±1 nm accuracy and ±0.1 nm reproducibility. The device utilizes a deuterium lamp for 190-600 nm wavelength range detection. Photometric measurements are conducted using a dual-beam method ensuring reduced noise levels at 0.3 x 10^-5 ABU and drift at 1 x 10^-4 ABU/h at 250 nm. The photometric range adjusts from 0.0005 to 2.56 ABU/10 mV. Notably, an auto zero function and three response levels (FAST, STD, SLOW) aid in streamlined operations. The front-loading cassette design and 10 mm path length tapered flow cell enhance practical utility in laboratory settings.
Key Features
- Czerny-Turner monochromator
- 8 nm spectral bandwidth
- ±1 nm wavelength accuracy
- ±0.1 nm wavelength reproducibility
- Dual beam photometry
- Deuterium lamp light source
- 190-600 nm wavelength range
- Auto zero with baseline function
- Noise level at 0.3 x 10^-5 ABU
- Photometric range 0.0005 to 2.56 ABU/10 mV
Specifications
- Monochromator: Czerny-Turner mount
- Spectral Bandwidth: 8 nm
- Wavelength Accuracy: ±1 nm
- Wavelength Reproducibility: ±0.1 nm
- Light Source: Deuterium lamp (190-600 nm)
- Photometric Method: Dual beam photometry
- Noise Level: 0.3 x 10^-5 ABU at 250 nm
- Drift: 1 x 10^-4 ABU/h at 250 nm
- Photometric Range: 0.0005 to 2.56 ABU/10 mV
- Auto Zero: Provided with baseline function
- Response: FAST, STD, SLOW
- Mounting: Front loading cassette with bulkhead union
- Flow Cell: Tapered
- Path Length: 10 mm
Weight
Imperial: 23.81 Pounds
Metric: 10.8 Kilograms
Shipping Dimensions
Imperial: 23.15 lb x 7.56 lb x 7.56 lb
Metric: 58.8 cm x 19.2 cm x 19.2 cm
Harmonized Code
90273040
Harmonized Code Details
90273040: Spectrometers, using optical radiations, not elsewhere specified. This code is chosen based on the Jasco detector's function as a standalone UV/Vis spectrometer using optical radiation.
