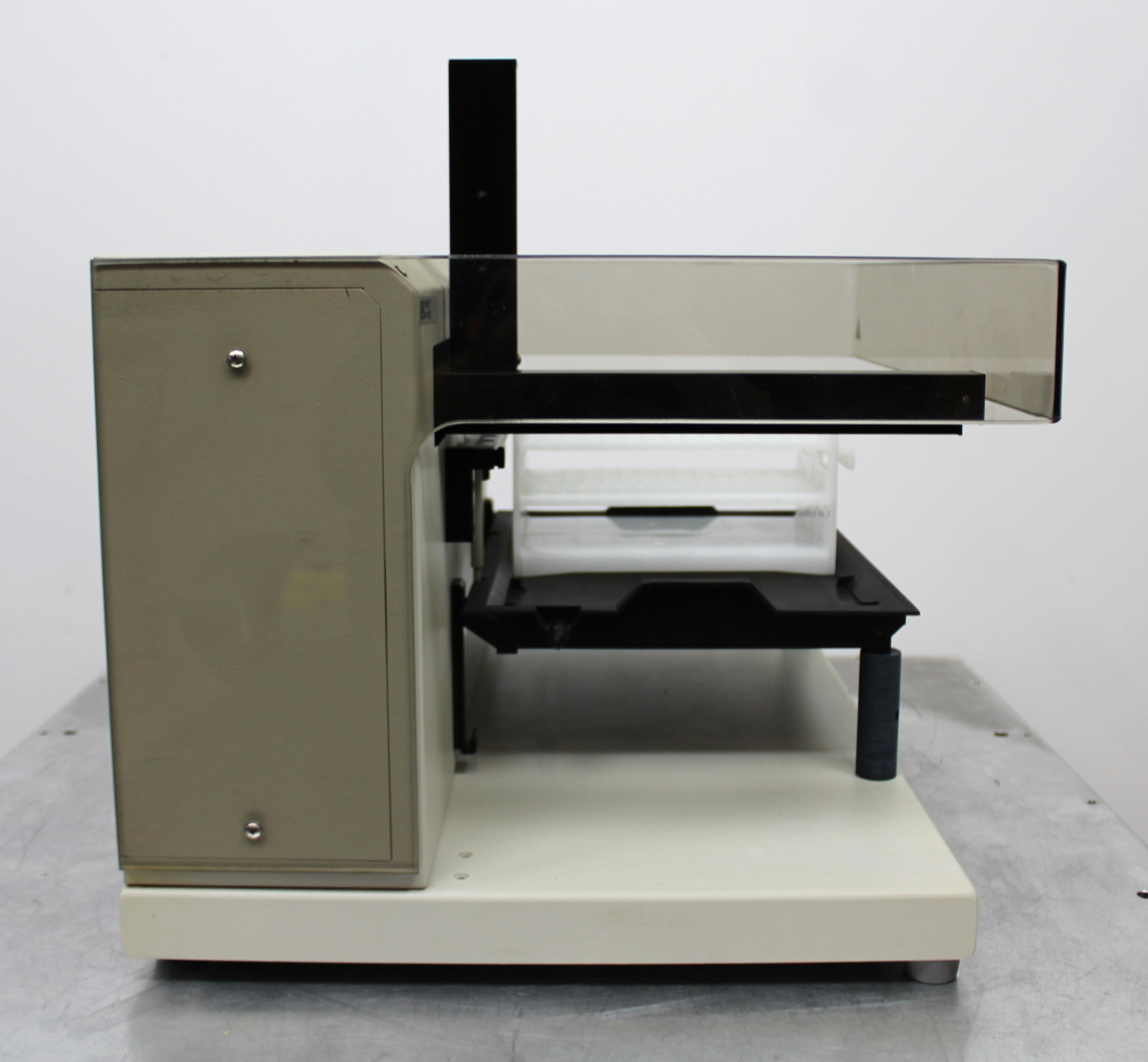

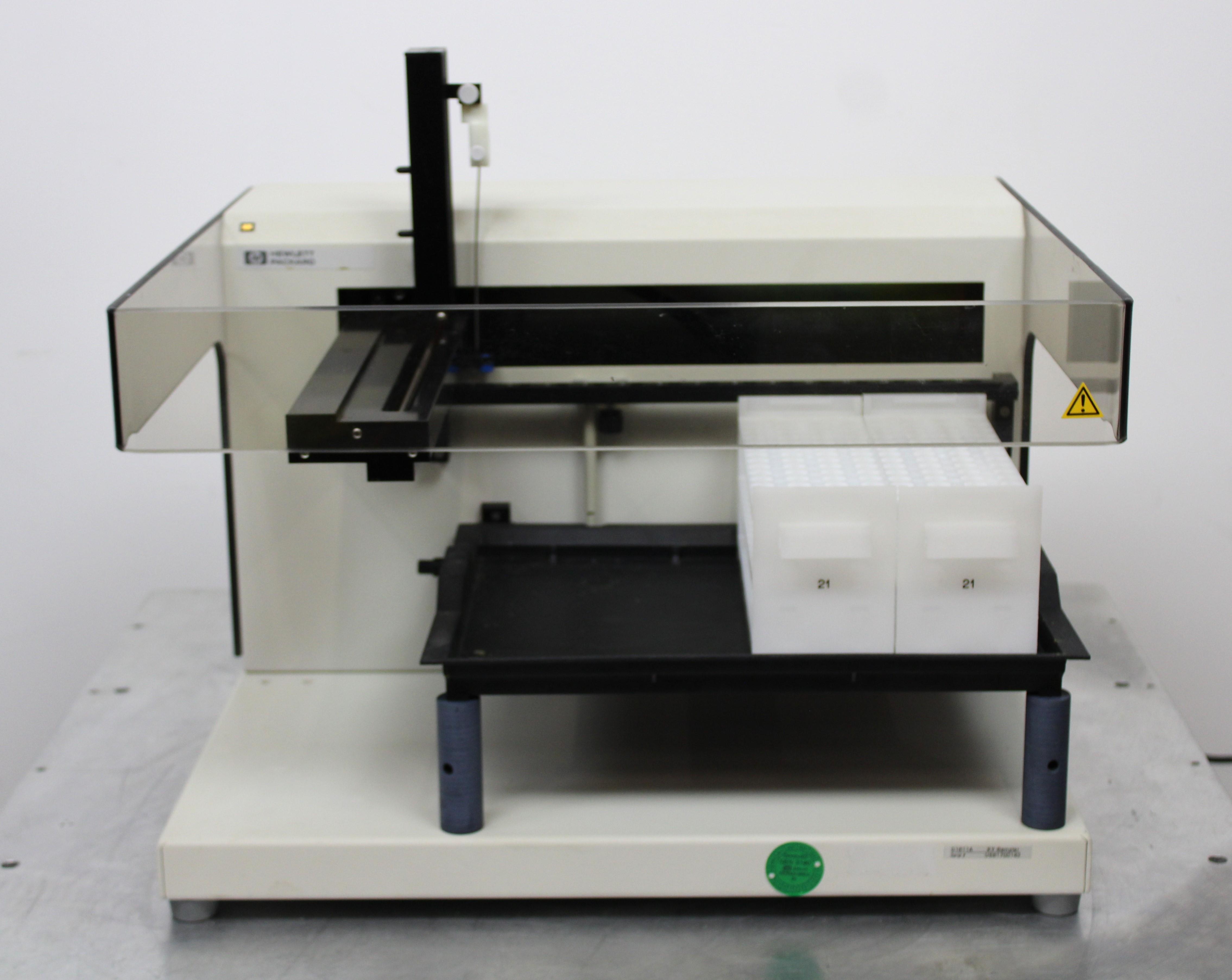

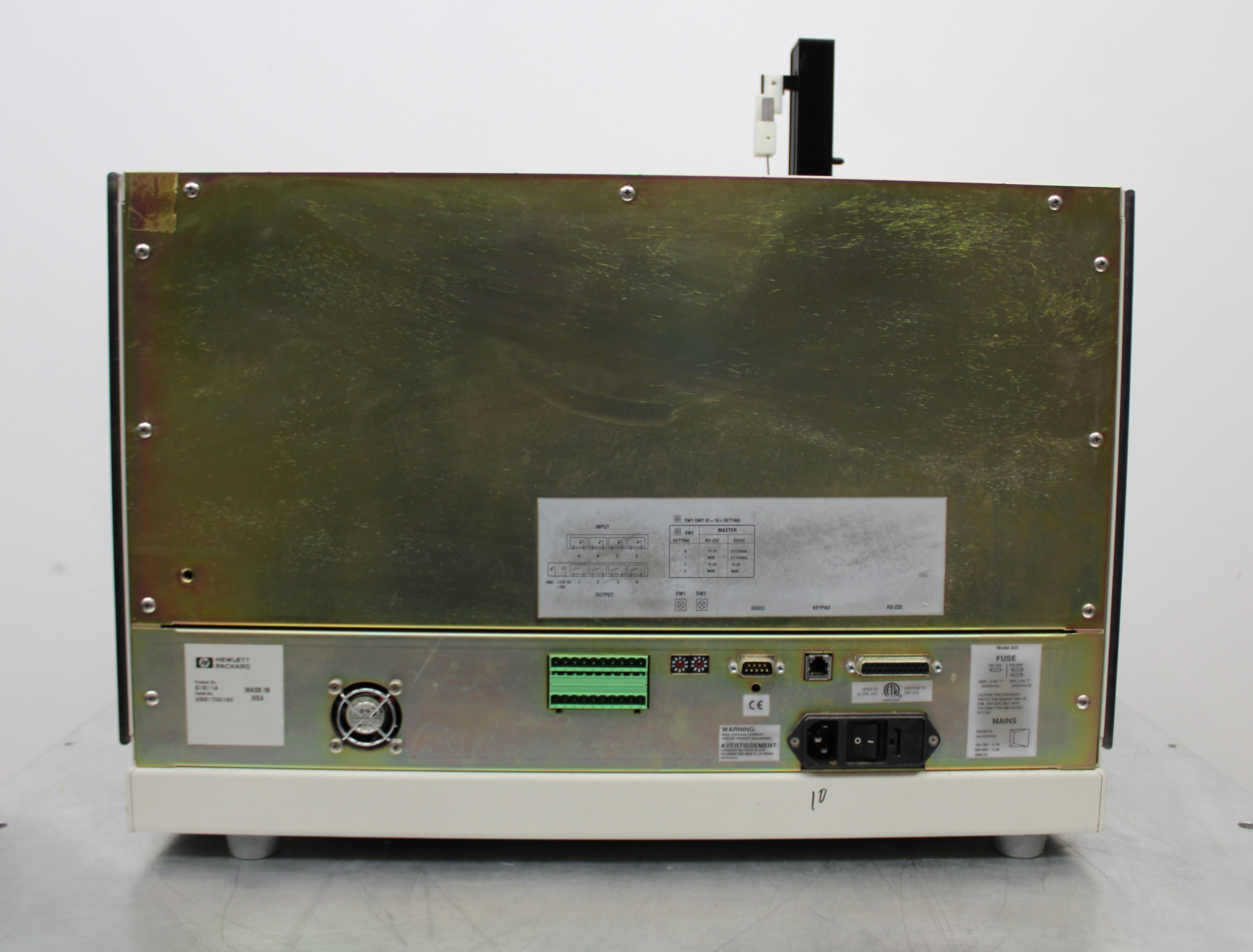

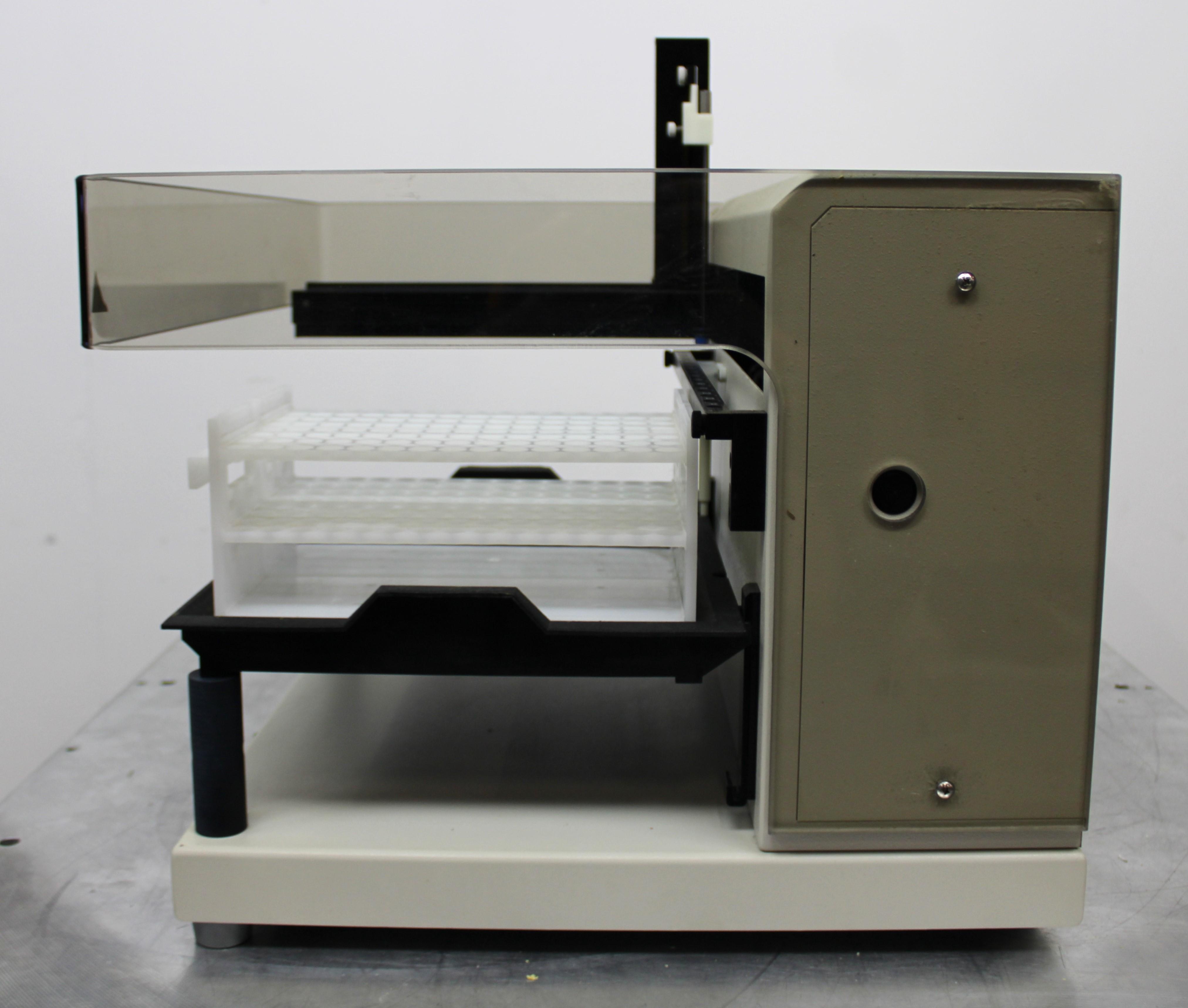

Hewlett Packard G1811A XY Autosampler with Stationary Racks & Tray 240V
Hewlett Packard
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension54.0cm x 47.0cm x 37.0cm
-

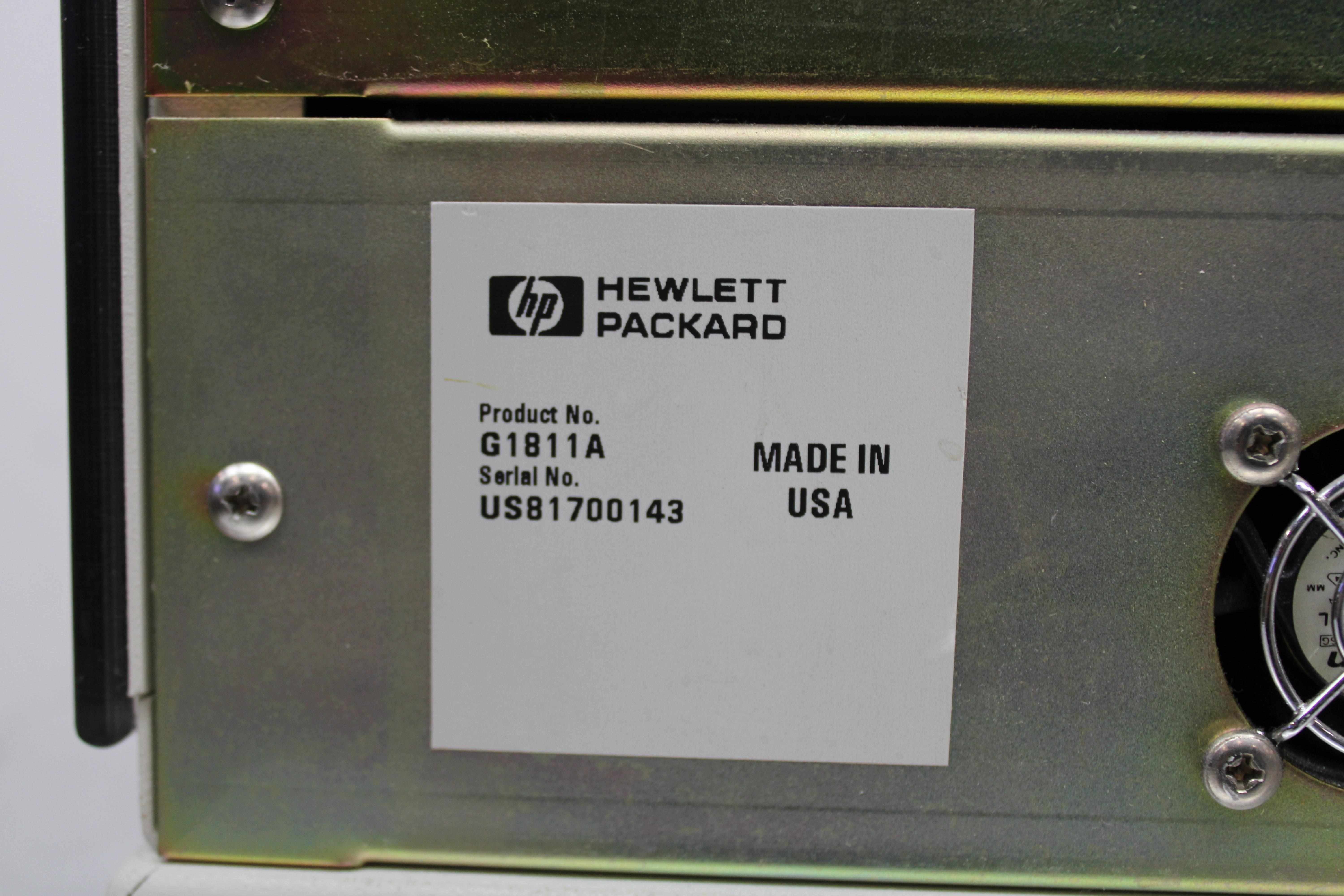

SerialUS81700143
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The Hewlett Packard G1811A is a used XY autosampler designed to streamline sample handling in laboratory settings. This XYZ robot can be integrated with the Agilent ChemStation for UV-visible spectroscopy (not included) to automate and efficiently manage sample transfer. It features a stationary rack design, a dedicated rinse station for needle cleaning, high precision needle positioning (1 mm resolution), and arm speeds of up to 250 mm/s. The autosampler is RS-232 port controlled, accommodating up to four racks, and operates within a temperature range of 5 to 40°C. Though not fully tested, this unit powers on and has passed basic functionality assessments, indicating potential operational capability. Note: Computer and additional transferring components are required but not included.
Key Features

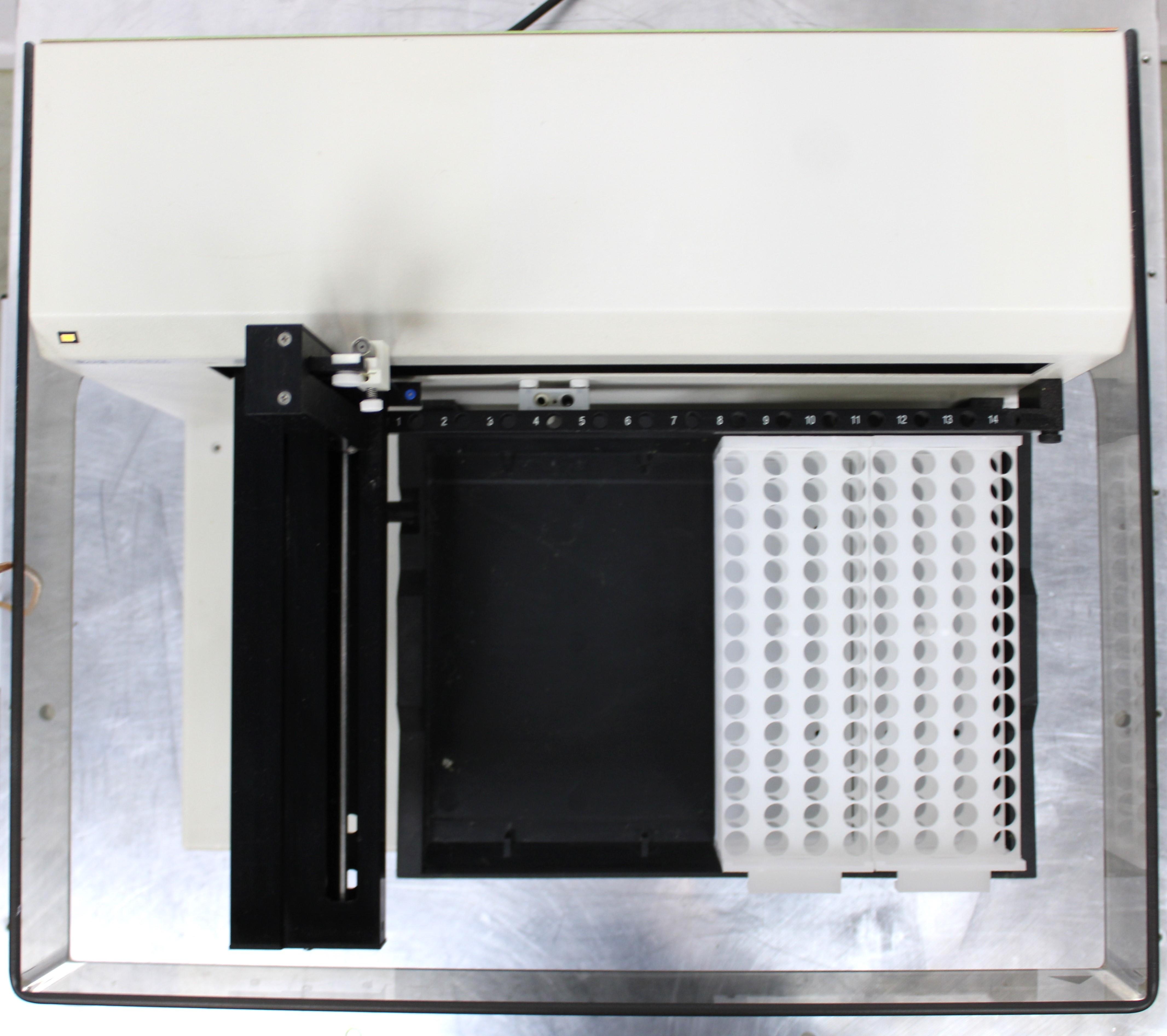

- XYZ robot with stationary rack design
- Dedicated rinse station for needle
- Needle positioning: 1 mm resolution
- Arm speed: X/Y 250 mm/s, Z 126.9 mm/s
- RS-232 controlled automation
- Temperature range: 5 to 40°C
Specifications
- Autosampler type: XYZ robot with stationary rack design
- Front panel: One yellow LED indicator
- Needle rinse station with selectable volume and flow rate
- Needle positioning: 1 mm resolution
- Repeatability: X, Y, Z axis 0.25 mm
- Arm speed: X/Y axes 250 mm/s, Z-axis 126.9 mm/s
- Rack capacity: Up to four racks
- Computer control: via RS-232 port
- Current rating: 2.0 A for 100/200 V or 1.0 A for 220/240 V
- Operating temperature range: 5 to 40°C
- Humidity tolerance: Max 75%
- Air pressure range: 75 to 105 kPa
Weight
Imperial: 52.91 Pounds
Metric: 24.0 Kilograms
Shipping Dimensions
Imperial: 25.51 lb x 22.2 lb x 17.48 lb
Metric: 64.8 cm x 56.39 cm x 44.4 cm
Harmonized Code
9027.20
Harmonized Code Details
9027.20 - Instruments and apparatus for physical or chemical analysis, incl. polarimeters, refractometers, spectrometers and gas or smoke analysis apparatus. This code applies based on the autosampler integration with spectrophotometer systems for sample analysis.
