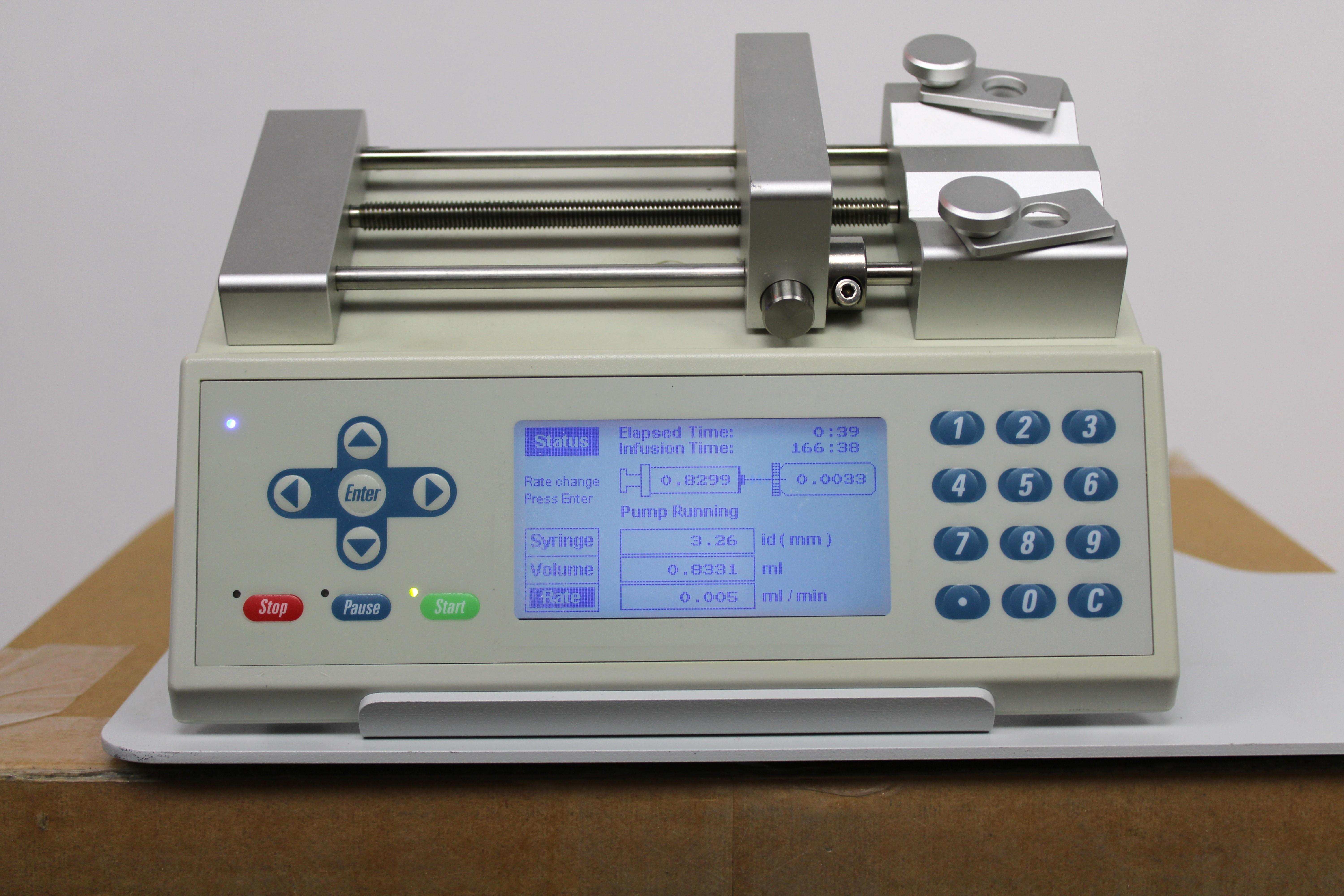

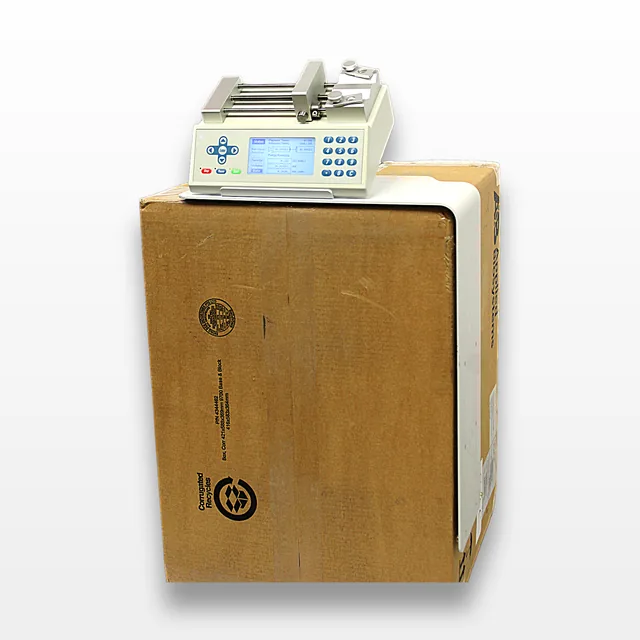

Chemyx Fusion 100T Syringe Pump High Precision Dosing 0.0001L/min 35lb Force
Chemyx
Details
-
CategoryPump
-
Dimension46.0cm x 30.0cm x 20.0cm
-
Serial93467
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Chemyx Fusion 100T Syringe Pump is designed for high-precision dosing applications suitable for laboratories and various operations. Known for its flexibility across syringe types and sizes, it seamlessly integrates into any workflow. With an accuracy of <0.35% and reproducibility of <0.05%, it ensures consistent performance. It supports syringe sizes from 0.5L to 60mL and offers flow rates from 0.0001 L/min to 128 mL/min. The device provides a linear force of 35lb and features a 4.3-inch LCD Touch Screen. Connectivity options include USB-B, RS232, and TTL ports, driven by a 0.9 Stepper Motor with micro-stepping. Operating efficiently within 4C to 40C and 20%-80% humidity conditions, it is suitable for diverse environments. Ideal for research and clinical settings, it delivers reliable results bolstered by advanced software interfaces. Note: Computer is not included. Manufactured in the United States, the model is in good condition with slight cosmetic wear.
Key Features
- High precision dosing capabilities
- Supports syringe sizes from 0.5L to 60mL
- Flow rates from 0.0001 L/min to 128 mL/min
- Linear force of 35lb
- 4.3-inch LCD Touch Screen
- Connectivity via USB-B, RS232, TTL
- Driven by 0.9 Stepper Motor with micro-stepping
- Operating temperature: 4C to 40C
Specifications
- Accuracy: < 0.35%
- Reproducibility: < 0.05%
- Minimum syringe size: 0.5L
- Maximum syringe size: 60mL
- Minimum flow rate: 0.0001 L/min (with 0.5L syringe)
- Maximum flow rate: 128 mL/min (with 60mL syringe)
- Linear force: 35lb (15.9kg)
- Display: 4.3-inch LCD Touch Screen

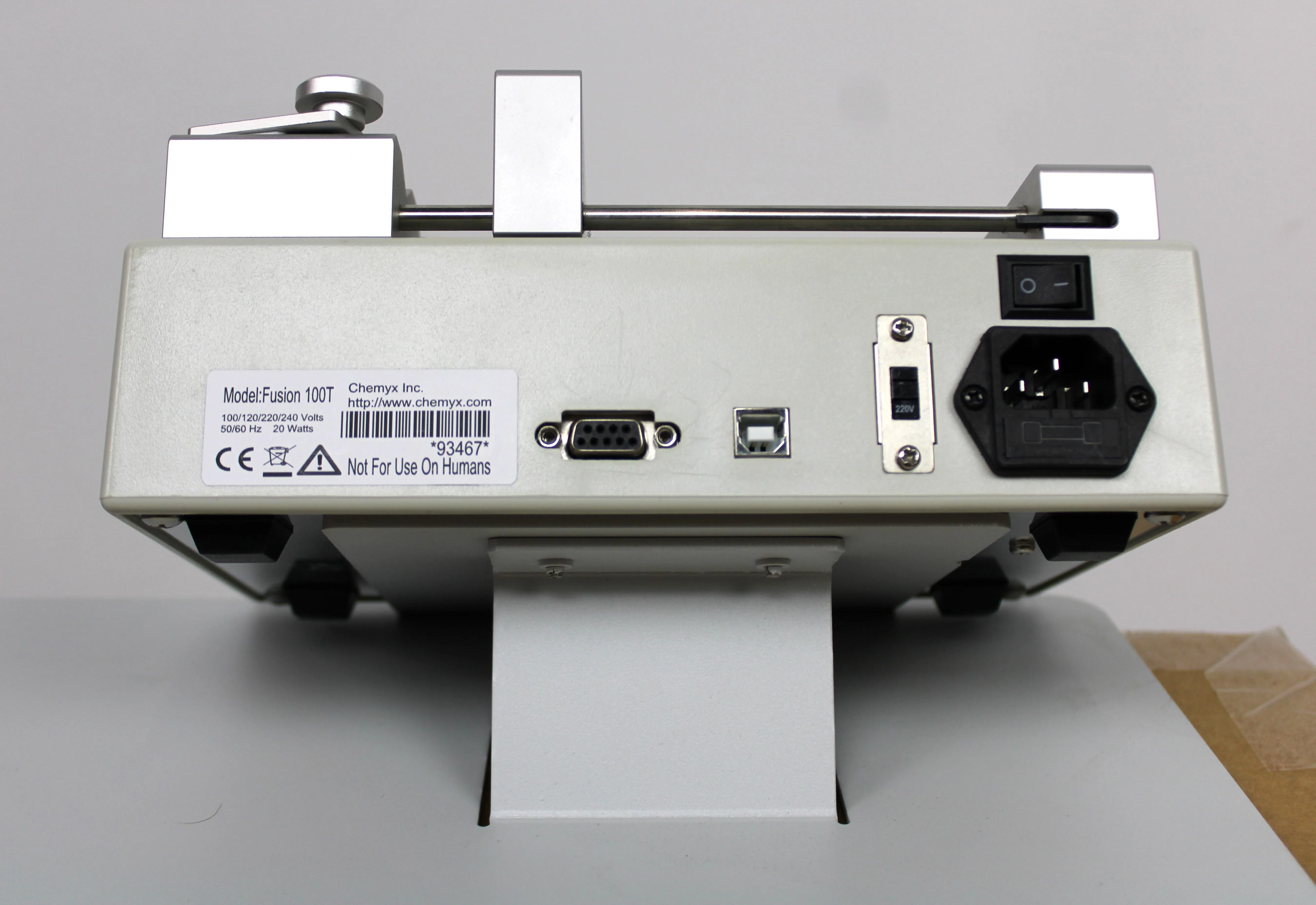

- Connectivity: USB-B, RS232 and TTL Ports
- Motor drive: 0.9 Stepper Motor with Micro-stepping
- Step resolution: 0.098 m/step
- Operating temperature: 4C to 40C
- Storage temperature: -10C to 70C
- Humidity range: 20% to 80% RH, non-condensing
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 14.4 lb x 9.6 lb
Metric: 54.86 cm x 36.58 cm x 24.38 cm
Harmonized Code
9018.90.3000
Harmonized Code Details
9018.90.3000: Instruments and appliances used in medical, surgical, dental or veterinary sciences, part. This code is chosen due to the equipment's use in precise laboratory dosing and pumping applications consistent with medical and research practices.
