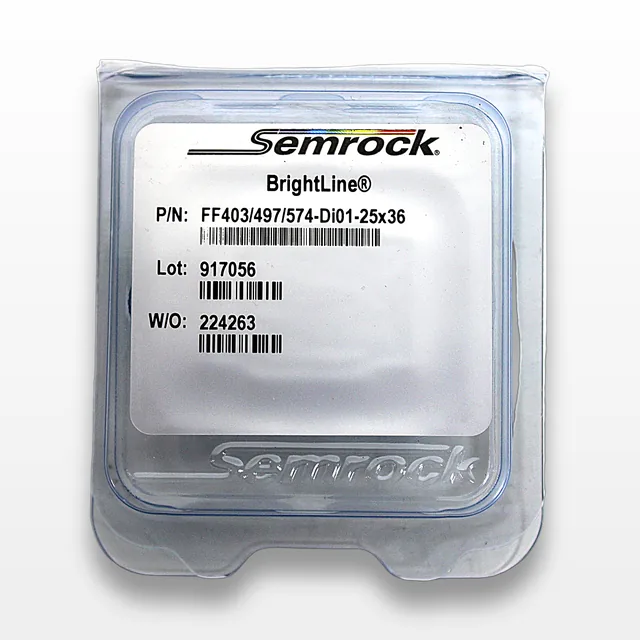

SEMROCK FF403/497/574-Di01-25x36 Dichroic Beamsplitter, VG Condition
SEMROCK
Details
-
CategoryElectrophoresis
-
Dimension5.0cm x 5.0cm x 1.0cm
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Experience exceptional optical performance with the SEMROCK FF403/497/574-Di01-25x36 dichroic beamsplitter, designed for use with broadband light sources such as LEDs and metal halide lamps. This multi-edge dichroic filter offers multiple transitions from high reflectance to high transmission, with transmission bands achieving over 90% average in specified wavelengths and reflection bands achieving over 97.5% average. Created with precision, it features an angle of incidence of 45 ± 1.5 degrees, a cone half-angle of 2 degrees, and a stringent optical damage rating. Physically compact, with dimensions of 25.2 mm x 35.6 mm, this beamsplitter is optimized with an unmounted thickness of 1.05 mm. Classified in very good condition, this product has been tested to exhibit no significant cosmetic damage and maintains its efficiency for demanding lab environments.
Key Features
- Multi-edge dichroic design
- High transmission bands (90% avg.)
- High reflection bands (97.5% avg.)
- 45 ± 1.5 degrees angle of incidence
- Optimal for LED and metal halide lamps
- Compact dimensions: 25.2 mm x 35.6 mm
Specifications
- Transmission Band 1: Tavg > 90% 414 – 450 nm
- Transmission Band 2: Tavg > 90% 507.5 – 528 nm
- Transmission Band 3: Tavg > 90% 584 – 645 nm
- Reflection Band 1: Ravg > 97.5% 370 – 393 nm
- Reflection Band 2: Ravg > 97.5% 466 – 490 nm
- Reflection Band 3: Ravg > 97.5% 546 – 565 nm
- Edge Wavelengths: 403 nm, 497 nm, 574 nm
- Angle of Incidence: 45 ± 1.5 degrees
- Cone Half-angle: 2 degrees
- Optical Damage Rating: No degradation at 6.0 W power from xenon arc lamp
- Flatness/RWE Classification: Standard Epi-fluorescence
- Reflected Wavefront Error: >> 6λ P-V RWE @ 632.8 nm
- Steepness: Standard
- Clear Aperture: ≥ 80% (elliptical)
- Scratch-Dig: 60-40
- Filter Thickness (unmounted): 1.05 mm ± 0.05 mm
Weight
Imperial: 0.72 Pounds
Metric: 0.33 Kilograms
Shipping Dimensions
Imperial: 2.4 lb x 2.4 lb x 0.36 lb
Metric: 6.1 cm x 6.1 cm x 0.91 cm
Harmonized Code
900150
Harmonized Code Details
Code 900150 - Lenses, prisms, mirrors and other optical elements, unmounted, not specified or included elsewhere. Used for optical components like beamsplitters; applicable due to its function and design in optical systems.
