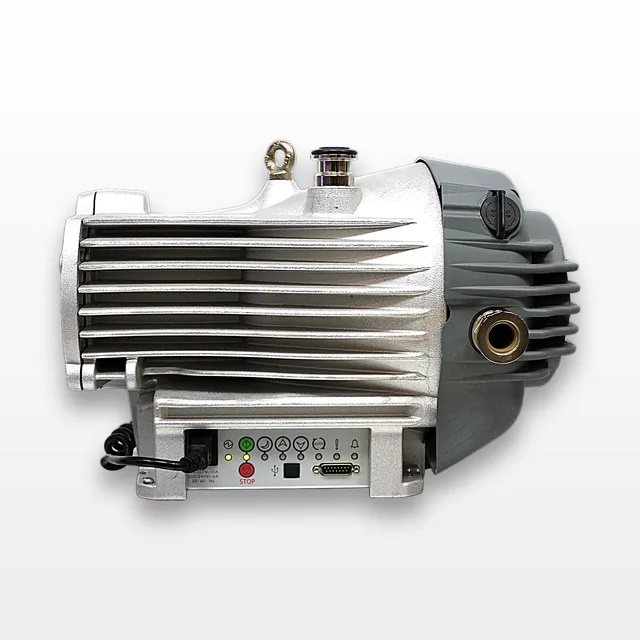

Edwards nXDS10i Dry Scroll Vacuum Pump 6.7 CFM Gas Ballast Tech, A73601983
Edwards
Details
-
CategoryPump
-
Dimension43.0cm x 28.0cm x 30.0cm
-
Serial200520861
-
Shipping TypeFedEx Ground
-
Manufacturing2020-05-01
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
The Edwards nXDS10i Dry Scroll Vacuum Pump, manufactured in May 2020, offers a modern take on oil-free vacuum technology. As the successor to the XDS10 model, it boasts enhanced pumping speed and reduced power consumption while maintaining low noise levels. It functions with no indication of faults, even though full testing couldn't be conducted. With a gas ballast system for pumping condensable vapours, the nXDS10i is an ideal solution for industrial and scientific applications involving water, solvents, or dilute acids. The integrated inverter drive supports voltage adaptation worldwide, ensuring reliable performance. The model features state-of-the-art tip seal technology for extended usability and can be serviced in the field. Modern interface options enable remote control capabilities.
Key Features
- Oil-free, dry scroll vacuum technology
- 6.7 CFM for enhanced pumping speeds
- Integrated gas ballast for condensable vapours
- Advanced tip seal technology
- Remote control via USB, RS232, RS485
Specifications
- Ultimate pressure: 0.025mbar
- Pumping speed: 6.7 CFM
- Voltage: 100-240 V
- Frequency: 50/60 Hz
- Includes extensive vacuum isolation for longevity
- Integrated inverter drive with auto-sensing voltage input
- Field serviceable design
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 13.2 lb x 14.4 lb
Metric: 51.82 cm x 33.53 cm x 36.58 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; suitable as it categorizes pumps designed for the evacuation of gases or vapors from sealed compartments.
