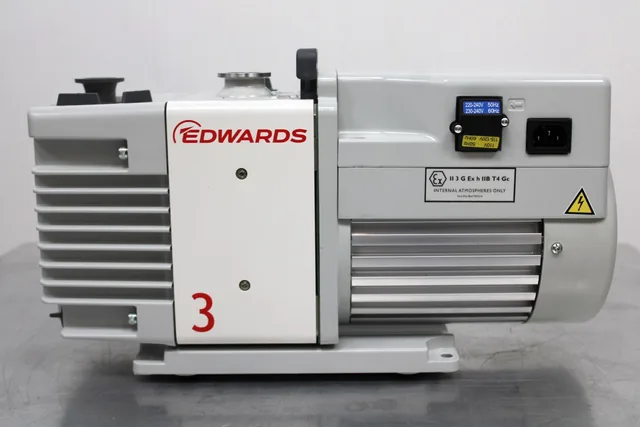

Edwards RV3 Finnigan Vacuum Pump - Rotary Vane, High Vacuum, 220-240V
Edwards
Details
-
CategoryPump
-
Dimension41.0cm x 15.0cm x 23.0cm
-
Serial230048440
-
Shipping TypeFedEx Ground
-
Voltage / Hertz220-240V / 50Hz/60Hz
Description
The Edwards RV3 Finnigan is a small rotary vane vacuum pump renowned for its ability to deliver excellent vacuum pressure, high pumping speeds, and superior vapor handling, resulting in quiet operation. Suitable for research and development as well as scientific applications, it can achieve a pressure as low as 2.0 x 10-3 mbar with its oil-sealed mechanism. With a universal motor that supports 50/60Hz electrical supply, the pump features a controlled pump valve opening to avoid pressure spikes during startup, and a mode selector switch for either high vacuum or high throughput applications. Despite not undergoing full testing, initial evaluations suggest functional condition, with minor cosmetic wear expected.
Key Features
- High vacuum capabilities
- Quiet operation
- Universal motor 220-240V, 50/60Hz
- Controlled pump valve opening
- Mode selector for vacuum/throughput
- Interchangeable rotor and stator parts
Specifications
- Ultimate pressure: 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
- 50Hz displacement: 3.7 m3h-1 / 2.2 ft3min-1
- 60Hz displacement: 4.5 m3h-1 / 2.3 ft3min-1
- Inlet flange: NW25, Exhaust flange: NW25
- Power requirements: 1 Ph, 220-240VAC, 50/60Hz
- Nominal rotation speed: 1500 / 1800 rpm
- Noise level: 48 dB(A) @ 50 Hz
- Operating temperature range: 12 - 40°C
- Max inlet pressure water vapour: 50 mbar / 38 Torr
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 7.2 lb x 10.8 lb
Metric: 48.77 cm x 18.29 cm x 27.43 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; used for creating and maintaining vacuum. Chosen due to the specific use of the Edwards RV3 Finnigan as a rotary vane vacuum pump for vacuum creation in scientific settings.
