Sogevac SV120BIFC Vacuum Pump with Frequency Converter, Gas Ballast Valve
Sogevac
Details
-
CategoryPump
-
Dimension74.0cm x 38.0cm x 48.0cm
-

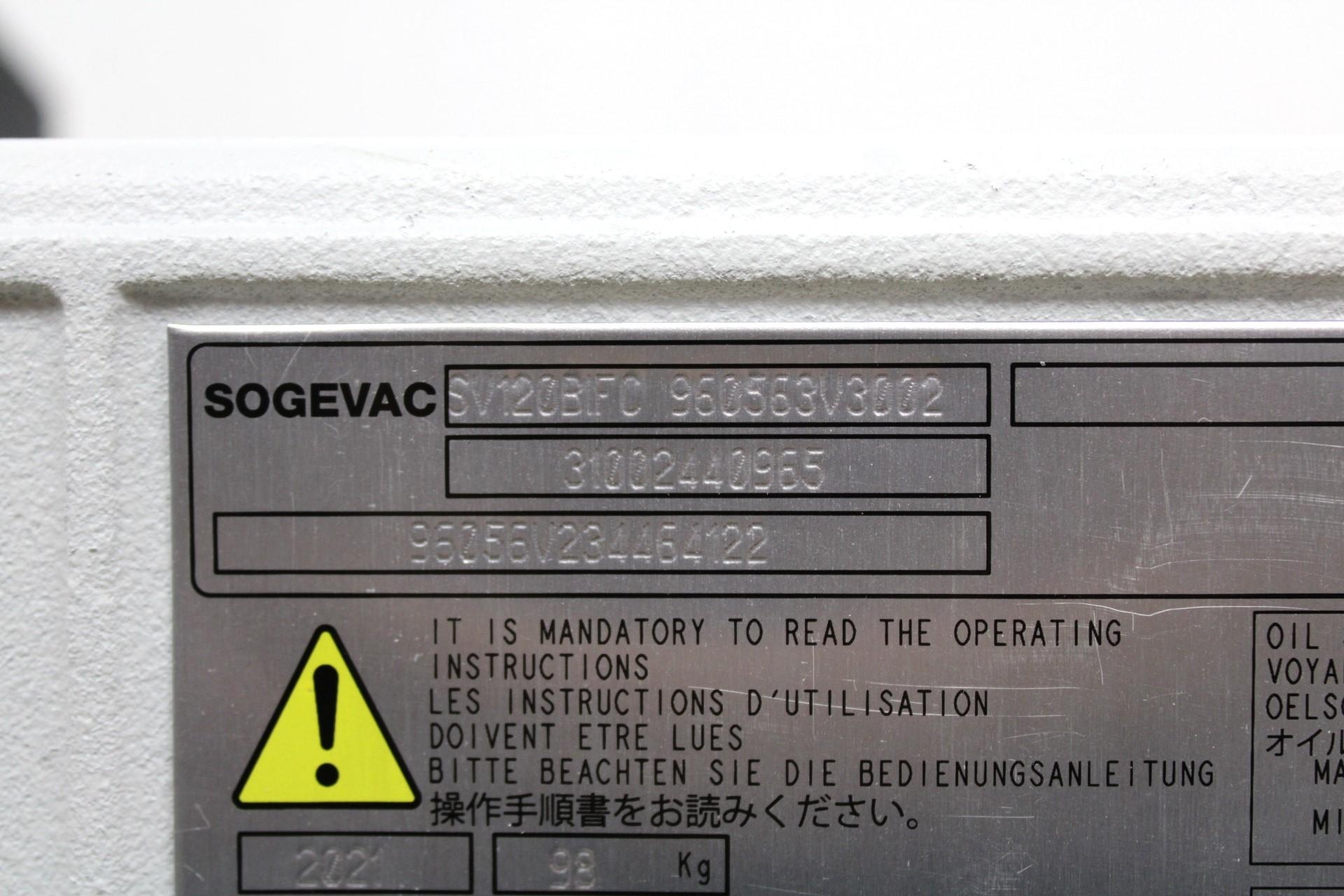

Serial31002440965
-
Shipping TypeFreight
-
Manufacturing2021-05-06
-
Voltage / Hertz200-240V / 50Hz/60Hz
Description

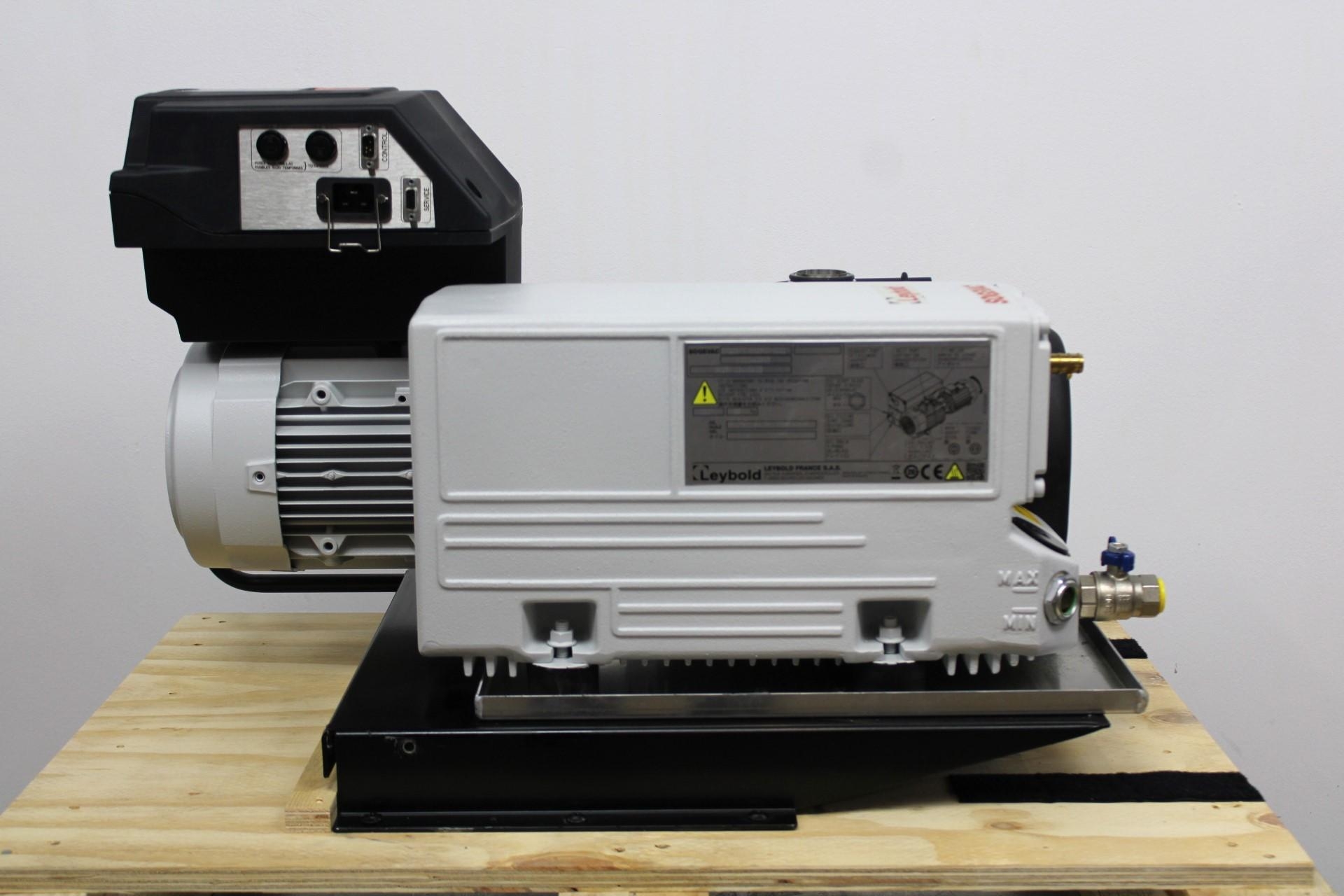

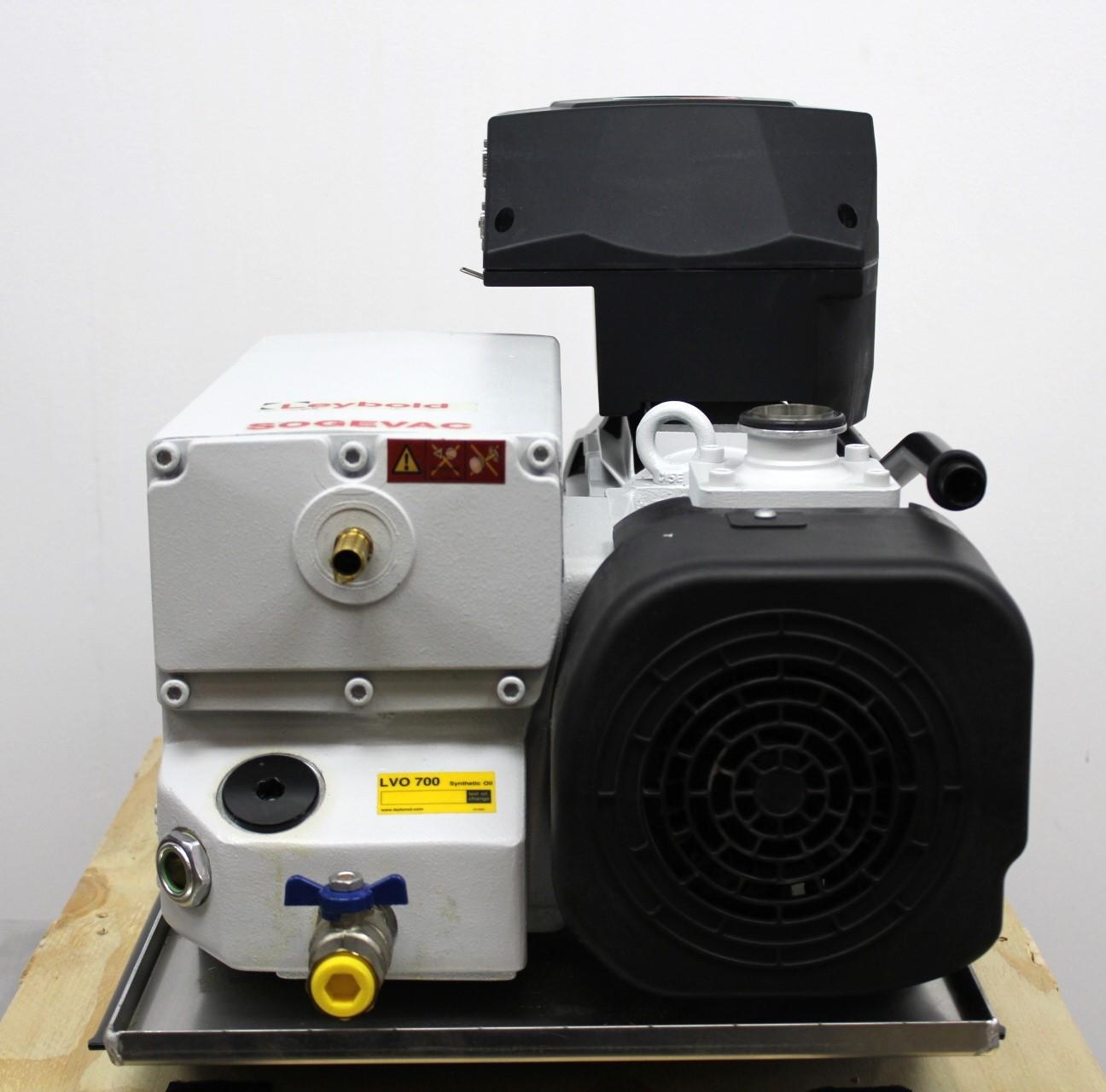

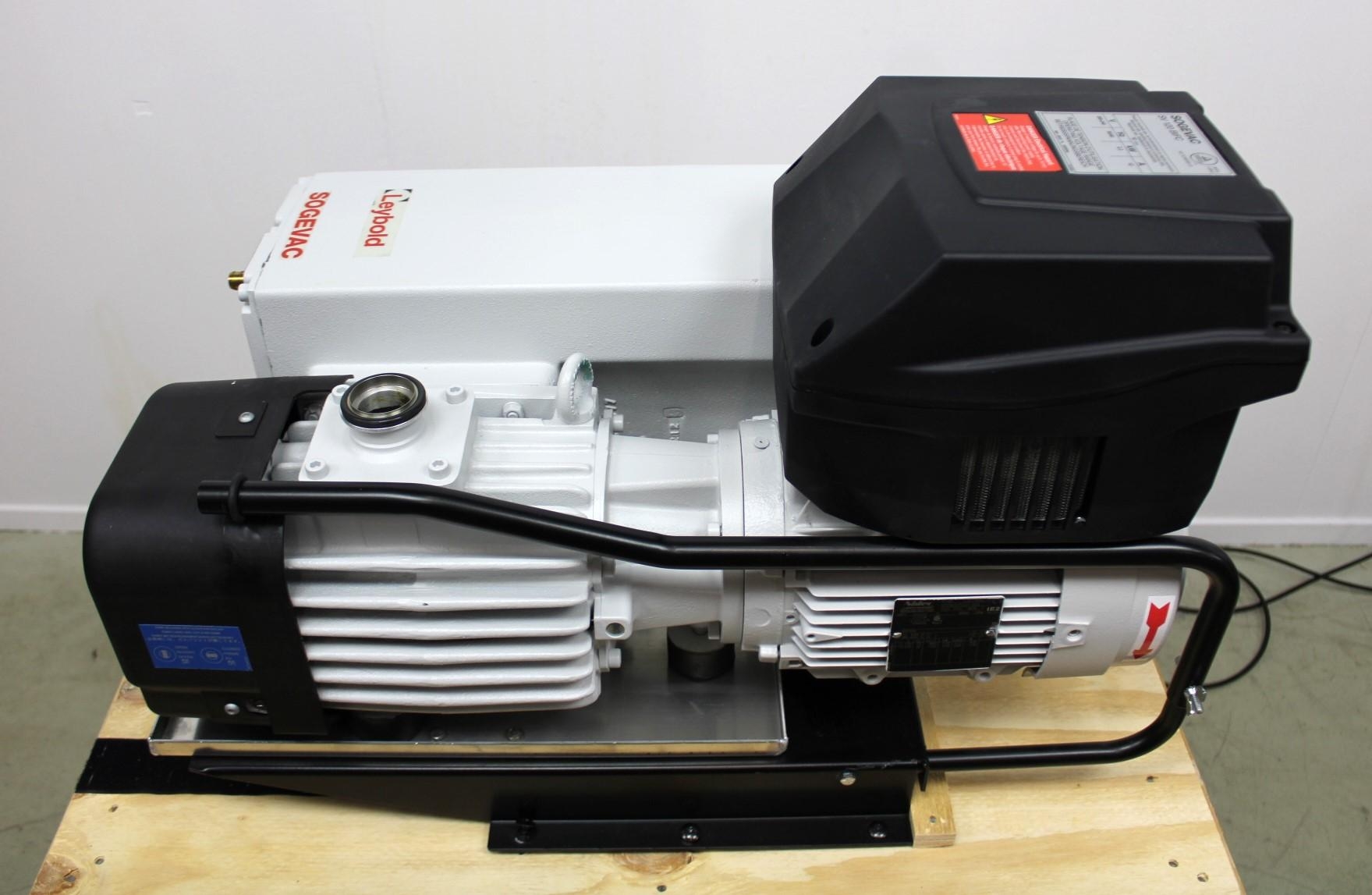

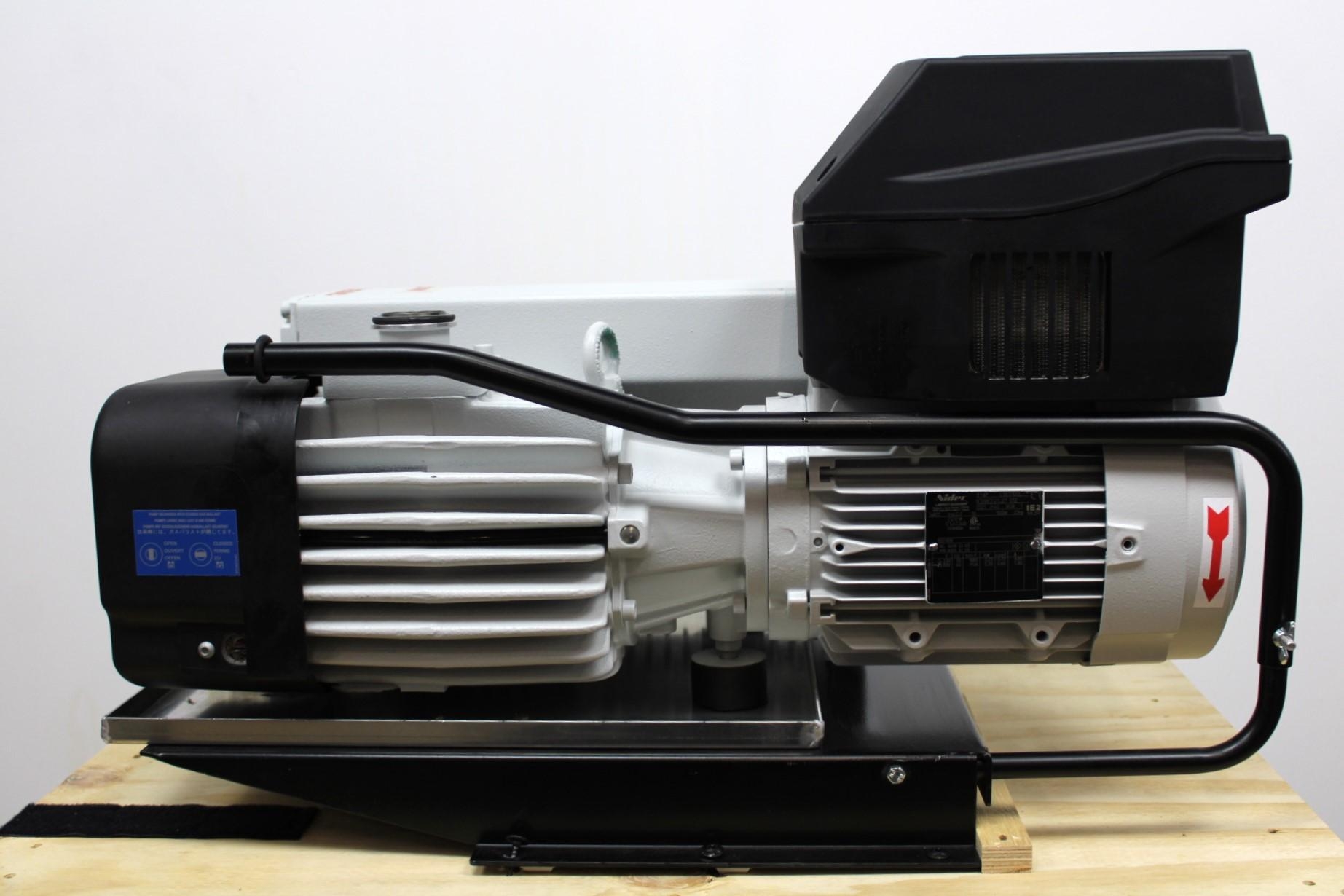

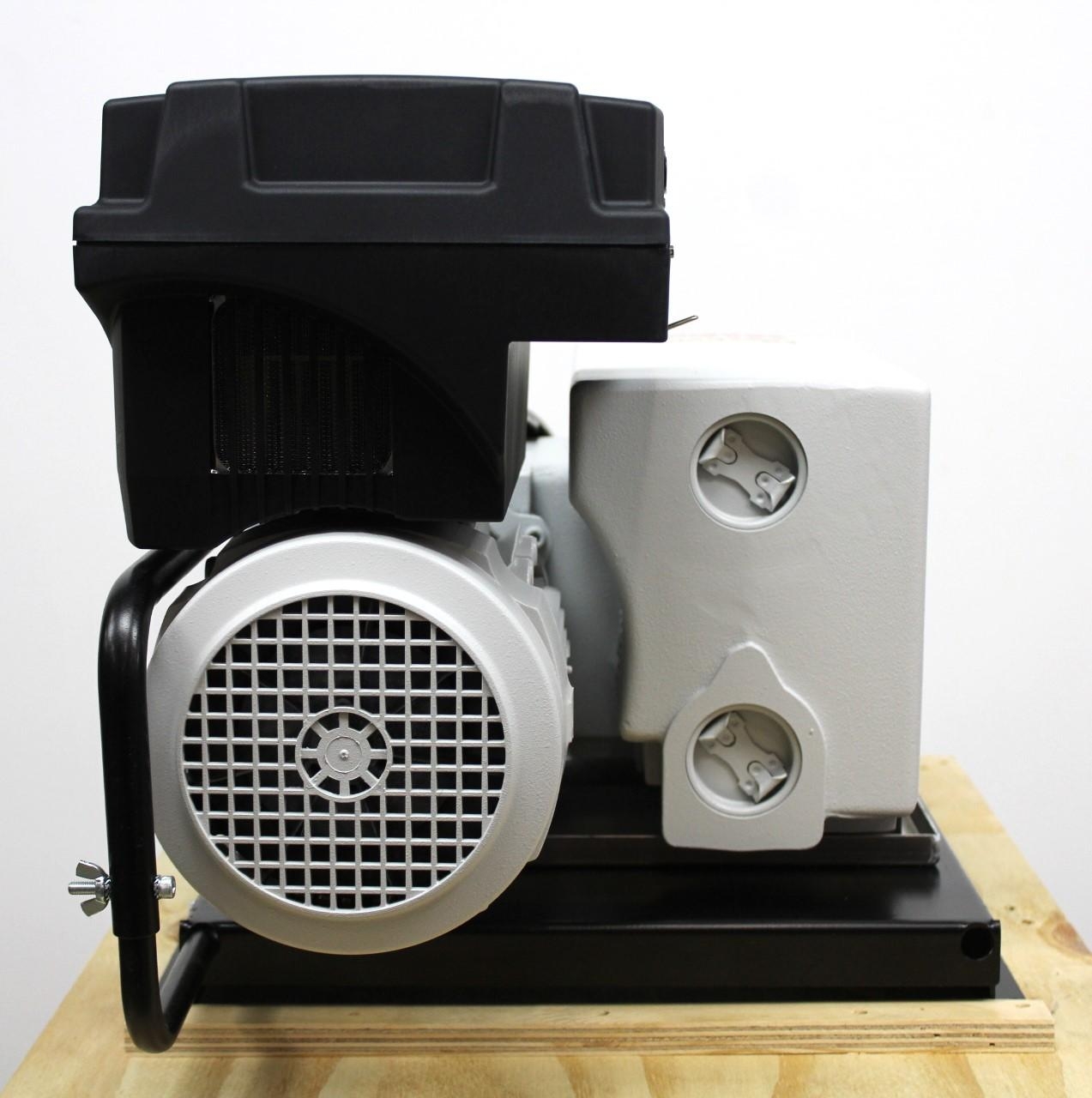

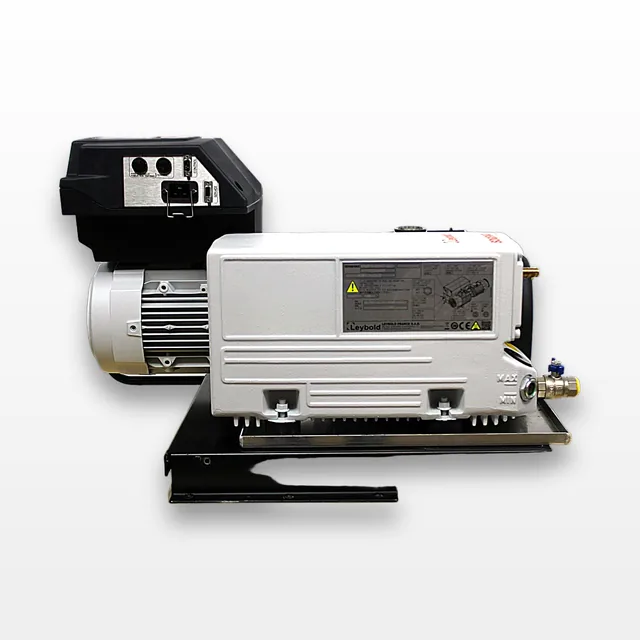

The Leybold Sogevac SV 120 BIFC (Model: SV120BIFC, Part No: 960563V3002) is a reliable single-stage oil-sealed rotary vane vacuum pump, featuring an integrated Frequency Converter for variable speed control, optimizing energy efficiency and noise reduction. Manufactured in 2021 and originating from France, this vacuum pump supports communication interfaces like I/O ports and RS 485 for remote monitoring. Designed to handle condensable vapors, it includes a gas ballast valve and an anti-suckback system to prevent back migration of oil, making it ideal for industrial applications requiring robust vacuum performance. Note that the equipment is in good used condition, unable to be fully tested but presumed operational with no known functionality issues.
Key Features
- Single-stage oil-sealed rotary vane vacuum pump
- Integrated Frequency Converter for energy efficiency
- Variable speed control
- I/O ports and RS 485 for remote control

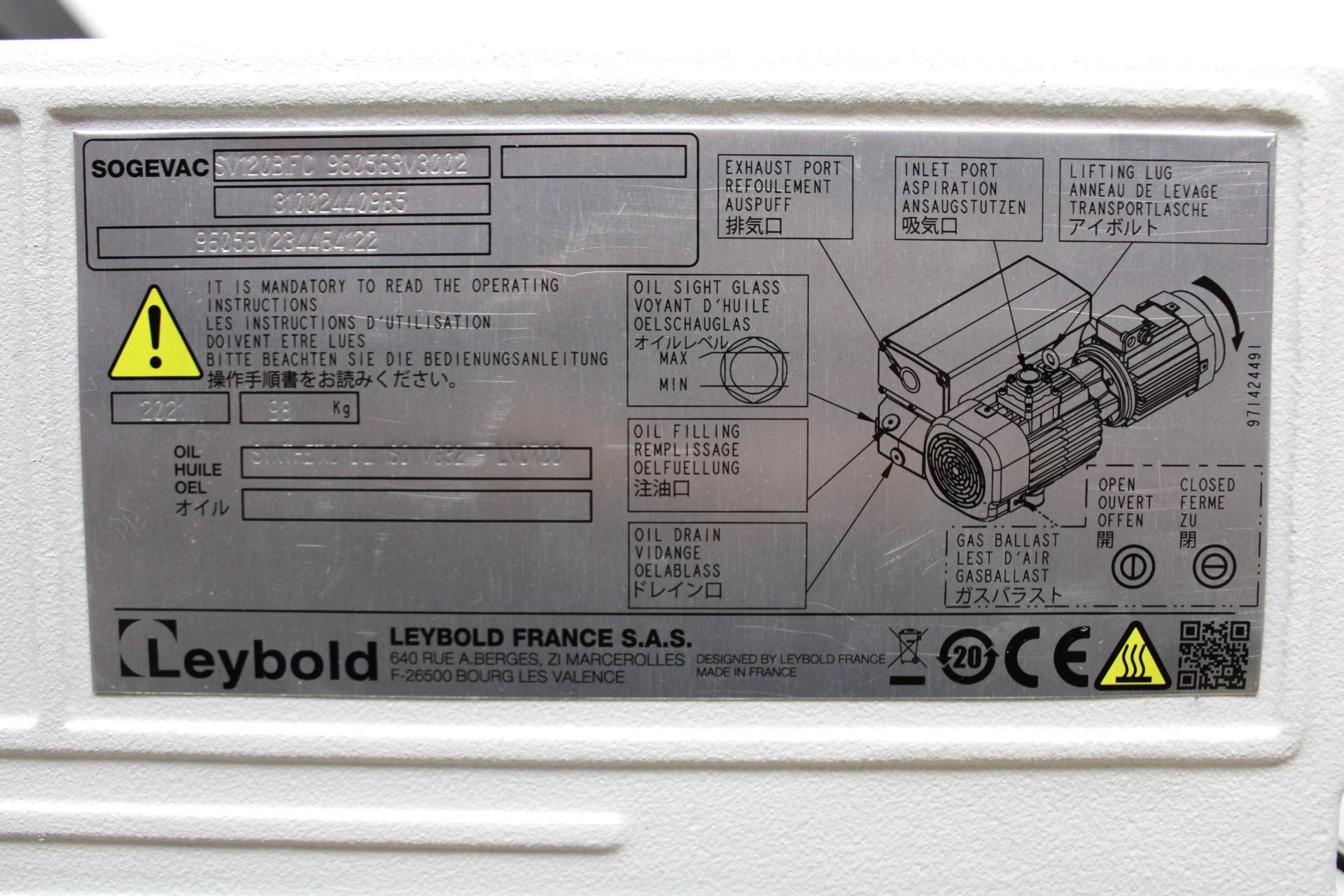

- Gas Ballast Valve for condensable vapors
- Anti-Suckback System
Specifications
- Pumping Speed: 110–120 m³/h (50/60 Hz)

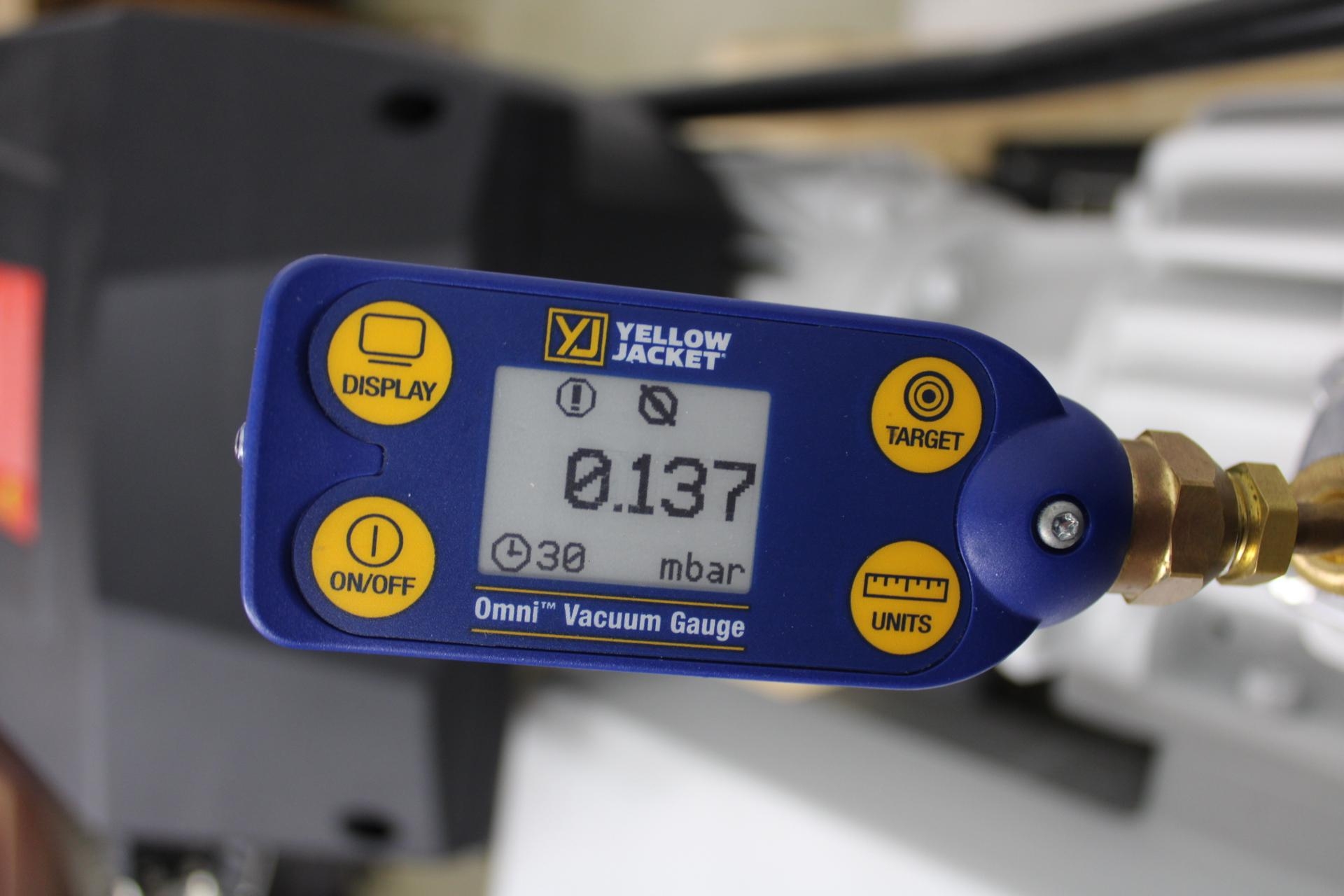

- Ultimate Pressure (without gas ballast): 0.137 mbar
- Power Supply: Single-phase, 200–240 V, 50/60 Hz

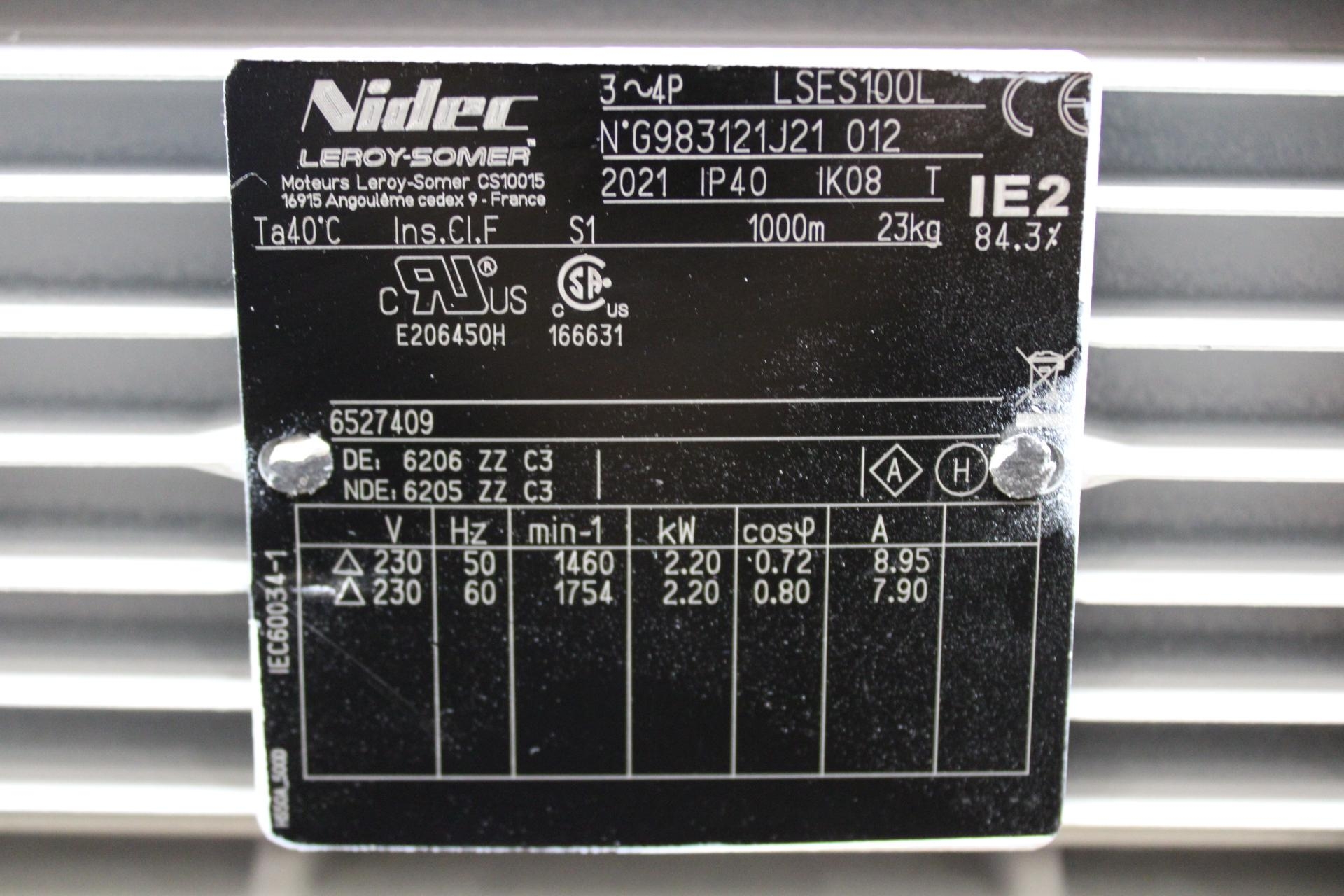

- Motor Rating: 2.2 kW
- High-efficiency filtration below 1 ppm oil mist levels
Weight
Imperial: 242.4 Pounds
Metric: 109.95 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 18.0 lb x 22.8 lb
Metric: 88.39 cm x 45.72 cm x 57.91 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; this code is appropriate as it covers rotary vane vacuum pumps, aligning with the product's function and specification.
