Vacuubrand ME 8 NT Diaphragm Pump for Gases 4-Head 230V 2020 No Computer
Vacuubrand
Details
-
CategoryPump
-
Dimension43.0cm x 36.0cm x 33.0cm
-
Serial104078902
-
Shipping TypeFedEx Ground
-
Manufacturing2020-07-01
-
Voltage / Hertz100-115/200-240V / 50Hz/60Hz
Description

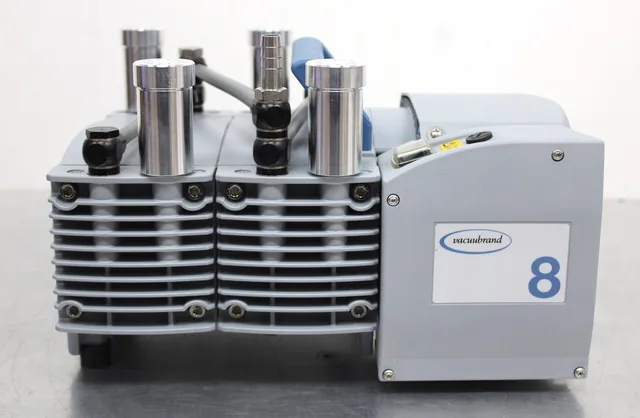

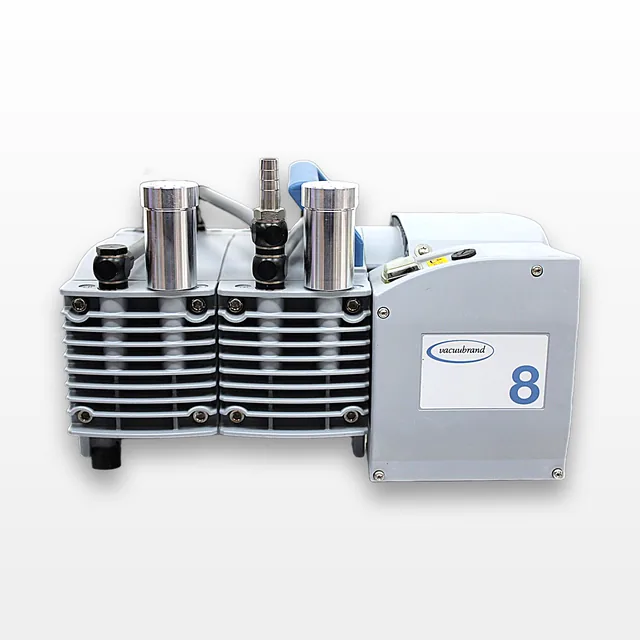

The Vacuubrand ME 8 NT Diaphragm Pump, manufactured in 2020, is an efficient solution for continuous, oil-free evacuation and pumping of non-corrosive gases. Engineered with a highly flexible, fabric-reinforced FKM diaphragm, this pump ensures a prolonged operating life. With four heads, it offers a high pumping speed ideal for applications such as vacuum ovens and fast evacuations. Despite some cosmetic wear, the pump powers on and passes basic tests, with no known functionality issues. Powered at 100-115/200-240V and operating at 50Hz/60Hz, it supports a wide range of applications. It achieves a maximum pumping speed of 7.3 m3/h at 50 Hz and 4.8 cfm at 60 Hz with an ultimate vacuum of 70 mbar / 52 torr. The pump comes fully mounted, ready for use with a silencer and a hose nozzle. This device is especially recommended for processes with high inlet and process pressures.
Key Features
- Oil-free evacuation
- High pumping speed
- Four-head diaphragm
- Highly flexible FKM diaphragm
- Non-corrosive gas compatibility
- Robust aluminum and plastic construction
Specifications
- Max. pumping speed: 7.3 m3/h at 50 Hz, 4.8 cfm at 60 Hz
- Ultimate vacuum: 70 mbar / 52 torr
- Voltage: 100-115/200-240V
- Hertz: 50Hz/60Hz
- Number of heads: 4
- Number of stages: 1
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: 2 x G1/4"
- Rated motor power: 0.25 kW
- Noise level: 45 dBA
- Protection class: IP 40
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 16.8 lb x 15.6 lb
Metric: 51.82 cm x 42.67 cm x 39.62 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; used for air or gas transport and processing. Chosen based on the function and application of the pneumatic pump in laboratory settings.
