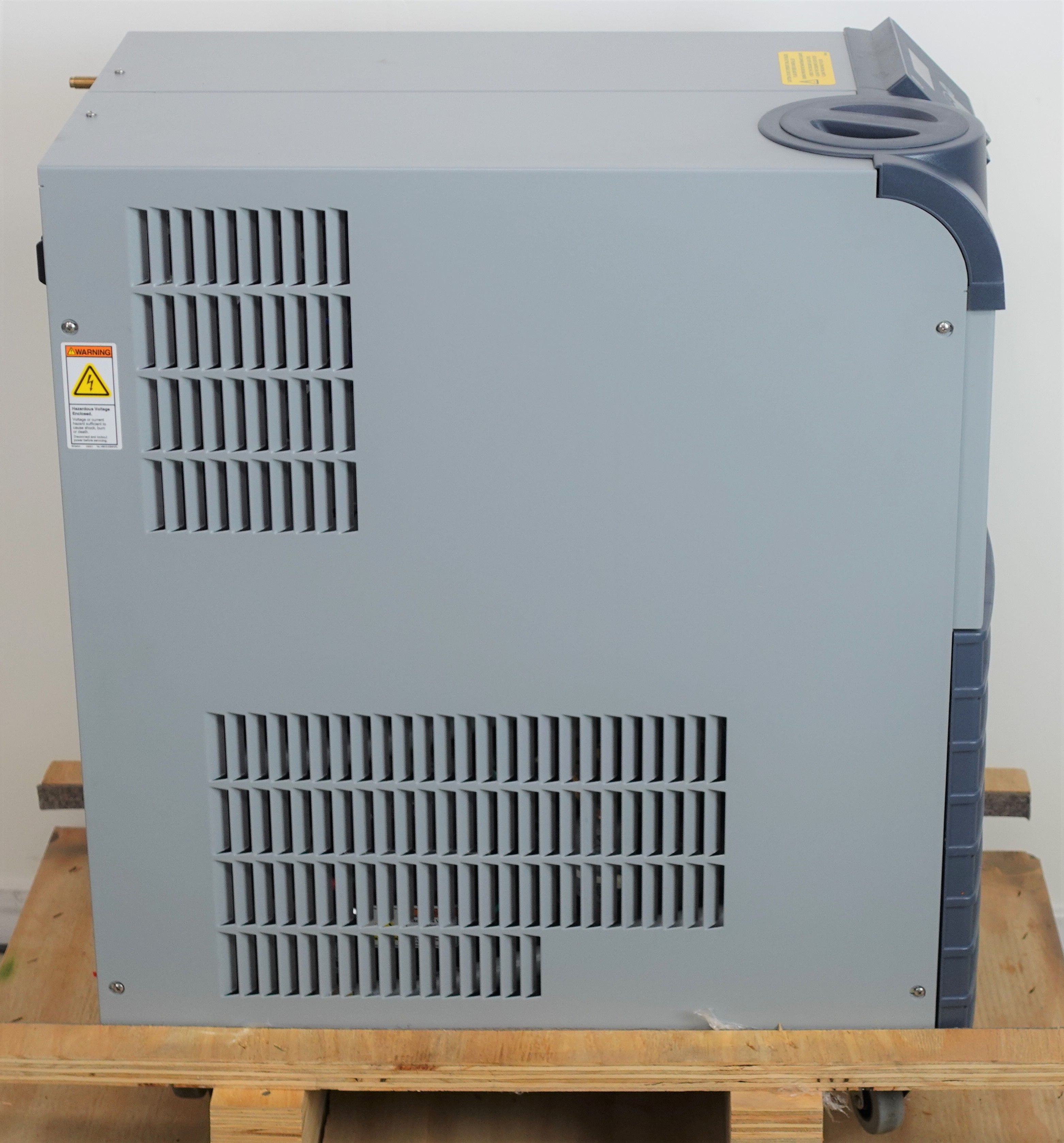

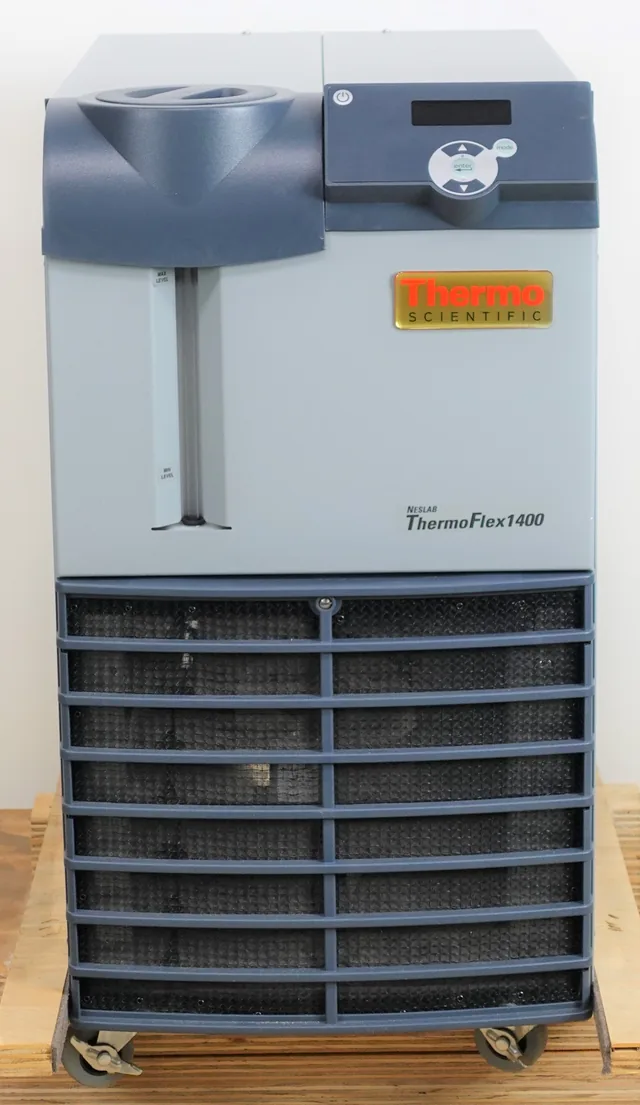

Thermo TF1400 Chiller Recirculating 5C to 40C Stability +/- 0.1C R134A
Thermo Fisher Scientific
Details
-
CategoryChiller / Heater
-
Dimension62.0cm x 36.0cm x 69.0cm
-
Serial108121062
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo TF1400 Recirculating Chiller, model 113204040000001, is a highly efficient unit designed for maintaining a precise temperature range of 5C to 40C, with a stability of ±0.1C. Ideal for laboratory settings, this chiller offers a standard cooling capacity of up to 1400 W at 60Hz and 1170 W at 50Hz, perfect for various cooling applications. Although this unit is currently non-functional and requires repairs, it contains valuable parts for spares or repair projects. Its robust construction includes an easily removable condenser grill and air filter to simplify maintenance and prolong component life. The chiller features a full flow filter to ensure clean fluid circulation and employs the environmentally friendly R134A refrigerant. Designed in the United States by Thermo, this item comes in dimensions of 69.2 x 36.0 x 62.4 cm and weighs 59.2 kg. Power connection is not included, and the unit is sold 'AS-IS'.
Key Features
- Temperature Range: 5C to 40C
- Stability: +/- 0.1C
- Standard Cooling Capacity: 1400 W at 60Hz, 1170 W at 50Hz
- Refrigerant: R134A
- Easily removable condenser grill
- Full flow filter
Specifications
- Temperature Range: 5C to 40C (41F to 104F)
- Stability: +/- 0.1C
- Ambient Temperature Range: 10C to 40C (50F to 104F)
- Standard Cooling Capacity: 60Hz > 1400 W / 4781 BTU | 50Hz > 1170 W / 3996 BTU
- Refrigerant: R134A
- Dimensions: 69.2 x 36.0 x 62.4 cm (27.3 x 14.2 x 24.6 inches)
- Weight: 59.2 kg (130.5 lb.)
- Power: 208-230 V/60 Hz & 200 V/50 Hz
- Easily removable condenser grill for maintenance
- Integrated funnels fill for easy filling
- *** Powerline, manual and piping not included
Weight
Imperial: 158.73 Pounds
Metric: 72.0 Kilograms
Shipping Dimensions
Imperial: 29.29 lb x 17.01 lb x 32.6 lb
Metric: 74.4 cm x 43.21 cm x 82.8 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment; heat pumps (excluding household type refrigerators/freezers). This code is used because the Therma TF1400 is a heavy-duty recirculating chiller intended for laboratory use rather than residential.
