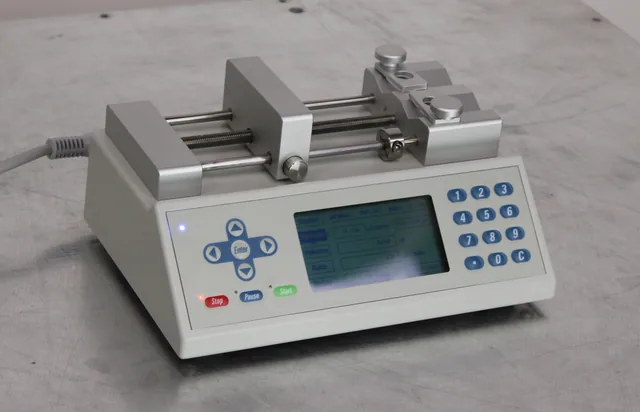

Chemyx Fusion 100T Syringe Pump - Dual-Channel Precision Infusion
Chemyx
Details
-
CategoryPump
-
Dimension24.0cm x 15.0cm x 11.0cm
-

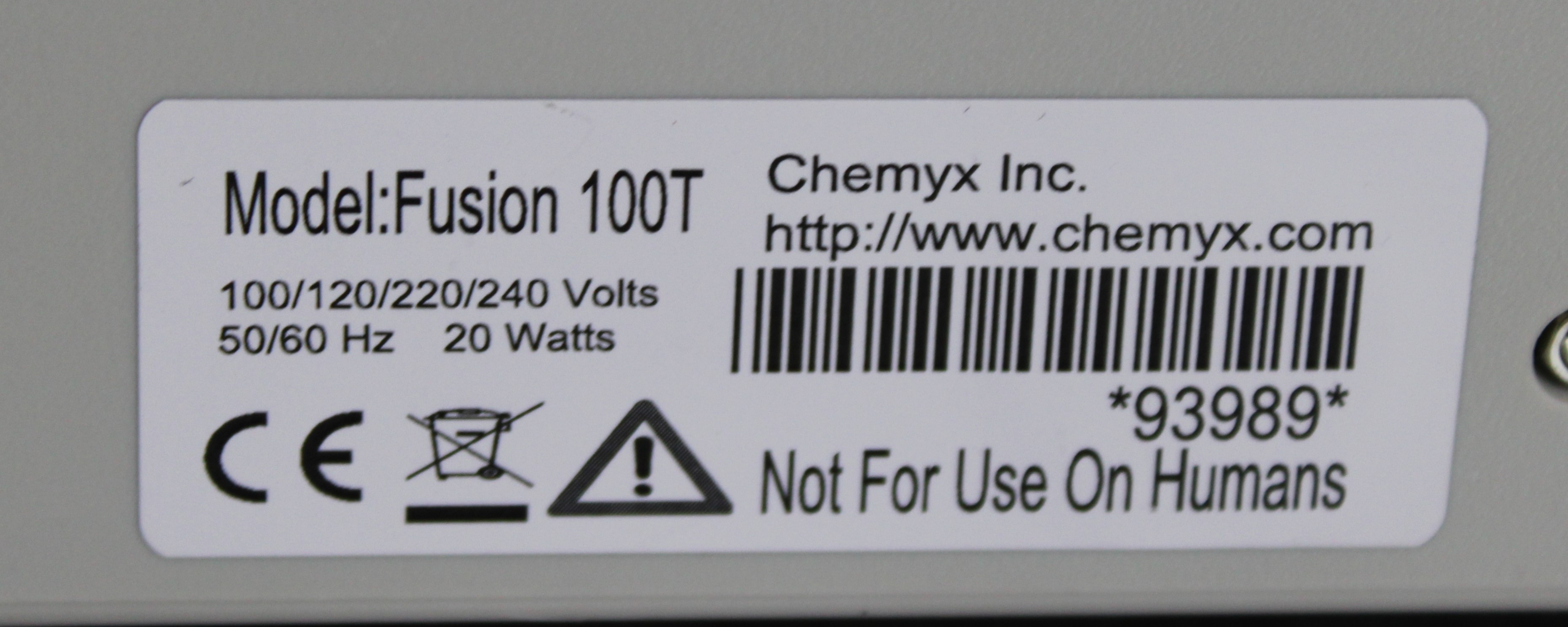

Serial93989
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz240V / 50Hz/60Hz
Description

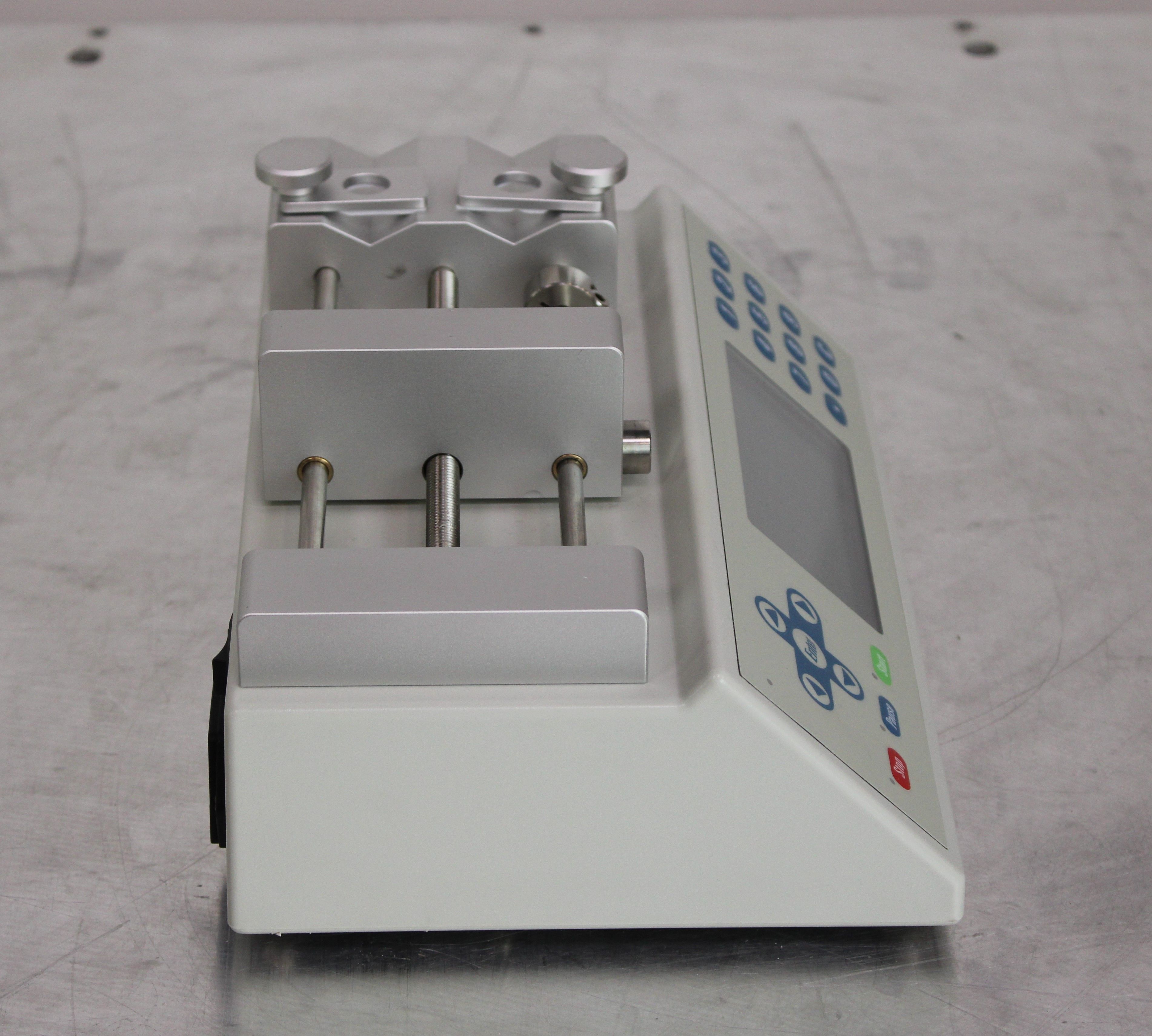

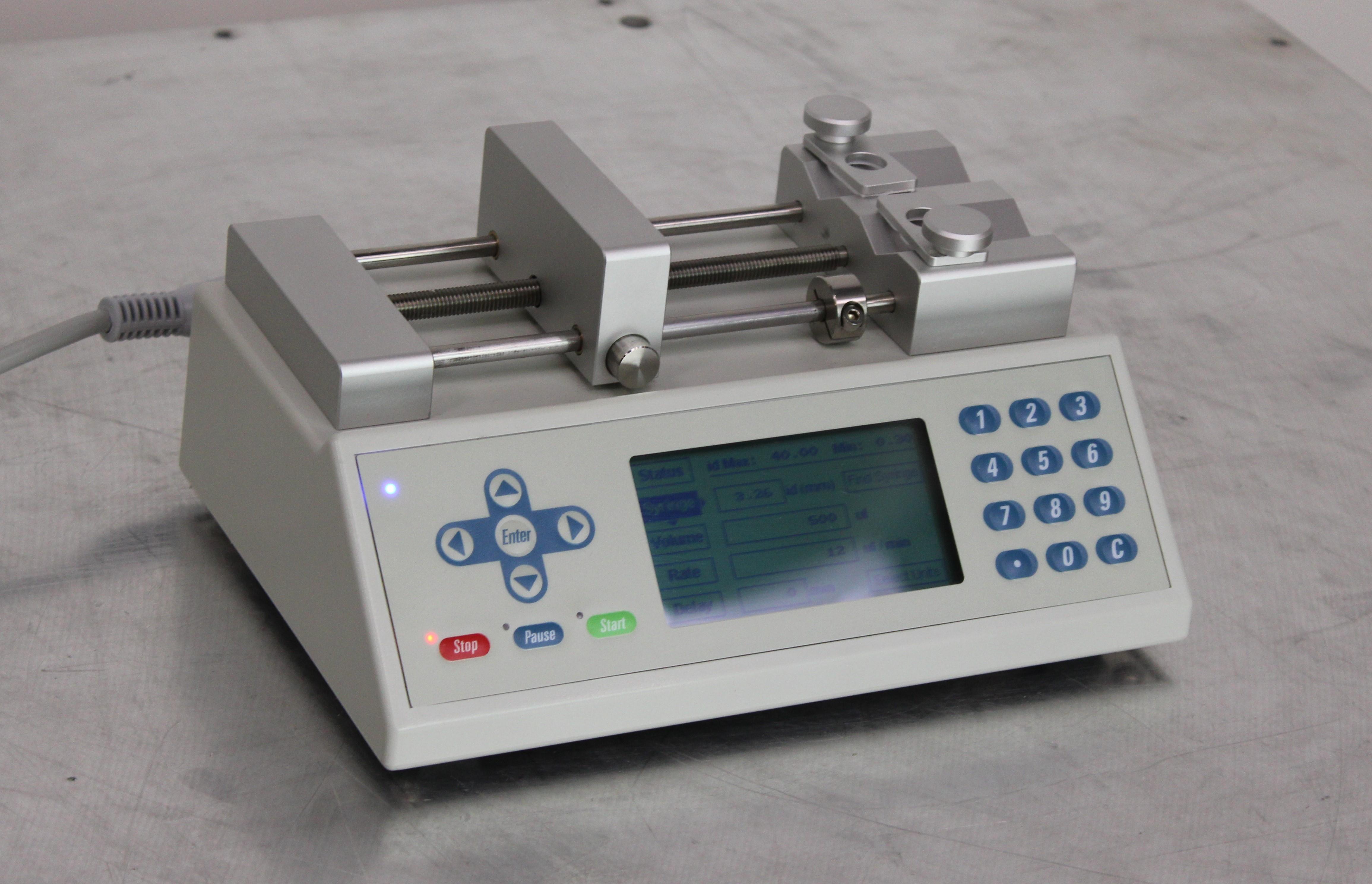

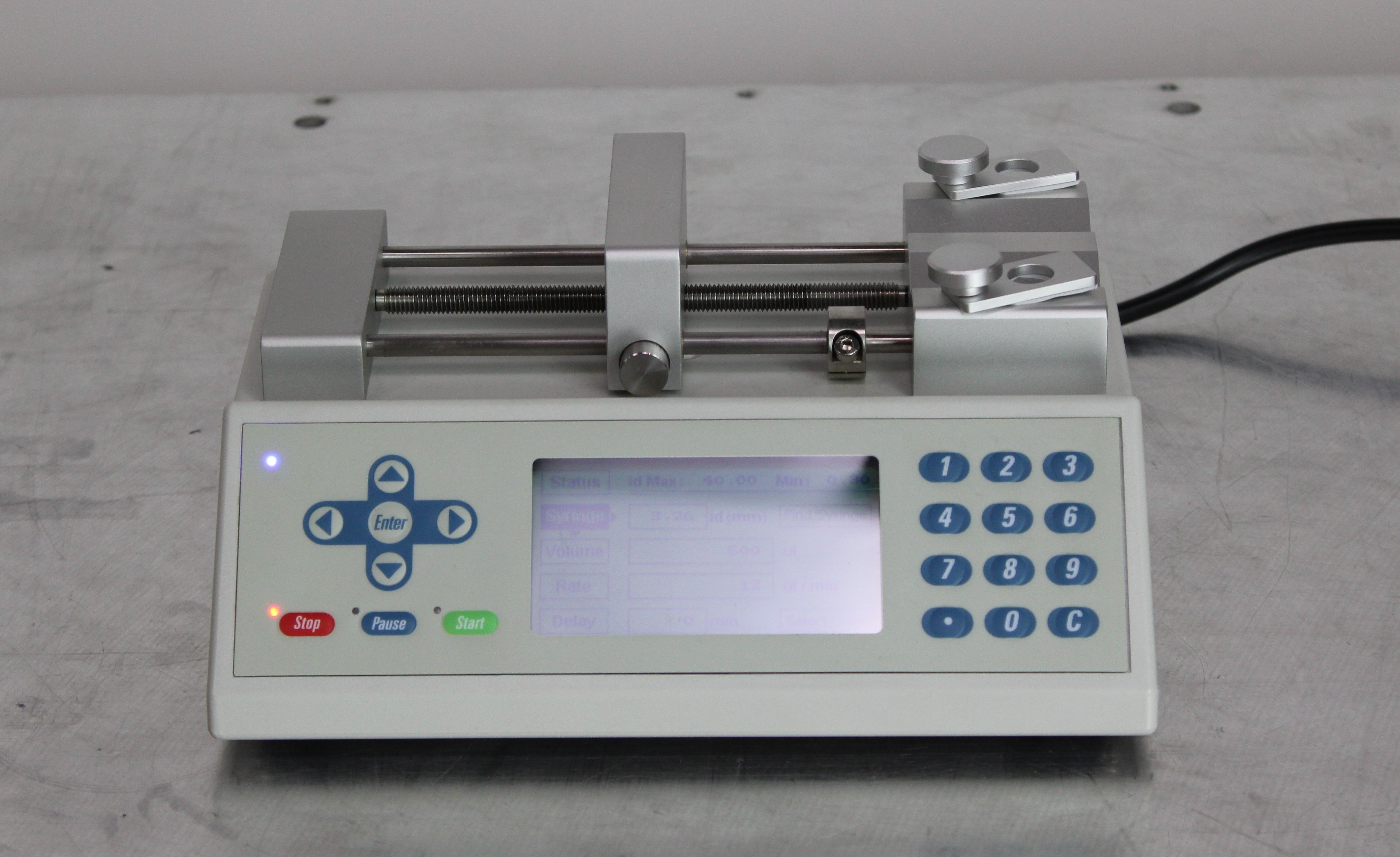

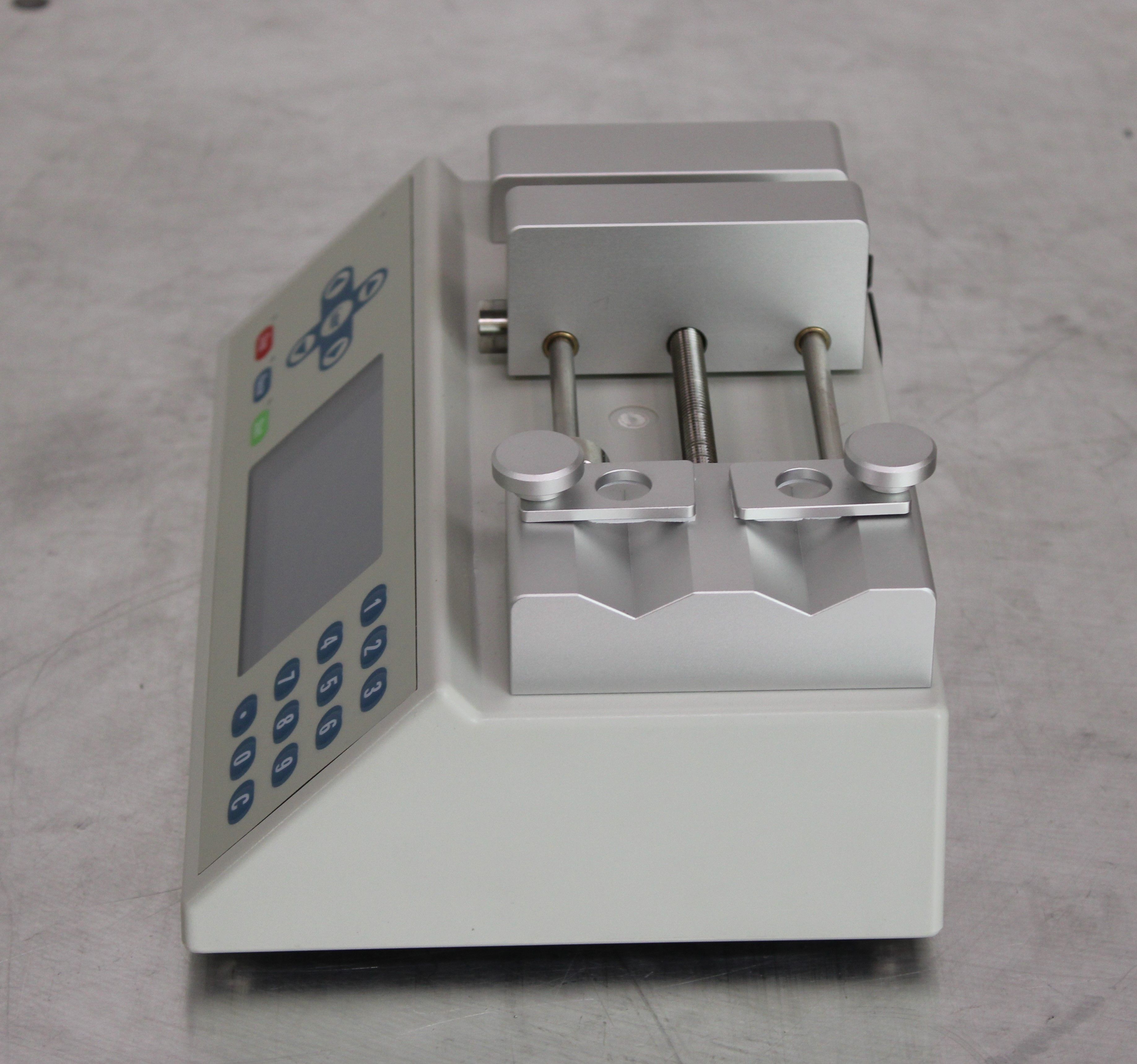

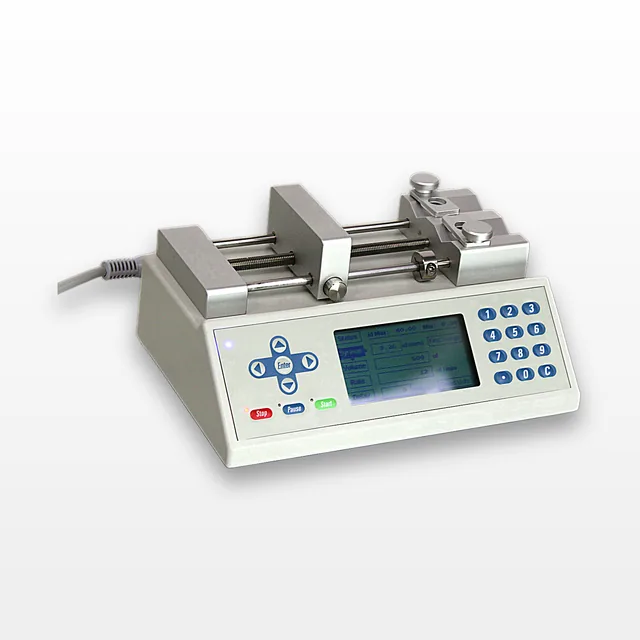

The Chemyx Fusion 100T Syringe Pump is a dual-channel precision infusion device tailored for chemical, pharmaceutical, and biotech R&D applications. Designed with ease of use, it supports a wide range of analytical techniques, handling syringes from 0.5L to 60 mL. Operating with an impressive accuracy of < 0.35% and reproducibility of < 0.05%, this pump ensures pulseless, reproducible infusion at rates from 0.0001 L/min to 140 mL/min. The Fusion 100T features a 4.3 inch LCD touchscreen, connectivity options including USB, RS232, and TTL, and infuse-only mode. Constructed for a robust performance, it offers precise control via a 0.9 Stepper Motor with Micro-stepping. The equipment's condition is 'Good', powering on with no known functional issues, although full testing was not possible due to cosmetic wear. Power cord included, but no computer or software available.
Key Features
- Dual-channel infusion
- Supports syringes 0.5L to 60 mL
- Precision rates 0.0001 L/min to 140 mL/min
- Accurate to < 0.35%
- Reproducibility < 0.05%

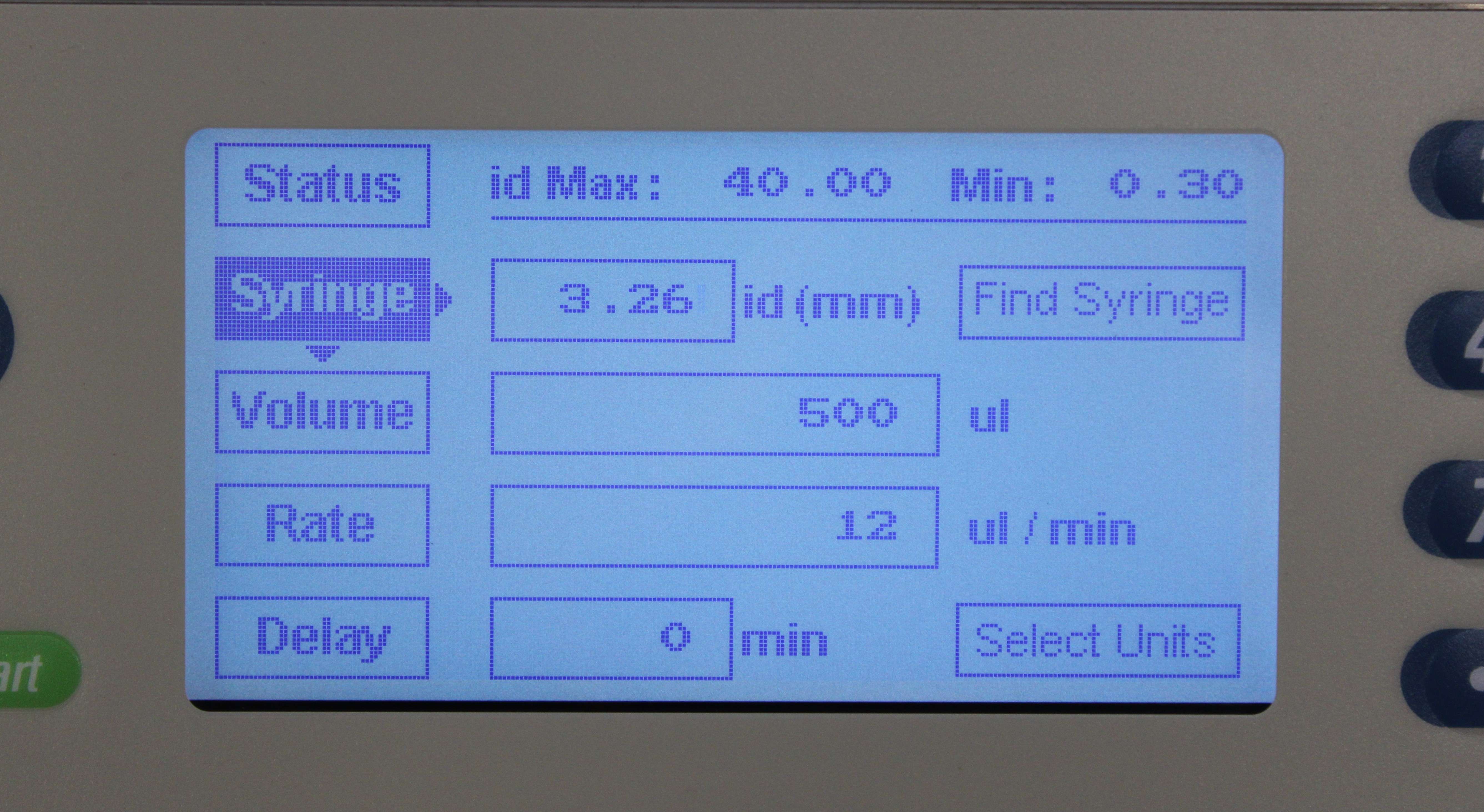

- 4.3 inch LCD touchscreen
- USB, RS232, and TTL control
Specifications
- Mode: Infuse Only
- Syringe Size: 0.5L to 60mL
- Accuracy: < 0.35%
- Reproducibility: < 0.05%
- Minimum Flow Rate: 0.0001 L/min
- Maximum Flow Rate: 90 mL/min
- Linear Force: 29lb (13.1kg)
- Display: 4.3 inch LCD Screen

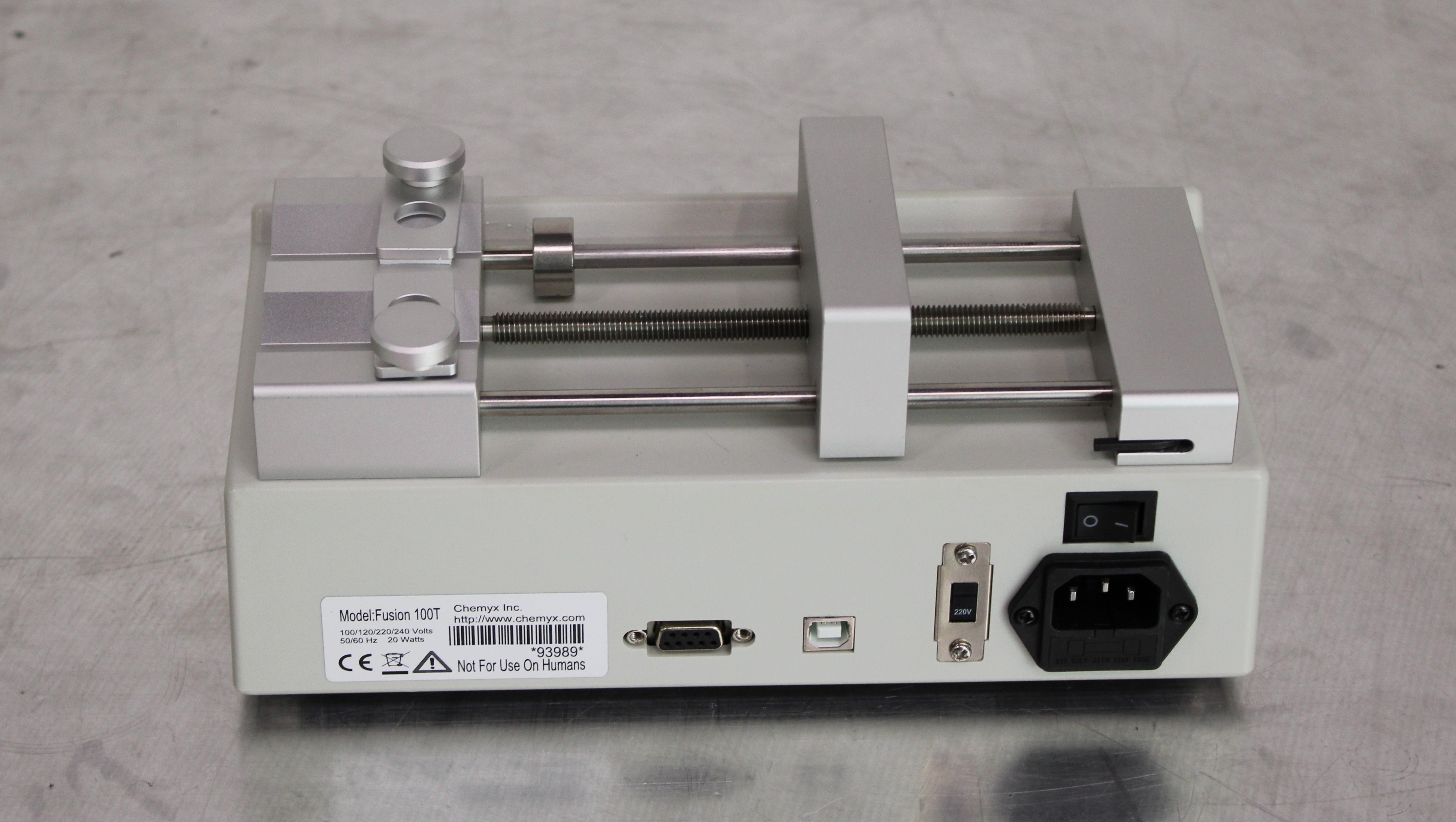

- Connectivity: RS232 and USB-B Ports
- Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
- Power: 110/220 VAC
- Motor Drive: 0.9 Stepper Motor with Micro-stepping
- Operating Temperature: 4C to 40C
- Humidity: 20% to 80% RH, non-condensing
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 11.34 lb x 7.09 lb x 5.2 lb
Metric: 28.8 cm x 18.01 cm x 13.21 cm
Harmonized Code
902620
Harmonized Code Details
Code 902620: Instruments and apparatus for measuring or checking the flow or level of liquids (e.g., syringes). This code is most applicable given the product’s function in precision dosing and liquid handling.
