Chemyx Fusion 100T Syringe Pump for Precision Dosage Control
Chemyx
Details
-
CategoryPump
-
Dimension24.0cm x 15.0cm x 11.0cm
-
Serial93430
-
Shipping TypeFedEx Ground
-
Voltage / Hertz240V / 50Hz/60Hz
Description

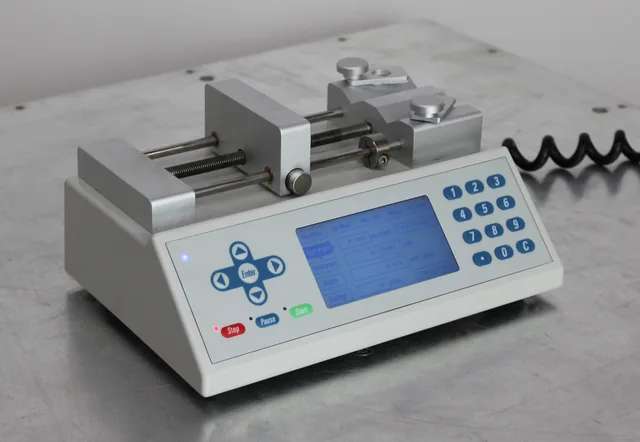

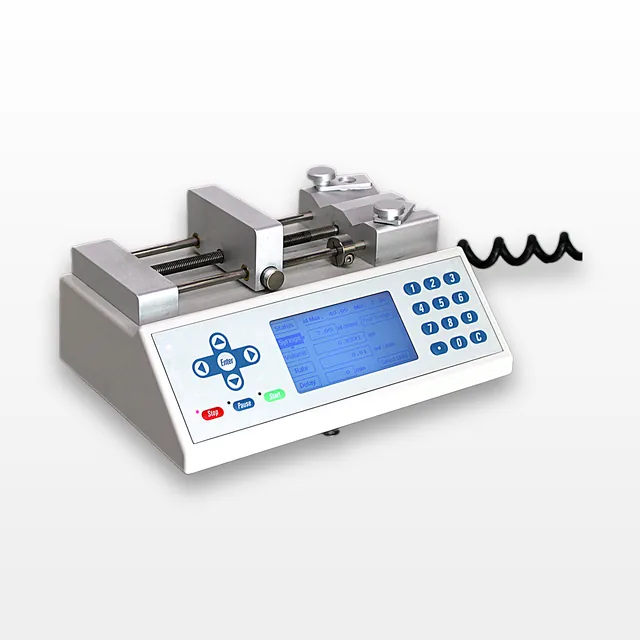

The Chemyx Fusion 100T Syringe Pump, manufactured in the United States, is a dual-channel unit designed for handling precision dosing applications. In used condition and weighing approximately 4.4 pounds, this device powers on and performs basic tests, indicating potential functionality. With features like a touchscreen interface, USB and RS232 control, and compatibility with syringes from 0.5L to 60mL, this syringe pump offers unmatched value and reliability in chemical, pharmaceutical, and biotech R&D environments. It achieves infusion rates from 0.0001 L/min to 90 mL/min with accuracy under 0.35%. The device's 4.3-inch LCD screen provides a clear display for easy operation. The Fusion 100T is an excellent choice for laboratories seeking consistency and precision in fluid infusion applications.
Key Features
- Dual-channel syringe pump
- Compatible with 0.5L to 60mL syringes
- Infusion rates from 0.0001 to 90 mL/min
- Touchscreen interface
- USB and RS232 connectivity
- Accuracy < 0.35%
- Reproducibility < 0.05%
Specifications
- Mode: Infuse Only
- Accuracy: < 0.35%
- Reproducibility: < 0.05%
- Syringe Size: 0.5L to 60mL
- Syringe Type: Plastic and Glass
- Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
- Maximum Flow Rate: 90 mL/min (with 60mL syringe)
- Linear Force: 29lb (13.1kg)
- Display: 4.3 inch LCD Screen
- Connectivity: RS232 and USB-B Ports
- System Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
- Power: 110/220 VAC
- Weight: 7lbs (3kg)
- Motor Drive: 0.9 Stepper Motor with Micro-stepping
- Step Resolution: 0.198 m/step
- Operating Temperature: 4C to 40C (40F to 104F)
- Storage Temperature: -10C to 70C (14F to 158F)
- Humidity: 20% to 80% RH, non-condensing
Weight
Imperial: 5.29 Pounds
Metric: 2.4 Kilograms
Shipping Dimensions
Imperial: 11.34 lb x 7.09 lb x 5.2 lb
Metric: 28.8 cm x 18.01 cm x 13.21 cm
Harmonized Code
901890
Harmonized Code Details
901890: Instruments and appliances used in medical or veterinary sciences, n.e.c. This code is appropriate as the Fusion 100T is utilized in precise dosing within pharmaceutical and biotech research.
