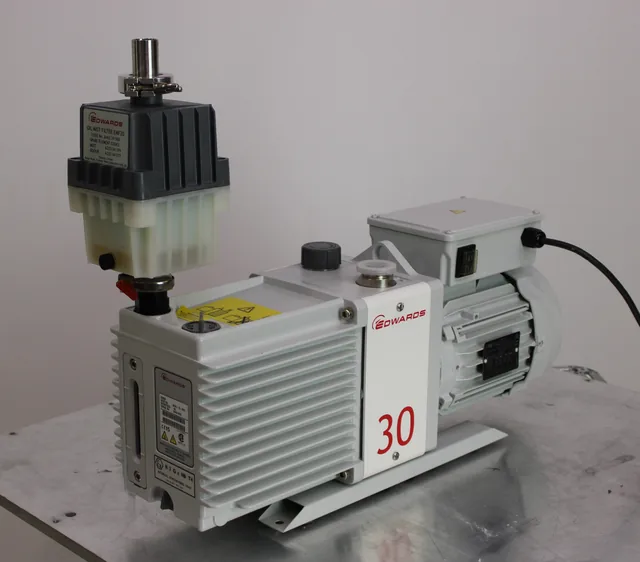

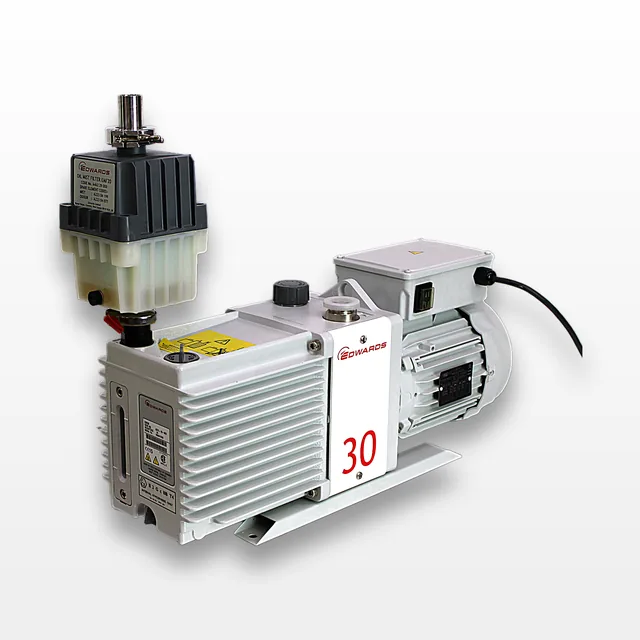

Edwards E2M30 Rotary Vane Vacuum Pump with EMF20 Filter, 11.4 cfm, 240V
Edwards
Details
-
CategoryPump
-
Dimension60.0cm x 17.0cm x 51.0cm
-
Serial159441626
-
Shipping TypeFedEx Ground
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The Edwards E2M30 Rotary Vane Vacuum Pump, equipped with an Oil Mist Filter EMF20, showcases reliable performance for a variety of applications, including gas analysis, leak detection, and mass spectrometry. With a tested pressure capability down to 0.0715 mBar, this used pump features an enclosed electric motor with a thermal overload device to prevent overheating. Despite cosmetic signs of wear, the pump functions as expected, boasting a peak pumping velocity of 11.4 cfm and a final pressure of 1 x 10-3 Torr. The unit includes a single-phase electric motor that restarts automatically after cooling. An oil distribution valve prevents oil discharge into the pump, while the EMF20 filter effectively separates oil mist and odors. This rotary vane vacuum pump is ideal for laboratories involved in electron microscopy, gas recovery, sterilization, and drying applications.
Key Features
- Peak Pumping Velocity: 11.4 cfm
- Final Pressure: 1 x 10-3 Torr
- Thermal Overload Protection with Auto Reset
- Oil Mist Filter EMF20 for Mist and Odor Separation
- Tested Pressure: 0.0715 mBar
Specifications
- Maximum Displacement: 19 cfm at 50 Hz, 23 cfm at 60 Hz
- Motor Rotational Speed: 1440 r min-1, 1720 r min-1
- Ultimate Vacuum: Without gas-ballast: 1 x 10-3 mbar
- Noise Level: 57 dB(A) at 50 Hz
- Maximum Water Vapor Inlet Pressure: 30 mbar / 23 torr
- Voltage: 240V
- Hertz: 50Hz/60Hz
- Oil Mist Filter Inlet / Outlet Flange: NW 25
Weight
Imperial: 105.82 Pounds
Metric: 48.0 Kilograms
Shipping Dimensions
Imperial: 28.35 lb x 8.03 lb x 24.09 lb
Metric: 72.01 cm x 20.4 cm x 61.19 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; these machines are classified under machinery used for the extraction or moving of gases and are determined based on the functionality of the rotary vane mechanism and its usage across various scientific applications.
