Thermo Scientific Vanquish Diode Array Detector HL for HPLC/UHPLC Detection
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension68.0cm x 60.0cm x 45.0cm
-
Serial8303654
-
Shipping TypeFedEx Ground
-
Manufacturing2016-04-21
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

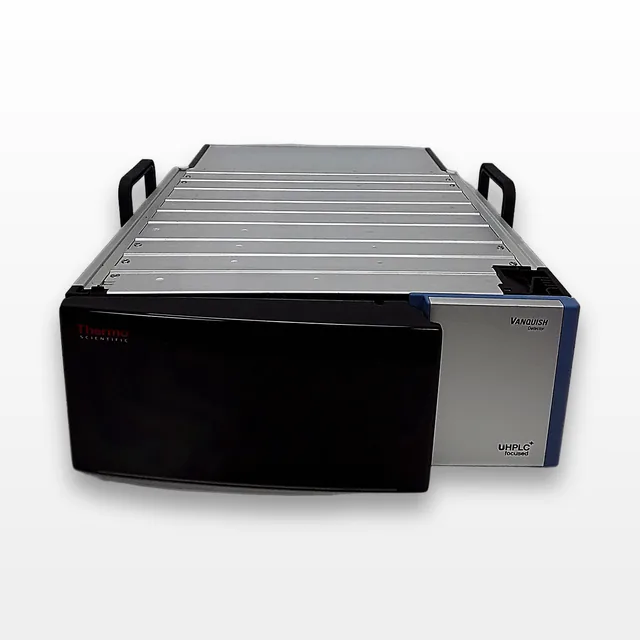

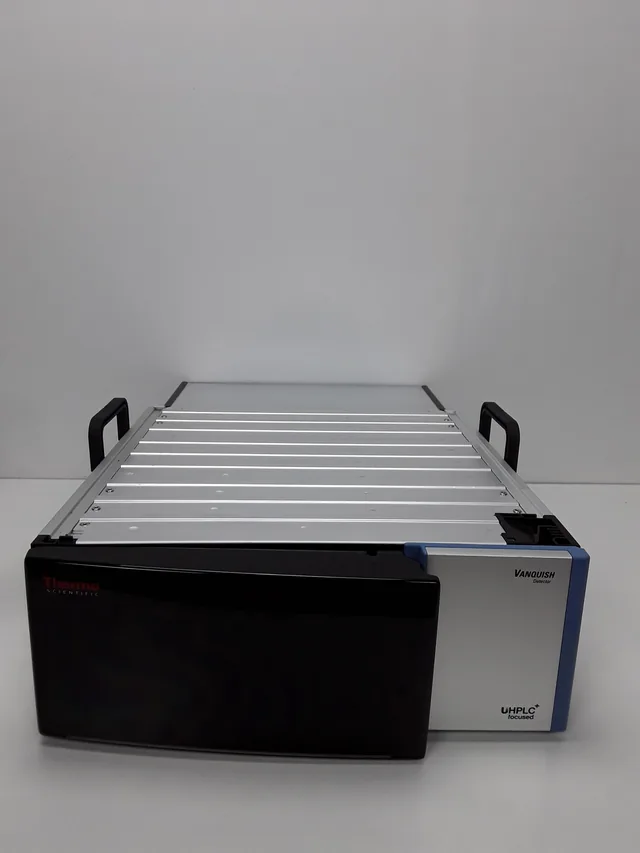

The Thermo Scientific Vanquish Diode Array Detector HL, model VH-D10-A, manufactured in 2016, is a versatile and reliable tool for HPLC and UHPLC detection. This used device, originating from Germany, is in very good condition, functioning as intended with minimal cosmetic damage. It features Thermo Scientific's LightPipe technology for superb signal-to-noise performance and an ultra-wide dynamic range to detect highly concentrated compounds and trace-level impurities. The Vanquish DAD supports up to 250 Hz data acquisition rates, utilizing up to 10 absorption channels and one spectral field, making it ideal for ultrafast separations. Despite its standalone capability, it does not include flow cell or power/data cables.
Key Features
- High linearity with up to 2.7 AU
- Optimized noise performance
- LightPipe technology for improved signal-to-noise
- Supports up to 10 absorption channels and one spectral field
- Integrated wavelength validation
Specifications
- Single-Beam, Reverse-Optics Design with Concave Holographic Grating
- Data acquisition rate: up to 250 Hz
- LightPipe flow cell options: 10 mm standard, 60 mm high sensitivity
- Wavelength Range: 190 to 680 nm
- Drift: < 0.5 mAU/hour at 230 nm
- Max. Cell Pressure Limit: 6 MPa (60 bar, 870 psi)
Weight
Imperial: 158.73 Pounds
Metric: 72.0 Kilograms
Shipping Dimensions
Imperial: 32.13 lb x 28.35 lb x 21.26 lb
Metric: 81.61 cm x 72.01 cm x 54.0 cm
Harmonized Code
902730
Harmonized Code Details
The harmonized code 902730 refers to spectrometers, spectrophotometers, and similar instruments designed for physical or chemical analysis. The Vanquish Diode Array Detector falls under this category due to its application in HPLC/UHPLC detection for analytical purposes.
