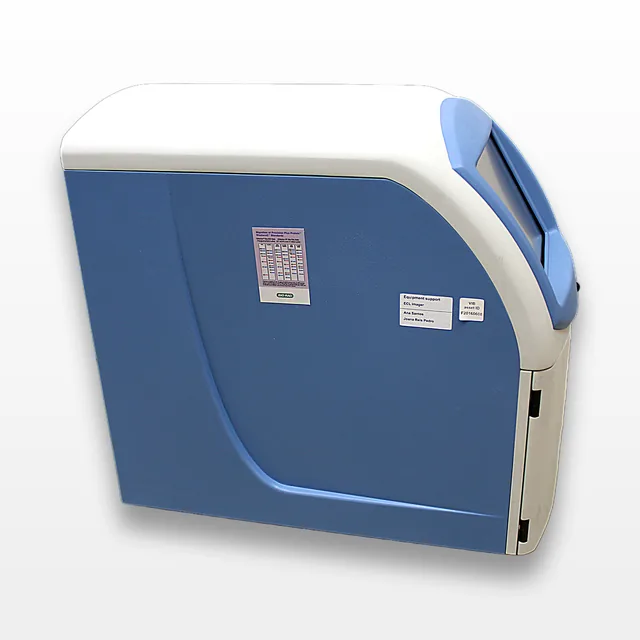

Thermo myECL Imager 62236X Gel Imaging System for Blot and Gel Analysis
Thermo Fisher Scientific
Details
-
CategoryMicroscope / Imager
-
Dimension40.0cm x 68.0cm x 53.0cm
-
Serial611010283
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo myECL Imager model 62236X is a compact benchtop gel imaging system designed for capturing and analyzing protein and nucleic acid blots and gels. Utilizing an intuitive 10.4-inch touchscreen interface, this instrument provides multimodal image capture via chemiluminescent, colorimetric, or UV light-activated fluorescent substrates and stains. The advanced CCD camera technology ensures high sensitivity and dynamic range for accurate documentation. This used unit is in excellent condition, demonstrating very little previous use, and includes essential components such as a power cord. With a powerful internal computer housing a 250 GB hard drive, image acquisition is simple and streamlined. Measuring 15.74804 inches in length, 26.771668 inches in width, and 20.866153 inches in height, it is a convenient addition to any laboratory setting needing reliable imaging capabilities.
Key Features
- Compact benchtop design
- Multimode image capture: chemiluminescent, colorimetric, UV light
- 10.4-inch touchscreen for intuitive interface
- High-dynamic range CCD camera technology
- Internal 250 GB hard drive
- Uses specialized filters and advanced CCD camera
- Excitation sources: 306nm UV transilluminator, epi-white light
- Motorized 4-position filter wheel
Specifications
- CCD camera: 16-bit, 4.2 megapixel
- Thermoelectric regulation: -25C (+/- 0.1)
- Lens: 50mm, f 0.95
- Array size: 2048 x 2048 pixels
- Pixel size: 7.4 x 7.4µm
- Field of view: 15.0cm x 15.0cm
- Dynamic range: >4.0 orders of magnitude
- Binning modes: 1 x 1, 2 x 2, 3 x 3 (default), 4 x 4, 8 x 8
- Image capture modes: Chemiluminescence, UV transilluminator, epi-white light
- Image exposure modes: Automatic or manual
- Image file format: TIFF (16-bit grayscale)
- Excitation source: 306nm UV transilluminator, epi-white light
- Filter wheel: Motorized, 4 position
- Computer: Internal with 250 GB hard drive
- Touchscreen display: 10.4-inch LCD
- Ports: 3 USB, 1 network
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
Weight
Imperial: 171.96 Pounds
Metric: 78.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 32.13 lb x 25.04 lb
Metric: 48.01 cm x 81.61 cm x 63.6 cm
Harmonized Code
902750
Harmonized Code Details
Harmonized Code 902750 - Optical Instruments and Appliances for analyzing substrates, which covers instruments used in laboratories for testing and research applications, thus applicable for a gel imaging system like the Thermo myECL Imager.
