Alltech ELSD 800 HPLC Light Scattering Detector, Max 110C, Laser Diode
Alltech
Details
-
CategoryAnalytical
-
Dimension44.0cm x 32.0cm x 38.0cm
-
Serial800-0504009
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Alltech ELSD 800 Evaporative Light Scattering Detector is a versatile instrument designed for High-Performance Liquid Chromatography (HPLC) applications. This unit, identified by serial number 800-0504009, is in good used condition and seems to be functioning. With a flow rate range of 0-5 mL/min and a maximum temperature of 110C, it utilizes a 670 nm laser diode as its light source. Essential for precise analysis, this detector features analog outputs, a digital display for temperature settings, actual temperature readings, gas pressure, and mV output. Nitrogen gas is necessary for operation. The device powers on but hasn't been fully tested beyond basic functionalities. Note that this listing does not include power cables, computer, software CDs, or user manuals.
Key Features
- Designed for HPLC applications
- Flow rate 0-5 mL/min
- Max temperature 110C
- 670 nm laser diode light source
- Requires nitrogen gas
- Analog inputs and outputs
- Digital display for parameters
Specifications
- Model: Alltech ELSD 800
- Maximum Temperature: 110°C
- Flow Rate: 0-5 mL/min
- Light Source: Laser Diode, 670 nm
- Requires Nitrogen Gas for operation

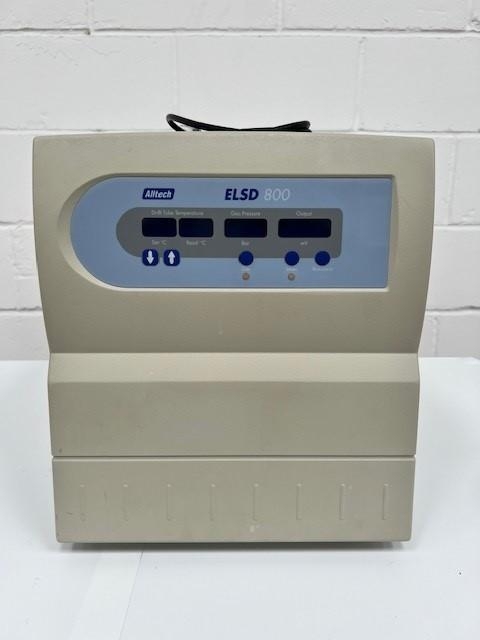

- Digital display for set temp., actual temp., gas pressure, and mV reading
- Analog inputs and outputs
Weight
Imperial: 36.0 Pounds
Metric: 16.33 Kilograms
Shipping Dimensions
Imperial: 20.79 lb x 15.12 lb x 17.95 lb
Metric: 52.81 cm x 38.4 cm x 45.59 cm
Harmonized Code
902730
Harmonized Code Details
902730 - Spectrometers, spectrophotometers, and spectrographs using optical radiations (UV, visible, IR). This code is used because it covers various optical analytical instruments including light scattering detectors.
