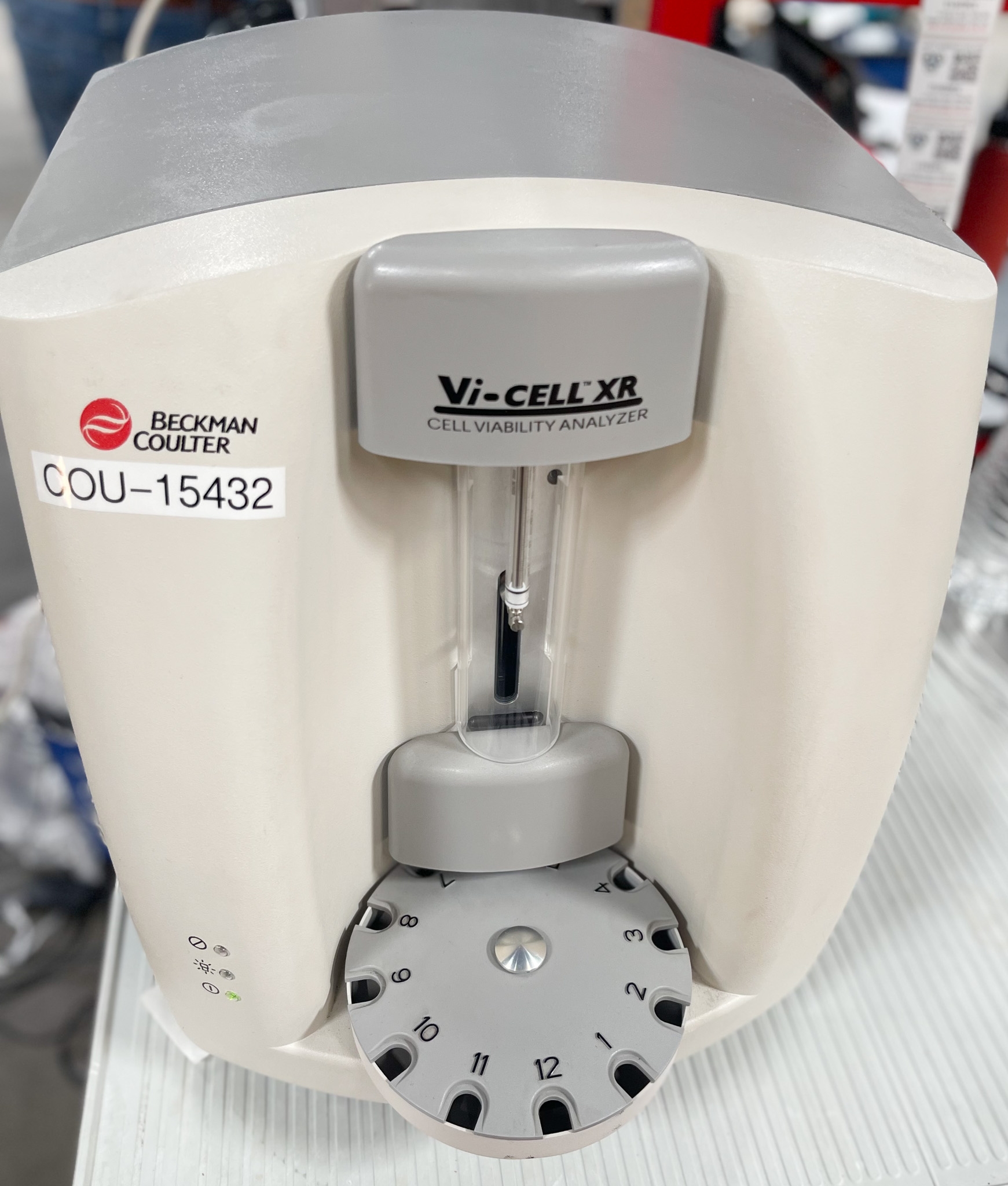

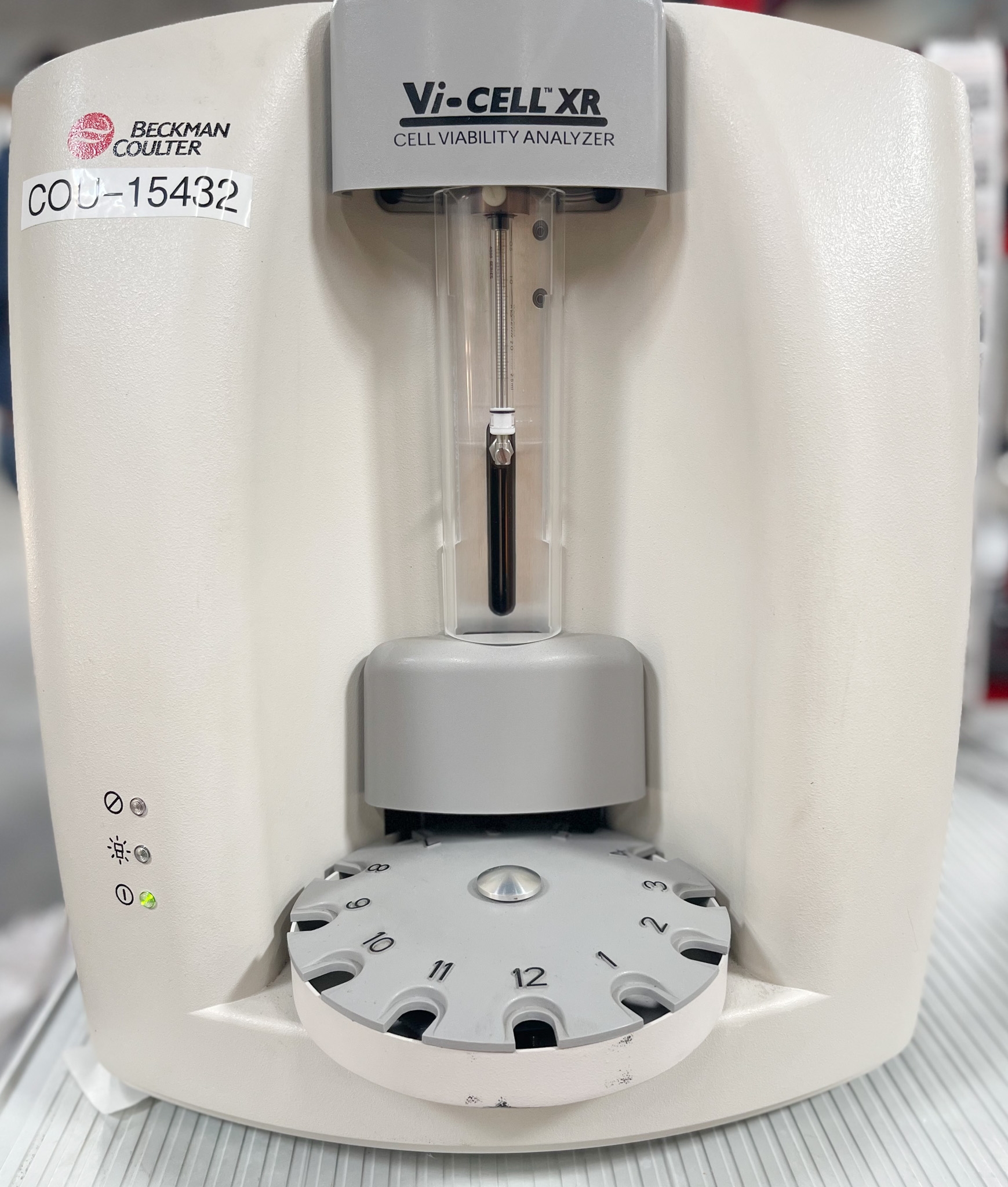

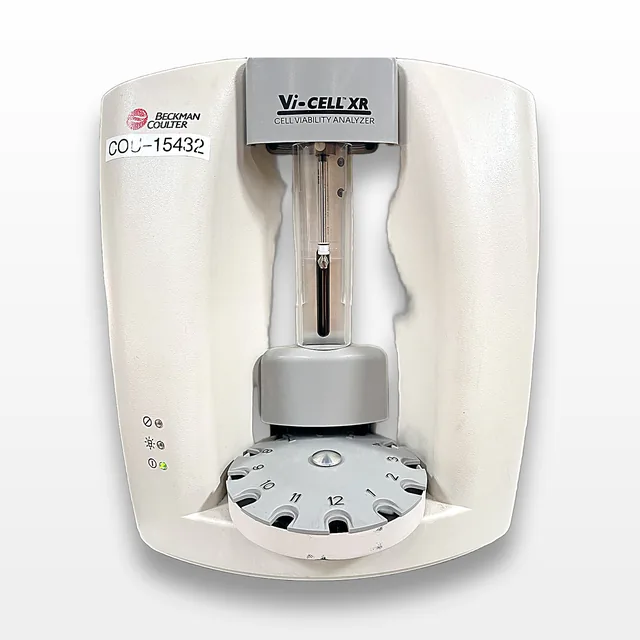

Beckman Coulter VI-Cell XR Cell Viability Analyzer with Auto-Sampler
Beckman Coulter
Details
-
CategoryCell Counting / Sorting
-
Dimension17.0in x 31.0in x 21.0in
-

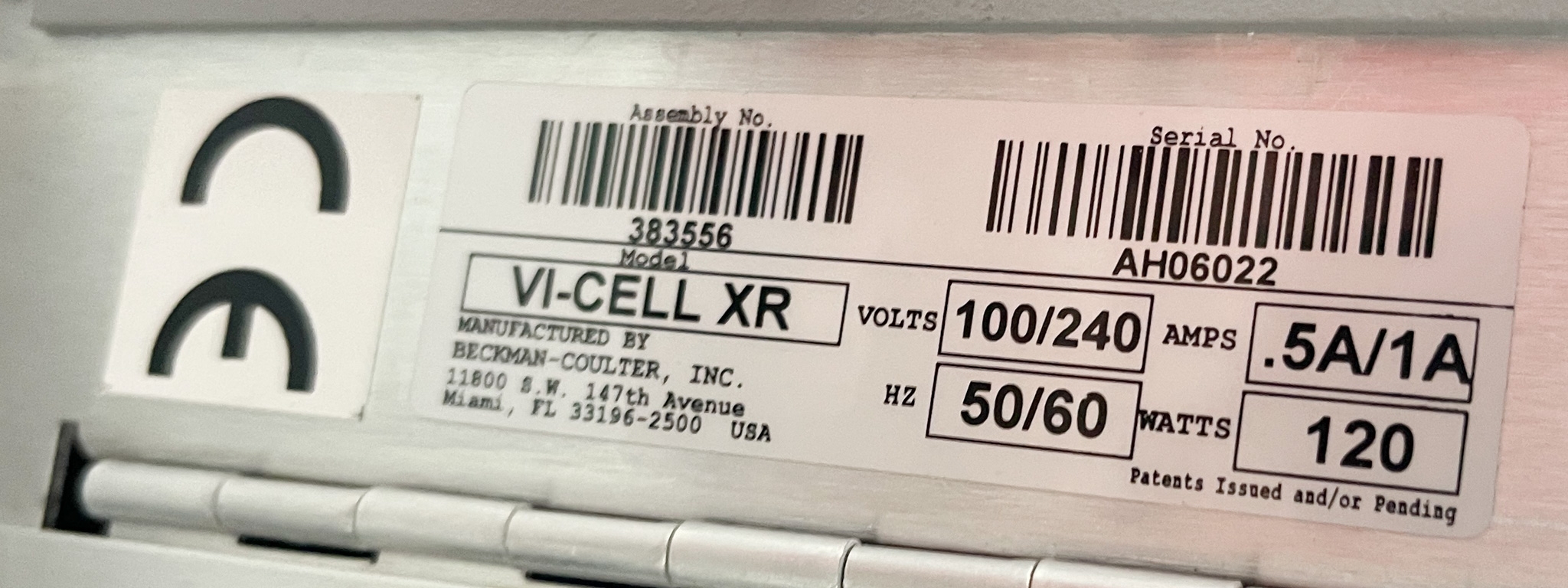

SerialAH06022
-
Shipping TypeFreight
-
Manufacturing2018-01-01
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Beckman Coulter VI-Cell XR Cell Viability Analyzer, manufactured in 2018, is a used, functional system demonstrating basic operation capabilities. Although the full range of testing has not been conducted, it shows no signs of functional defects and powers on successfully. This package includes a Lenovo workstation running Windows 7 with VI-Cell XR software pre-installed and a Planar PLL 1910M LCD Monitor. The system automates the Trypan Blue Dye Exclusion method allowing up to 10 samples to be processed simultaneously for efficient cell analysis. It supports a concentration range from 5.0 x 10^4 to 1.0 x 10^7 cells/mL without requiring dilution. The auto-sampler has 12 positions for walk-away operation, and the software provides customizable analysis options pertinent to bioprocess tracking and real-time imaging. Equipped with advanced compliance features, this system ensures data integrity through options like 21 CFR Part 11 compliance. Ideal for bioprocess monitoring, it delivers accurate results for percent viability and concentration analyses.
Key Features
- Automates Trypan Blue Dye Exclusion method
- Processes 10 samples simultaneously
- 12-position auto-sampler for easy handling
- Concentration range: 5.0 x 10^4 to 1.0 x 10^7 cells/mL
- Supports 21 CFR Part 11 compliance
- Includes Lenovo workstation and Planar PLL 1910M LCD monitor
- Windows 7 with VI-Cell XR software installed
Specifications
- Operating principle: Video image analysis
- Cell size range: 3 to 70 microns, minimal detection at 2 microns
- Analysis rate: Up to 50 images in 2.5 minutes
- Digitizing resolution: 1.45 mega-pixels
- Temperature range for operation: 10C to 40C (50F to 104F)
- Concentration Range: 0.5 x 10^5 to 10 x 10^6 Cells/mL
- Viability Range: 0% to 100%
- Power consumption: 50 watts (65 watts max)
- Voltage: 120V, Hertz: 50Hz/60Hz
Weight
Imperial: 69.6 Pounds
Metric: 31.57 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 37.2 lb x 25.2 lb
Metric: 51.82 cm x 94.49 cm x 64.01 cm
Harmonized Code
90279050
Harmonized Code Details
Category 90279050: Instruments and apparatus for physical or chemical analysis with micro-tomes. This code is suitable as the Beckman Coulter VI-Cell XR is designed for cellular analysis with advanced imaging capabilities.
