SciLog Scipress Pressure Monitor for Multiple Sensor Inputs, 120V
SciLog
Details
-
CategoryTesting Equipment
-
Dimension6.0in x 4.0in x 2.0in
-
SerialSP0318J-0503
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 50Hz/60Hz
Description

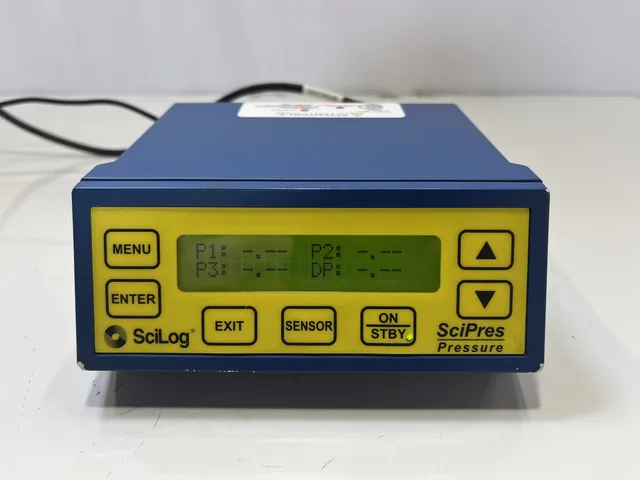

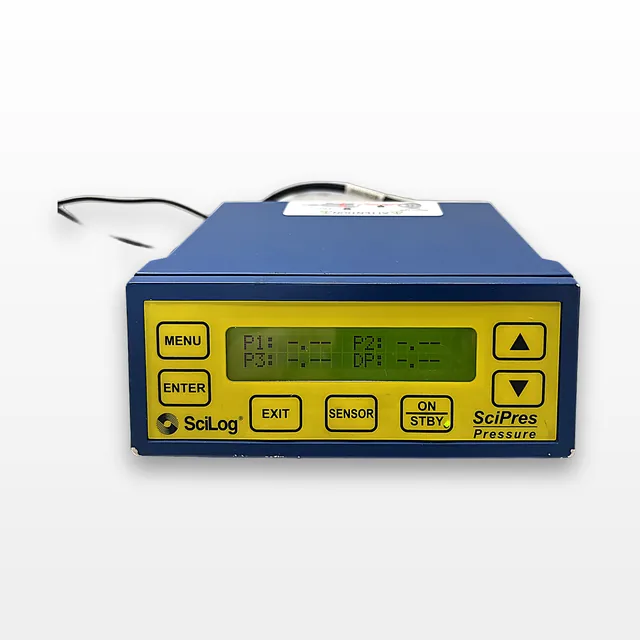

The SciLog Scipress is a pressure monitor designed for use with single-use SciPres Pressure Sensors, ideal for laboratory applications demanding precise pressure monitoring. This used unit, sourced from the United States, has been evaluated as functional, powering on and passing basic tests with no significant functionality issues. It accommodates up to three pressure sensor inputs and features selectable readouts for transmembrane and differential pressure. Advanced features include four TLL alarm switches with user-defined high/low limits and both analog and RS-232 digital outputs for data integration. While cosmetic wear is present, its core functionalities remain intact. Requires connection to additional SciDoc software for automated data documentation. Operates on 120V at 50/60Hz and includes a power cord.
Key Features
- Compatible with single-use SciPres Pressure Sensors
- Handles 3 sensor inputs: P1, P2, P3
- Displays TMP and DP values
- RS-232 digital output for data integration
- Includes 4 TLL alarm switches with user limits
Specifications
- Model: Scipress
- Voltage: 120V
- Frequency: 50Hz/60Hz
- Country of Origin: United States
- Sensor Inputs: Up to 3 (P1, P2, P3)
- Display: Transmembrane pressure (TMP) and differential pressure (dP)
- Outputs: Analog and RS-232 digital outputs
- Alarm Switches: 4 TLL with user-defined limits
Weight
Imperial: 3.6 Pounds
Metric: 1.63 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 4.8 lb x 2.4 lb
Metric: 18.29 cm x 12.19 cm x 6.1 cm
Harmonized Code
902620
Harmonized Code Details
902620: Instruments and apparatus for measuring or checking pressure. Selected for this equipment due to its primary function as a pressure measuring device.
