Watson Marlow 520DU Peristaltic Pump Manual/Remote Control
Watson Marlow
Details
-
CategoryPump
-
Dimension17.0in x 12.0in x 7.0in
-
Serial1051295
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 50Hz/60Hz
Description

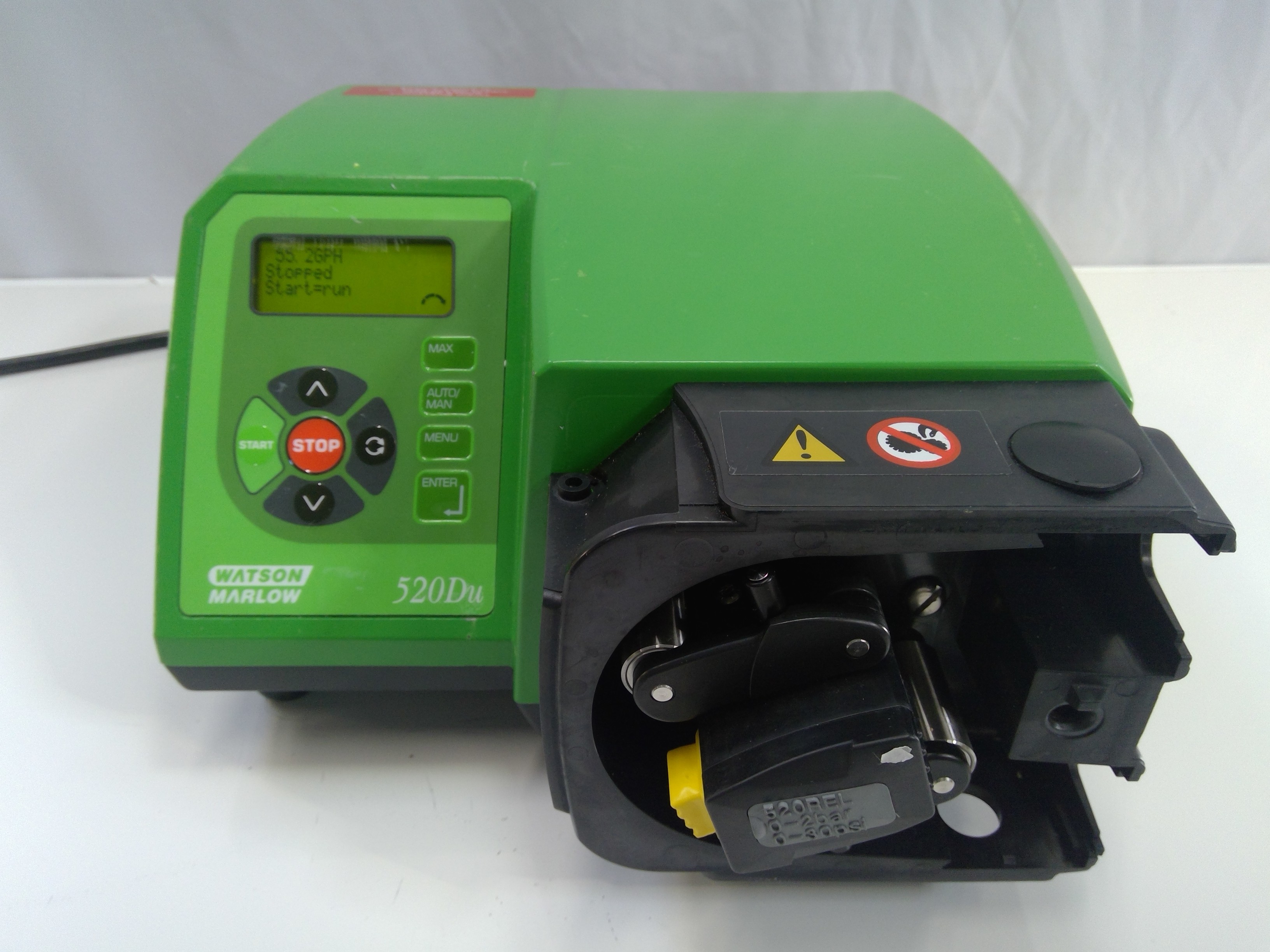

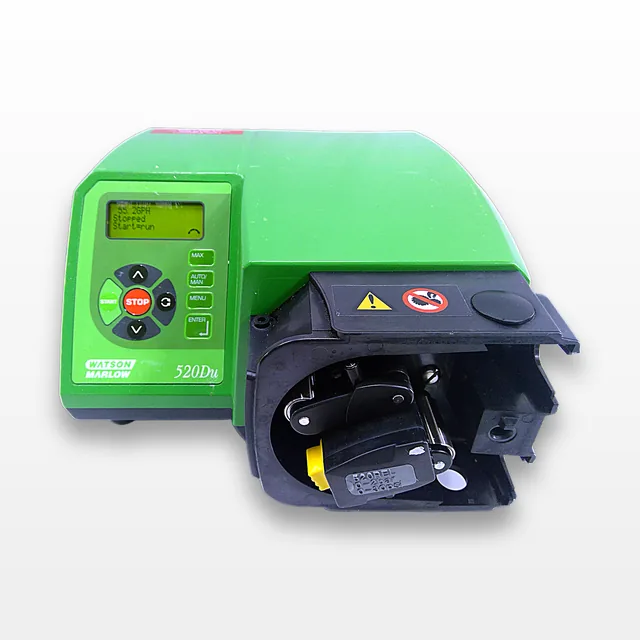

The Watson Marlow 520DU Peristaltic Pump is a versatile and reliable pump designed for both manual and remote-controlled operation. This unit, originating from the United Kingdom, has been tested and is in very good condition, showing only light-to-moderate cosmetic wear from prior use. It offers the capability to network up to 16 pumps, making it ideal for complex fluid handling systems. The pump features a wide range of speed control options, including 0-10V or 4-20mA input signals, and provides feedback through a 0-10V, 4-20mA, or 0-1258Hz output signal. It supports precise repeat dosing with MemoDose and can be fully calibrated for various pump heads and tubes. The pump operates within a temperature range of 5 to 40°C and is compatible with multiple control types such as EtherNet/IP, Profibus, and RS232. It is equipped with a 520R pump head and can achieve a maximum flow rate of 3500ml/min. This pump is a reliable choice for laboratory and industrial applications requiring precise fluid control.
Key Features
- Manual or remote controlled operation
- Network up to 16 pumps
- 0-10V or 4-20mA speed control
- MemoDose for precise repeat dosing
- Full calibration for various pump heads
Specifications
- Voltage: 120V
- Hertz: 50Hz/60Hz
- Max. flow rate: 3500ml/min
- Min. flow rate: 0.004ml/min
- Drive speed: 0.1 - 220rpm
- Operating temperature range: 5 to 40°C
- Drive ingress rating: IP31, IP66, NEMA 2, NEMA 4X
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 20.4 in x 14.4 in x 8.4 in
Metric: 51.82 cm x 36.58 cm x 21.34 cm
Harmonized Code
841381
Harmonized Code Details
Pumps for liquids, whether or not fitted with a measuring device; liquid elevators. Suitable for peristaltic pumps used in laboratory and industrial applications.
