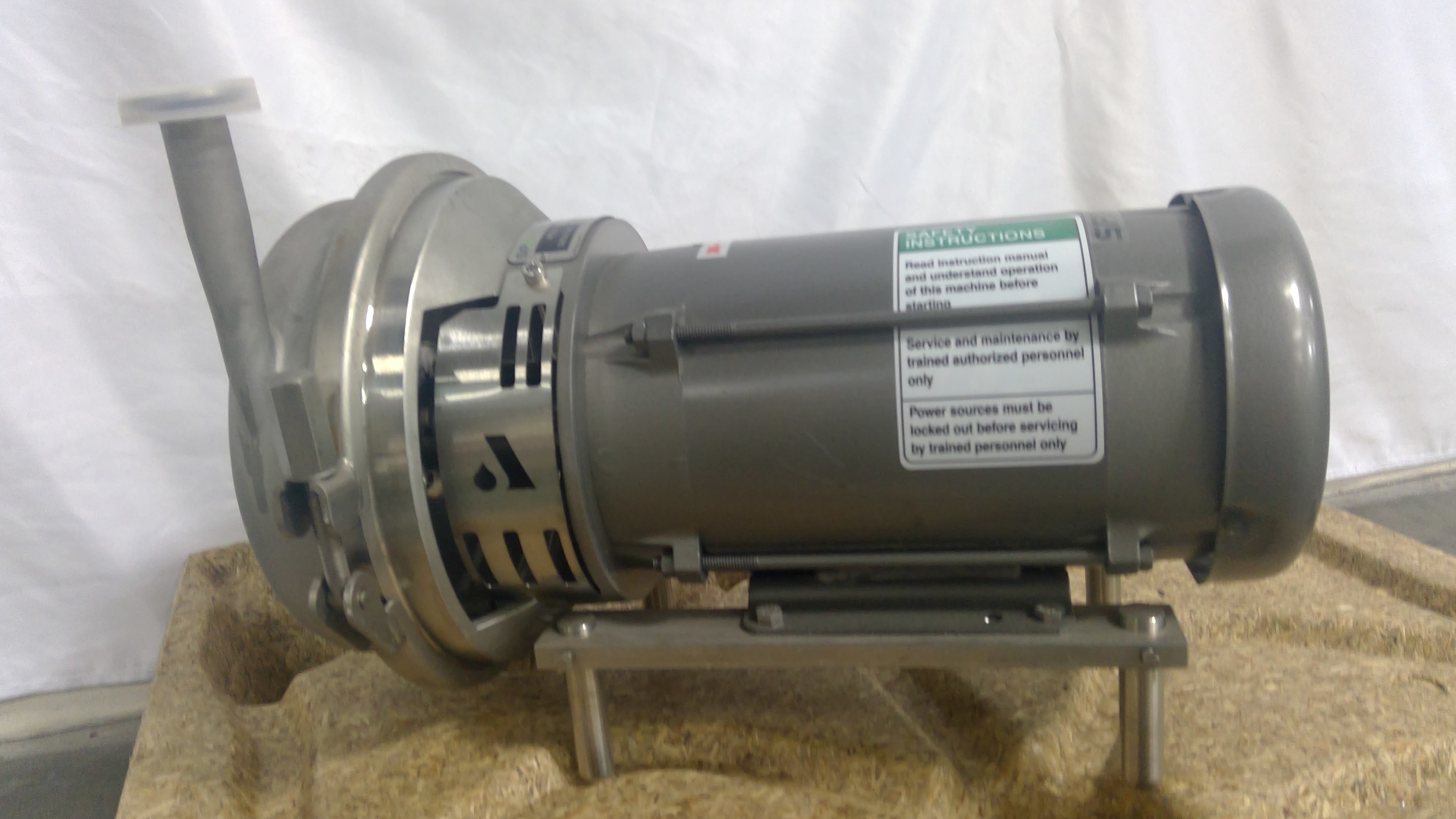

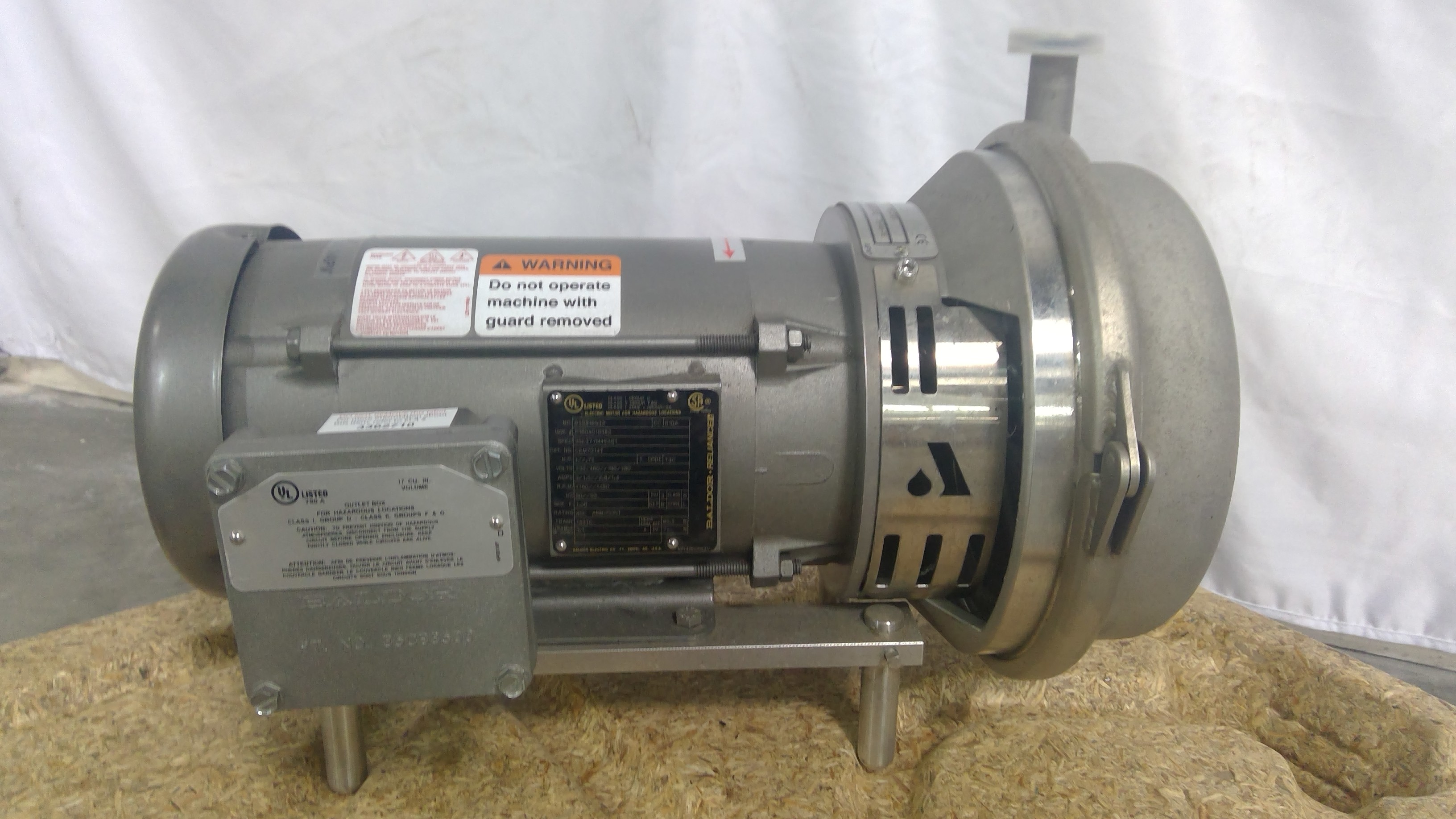

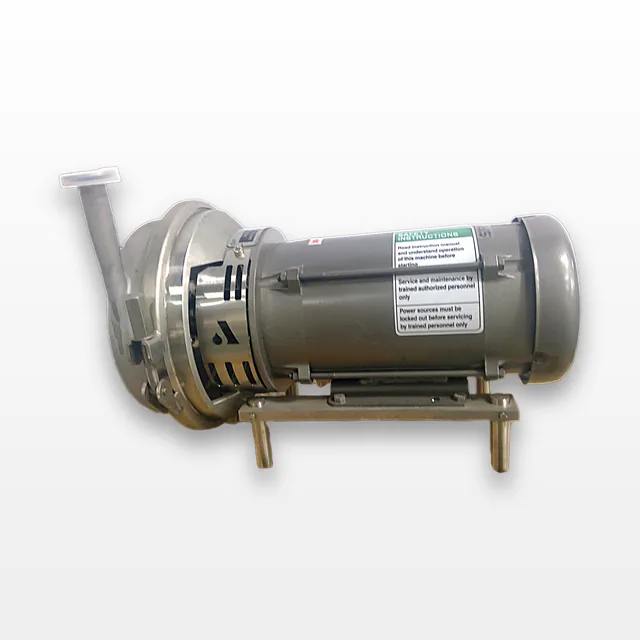

SPX W+ 50/8 Centrifugal Pump, High Efficiency, Low Vibration, Used
SPX
Details
-
CategoryPump
-
Dimension22.0in x 14.0in x 14.0in
-

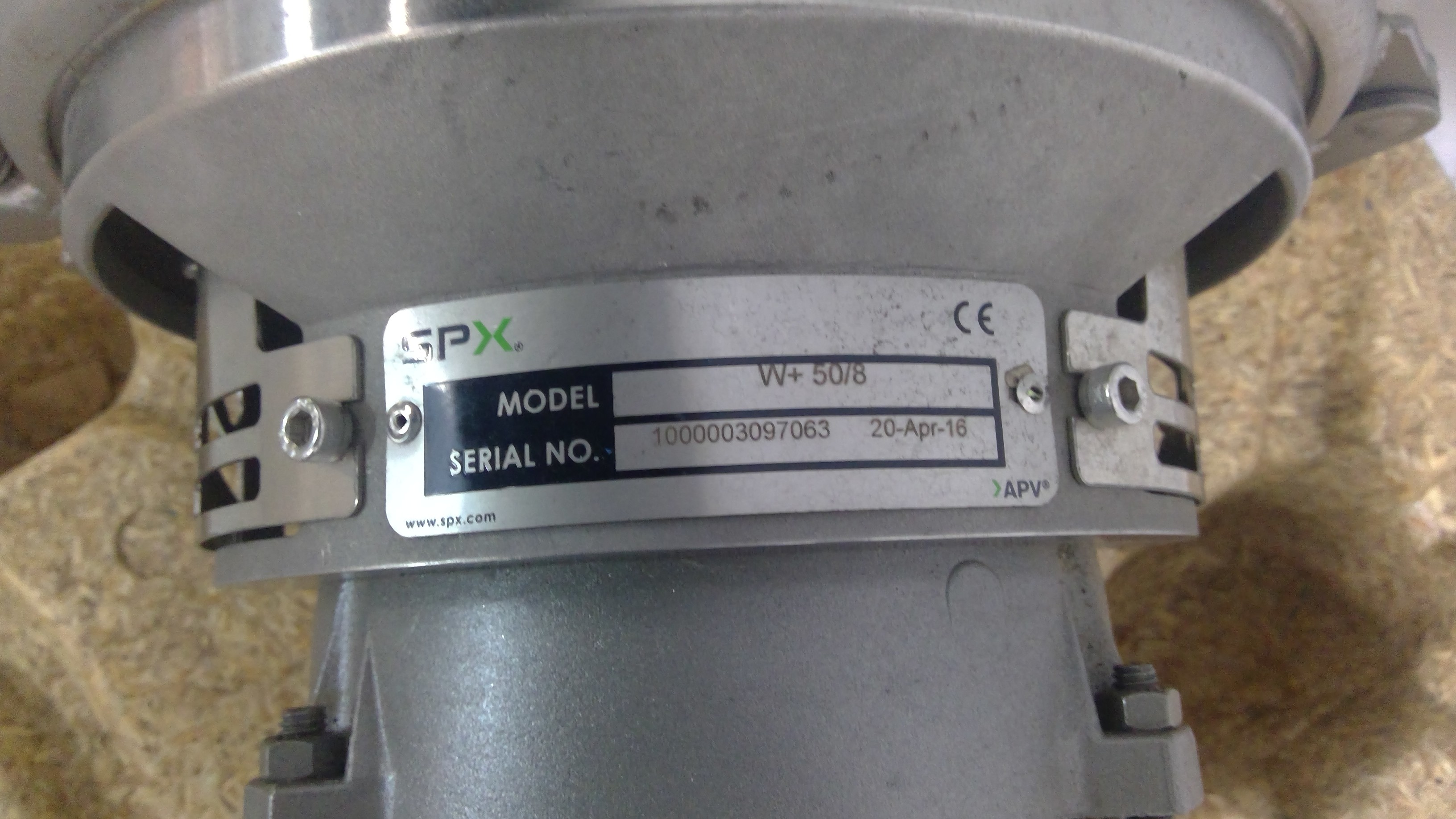

Serial1000003097063
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
This SPX W+ 50/8 centrifugal pump, used and in Good condition, is designed for various food, beverage, and pharmaceutical applications. Engineered with a reliable and heavy-duty design, it ensures quiet operation with minimal vibration and energy-efficient performance. The pump supports both Cleaning In Place (CIP) and Sterilizing In Place (SIP) processes, featuring a superior shaft seal design and high pressure capability. It is ideal for producing high purity water types such as water for injection, purified, and de-mineralized water, with its advanced high-efficiency impellers and patented APV spiral volute. Although the equipment cannot be fully tested, it powers on and passes basic tests, indicating functionality without known issues. Note: Computer is not included.
Key Features
- Reliable and heavy-duty design
- Energy efficient performance
- Minimal vibration and quiet operation
- Superior shaft seal design
- High pressure capability
- Suitable for food, beverage, pharmaceutical products
- Designed for CIP and SIP processes
Specifications
- Wet surface finish: Ra<0.5 µm, electrical polish
- Shaft seal: SiC/SiC
- Elastomer: EPDM, USP class VI, 121°C
- Drain port: Clamp connection for drain valve (drain valve NOT included)
- Pump outlet: Standard (vertical) or turned 45° left
- Voltage: 230V
- Hertz: 50Hz/60Hz
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 16.8 lb x 16.8 lb
Metric: 67.06 cm x 42.67 cm x 42.67 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Pumps for liquids, nes; for pumps fitted with a measuring device. This harmonized code applies as the pump is designed for sanitary, industrial pumping of various liquids.
