3D Systems ProCure 350 UV Chamber Post-Processing for SLA Parts VG
3D Systems
Details
-
CategoryOther
-
Dimension27.0in x 38.0in x 38.0in
-
Serial5959-2
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

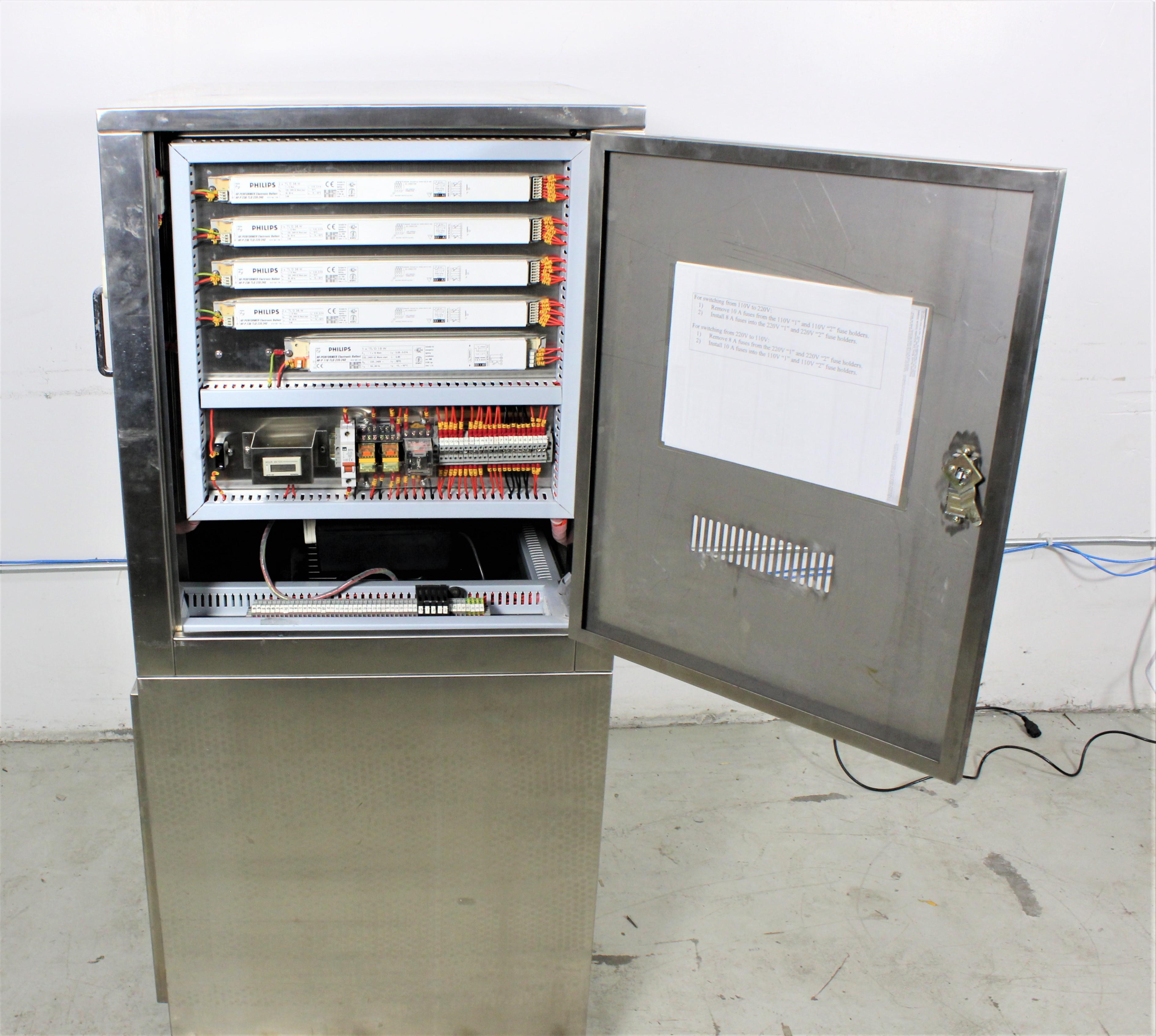

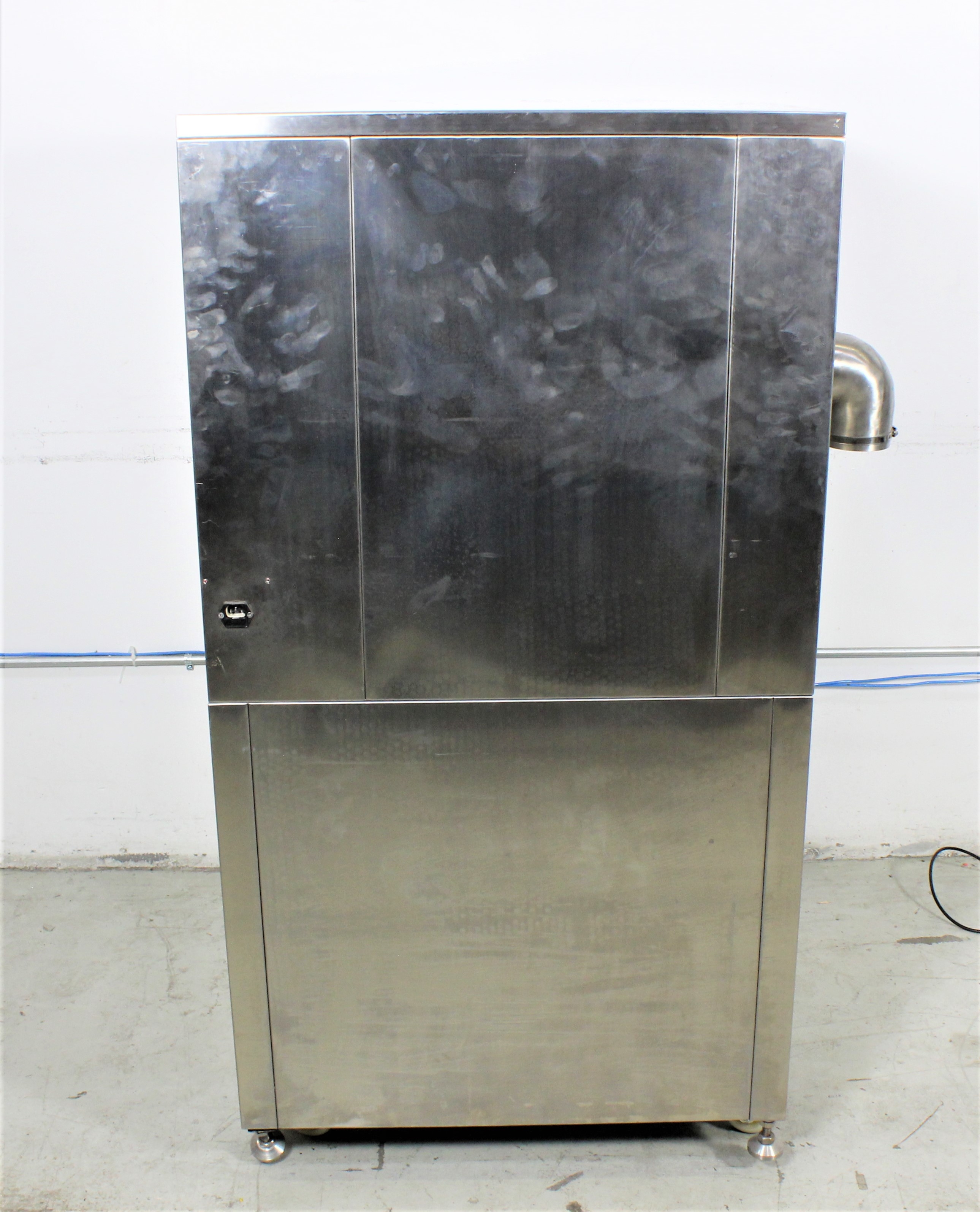

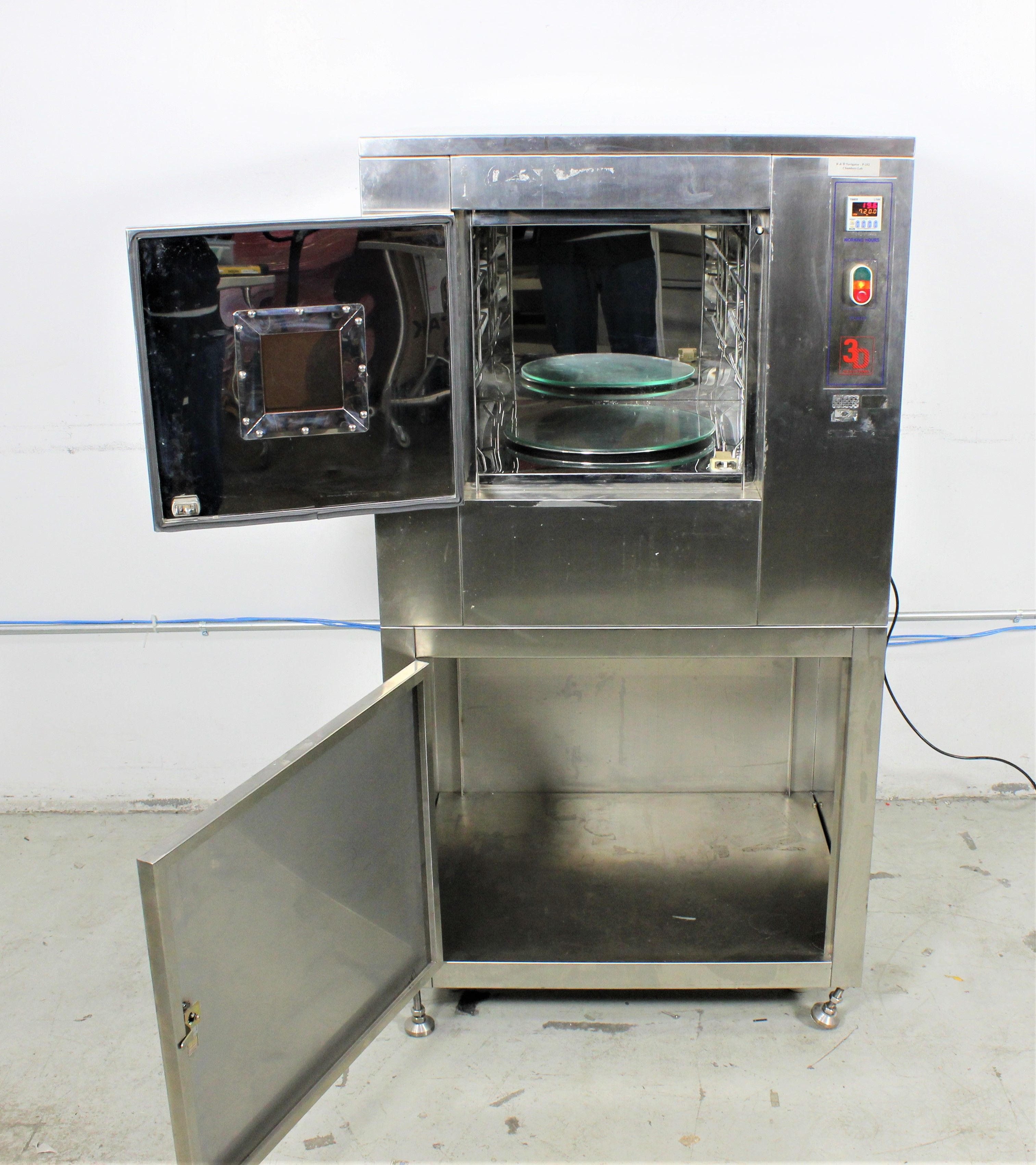

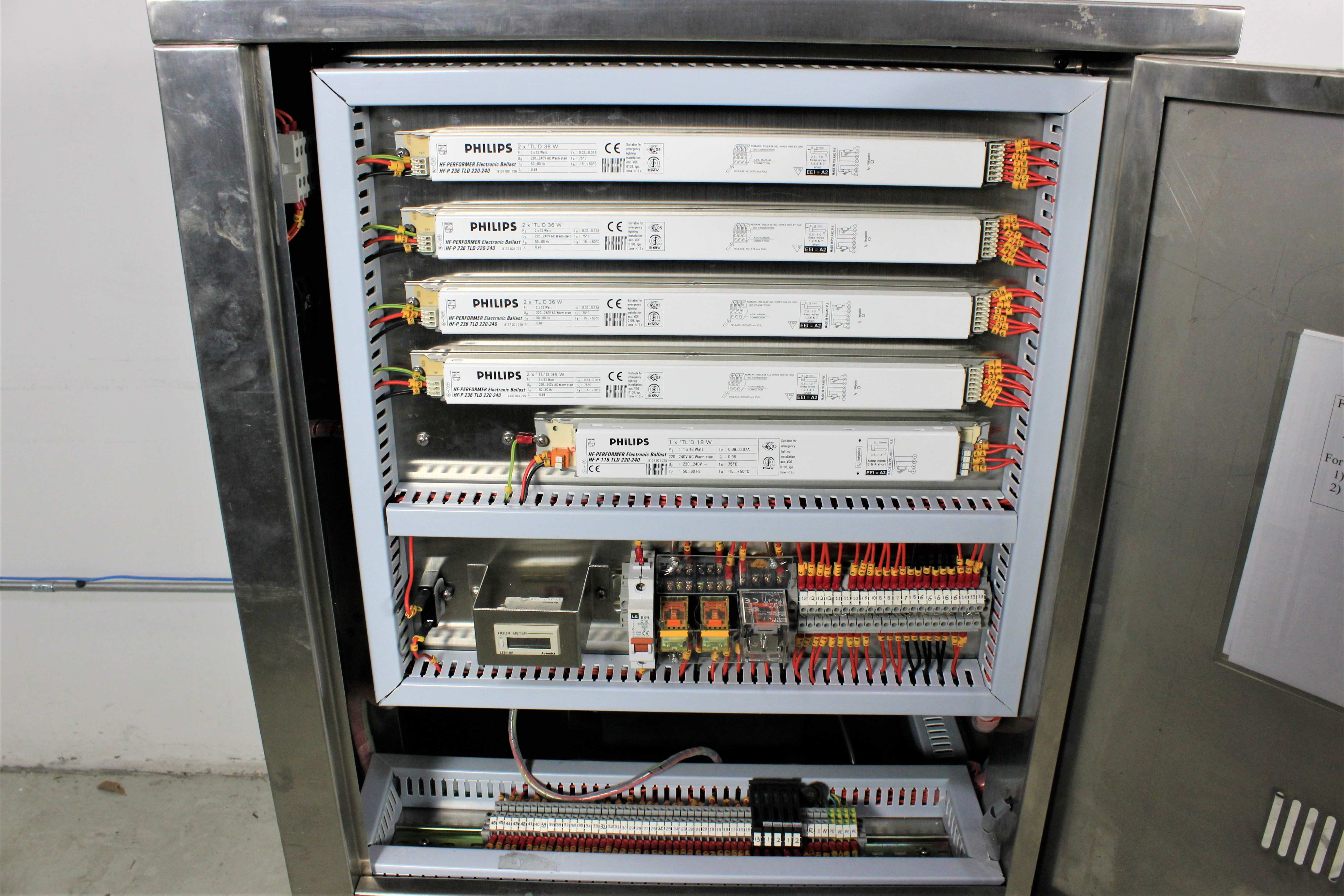

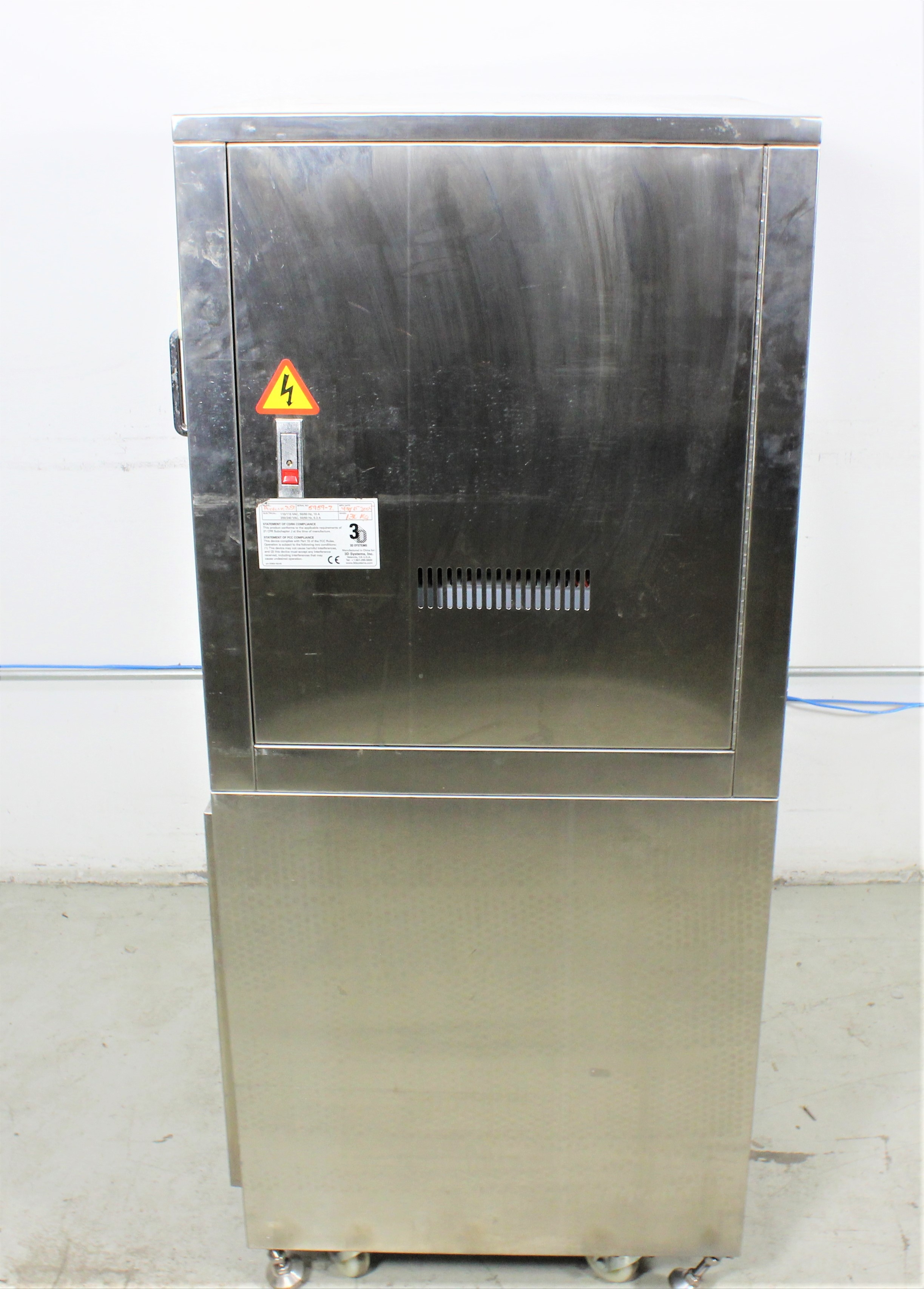

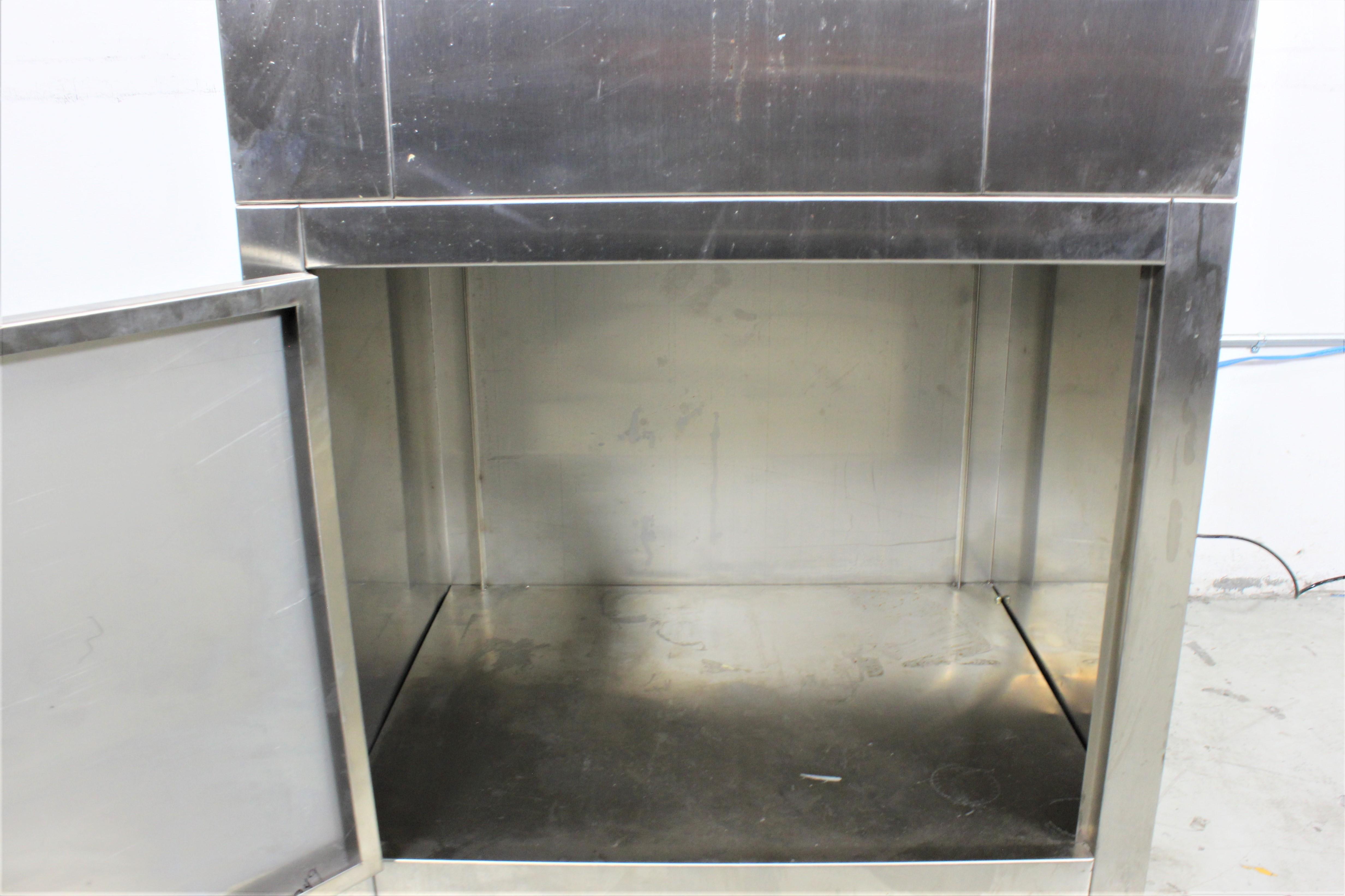

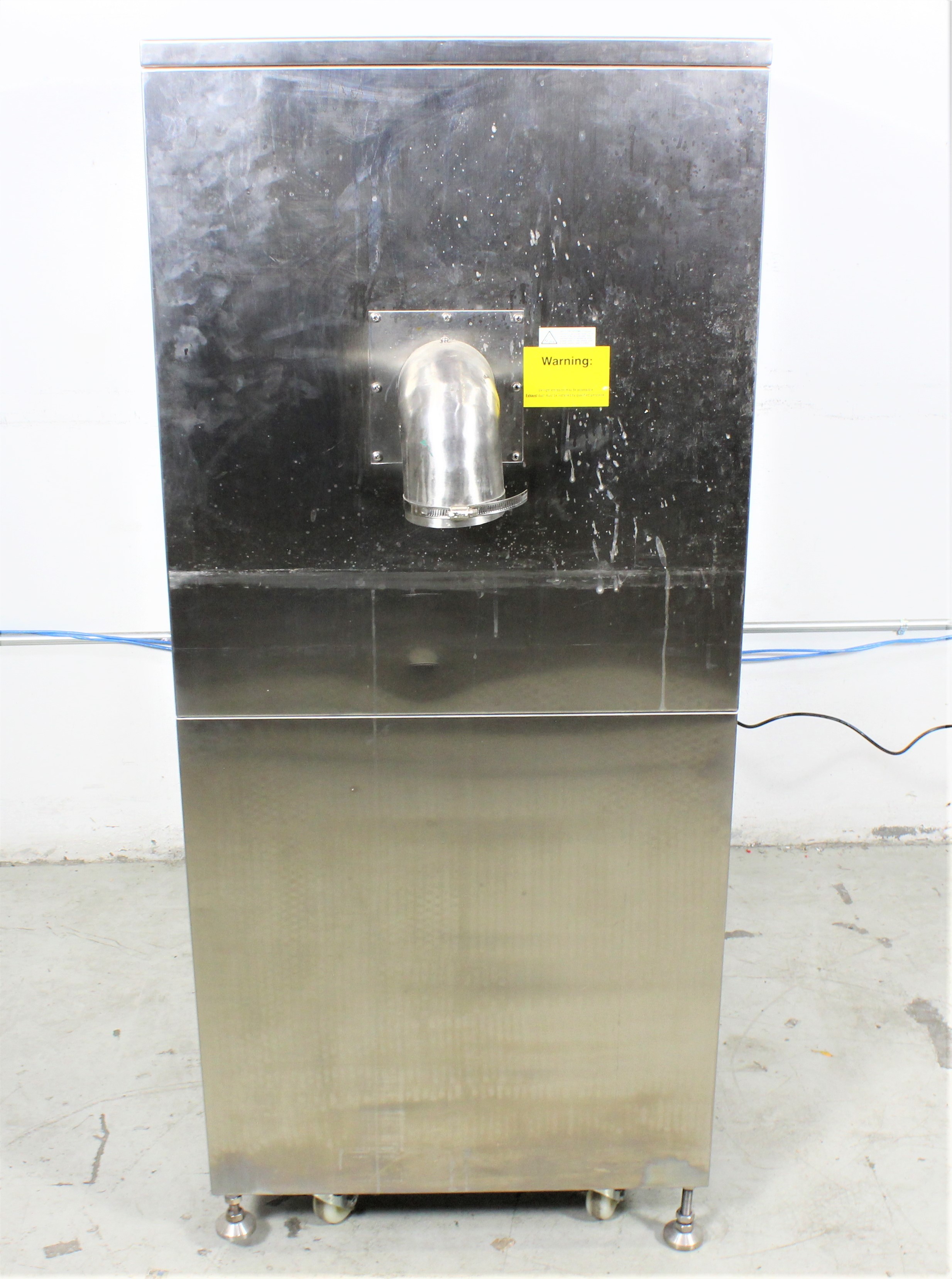

The 3D Systems ProCure 350 UV Chamber is a vital tool for final curing of SLA parts. In this post-processing step, the chamber utilizes ultraviolet (UV) light to ensure complete and uniform curing. Equipped with an array of UV lamps and reflective surfaces, it allows parts to be rotated on a turntable at one RPM, providing consistent exposure to UV light. This used unit, in very good condition, includes a front loading door measuring 40 x 36.8 cm and a viewing window for easy monitoring. Other key features include TLK 30W / 10 actinic fluorescent bulbs, operating at a wavelength range of 300 nm to 460 nm, for effective performance in parts curing. With compact dimensions and effective curing technology, the ProCure 350 is a practical addition to any 3D printing lab.
Key Features
- UV curing chamber for SLA parts
- Uniform exposure with rotating turntable
- TLK 30W actinic fluorescent bulbs
- Compact and efficient design
- Operating wavelengths: 300 nm to 480 nm
Specifications
- Front Loading Door: 40 x 36.8 cm (15.75 x 14.5 in.)
- Viewing Window: 10.9 x 10.9 cm (4.31 x 4.31 in.)
- Turntable Speed: 1 RPM
- Turntable Platen Diameter: 35.8 cm (14.1 in.)
- UV Source Type: TLK 30W / 10 actinic fluorescent bulbs
- Wavelength: 300 nm to 460 nm
Weight
Imperial: 344.4 Pounds
Metric: 156.22 Kilograms
Shipping Dimensions
Imperial: 32.4 lb x 45.6 lb x 45.6 lb
Metric: 82.3 cm x 115.82 cm x 115.82 cm
Harmonized Code
902790
Harmonized Code Details
Harmonized code 902790 applies to scientific instruments for various uses, including those in 3D printing and post-processing applications. This code was chosen based on the functionality of the UV curing chamber as specialized laboratory equipment.
