NuAire Direct Heat CO2 Microbiological Incubator NU-5820 (this is a single unit)

NuAire Direct Heat CO2 Microbiological Incubator NU-5820 (this is a single unit)

Name: NuAire Direct Heat CO2 Microbiological Incubator NU-5820 (this is a single unit)
Brand: NuAire
SKU: 3374344
Price: 2500 USD
Availability: InStock

sku: 3374344

1 In Stock

Condition : Pre-owned

Warranty : 30-Day Warranty, 100% Parts and Labor

Region : US

$2,500.00

Apply For Finance

Make Offer

Enquiry Here

Make NuAire
Hertz 50Hz/60Hz
Model NU-5820
Serial 16196022614
Weight 275
Voltage 120V
Working Working
Includes Power Cord
Warranty 30-Day Warranty, 100% Parts and Labor
Dimensions 32×31×48 in
Shipping Type Freight
Item Condition Pre-owned
Manufacturing Date 2014

NuAire Direct Heat CO2 Microbiological Incubator NU-5820

(this is a single unit)

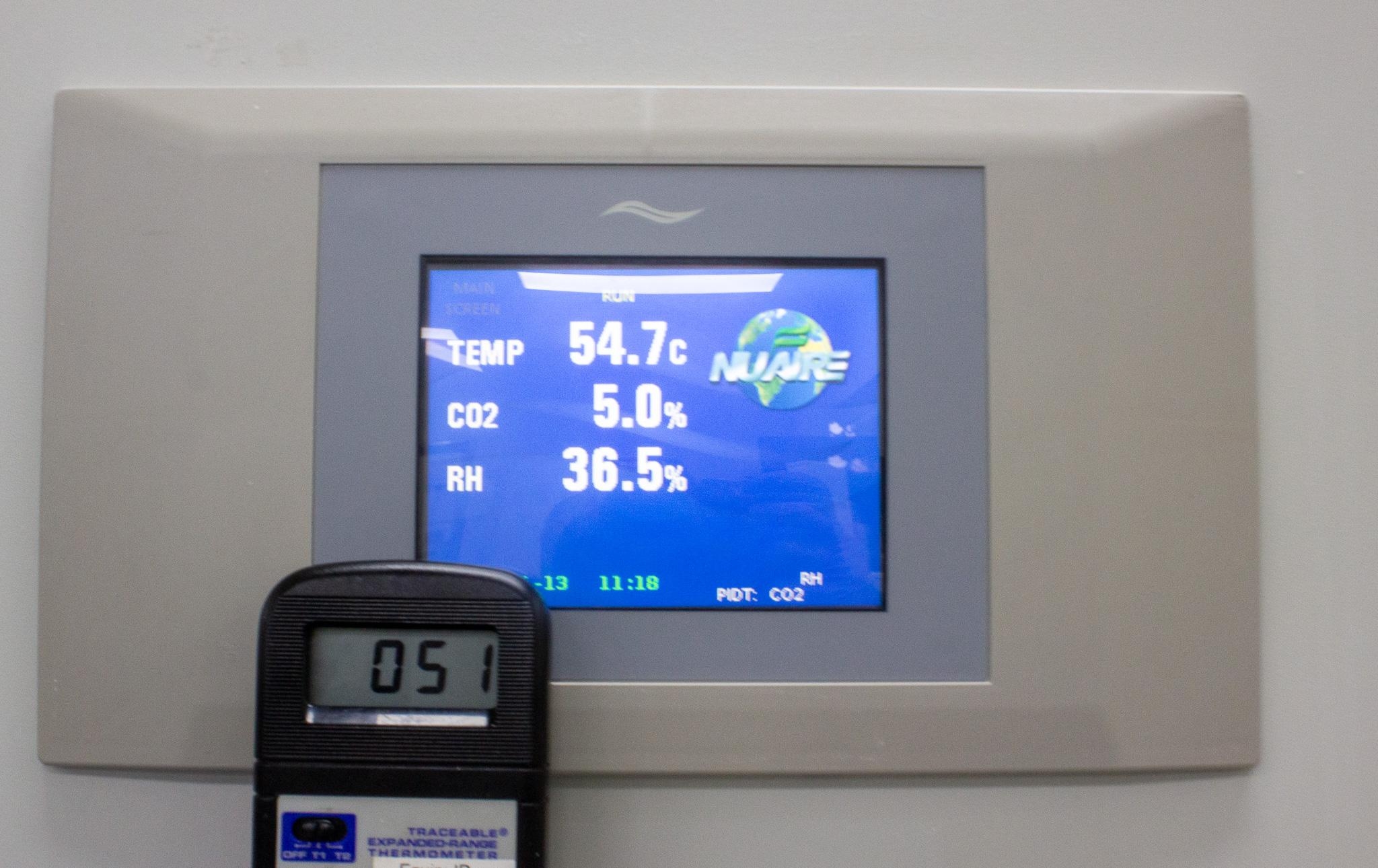

***Co2 incubator was tested to specifications. Unit preowned in excellent cosmetic condition. 30-day warranty included with purchase. See photos for details.

The In-VitroCell ES NU-5820 Microbiological CO₂ Incubator features relative humidity (RH) control for cell lines prone to desiccation by utilizing a sensor that measures humidity in the chamber and injects 99.99% HEPA filtered vapor into the growth chamber to maintain setpoint.

Overview

The In-VitroCell CO₂ Incubator model NU-5820 features humidity control through a relative humidity (RH) sensor and a water reservoir to minimize cell desiccation. The RH sensor monitors humidity levels in the growth chamber. When humidity is needed to maintain, setpoint vapor is injected into the chamber from the water reservoir. In addition, model NU-5820 comes standard with a 200-liter capacity, dual decontamination cycles, and a dual wave single source infrared (IR) sensor. In-VitroCell NU-5820 creates optimal cell growth conditions and is the perfect solution for cell lines prone to desiccation.

Optimal Growth Conditions with Effortless Relative Humidity Control

Achieve optimal growth conditions with our advanced product feature: Relative humidity levels of up to 90% can be effortlessly attained in the growth chamber. This is made possible by utilizing a 3-liter reservoir located externally to the chamber. The chamber air is intelligently directed through an evaporate box, where it comes into contact with water vapor-saturated air. This process ensures that humidity levels are adjusted accordingly, based on the feedback provided by the RH sensor. Experience the perfect balance of science and user-friendliness with our innovative solution.

Simplified Precision: NuTouch Control System

The NuTouch control system offers an intuitive and efficient user experience, designed with your ease and convenience in mind. With this advanced interface, you can effortlessly adjust set points, access chamber history, initiate a decontamination cycle, or carry out calibration procedures. What's more, all NuAire CO2 incubators feature the NuTouch control system, ensuring a consistent and seamless experience across multiple units in your laboratory. Your journey with our incubators just got smarter and more user-friendly.

Cutting-Edge Dual Wave Infrared (IR) Sensor

Our state-of-the-art CO2 control system utilizes a sophisticated dual-wave infrared (IR) sensor that's specifically designed to maintain the perfect pH levels within the growth chamber. This sensor operates at wavelengths that are selectively absorbed solely by CO2, ensuring that measurements remain unaffected by other elements like water vapor. Its advanced design guarantees a stable output, greatly reducing the need for frequent calibrations. With this technology, your experiments can thrive in the most precise and controlled environment.

Specifications:

CO2 Control

CO2 Accuracy	± 0.1%
CO2 Control Logic	Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution	0.1%
CO2 Range	0.1 to 20%, 5% Default Set Point
CO2 Recovery	Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type	Infrared (NDIR)

Dimensions

Exterior Depth Inches (mm)	27.188 (691)
Exterior Height Inches (mm)	39.688 (1008)
Exterior Width Inches (mm)	26.750 (680)
Footprint Depth inches (mm)	20.75 (527)
Footprint Width inches (mm)	23.75 (603)
Interior Depth Inches (mm)	20.053 (509)
Interior Height Inches (mm)	28.500 (724)
Interior Volume Cubic Feet (Liters)	7.06 (200)
Interior Width Inches (mm)	21.257 (540)

Relative Humidity Display and Control

RH Accuracy	± 3%
RH Control Logic	Fixed algorithm/manual environmental adaptable
RH Control Range	Ambient dependent to 90%
RH Display Resolution	0.1%
RH Recovery	90% +5%/-3% within 25 minutes on average
RH Sensor Type	Precision capacitance bulk-polymer

Temperature Control

Door and Perimeter Heater Control Logic	Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C	± 0.1%
Temperature Control	Direct Heat
Temperature Control Range	5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution	0.1°C
Temperature Recovery	0.12°C/min. on Average
Temperature Sensor Type	Precision Integrated Circuit
Temperature Set-Point Range	5°C to 55°C (37.0°C Default)
Temperature Uniformity °C	± 0.35°C @ 37°C
