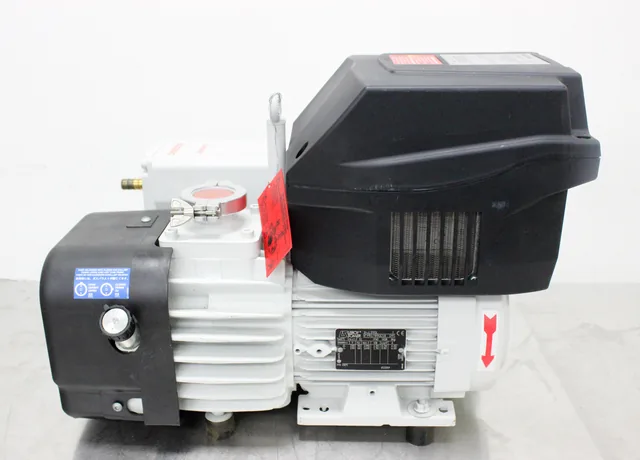

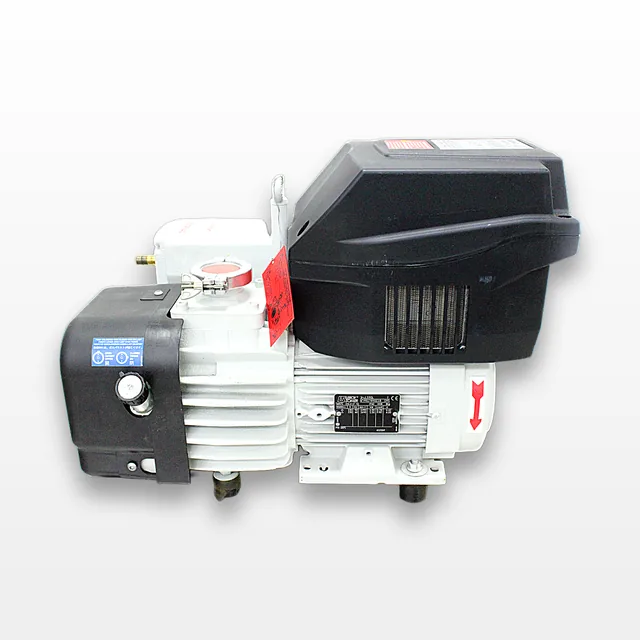

Leybold Sogevac SV65BIFC Vacuum Pump 230V 39/47 m3/h
leybold
Details
-
CategoryPump
-
Dimension20.0in x 13.0in x 14.0in
-
Serial31001712043
-
Shipping TypeFreight
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Leybold Sogevac SV65BIFC is a single-stage, oil-sealed rotary vane vacuum pump, known for its compact design and high performance. This model, manufactured by Leybold, operates at 230V and offers a rated pumping speed of 39/47 m3/h. It features a very low and constant noise level, making it ideal for various industrial applications such as vacuum packaging, degassing, and freeze drying. The pump has been tested to specifications, achieving a vacuum level of 0.061 mbar, and shows light-to-moderate cosmetic wear from previous use. Its integrated functions and simplified maintenance make it a reliable choice for rough vacuum applications.
Technician comment
SOGEVAC was tested to specifications, achieving a vacuum level of 0.061 mbar on our pressure gauge. Unit shows normal cosmetic wear from previous use. See photos for details.
Key Features
- Single-stage oil-sealed design
- Compact and space-saving
- Low noise level
- Integrated lubrication circuits
- Customizable configurations
Specifications
- Voltage: 230V
- Hertz: 50Hz/60Hz
- Noise level: 60/64 dB(A)
- Oil volume: 2.0 l
- Rated pumping speed: 39/47 m3/h
- Ultimate pressure with gas ballast: < 1.5 mbar
- Ultimate pressure without gas ballast: < 0.5 mbar
- Water vapor tolerance: 30 mbar
- Weight: 49 kg
Weight
Imperial: 152.4 Pounds
Metric: 69.13 Kilograms
Shipping Dimensions
Imperial: 24.0 in x 15.6 in x 16.8 in
Metric: 60.96 cm x 39.62 cm x 42.67 cm
Harmonized Code
841410
Harmonized Code Details
Vacuum pumps; suitable for use in various industrial applications such as vacuum packaging and degassing, providing efficient and reliable vacuum generation.
